Product Info

• Faster measurement with 2mm per revolution instead of the standard 0.5mm.
• A patented ratchet thimble mechanism helps ensure repeatability.
• A function lock helps prevent errors.
• IP65 protection level for excellent resistance against water and dust.
• Certificate of inspection is provided.
• Supplied in a fitted plastic case.

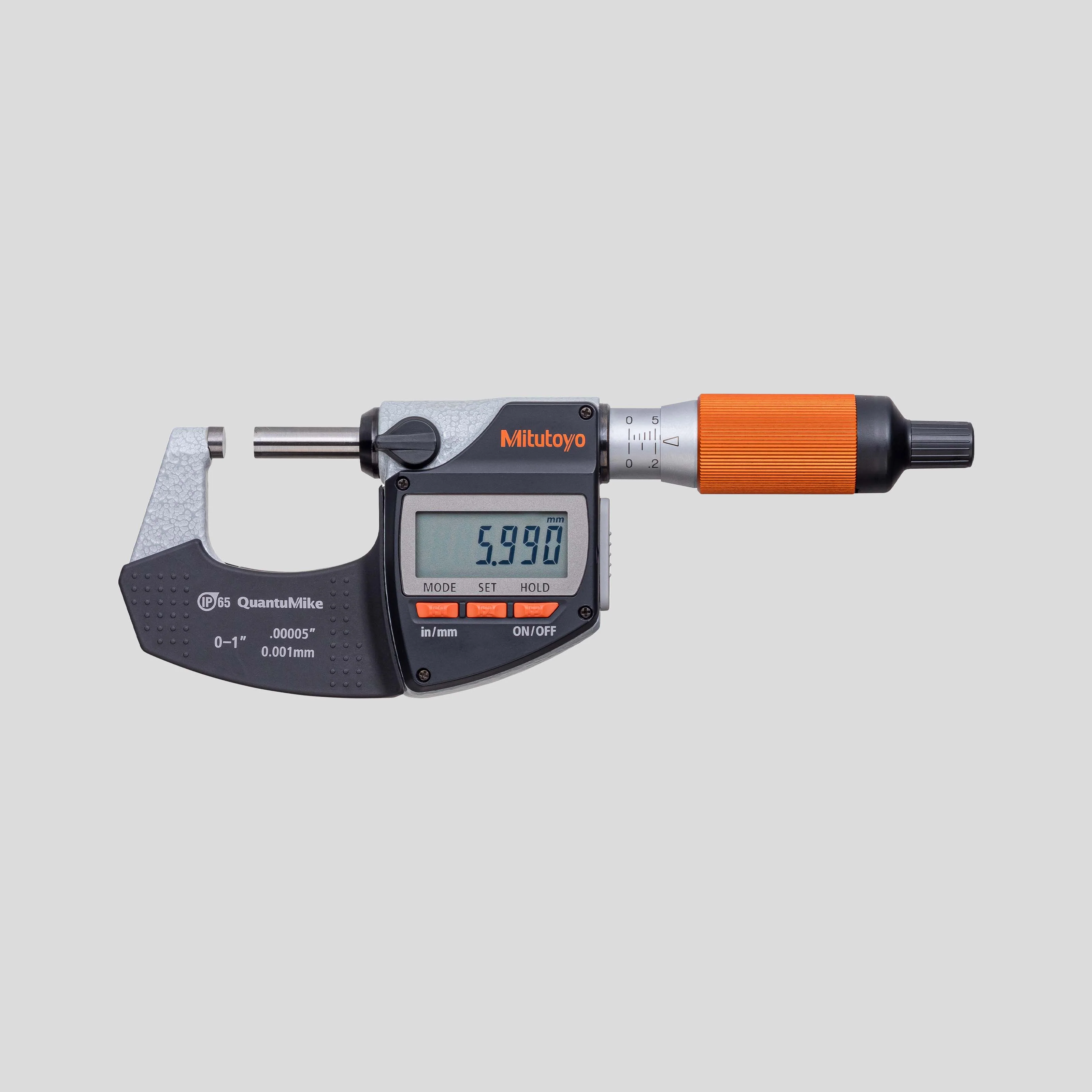

#01in

Technical Data

• Measuring range: 0-1" (0-25.4mm)
• Resolution: 0.00005" (0.001mm)
• Accuracy: ±0.00005" (±1µm)
• Flatness: 0.000012" (0.3µm)
• Parallelism: 0.00004" (1µm)
• Measuring faces: Carbide tipped
• Display: LCD
• Battery: SR44 (1 pc.), 938882
• Battery life: Approx. 2.4 years under normal use
• Dust/Water protection level: IP65

#12in

Technical Data

• Measuring range: 1-2" (25.4-50.8mm)
• Resolution: 0.00005" (0.001mm)
• Accuracy: ±0.00005" (±1µm)
• Flatness: 0.000012" (0.3µm)
• Parallelism: 0.00004" (1µm)
• Measuring faces: Carbide tipped
• Display: LCD
• Battery: SR44 (1 pc.), 938882
• Battery life: Approx. 2.4 years under normal use
• Dust/Water protection level: IP65

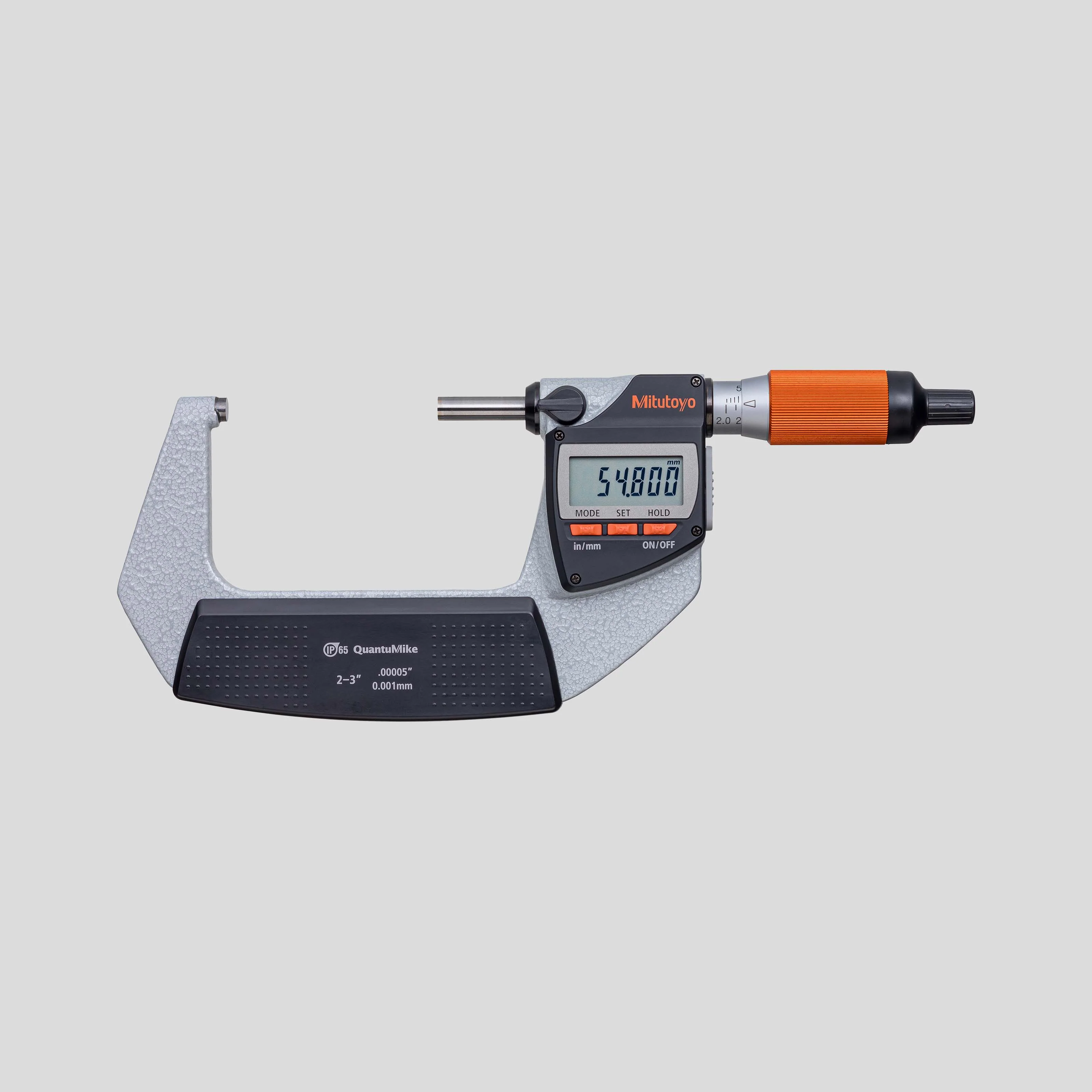

#23in

Technical Data

• Measuring range: 2-3" (50.8-76.2mm)
• Resolution: 0.00005" (0.001mm)
• Accuracy: ±0.00005" (±1µm)
• Flatness: 0.000012" (0.3µm)
• Parallelism: 0.00008" (2µm)
• Measuring faces: Carbide tipped
• Display: LCD
• Battery: SR44 (1 pc.), 938882
• Battery life: Approx. 2.4 years under normal use
• Dust/Water protection level: IP65

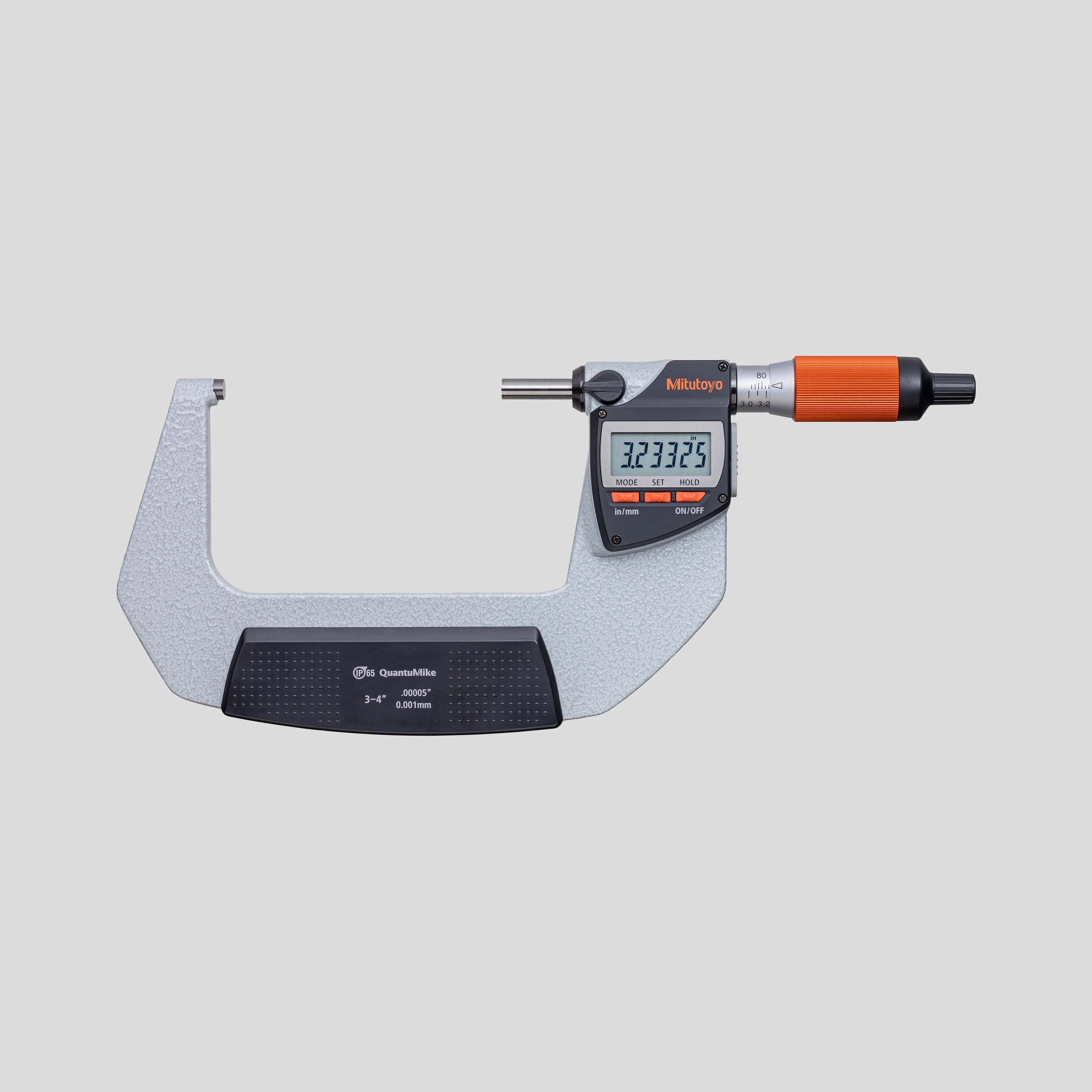

#34in

Technical Data

• Measuring range: 3-4" (76.2-101.6mm)
• Resolution: 0.00005" (0.001mm)
• Accuracy: ±0.00005" (±1µm)
• Flatness: 0.000012" (0.3µm)
• Parallelism: 0.00008" (2µm)
• Measuring faces: Carbide tipped
• Display: LCD
• Battery: SR44 (1 pc.), 938882
• Battery life: Approx. 2.4 years under normal use
• Dust/Water protection level: IP65
