Product Details

• Vernier scale in inch units for precise outside diameter (OD) measurements
• Ratchet-stop mechanism applies uniform pressure for repeatable readings
• Baked enamel frame for durability and protection
• Satin chrome thimble & sleeve reduce glare and resist rust
• Carbide-faced spindle and anvil for wear resistance
• Rotating Spindle: No
• Finish / Coating: Hammertone baked enamel
• Digital Counter: No

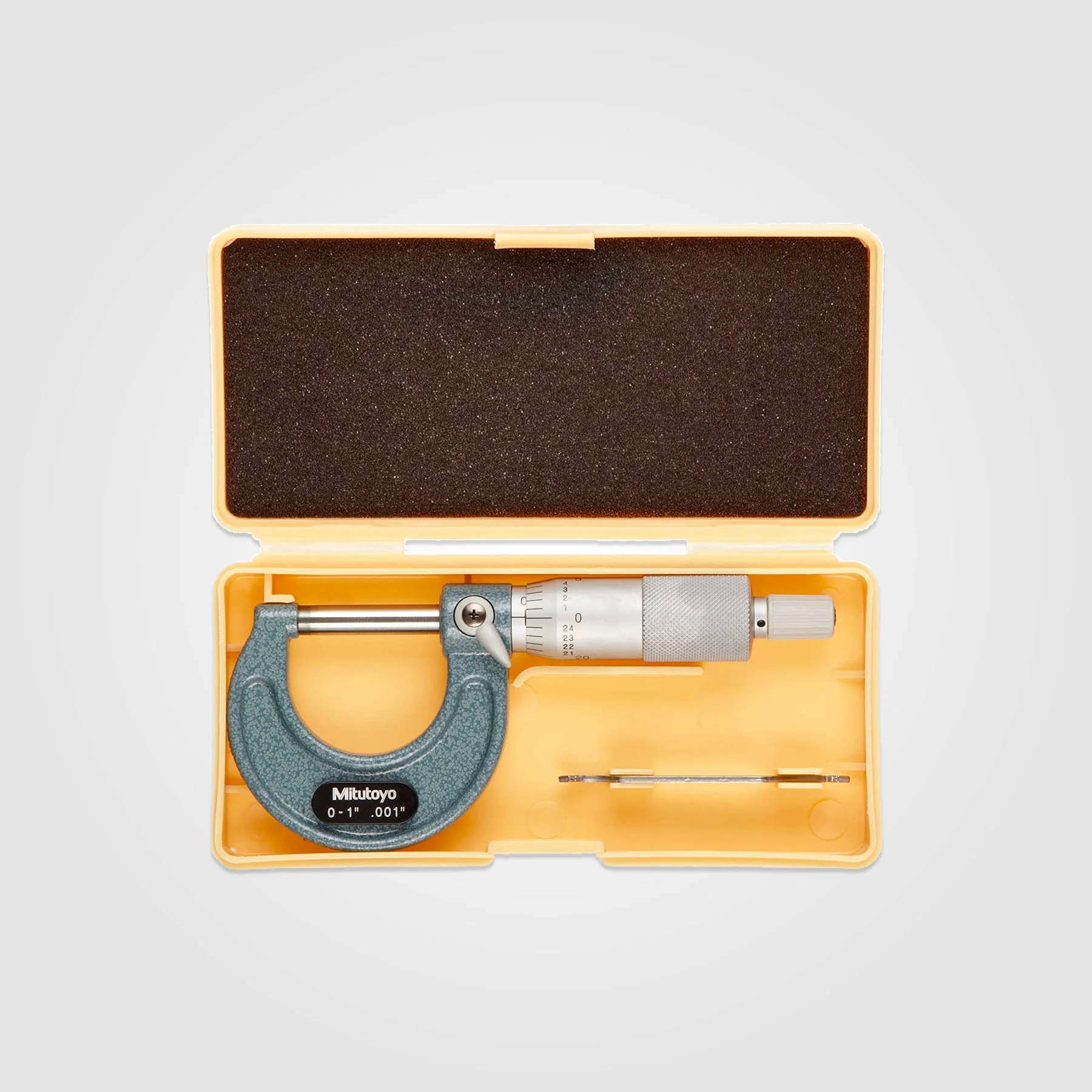

#01in

Technical Data

Minimum Measurement	0 in
Maximum Measurement	1 in
Graduation	0.001 in
Accuracy	±0.0001 in

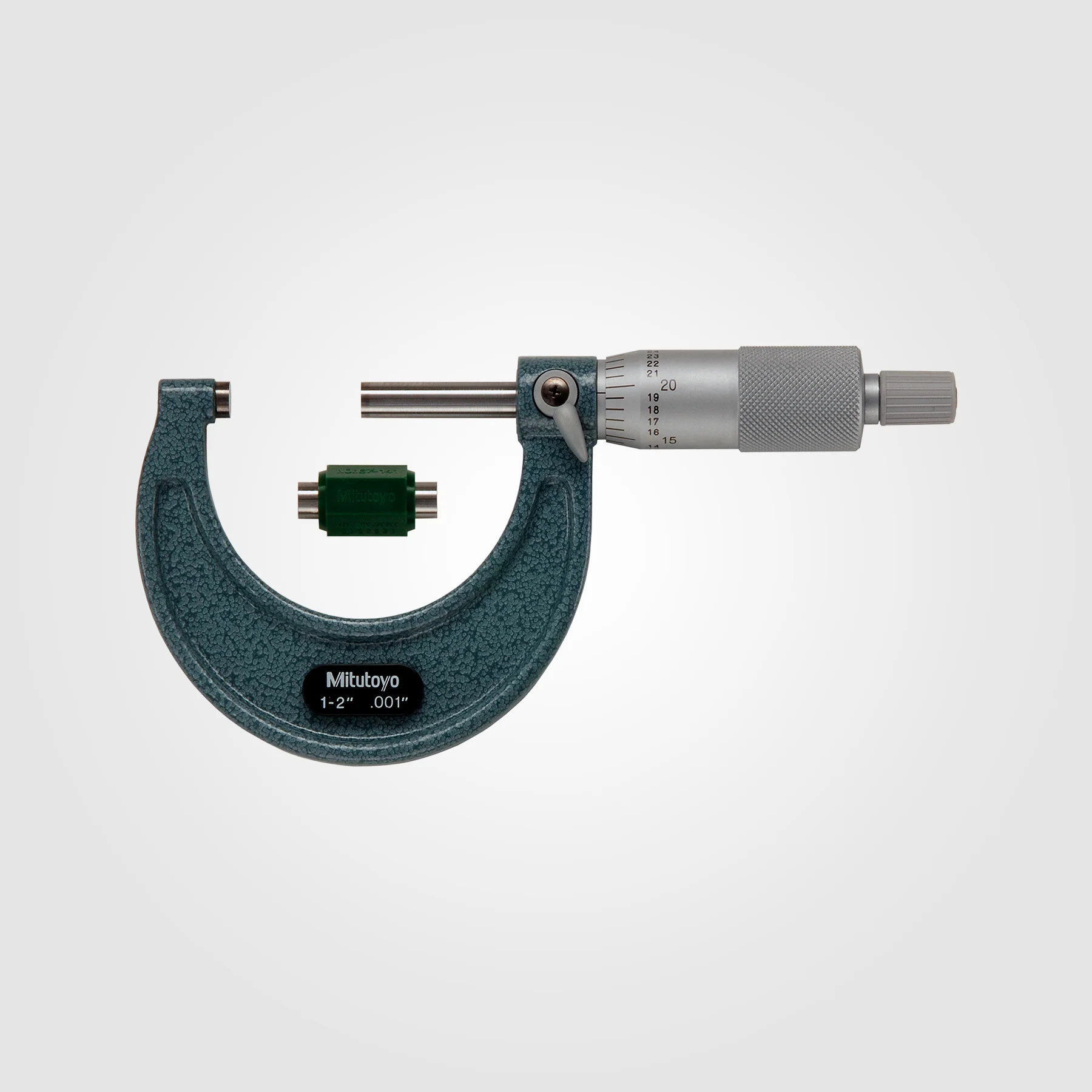

#12in

Technical Data

Minimum Measurement	1 in
Maximum Measurement	2 in
Graduation	0.001 in
Accuracy	±0.0001 in

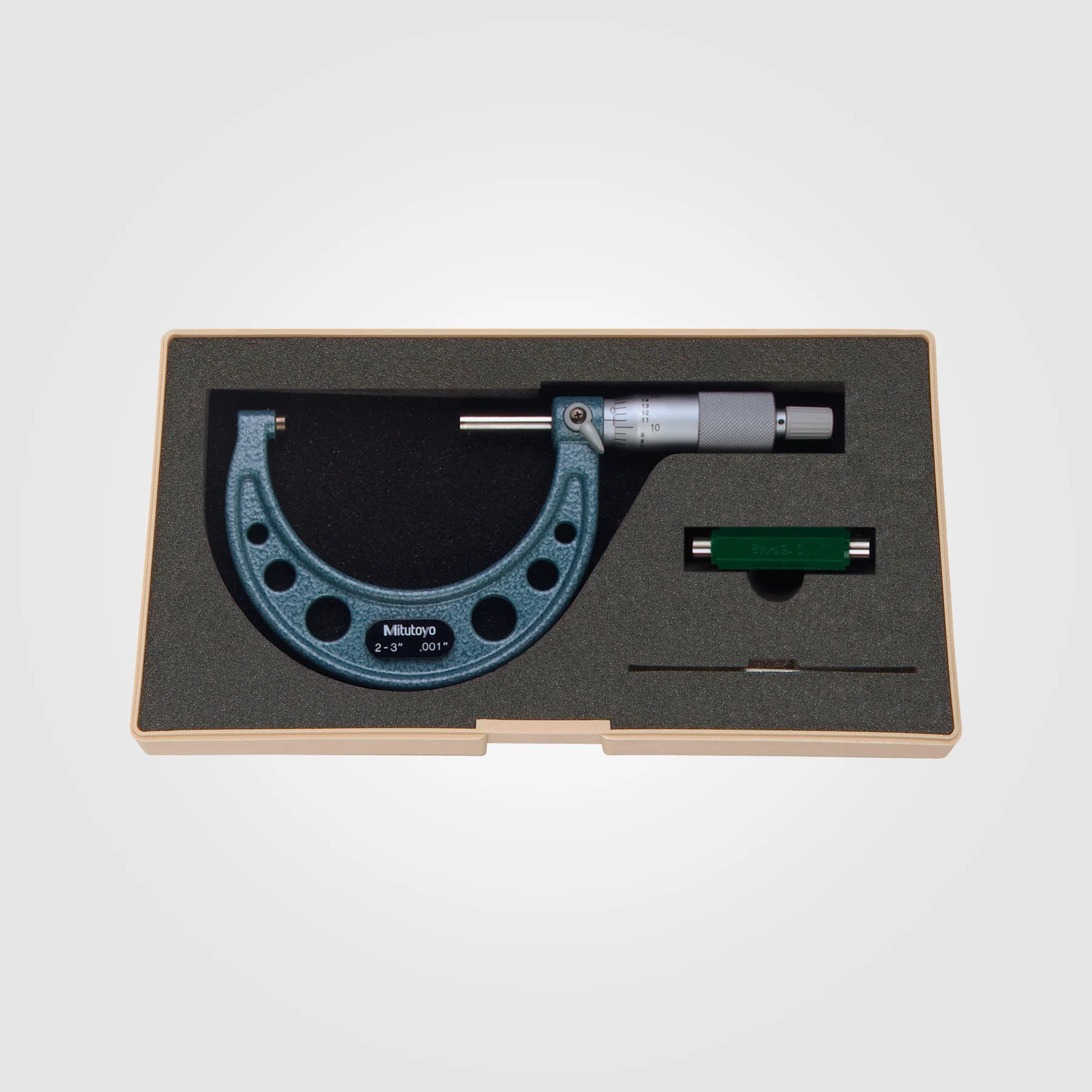

#23in

Technical Data

Minimum Measurement	2 in
Maximum Measurement	3 in
Graduation	0.001 in
Accuracy	±0.0001 in

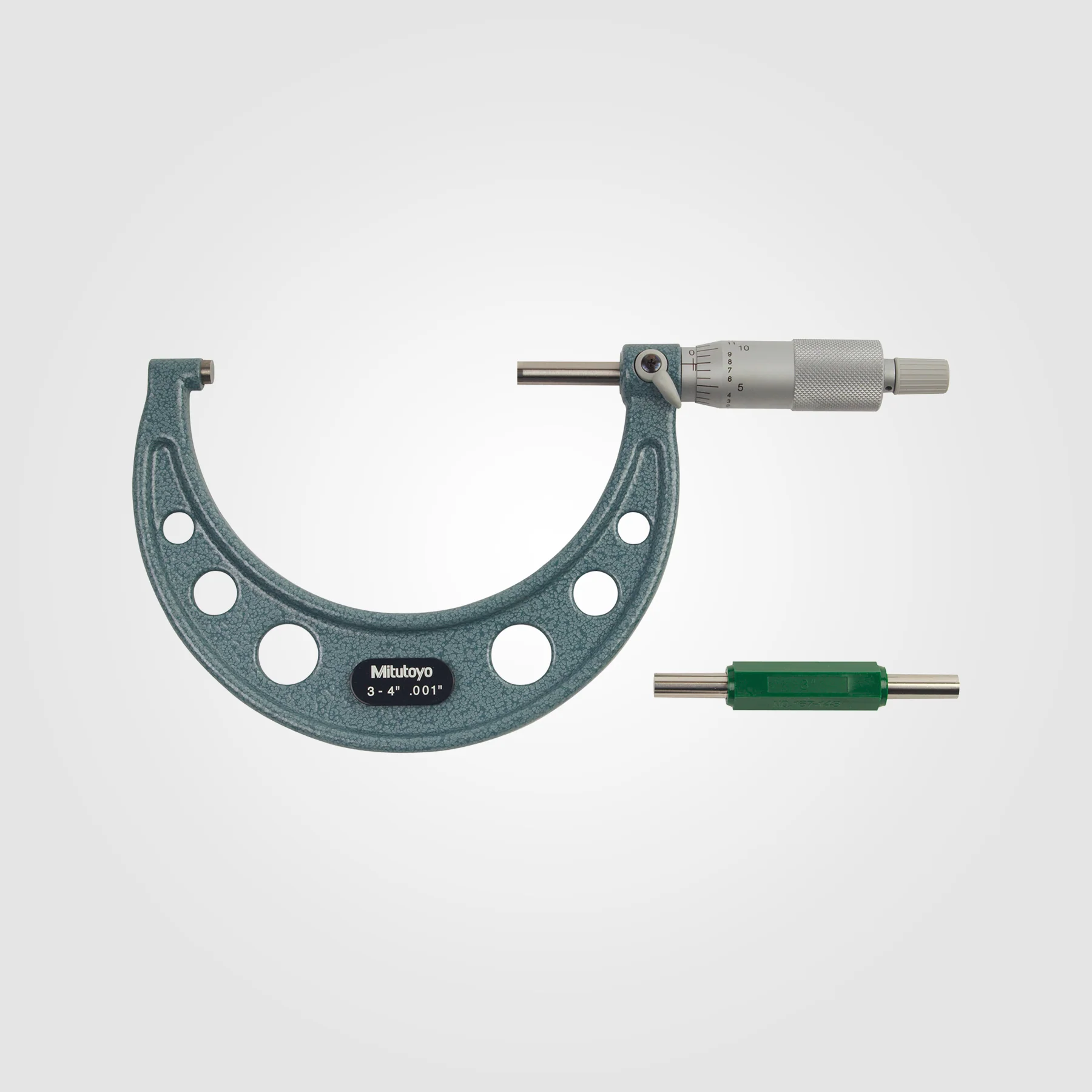

#34in

Technical Data

Minimum Measurement	3 in
Maximum Measurement	4 in
Graduation	0.001 in
Accuracy	±0.00015 in

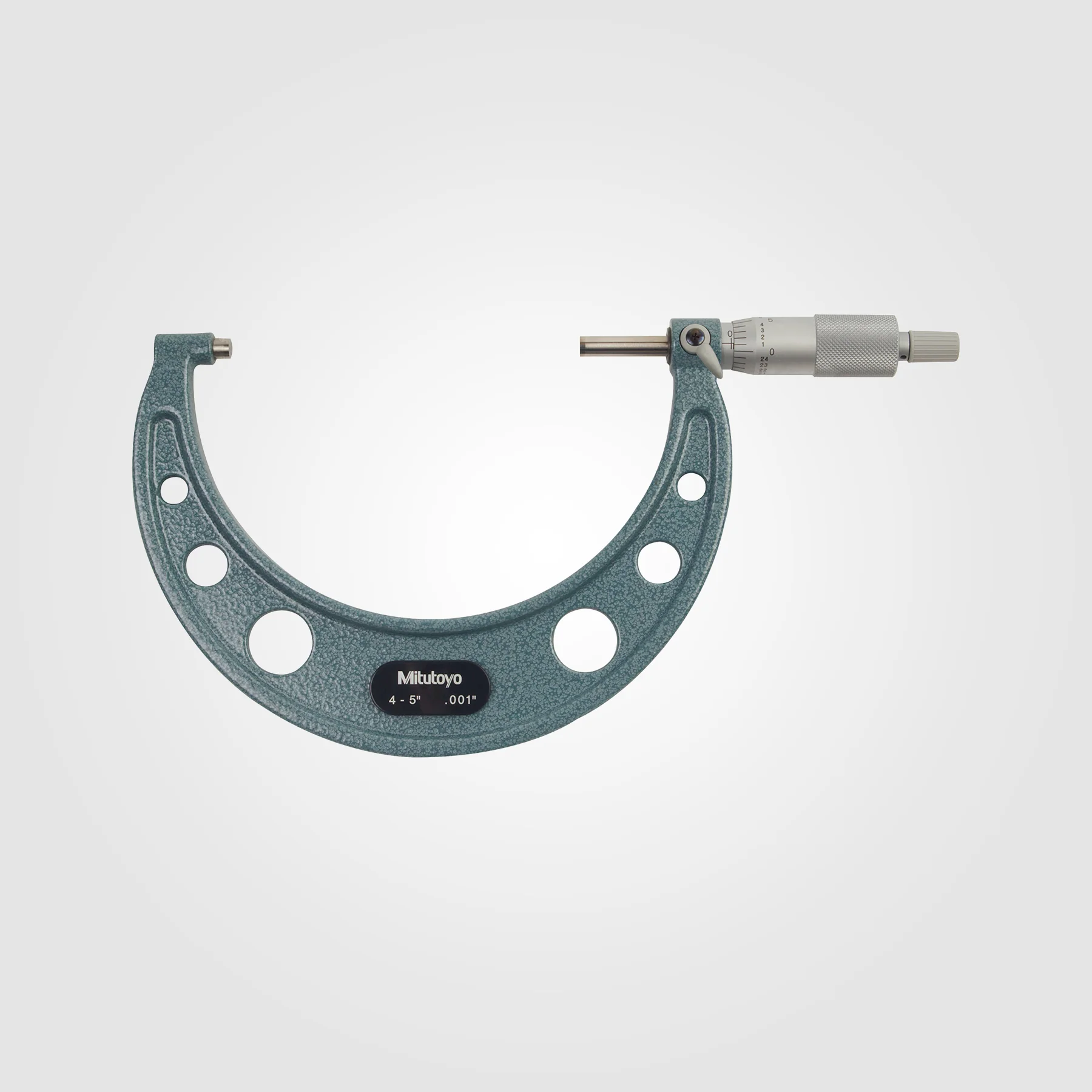

#45in

Technical Data

Minimum Measurement	4 in
Maximum Measurement	5 in
Graduation	0.001 in
Accuracy	±0.00015 in

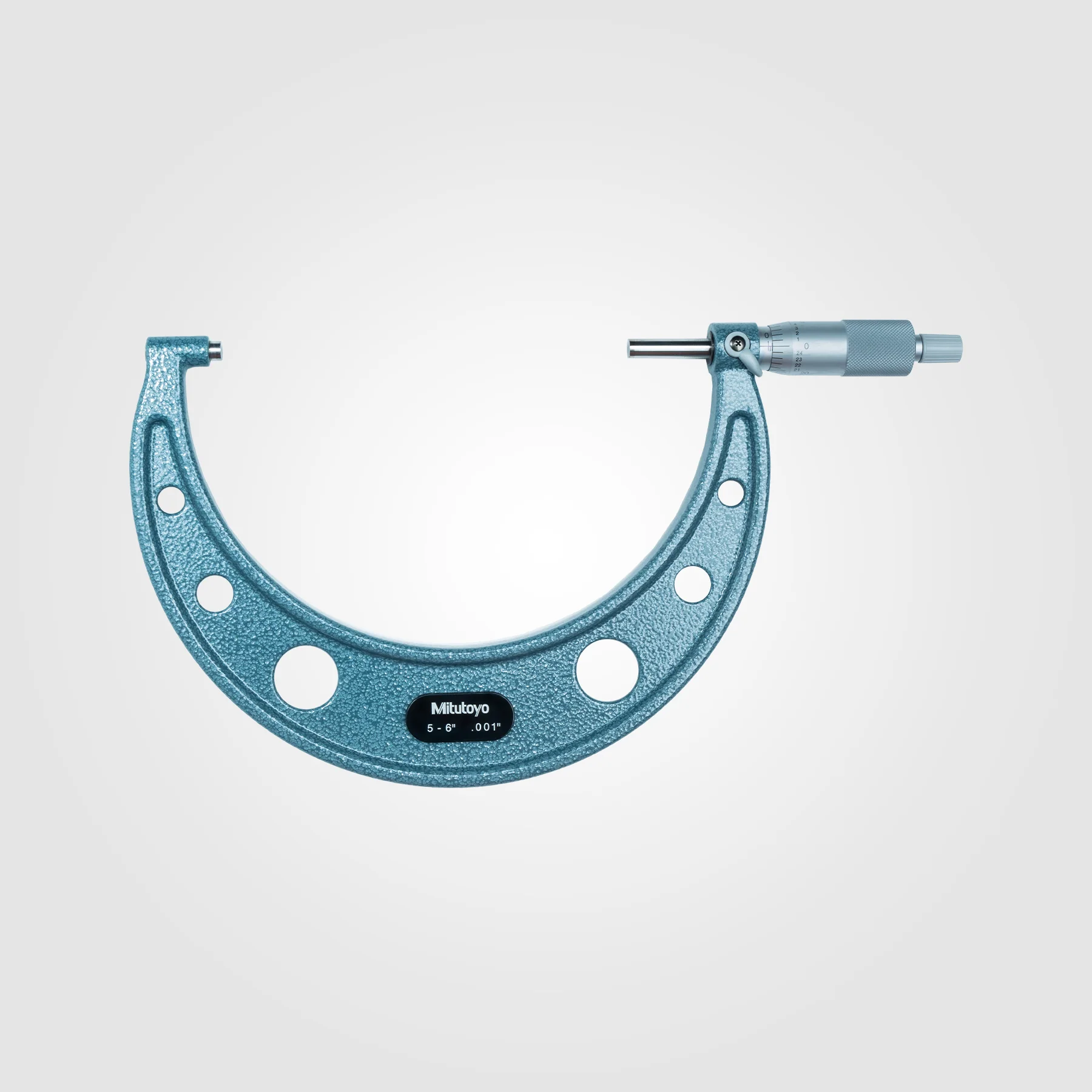

#56in

Technical Data

Minimum Measurement	5 in
Maximum Measurement	6 in
Graduation	0.001 in
Accuracy	±0.00015 in

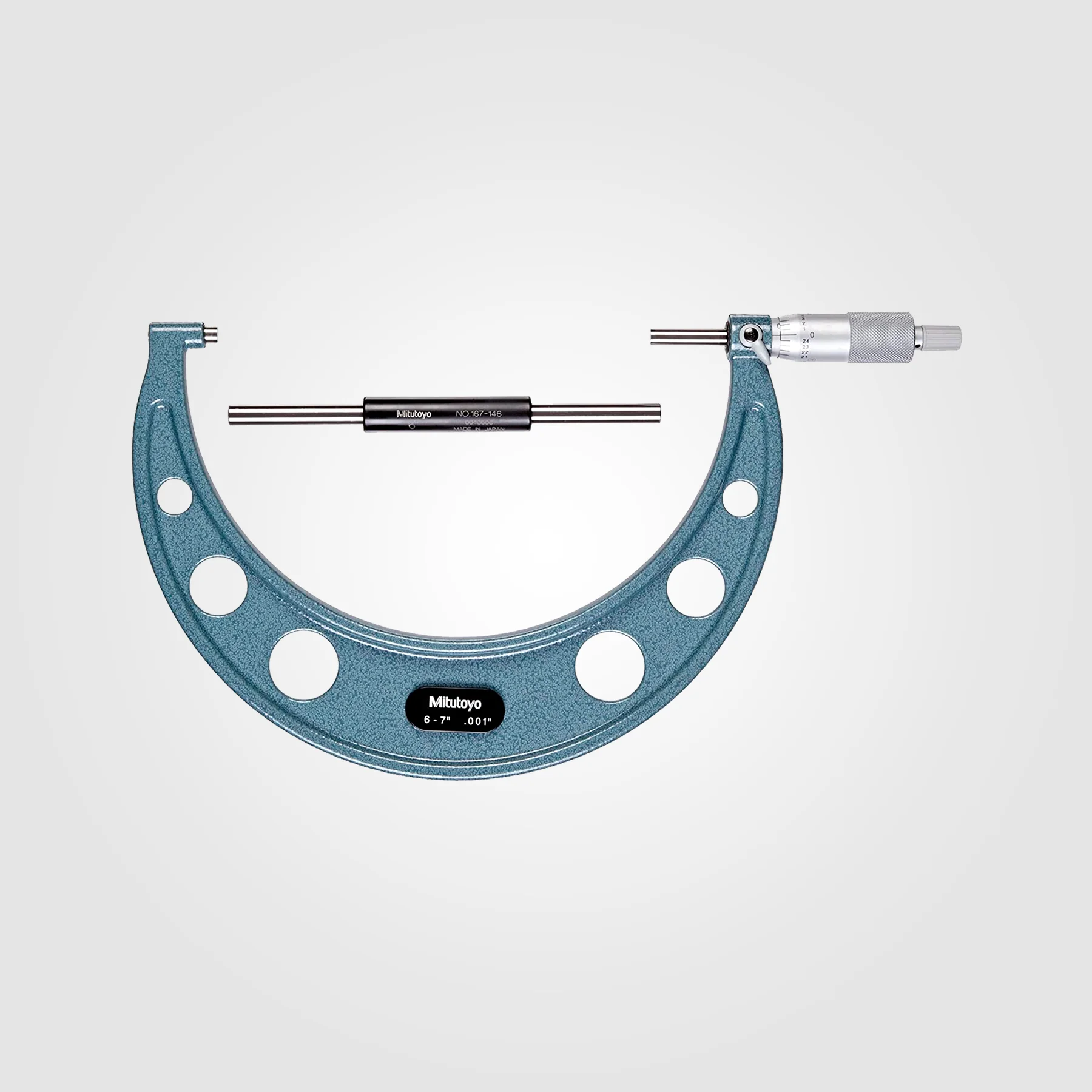

#67in

Technical Data

Minimum Measurement	6 in
Maximum Measurement	7 in
Graduation	0.001 in
Accuracy	±0.0002 in

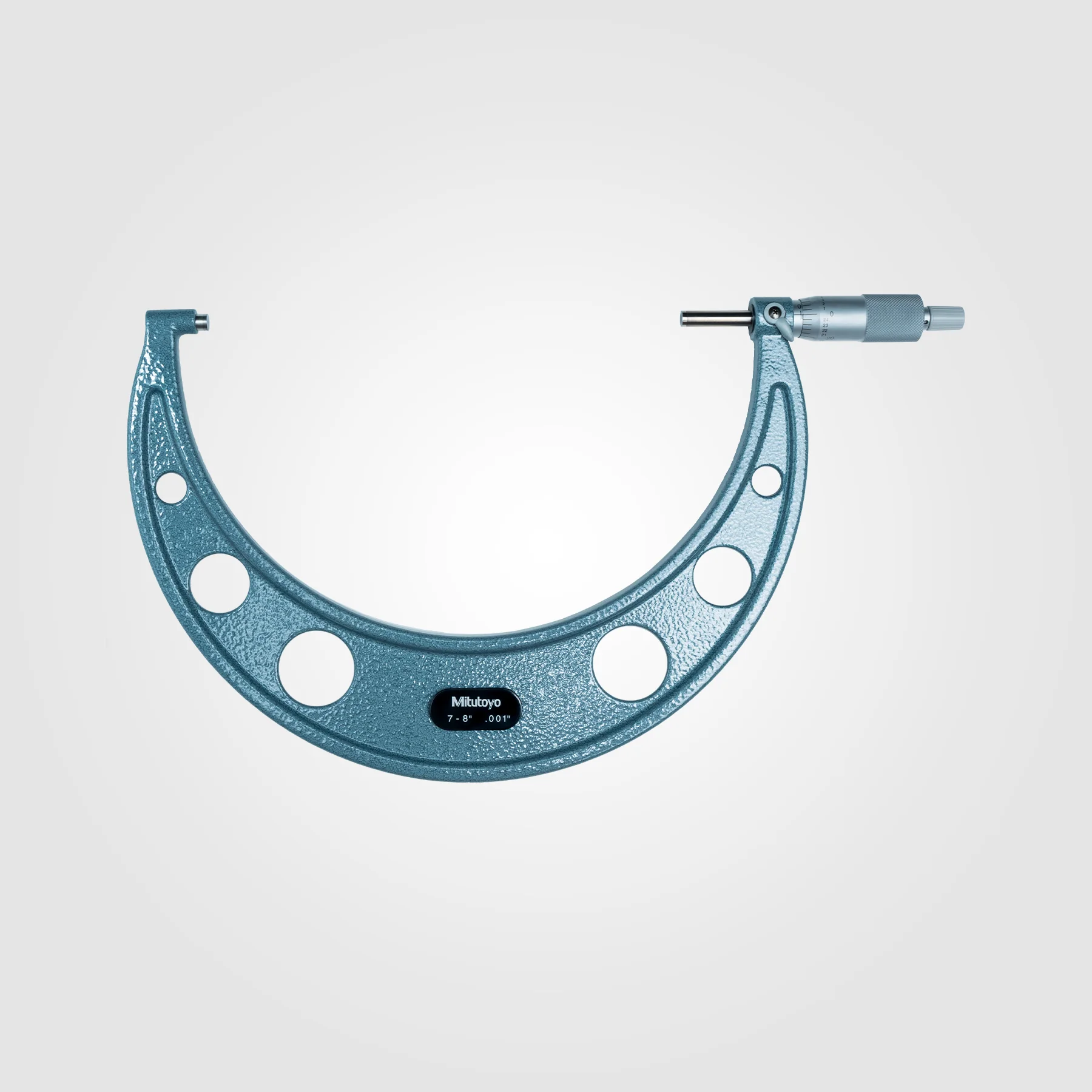

#78in

Technical Data

Minimum Measurement	7 in
Maximum Measurement	8 in
Graduation	0.001 in
Accuracy	±0.0002 in

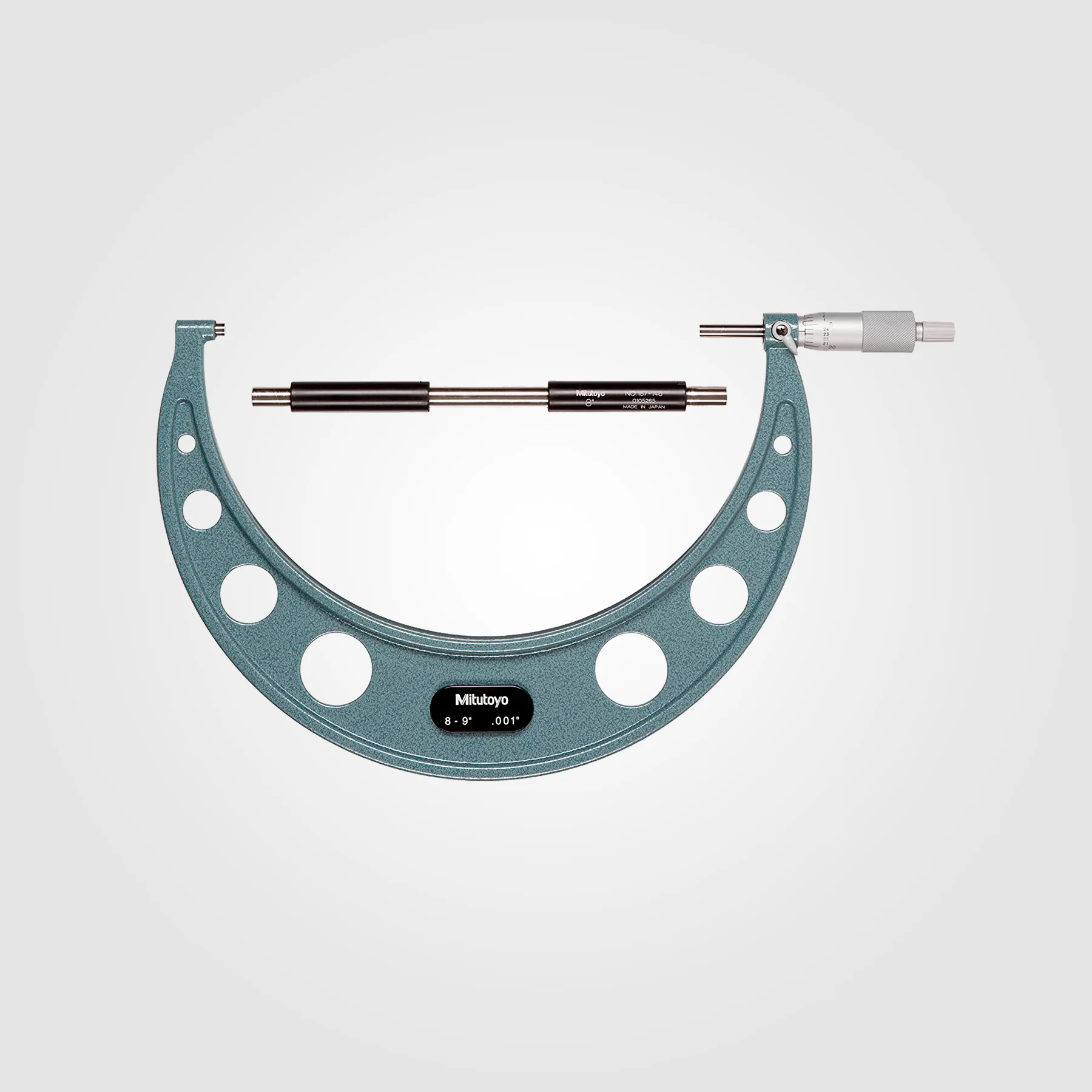

#89in

Technical Data

Minimum Measurement	8 in
Maximum Measurement	9 in
Graduation	0.001 in
Accuracy	±0.0002 in

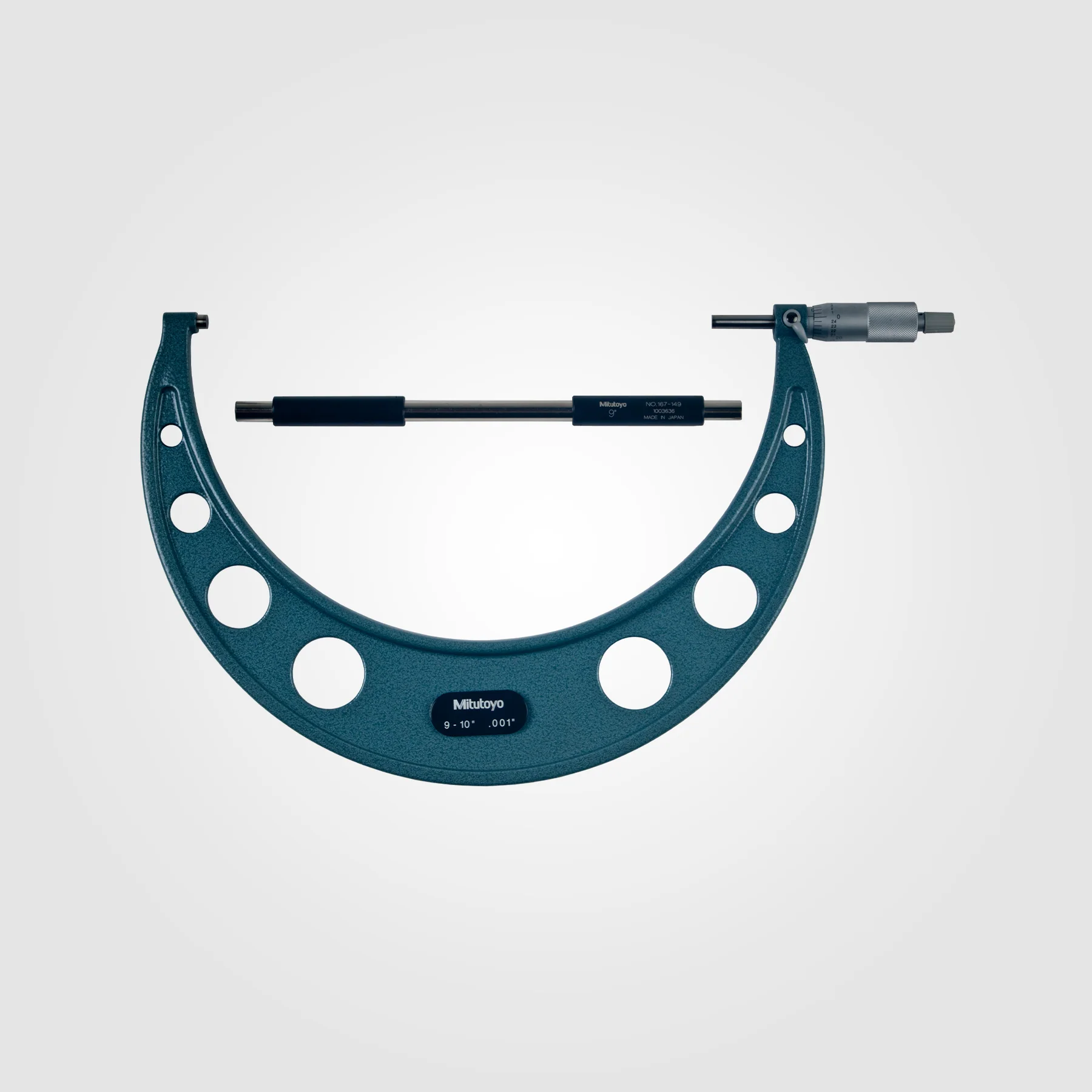

#910in

Technical Data

Minimum Measurement	9 in
Maximum Measurement	10 in
Graduation	0.001 in
Accuracy	±0.00025 in

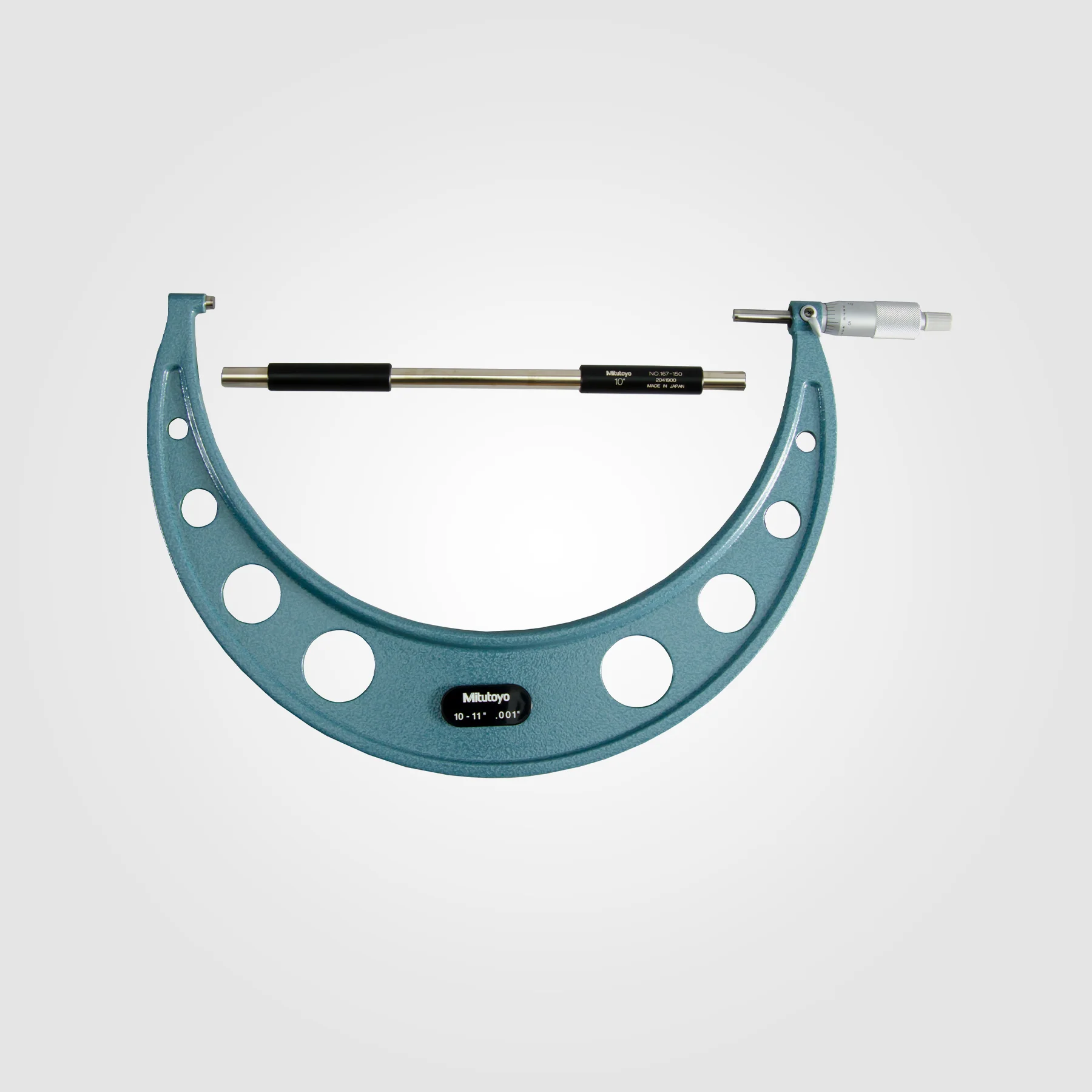

#1011in

Technical Data

Minimum Measurement	10 in
Maximum Measurement	11 in
Graduation	0.001 in
Accuracy	±0.00025 in

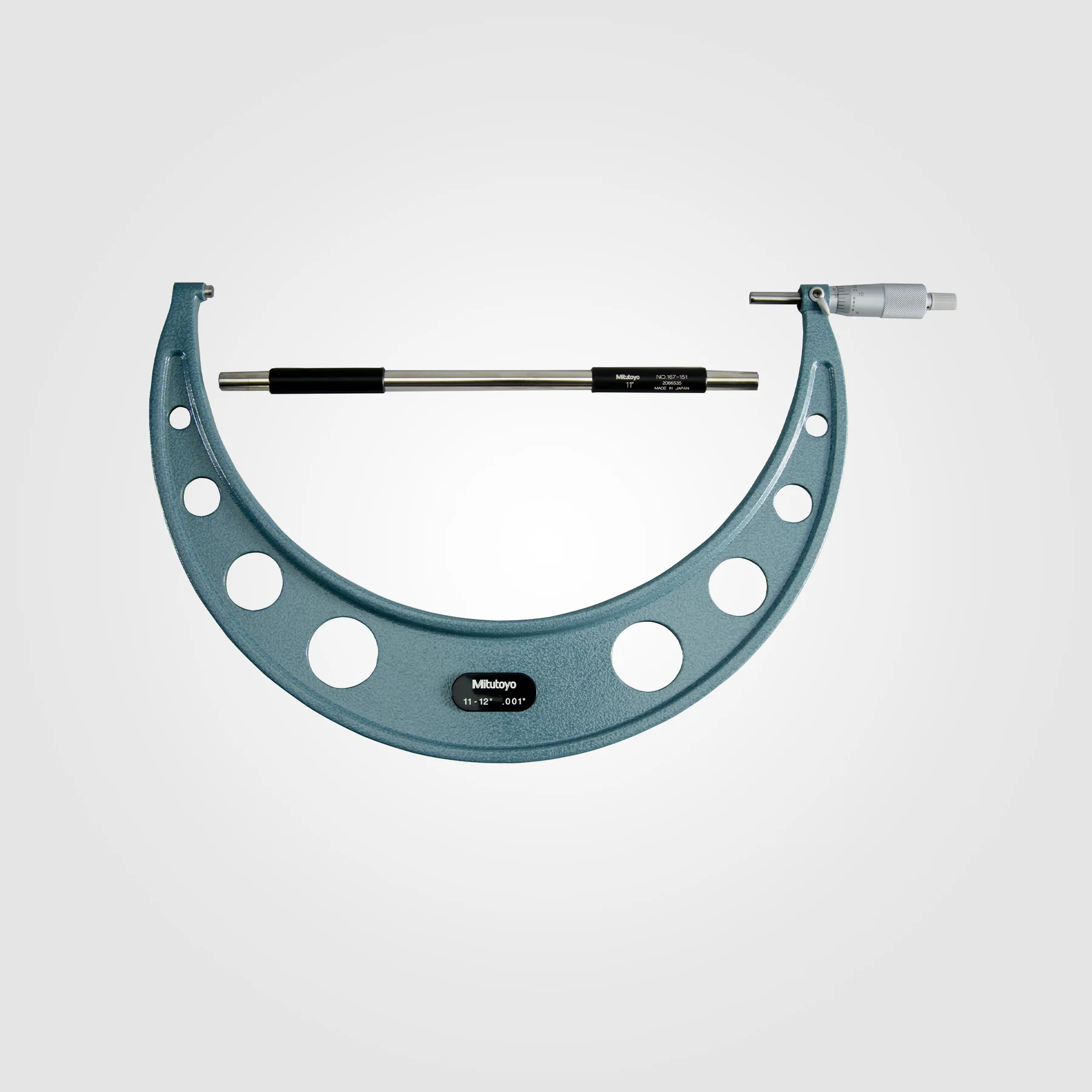

#1112in

Technical Data

Minimum Measurement	11 in
Maximum Measurement	12 in
Graduation	0.001 in
Accuracy	±0.00025 in
