Product Details

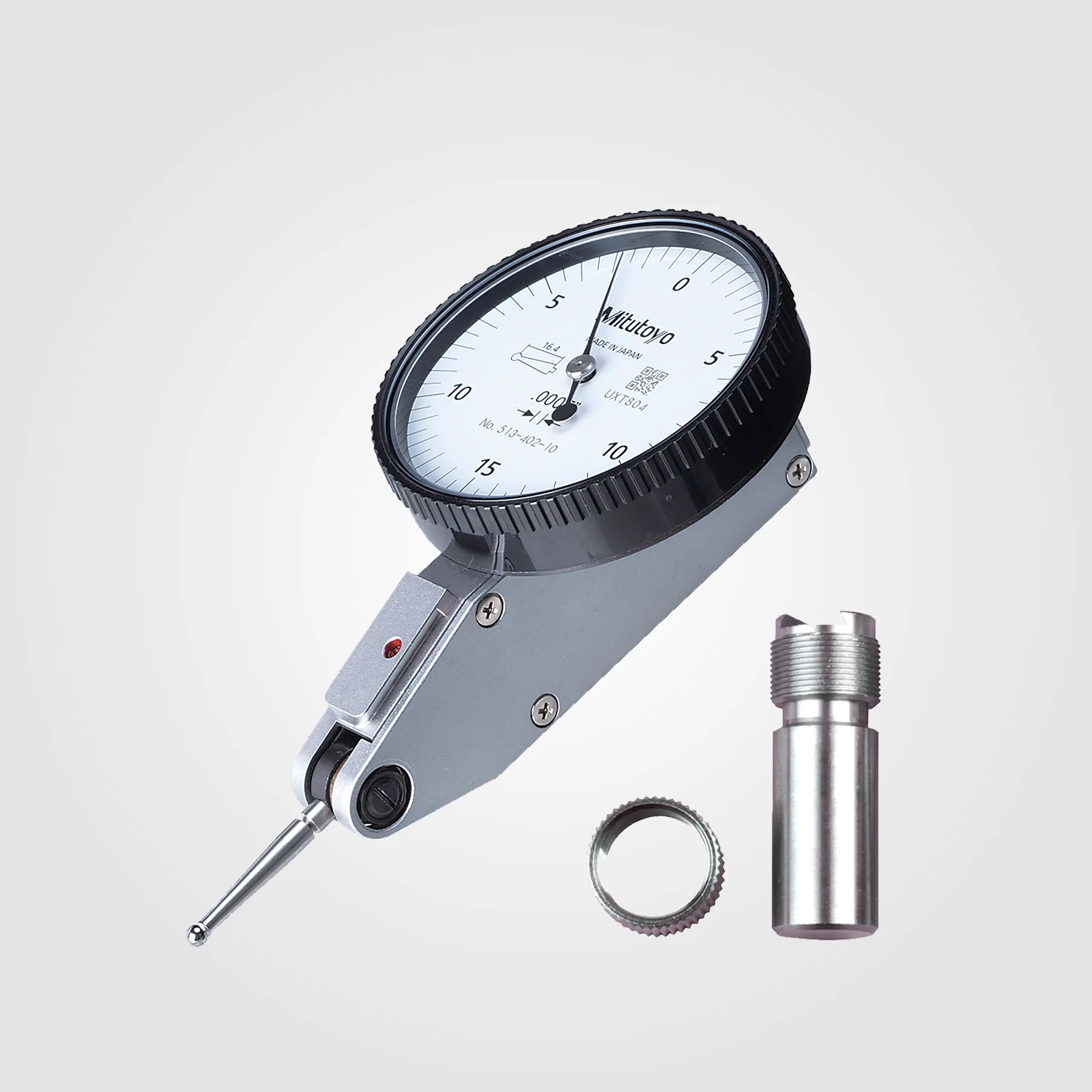

Mitutoyo’s anti-magnetic lever indicator (dial test indicator, DTI) is built for precision alignment on machine tools and more. Designed to auto-adjust to the measuring direction on contact, it delivers smooth, accurate readings with minimal friction—thanks to its jewelled movement.

• Easy and accurate measurement of narrow or recessed areas, plus inside and outside diameters that dial indicators cannot access
• One-piece bezel and crystal design with O-ring provide resistance to water and dust
• Glare-free flat crystal face with a scratch-resistant coating
• Standard carbide contact point for durability
• Anti-magnetic for interference-free operation

#01mm-8mm-209mm-FullSet

Technical Data

• Graduation: .0005 in
• Range: 0-0.03 in
• Accuracy: .0005 in
• Dial Reading: 0-15-0
• Contact Point: .079 in
• Tip Length: 33.9 mm

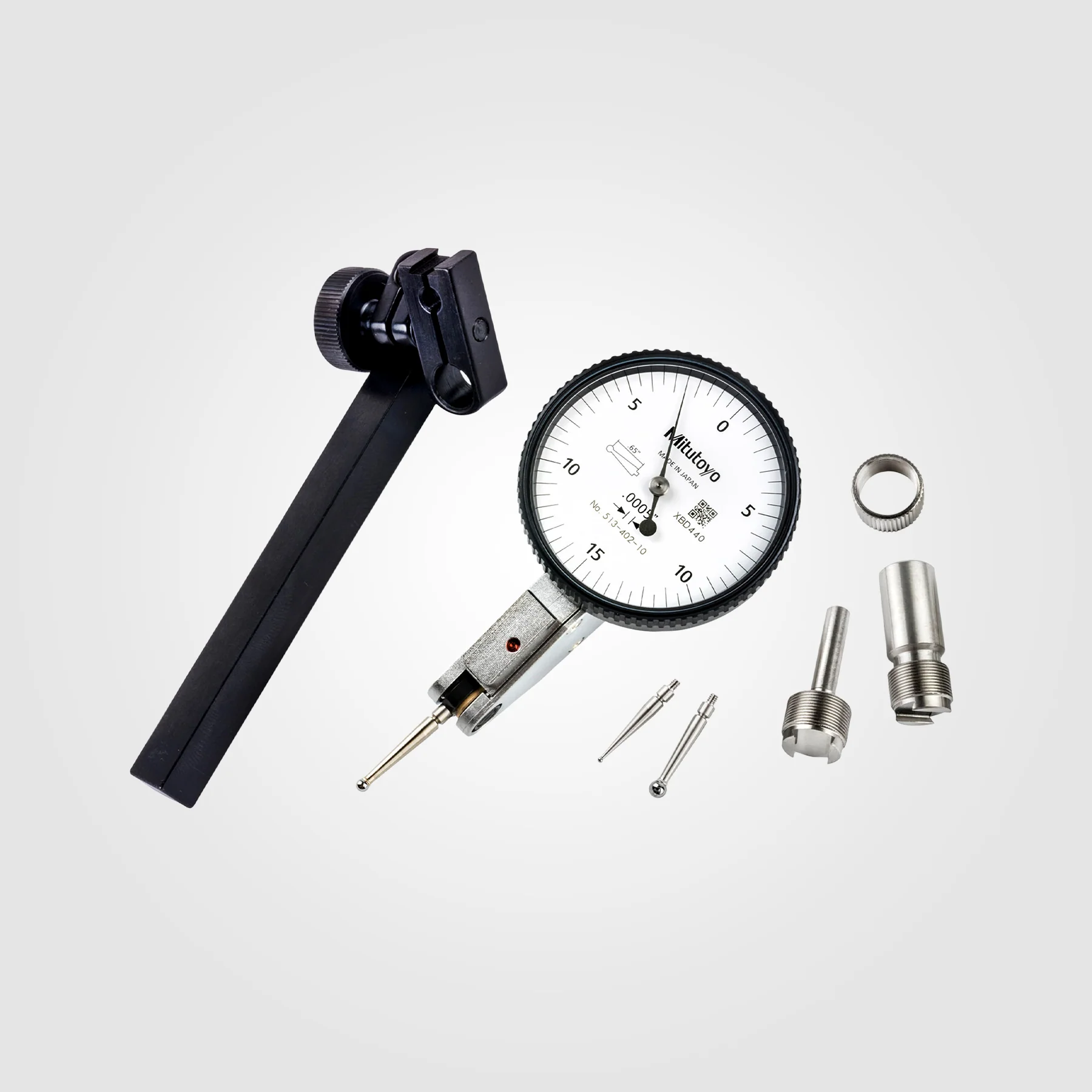

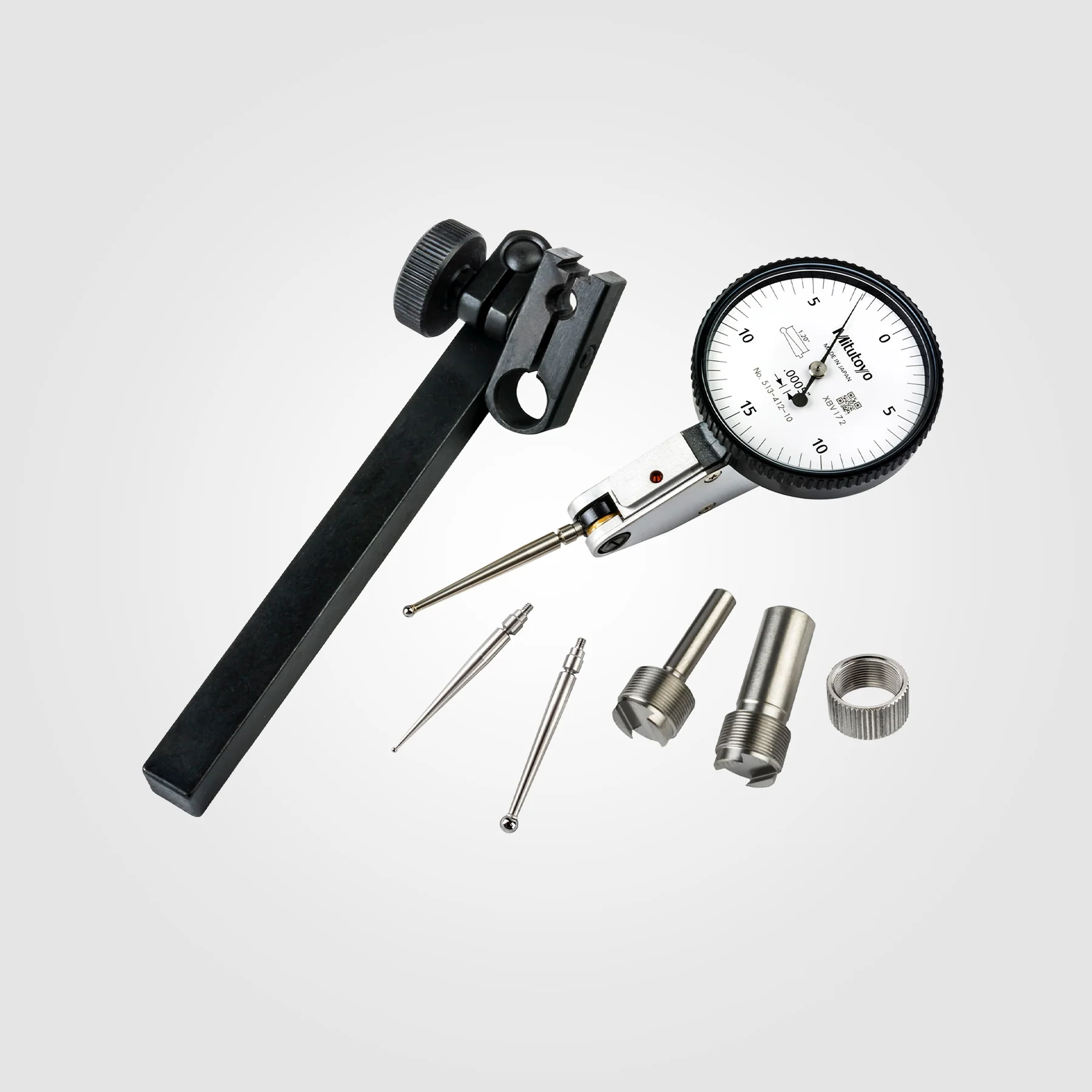

• Includes: Indicator, Inch Holding Bar, Swivel Clamp, Knurled Clamp Ring, Stems, Contact Points

#01mm-8mm-209mm-BasicSet

Technical Data

• Graduation: .0005 in
• Range: 0-0.03 in
• Accuracy: .0005 in
• Dial Reading: 0-15-0
• Contact Point: .079 in
• Tip Length: 33.9 mm

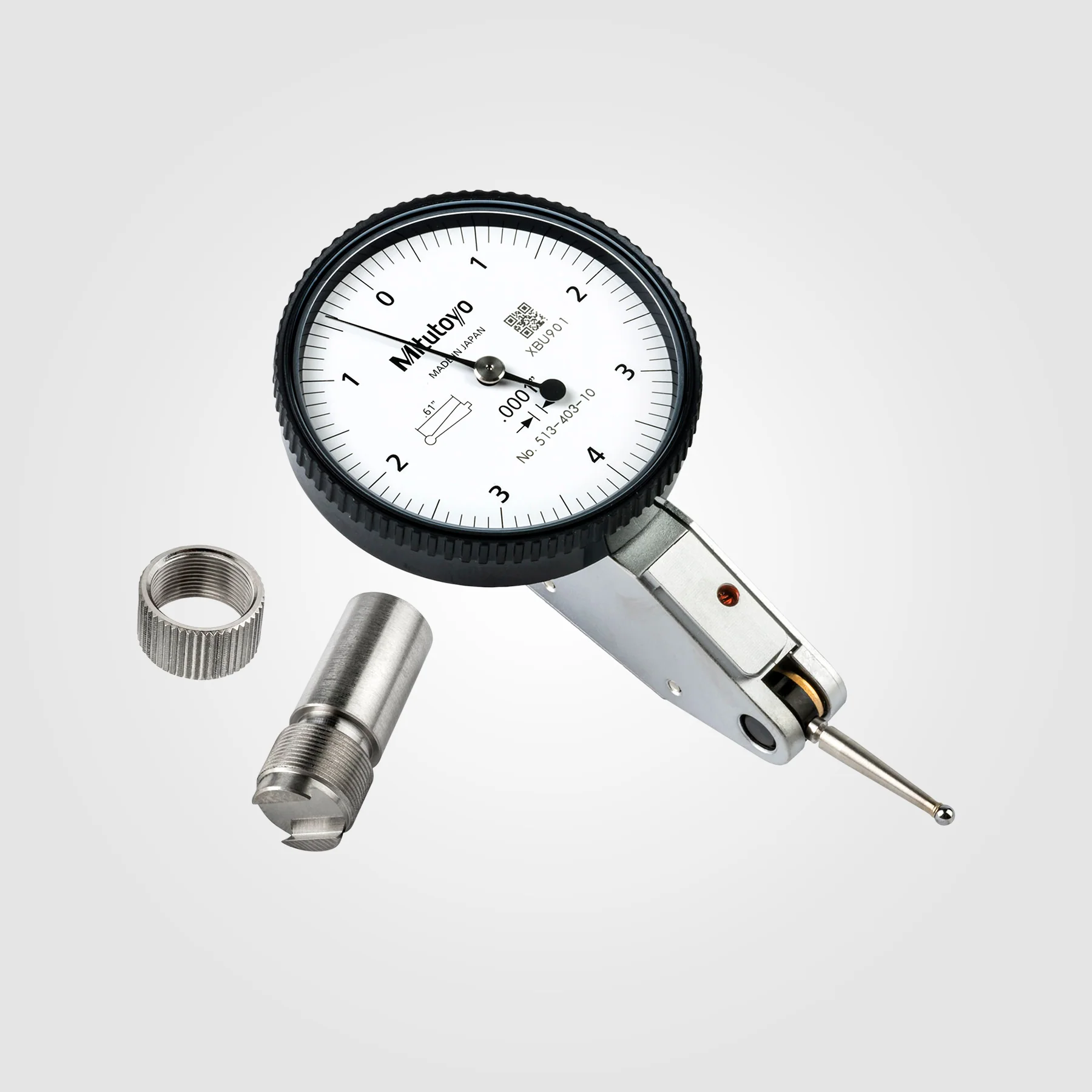

• Includes: Indicator, Knurled Clamp Ring, Stems, .079” Contact Point

#0001in-008in-15mm-FullSet

Technical Data

• Graduation: .0001 in
• Range: 0-.008 in
• Accuracy: .0001 in
• Dial Reading: 0-4-0
• Contact Point: .079 in
• Tip Length: 15 mm
• Includes: Indicator, Inch Holding Bar, Swivel Clamp, Knurled Clamp Ring, Stems, Contact Points

#0001in-008in-15mm-BasicSet

Technical Data

• Graduation: .0001 in
• Range: 0-.008 in
• Accuracy: .0001 in
• Dial Reading: 0-4-0
• Contact Point: .079 in
• Tip Length: 15 mm
• Includes: Indicator, Knurled Clamp Ring, Stems, .079” Contact Point

#0005in-03in-199mm-FullSet

Technical Data

• Graduation: .0005 in
• Range: 0-0.03 in
• Accuracy: .0005 in
• Dial Reading: 0-15-0
• Contact Point: .079 in
• Tip Length: 19.9 mm
• Includes: Indicator, Inch Holding Bar, Swivel Clamp, Knurled Clamp Ring, Stems, Contact Points

#0005in-03in-199mm-BasicSet

Technical Data

• Graduation: .0005 in
• Range: 0-0.03 in
• Accuracy: .0005 in
• Dial Reading: 0-15-0
• Contact Point: .079 in
• Tip Length: 19.9 mm
• Includes: Indicator, Knurled Clamp Ring, Stems, .079” Contact Point
