#All

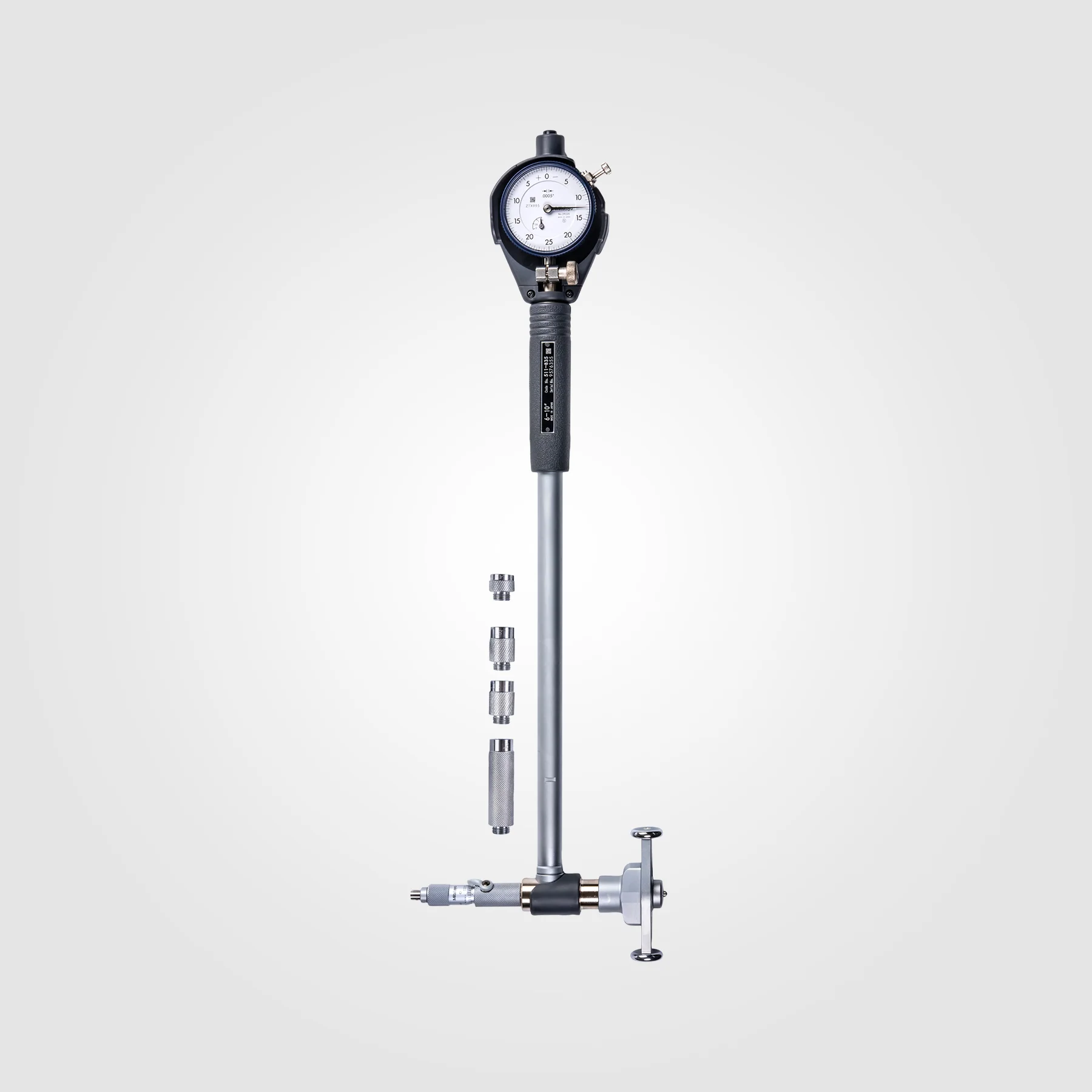

• Interchangeable anvil is attached to a micrometer head for accurate dimensional setting.
• Wide measuring range with sub-anvils.
• Carbide ball contact point for durability.
• Extension rods (optional) can be attached for measuring deep holes.
• Optional Setting Rings offer the best method of zero-setting Bore Gages.

#244in

Technical Data

• Accuracy: 2µm/.0008"
• Indication stability: 1µm/.00004"
• Graduation: 0.01mm, 0.001mm, .0005" or .0001"
• Head Travel: .4in
• Sub Anvil: .4in, .8in

#464in

Technical Data

• Accuracy: 2µm/.0008"
• Indication stability: 1µm/.00004"
• Graduation: 0.01mm, 0.001mm, .0005" or .0001"
• Head Travel: .5in
• Sub Anvil: .4in, .8in, .8in

#610in

Technical Data

• Accuracy: 2µm/.0008"
• Indication stability: 1µm/.00004"
• Graduation: 0.01mm, 0.001mm, .0005" or .0001"
• Head Travel: .5in
• Sub Anvil: .4in, .8in, .8in, 2in
