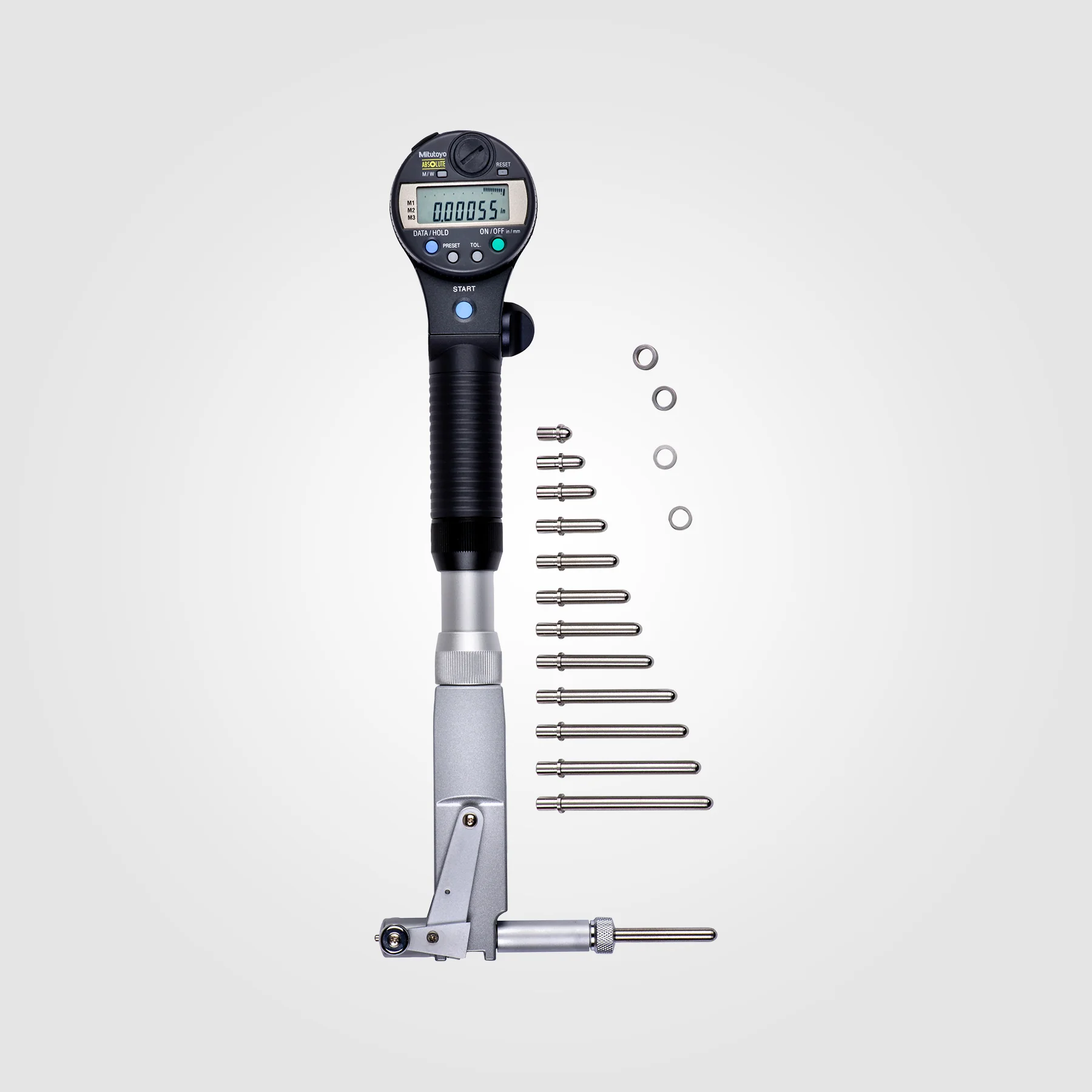

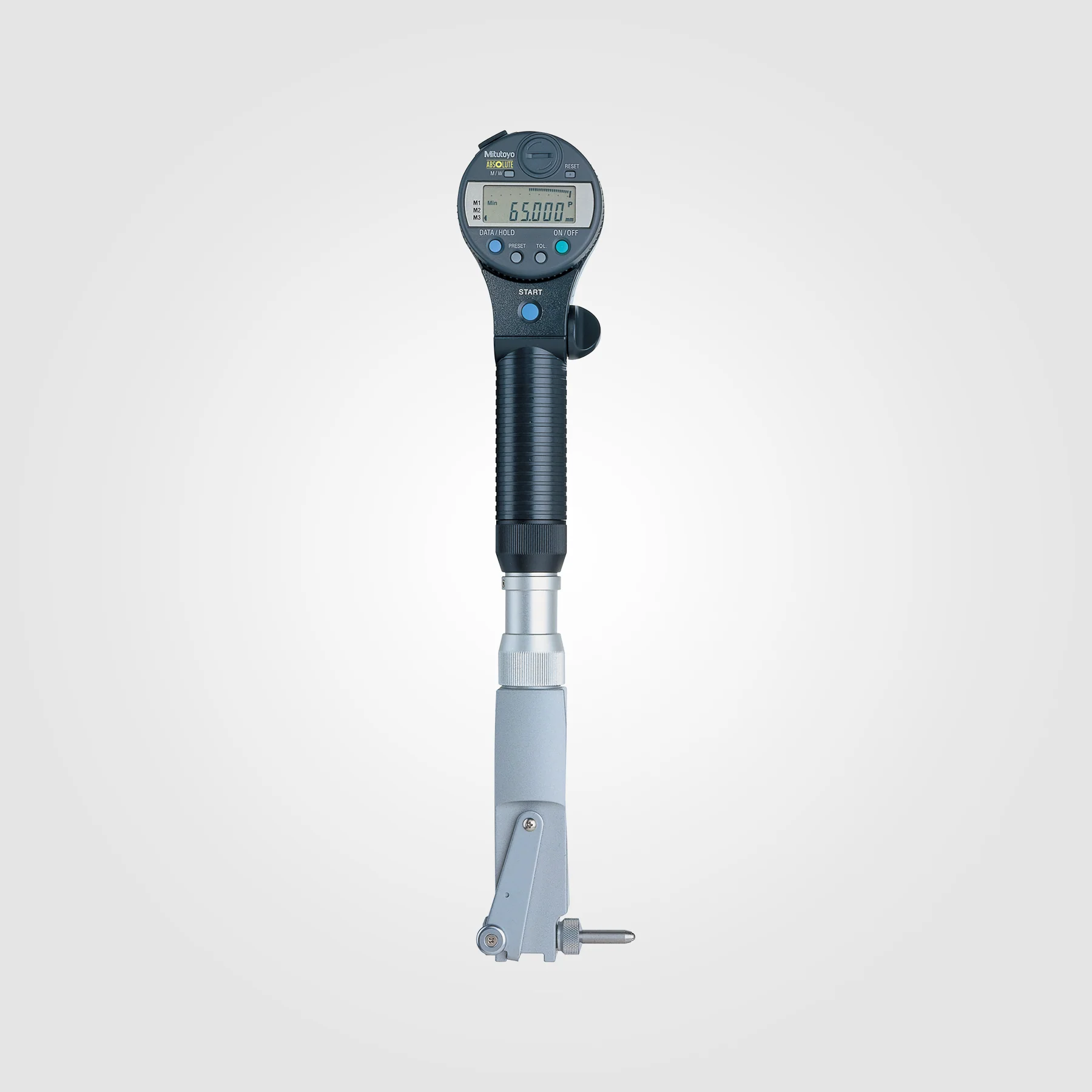

Absolute Digimatic Bore Gage
Product Details
- Interchangeable anvil is attached to a micrometer head for accurate dimensional setting
- Wide measuring range with sub-anvils
- Carbide ball contact point for durability
- Extension rods (optional) can be attached for measuring deep holes
- Optional Setting Rings offer the best method of zero-setting Bore Gages
Technical Data
- Dust/Water protection level: Conforming to IP53
- Accuracy: Wide Range: 0.003mm/.00012"
- Narrow Range: 0.002mm/.00008" Resolution: .00005"/0.001mm
- Display: LCD
- Battery: SR44 (1 pc.)(938882)
- Battery life: Approx. 9 months for normal use
Functions
- Origin-set, Zero-Setting, Presetting, Power on/off, inch/mm conversion (inch/mm type only),
- Data output, GO/±NG tolerance judgment
- Alarm: Low battery voltage, scale contamination, over-flow error, tolerance limit setting error
Select Size
From $504.68
Original: $1,441.94
-65%Absolute Digimatic Bore Gage—
$1,441.94
$504.68Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Product Details
- Interchangeable anvil is attached to a micrometer head for accurate dimensional setting
- Wide measuring range with sub-anvils
- Carbide ball contact point for durability
- Extension rods (optional) can be attached for measuring deep holes
- Optional Setting Rings offer the best method of zero-setting Bore Gages
Technical Data
- Dust/Water protection level: Conforming to IP53
- Accuracy: Wide Range: 0.003mm/.00012"
- Narrow Range: 0.002mm/.00008" Resolution: .00005"/0.001mm
- Display: LCD
- Battery: SR44 (1 pc.)(938882)
- Battery life: Approx. 9 months for normal use
Functions
- Origin-set, Zero-Setting, Presetting, Power on/off, inch/mm conversion (inch/mm type only),
- Data output, GO/±NG tolerance judgment
- Alarm: Low battery voltage, scale contamination, over-flow error, tolerance limit setting error
