#All

Product Details

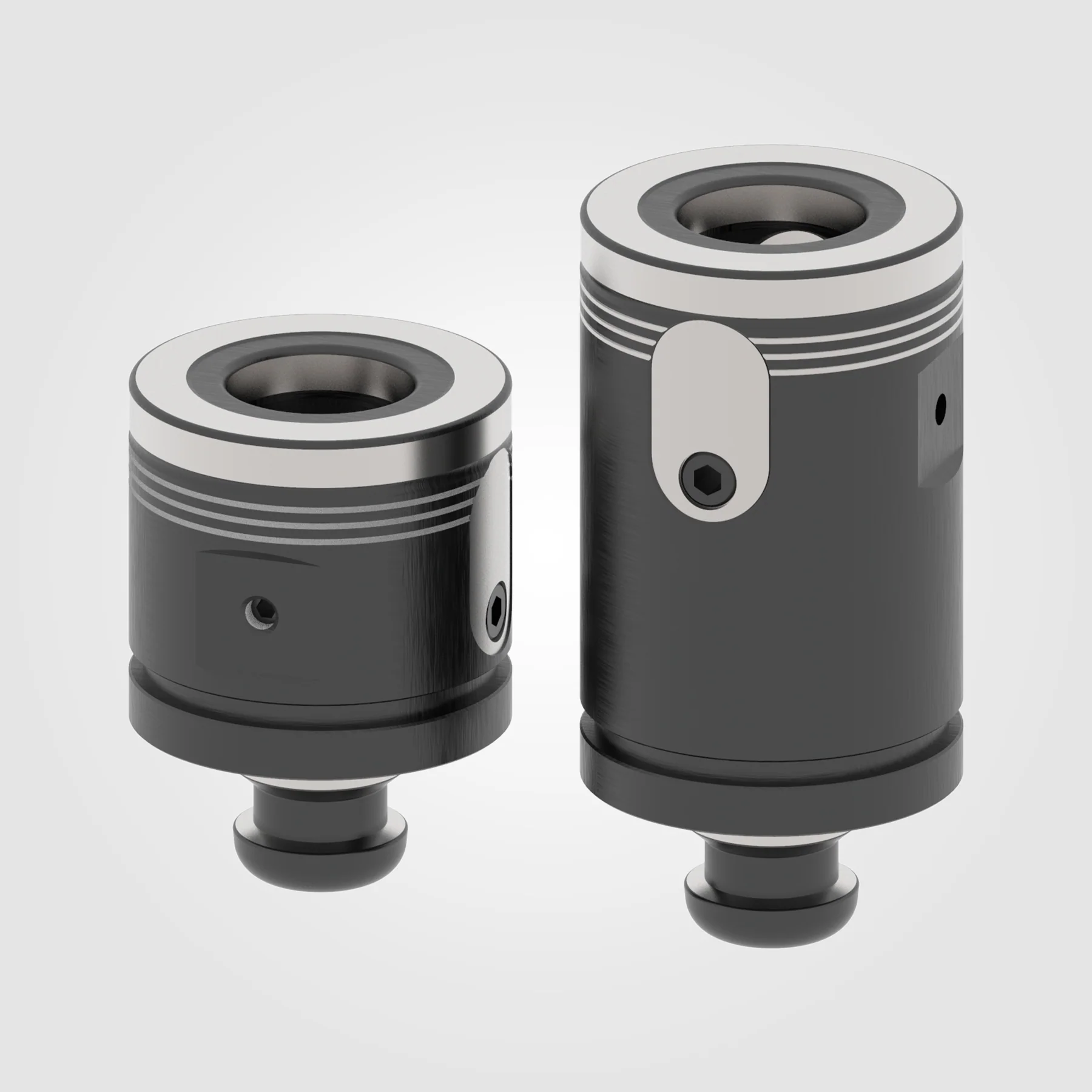

• Workpiece direct clamping system
• Highly flexible
• Stacking module
• Ideally suited for 5-sided machining

#80125

Technical Data

• Dimensions: Ø80 x 125 mm
• Pull-down force: 25 kN
• Actuation torque: 15 Nm
• Repeat accuracy: < 0.005 mm
• Weight: 4.7 kg

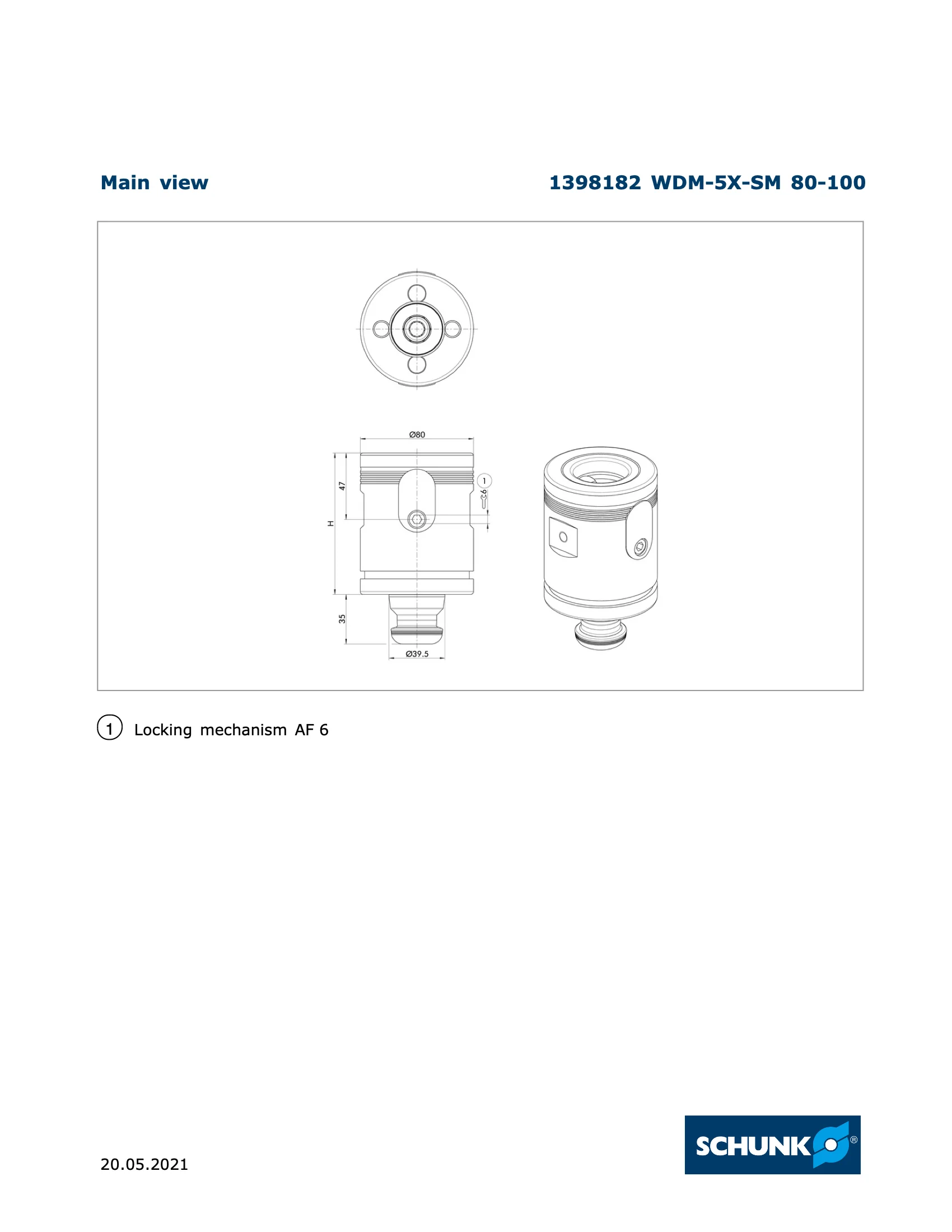

#80100

Technical Data

• Dimensions: Ø80 x 100 mm
• Pull-down force: 25 kN
• Actuation torque: 15 Nm
• Repeat accuracy: < 0.005 mm
• Weight: 3.65 kg

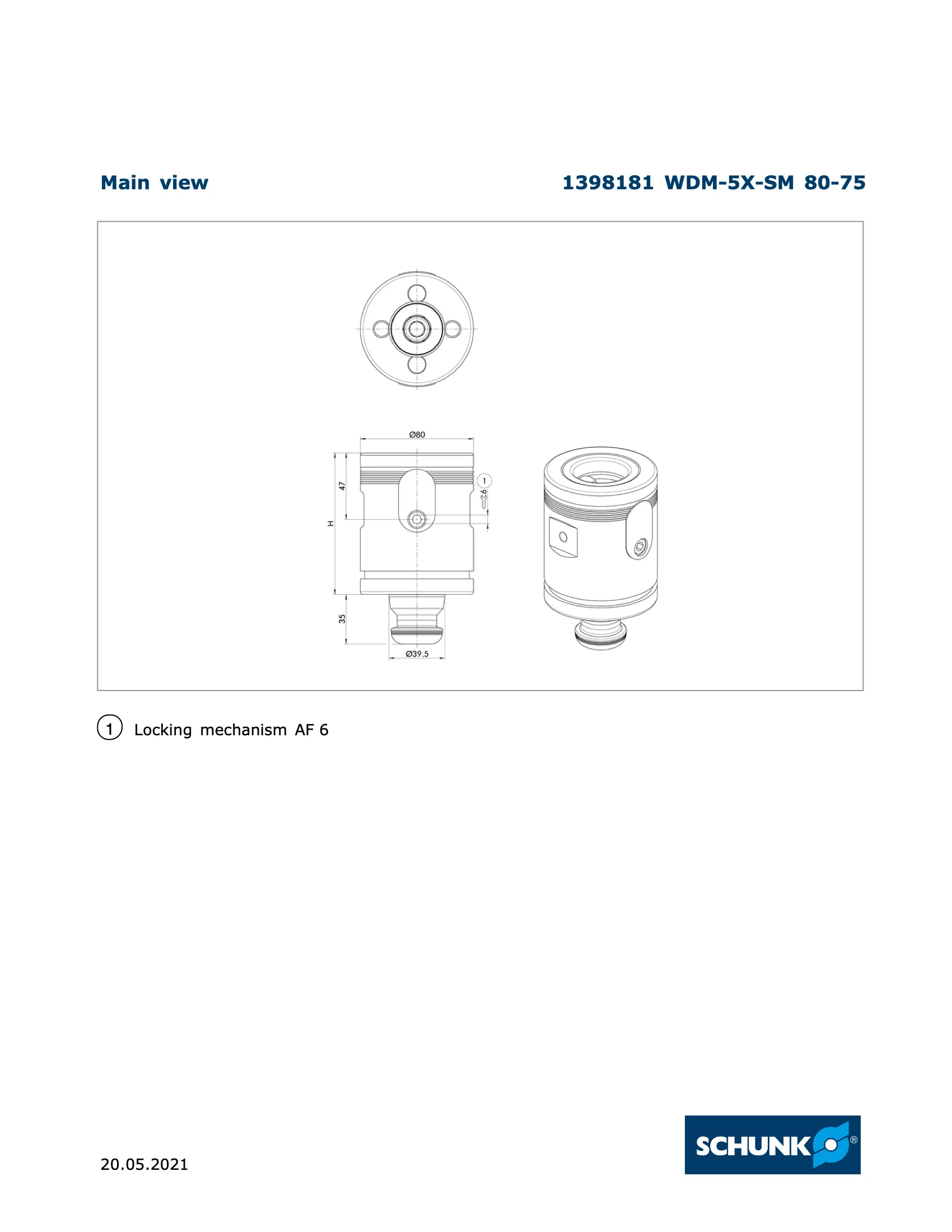

#8075

Technical Data

• Dimensions: Ø80 x 75 mm
• Pull-down force: 25 kN
• Actuation torque: 15 Nm
• Repeat accuracy: < 0.005 mm
• Weight: 2.85 kg
