Affordable PWS-6900 with the largest 9" opening in its class and high torque main screw prevents jaw lifting.

Features

• Up to 8,200 lbs. of clamping force
• Bed height matched to size 2.875" (73.025mm) ± 0.0005"
• Repeatability within 0.001"
• Hardened vise bed and jaw plates
• Machined outside rail edges
• Sealed bearing system for reduced clamping pressure and increased life
• Includes machined keyway and alignment rail for quick setups
• Footprint and keyway to stationary jaw distance same as major competitor

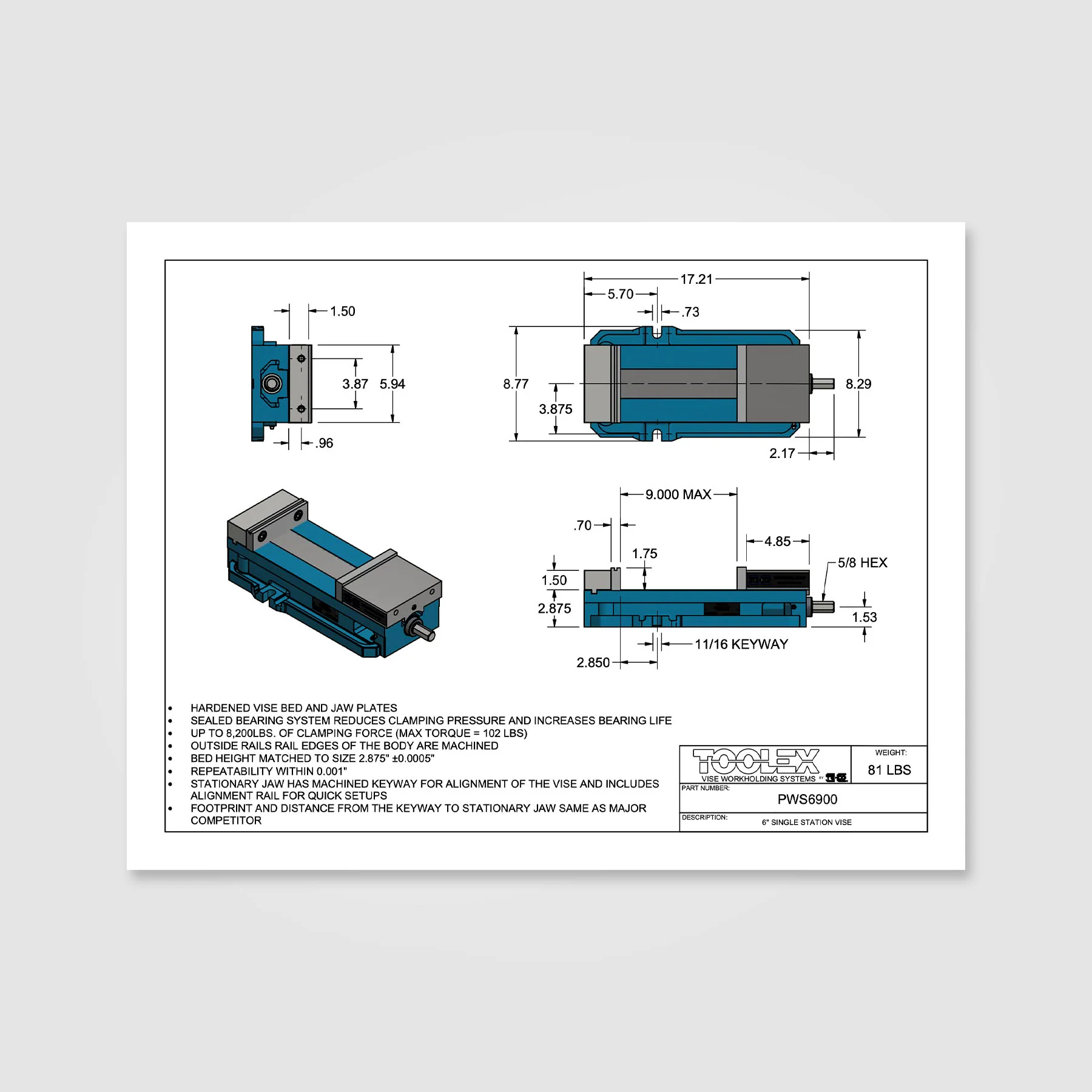

Specifications

Type	Single Station
Style	Machinable Jaws
Clamping Pressure	8200 lb
Jaw Opening	9.000 in
Jaw Width	6.000 in
Total Length	19.376 in
Total Width	8.770 in
Total Height	4.625 in
Material	Ductile Iron
Weight	81.00 lb

Country of Origin: Taiwan (Subject to Change)
