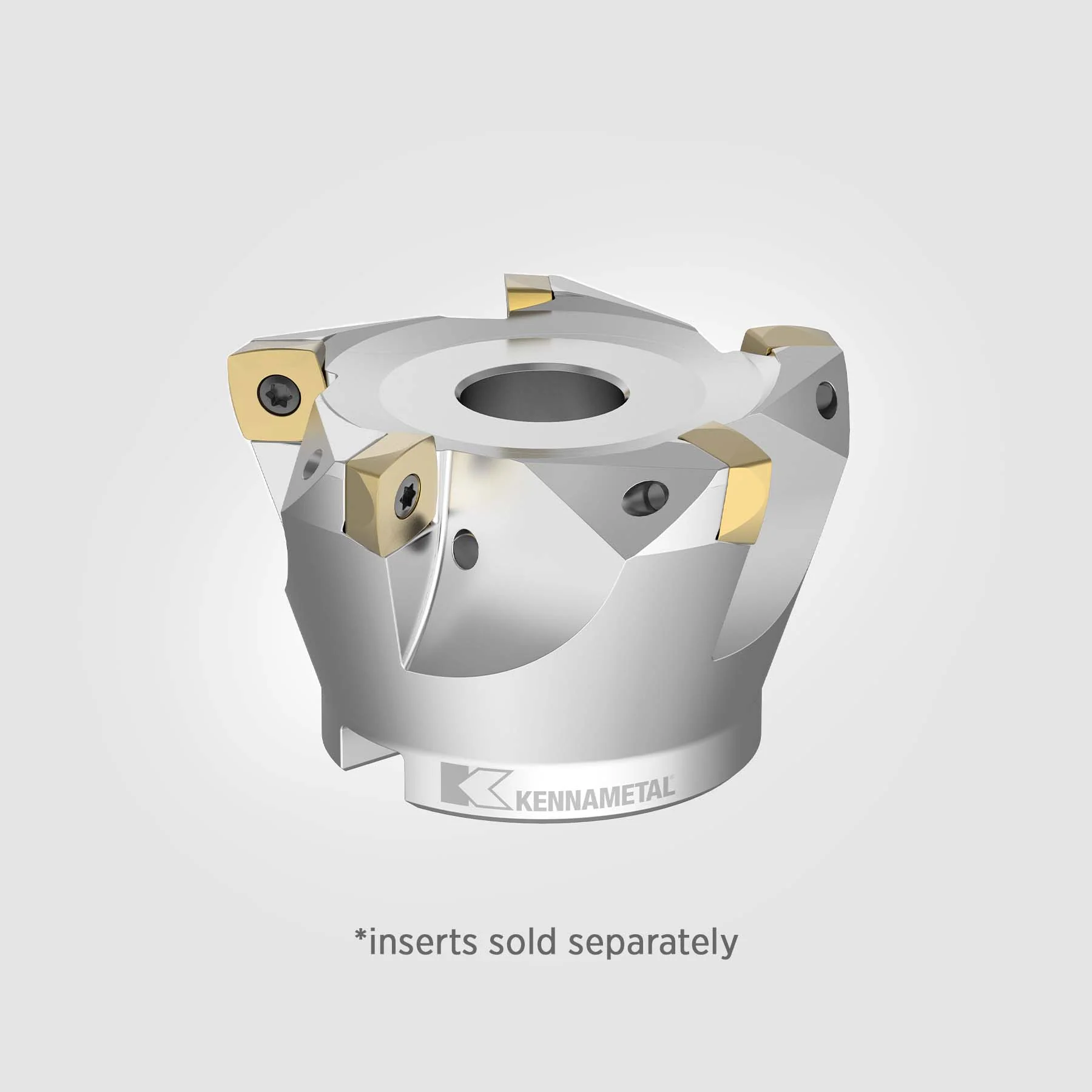

High-Feed Milling Cutters

• Ultra-fine pitch cutters increase material removal rates, especially on high-temp alloys
• Positive design to support lower cutting forces and long overhang usage
• Ramping and plunge milling capabilities
• No through coolant for cutters where D1MAX = 160mm

Technical Data

• Series: 7792VXD
• Adapter Type: A-Socket Head Cap Screw
• Number of Flutes: 13
• [D] Adapter Diameter (Inch): 1.500"
• [D] Adapter Diameter (Metric): 38.100mm
• [D1] Effective Cutting Diameter (Inch): 4.2797"
• [D1] Effective Cutting Diameter (Metric): 108.704mm
• [D1MAX] Maximum Cutting Diameter (Inch): 5.000"
• [D1MAX] Maximum Cutting Diameter (Metric): 127.000mm
• [D6] Hub Diameter (Inch): 3.189"
• [D6] Hub Diameter (Metric): 81.000mm
• [AP1MAX] Maximum Cut Depth (Inch): 0.0984"
• [AP1MAX] Maximum Cut Depth (Metric): 2.500mm
• [L] Overall Length (Inch): 2.4803"
• [L] Overall Length (Metric): 63.000mm
• [L1] Gage Length (Inch): 2.4803"
• [L1] Gage Length (Metric): 63.000mm
• Maximum RPM: 13,000

INSERTS SOLD SEPARATELY

Country of Origin is subject to change.

Safety data sheets upon request.
