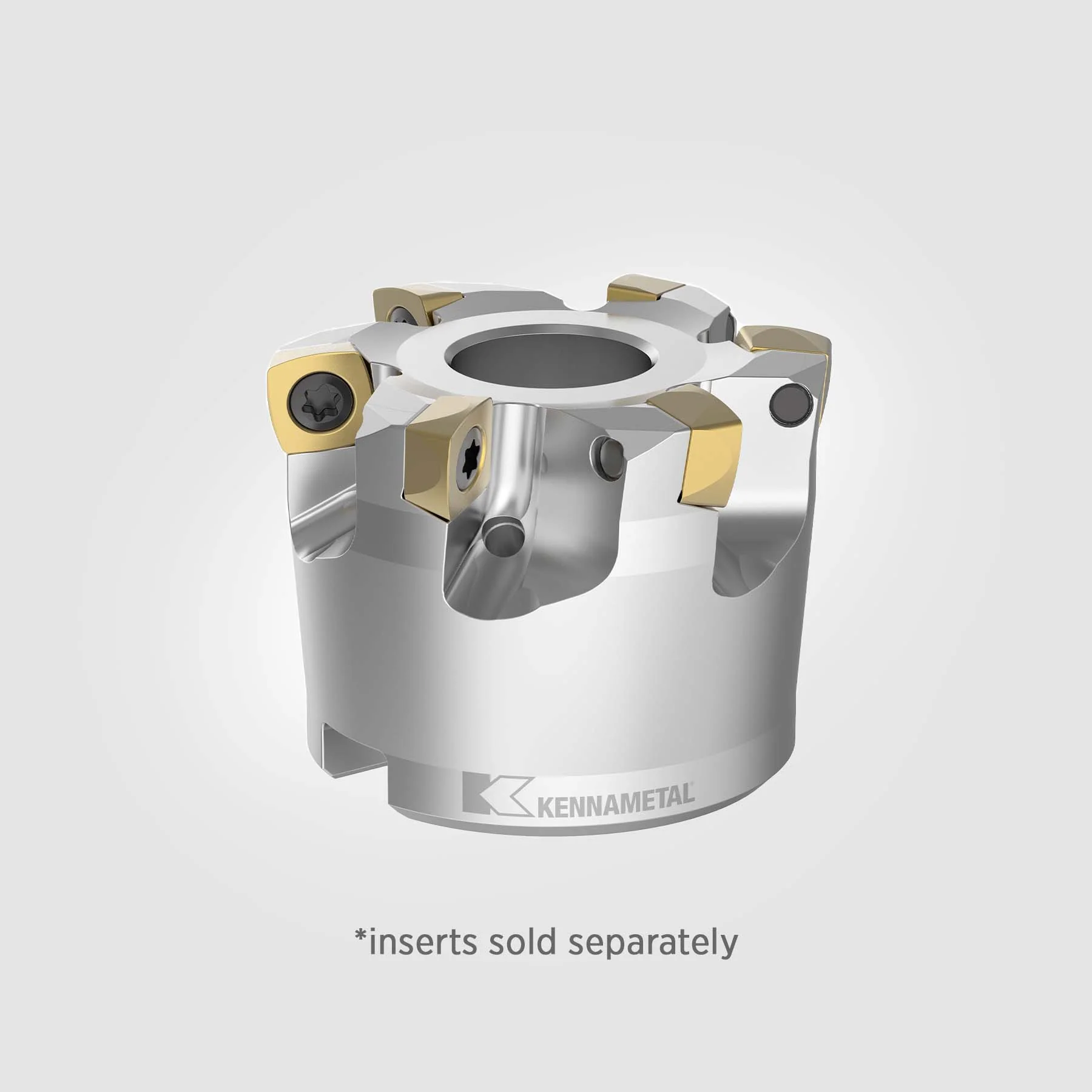

High-Feed Milling Cutters

• Ultra-fine pitch cutters increase material removal rates, especially on high-temp alloys
• Positive design to support lower cutting forces and long overhang usage
• Ramping and plunge milling capabilities
• No through coolant for cutters where D1MAX = 160mm

Technical Data

• Series: 7792VXD
• Adapter Type: A-Socket Head Cap Screw
• Number of Flutes: 6

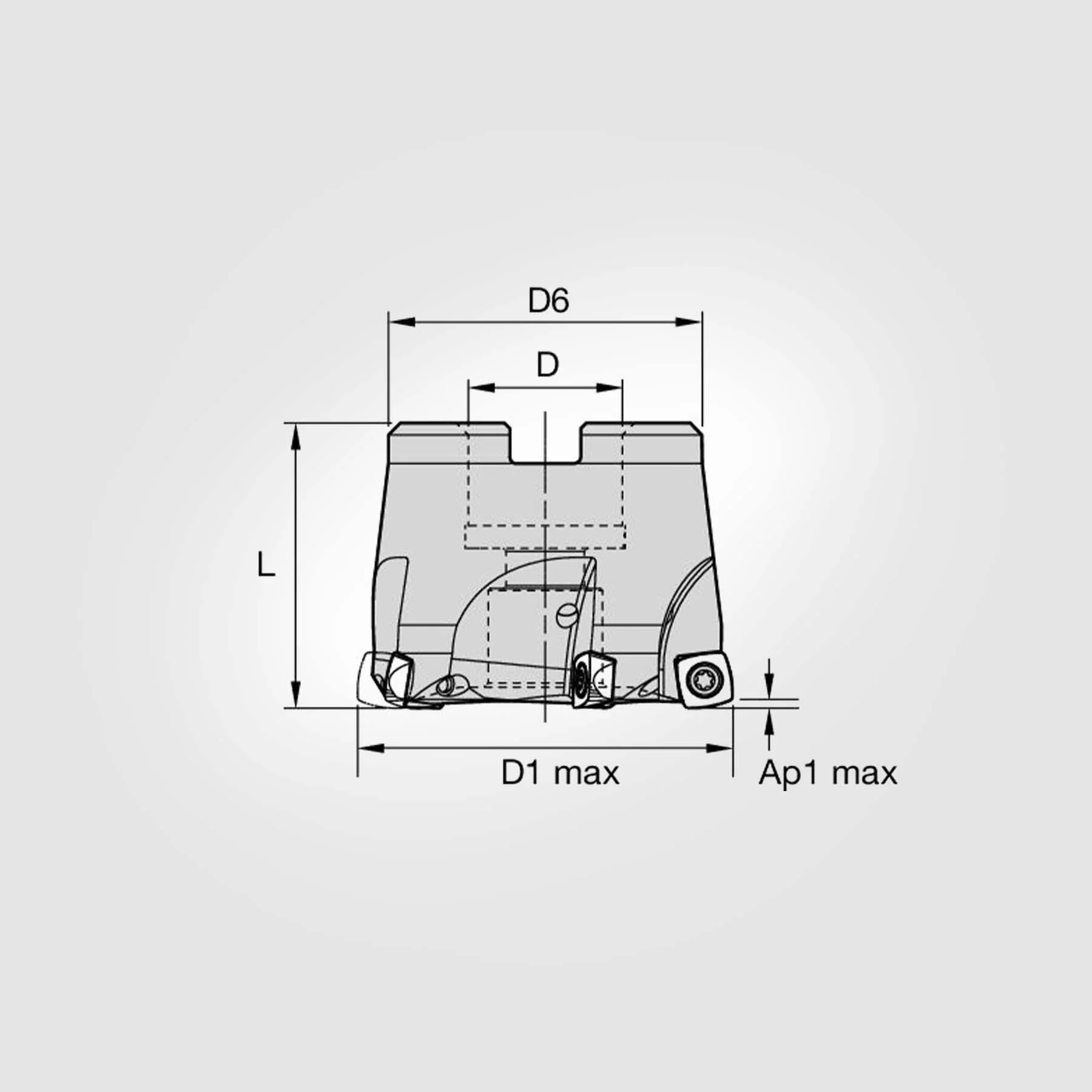

• [D] Adapter Diameter (Inch): 0.8666"
• [D] Adapter Diameter (Metric): 22.000mm
• [D1] Effective Cutting Diameter (Inch): 1.5335"
• [D1] Effective Cutting Diameter (Metric): 38.950mm
• [D1MAX] Maximum Cutting Diameter (Inch): 2.0472"
• [D1MAX] Maximum Cutting Diameter (Metric): 52.000mm
• [D6] Hub Diameter (Inch): 1.7717"
• [D6] Hub Diameter (Metric): 45.000mm
• [AP1MAX] Maximum Cut Depth (Inch): 0.0591"
• [AP1MAX] Maximum Cut Depth (Metric): 1.500mm
• [L] Overall Length (Inch): 1.5748"
• [L] Overall Length (Metric): 40.000mm
• [L1] Gage Length (Inch): 1.5748"
• [L1] Gage Length (Metric): 40.000mm
• Maximum RPM: 29,500

INSERTS SOLD SEPARATELY

Country of Origin is subject to change.

Safety data sheets upon request.
