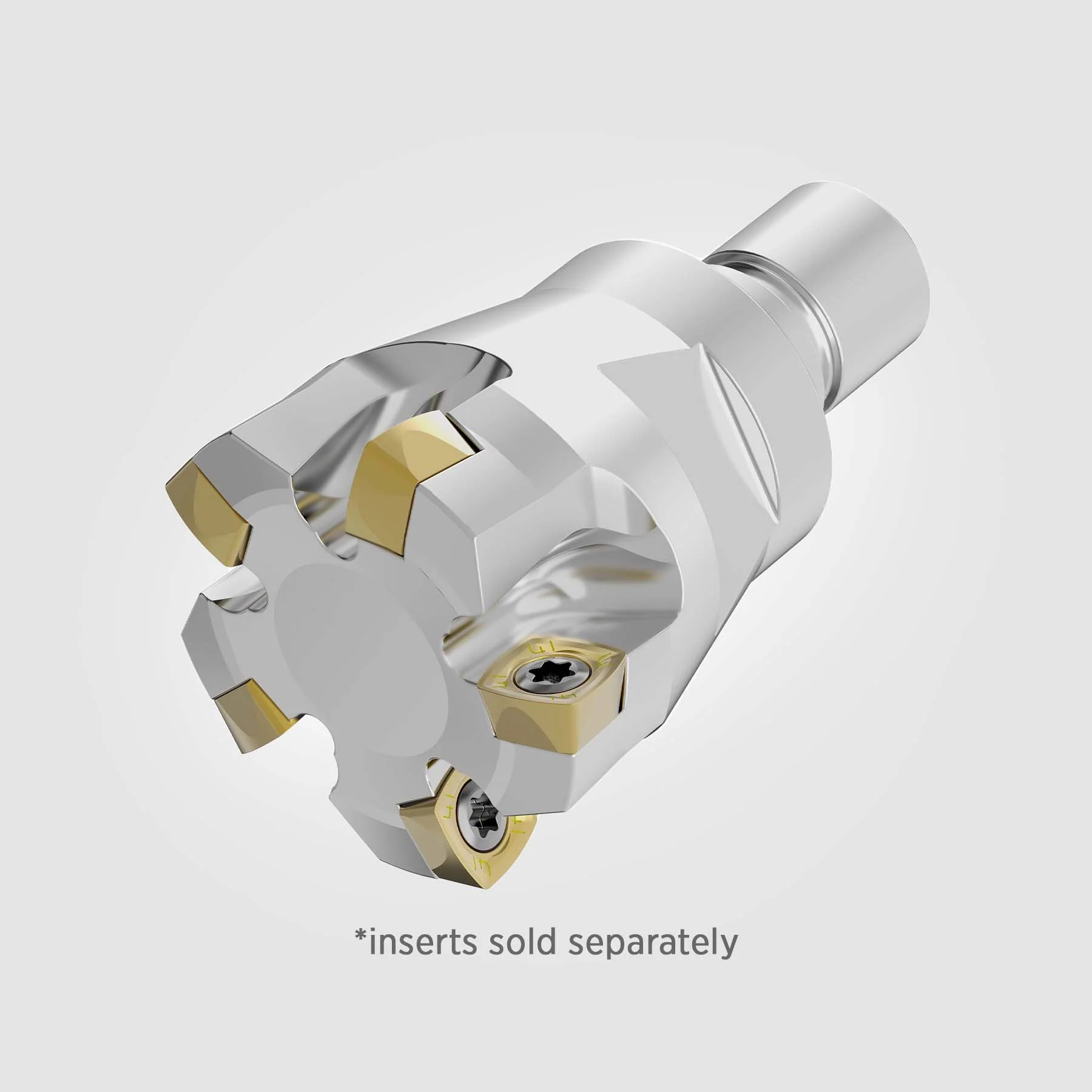

High-Feed Milling Cutters

• Ultra-fine pitch cutters increase material removal rates, especially on high-temp alloys
• Positive design to support lower cutting forces and long overhang usage
• Ramping and plunge milling capabilities
• No through coolant for cutters where D1MAX = 160mm

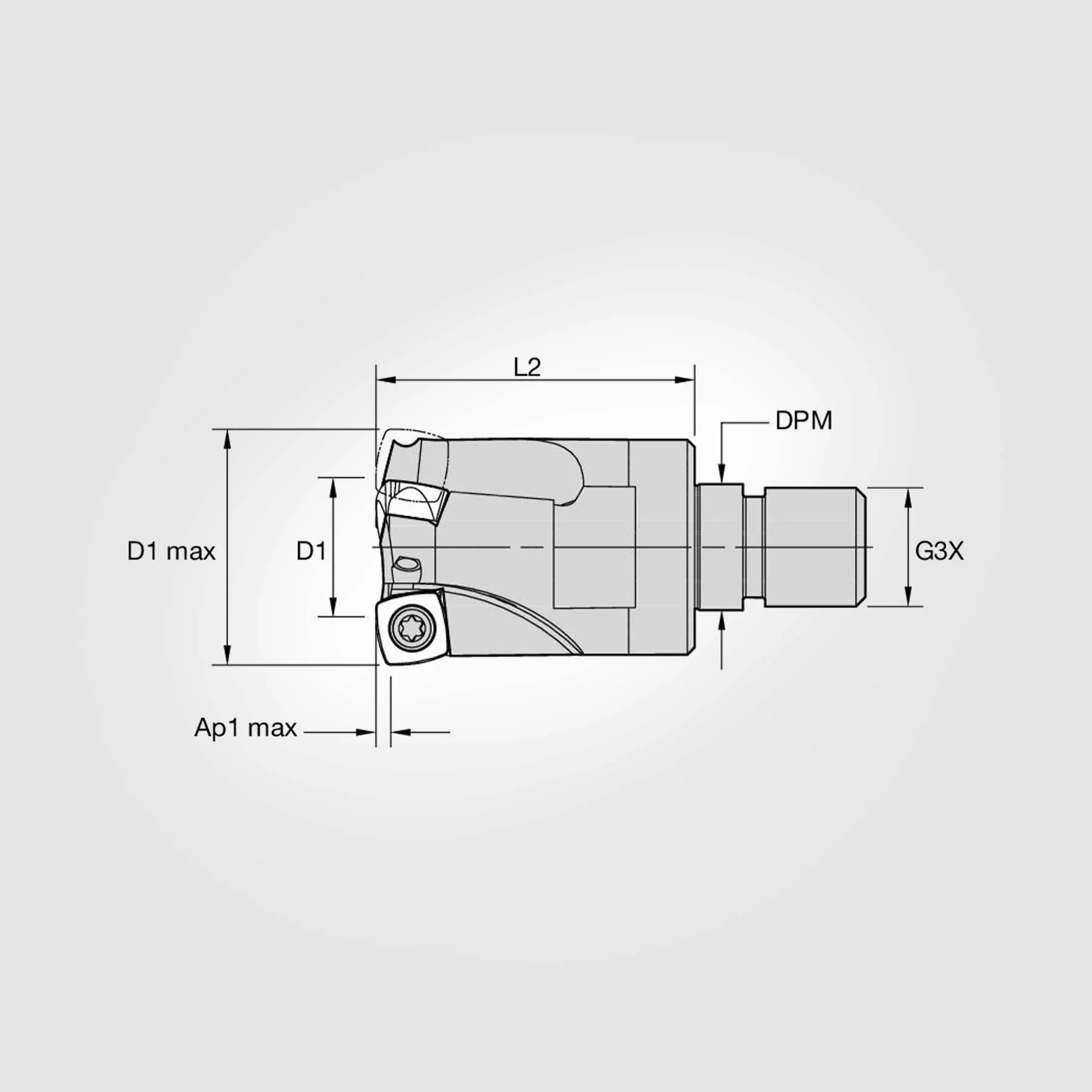

Technical Data

• Series: 7792VXD
• Adapter Type: Screw-On Connection
• Number of Flutes: 5
• [D] Adapter Diameter (Inch): 1.1417"
• [D] Adapter Diameter (Metric): 29.000mm
• [D1] Effective Cutting Diameter (Inch): 1.1399"
• [D1] Effective Cutting Diameter (Metric): 28.954mm
• [D1MAX] Maximum Cutting Diameter (Inch): 1.6536"
• [D1MAX] Maximum Cutting Diameter (Metric): 42.000mm
• [AP1MAX] Maximum Cut Depth (Inch): 0.0591"
• [AP1MAX] Maximum Cut Depth (Metric): 1.500mm
• [L] Overall Length (Inch): 2.5989"
• [L] Overall Length (Metric): 66.000mm
• [L1] Gage Length (Inch): 1.6929"
• [L1] Gage Length (Metric): 43.000mm
• [L2] Head Length (Inch): 1.6929"
• [L2] Head Length (Metric): 43.000mm
• [DPM] Pilot Diameter (Inch): 0.6693"
• [DPM] Pilot Diameter (Metric): 17.000mm
• [G3X] Thread Size: M16
• Maximum RPM: 34,000

INSERTS SOLD SEPARATELY

Country of Origin is subject to change.

Safety data sheets upon request.
