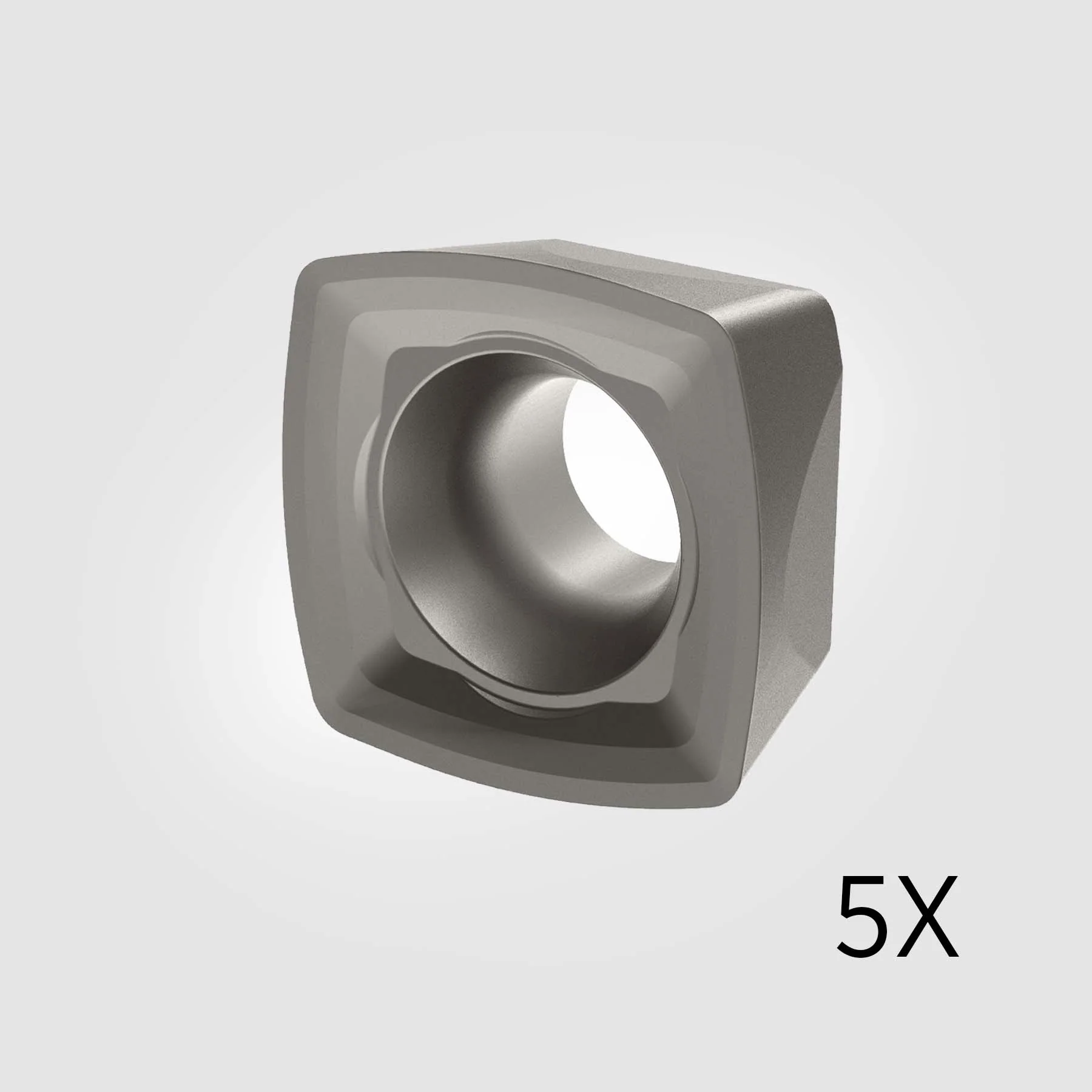

High-Feed Milling Inserts

• Productivity booster in all materials.
• Improved cost per edge.

Materials

• Primary:Steel
• Secondary:Stainless Steel,Cast Iron

Technical Data

• Quantity:5
• Cutting Edges per Insert: 4
• Grade:SC6525
• Coating:Al2 O3
• Tool Family:XDPT-09-D41

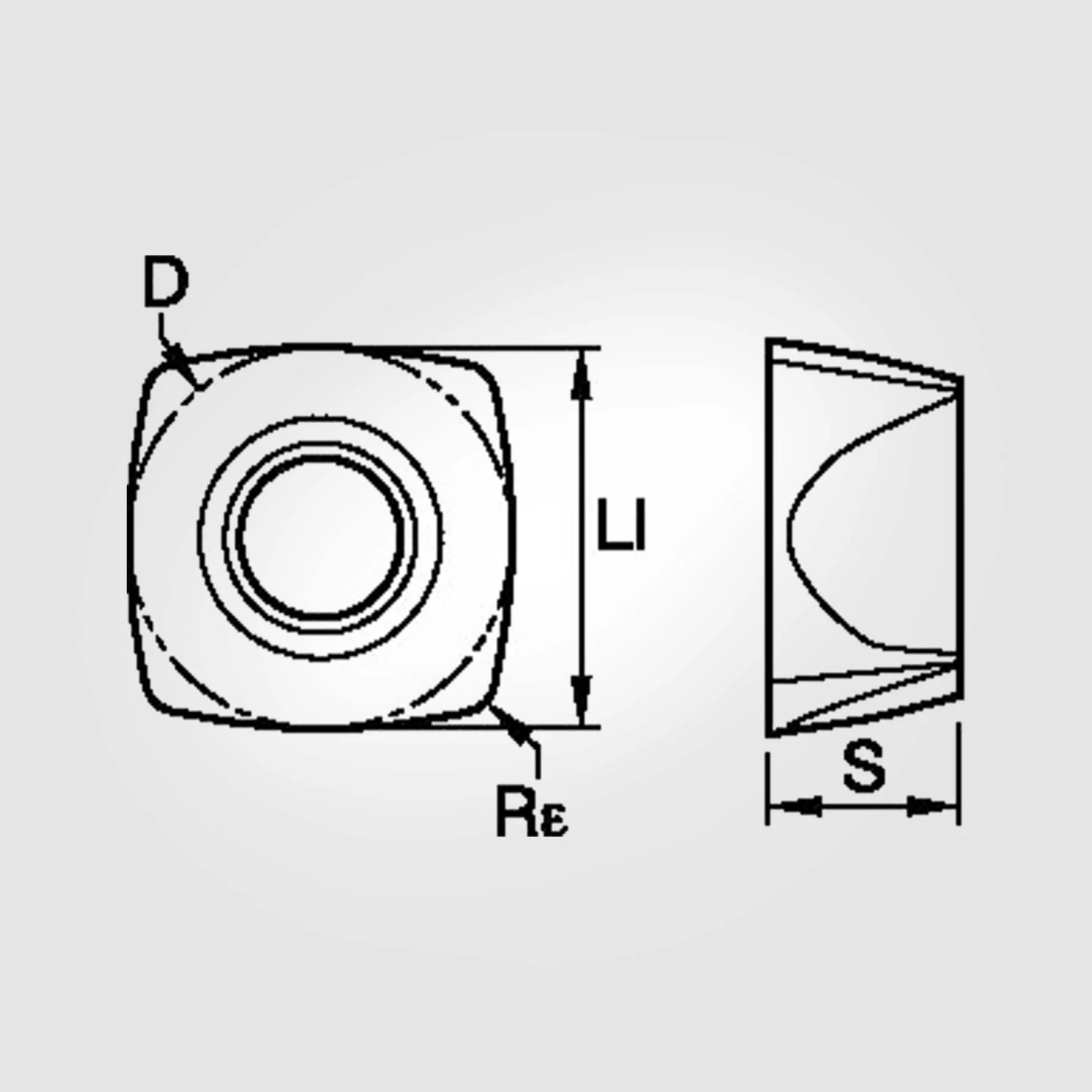

• [D] Insert Size (Inch):0.375"
• [D] Insert Size (Metric):9.525mm
• [L10] Edge Length (Inch):0.375"
• [L10] Edge Length (Metric):9.525mm
• [S] Insert Thickness (Inch):0.1874"
• [S] Insert Thickness (Metric):4.760mm
• Corner Radius (Inch):0.031"
• Corner Radius (Metric):0.800mm

Country of Origin is subject to change.

Safety data sheets upon request.
