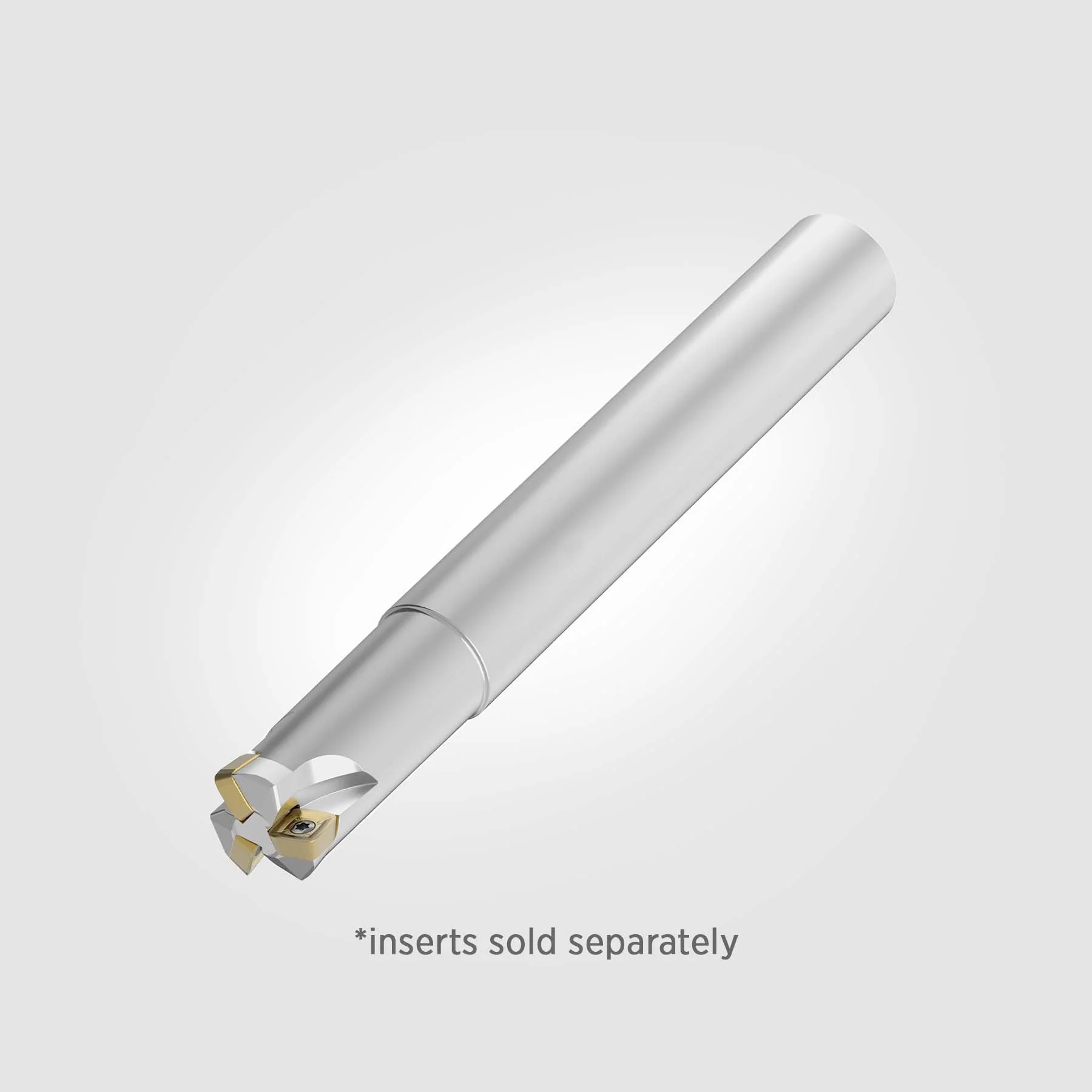

High-Feed Milling Cutters

• Ultra-fine pitch cutters increase material removal rates, especially on high-temp alloys
• Positive design to support lower cutting forces and long overhang usage
• Ramping and plunge milling capabilities
• No through coolant for cutters where D1MAX = 160mm

Technical Data

• Series: 7792VXD
• Adapter Type: Straight-Cylindrical
• Number of Flutes: 3

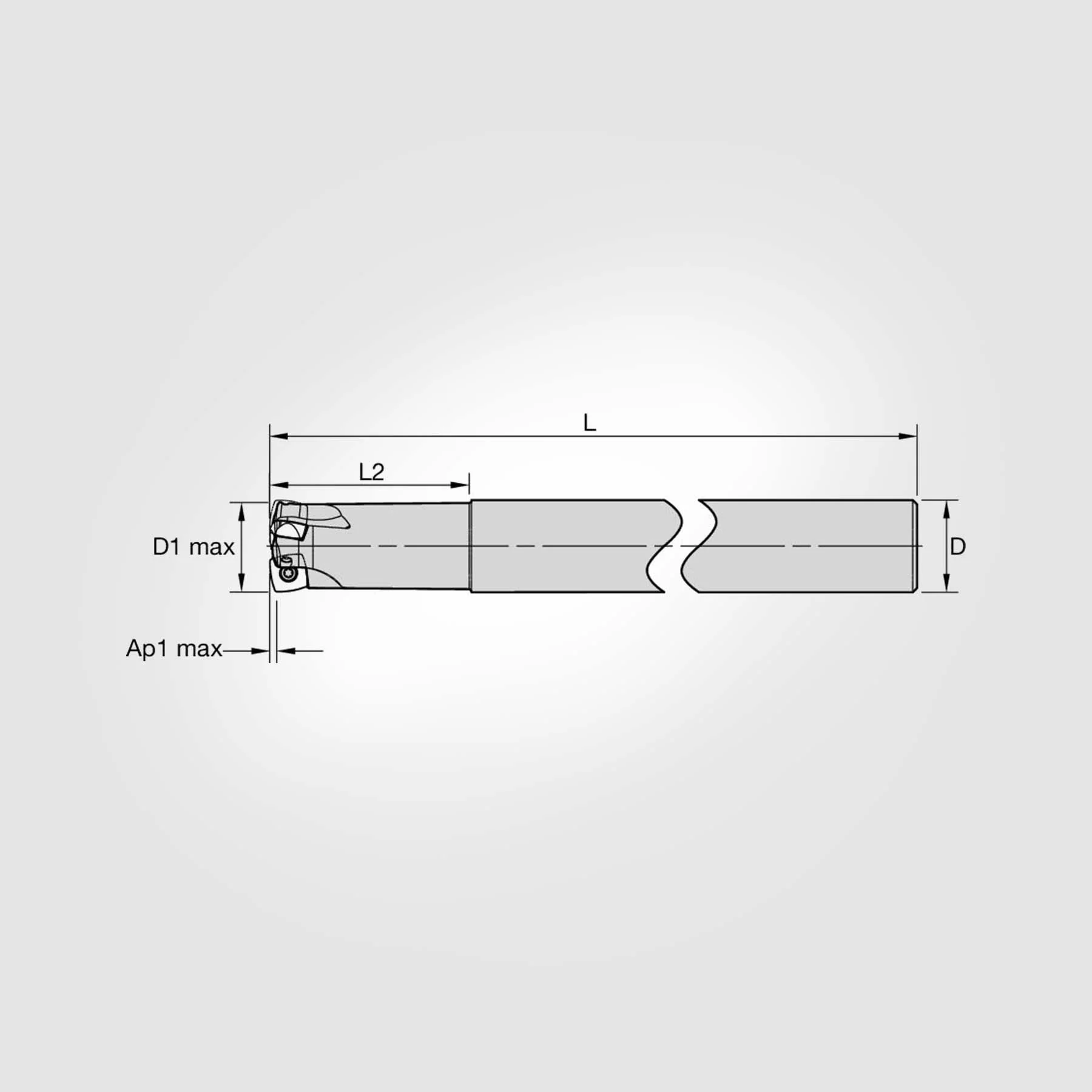

• [D] Adapter Diameter (Inch): 1.2599"
• [D] Adapter Diameter (Metric): 32.000mm
• [D1] Effective Cutting Diameter (Inch): 0.5458"
• [D1] Effective Cutting Diameter (Metric): 13.864mm
• [D1MAX] Maximum Cutting Diameter (Inch): 1.2598"
• [D1MAX] Maximum Cutting Diameter (Metric): 32.000mm
• [AP1MAX] Maximum Cut Depth (Inch): 0.0984"
• [AP1MAX] Maximum Cut Depth (Metric): 2.500mm
• [L] Overall Length (Inch): 9.8425"
• [L] Overall Length (Metric): 250.000mm
• [L1] Gage Length (Inch): 9.8425"
• [L1] Gage Length (Metric): 250.000mm
• [L2] Head Length (Inch): 2.7559"
• [L2] Head Length (Metric): 70.000mm
• Maximum RPM: 32,500

INSERTS SOLD SEPARATELY

Country of Origin is subject to change.

Safety data sheets upon request.
