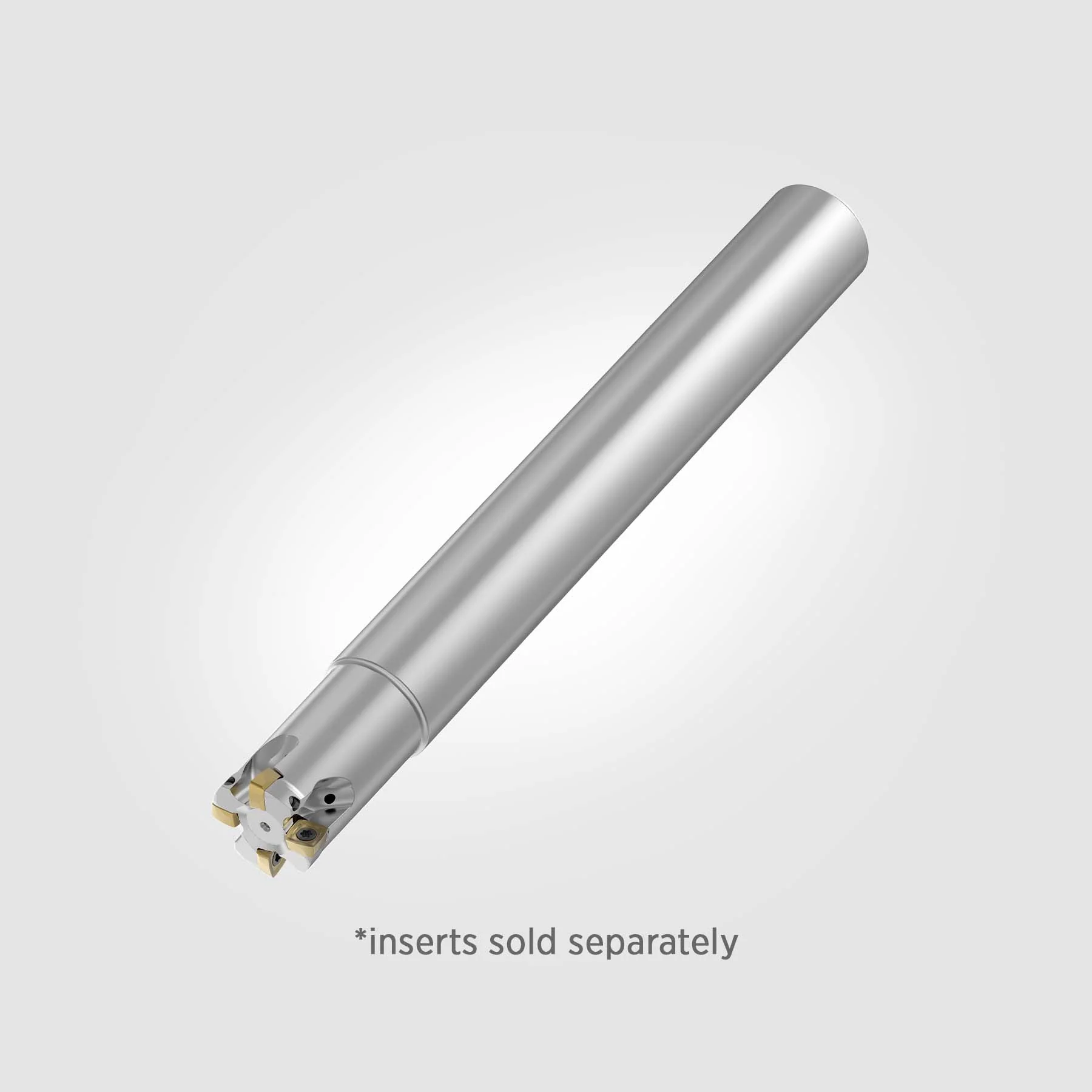

High-Feed Milling Cutters

• Ultra-fine pitch cutters increase material removal rates, especially on high-temp alloys
• Positive design to support lower cutting forces and long overhang usage
• Ramping and plunge milling capabilities
• No through coolant for cutters where D1MAX = 160mm

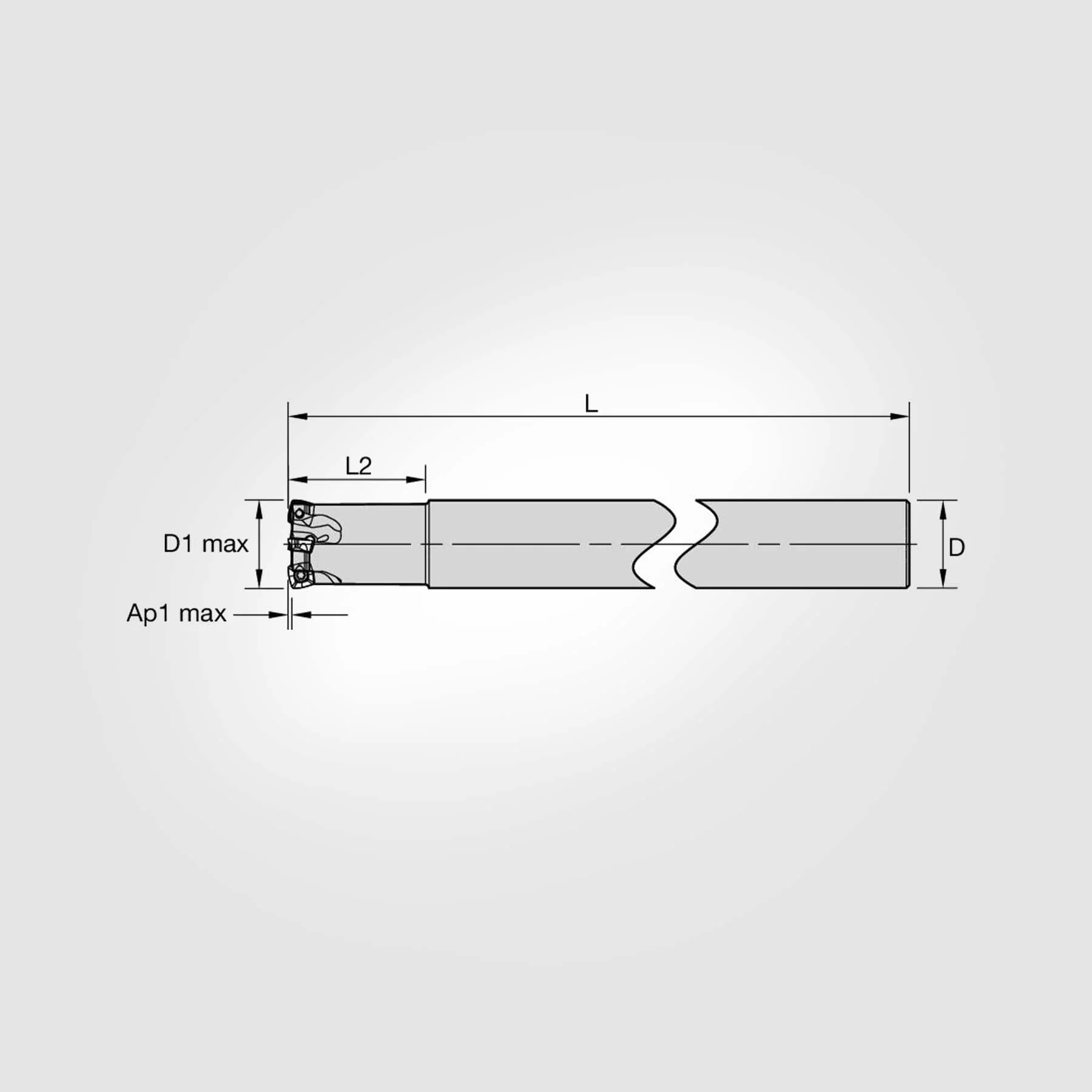

Technical Data

• Series: 7792VXP
• Adapter Type: Straight-Cylindrical
• Number of Flutes: 5
• [D] Adapter Diameter (Inch): 1.260"
• [D] Adapter Diameter (Metric): 32.000mm
• [D1] Effective Cutting Diameter (Inch): 0.929"
• [D1] Effective Cutting Diameter (Metric): 23.600mm
• [D1MAX] Maximum Cutting Diameter (Inch): 1.260"
• [D1MAX] Maximum Cutting Diameter (Metric): 32.000mm
• [AP1MAX] Maximum Cut Depth (Inch): 0.035"
• [AP1MAX] Maximum Cut Depth (Metric): 0.900mm
• [L] Overall Length (Inch): 9.843"
• [L] Overall Length (Metric): 250.000mm
• [L1] Gage Length (Inch): 9.843"
• [L1] Gage Length (Metric): 250.000mm
• [L2] Head Length (Inch): 1.575"
• [L2] Head Length (Metric): 40.000mm
• Maximum RPM: 41,500

INSERTS SOLD SEPARATELY

Country of Origin is subject to change.

Safety data sheets upon request.
