High-Feed Milling Cutters

• Ultra-fine pitch cutters increase material removal rates, especially on high-temp alloys
• Positive design to support lower cutting forces and long overhang usage
• Ramping and plunge milling capabilities
• No through coolant for cutters where D1MAX = 160mm

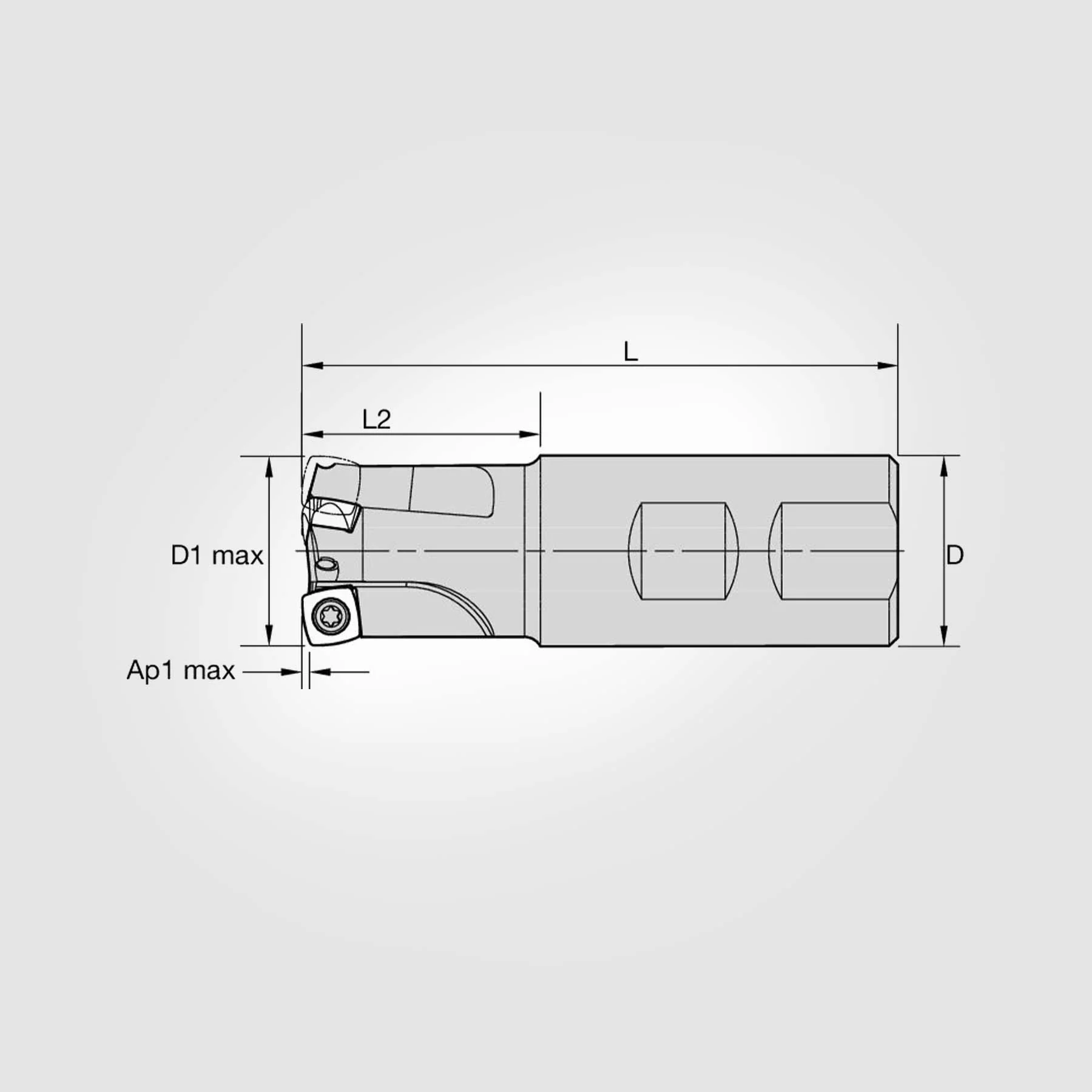

Technical Data

• Series: 7792VXD
• Adapter Type: Weldon
• Number of Flutes: 3
• [D] Adapter Diameter (Inch): 1.250"
• [D] Adapter Diameter (Metric): 31.740mm
• [D1] Effective Cutting Diameter (Inch): 0.7384"
• [D1] Effective Cutting Diameter (Metric): 18.756mm
• [D1MAX] Maximum Cutting Diameter (Inch): 1.2421"
• [D1MAX] Maximum Cutting Diameter (Metric): 31.550mm
• [AP1MAX] Maximum Cut Depth (Inch): 0.0591"
• [AP1MAX] Maximum Cut Depth (Metric): 1.500mm
• [L] Overall Length (Inch): 3.854"
• [L] Overall Length (Metric): 97.892mm
• [L1] Gage Length (Inch): 3.854"
• [L1] Gage Length (Metric): 97.892mm
• [L2] Head Length (Inch): 1.574"
• [L2] Head Length (Metric): 39.980mm
• Maximum RPM: 40,500

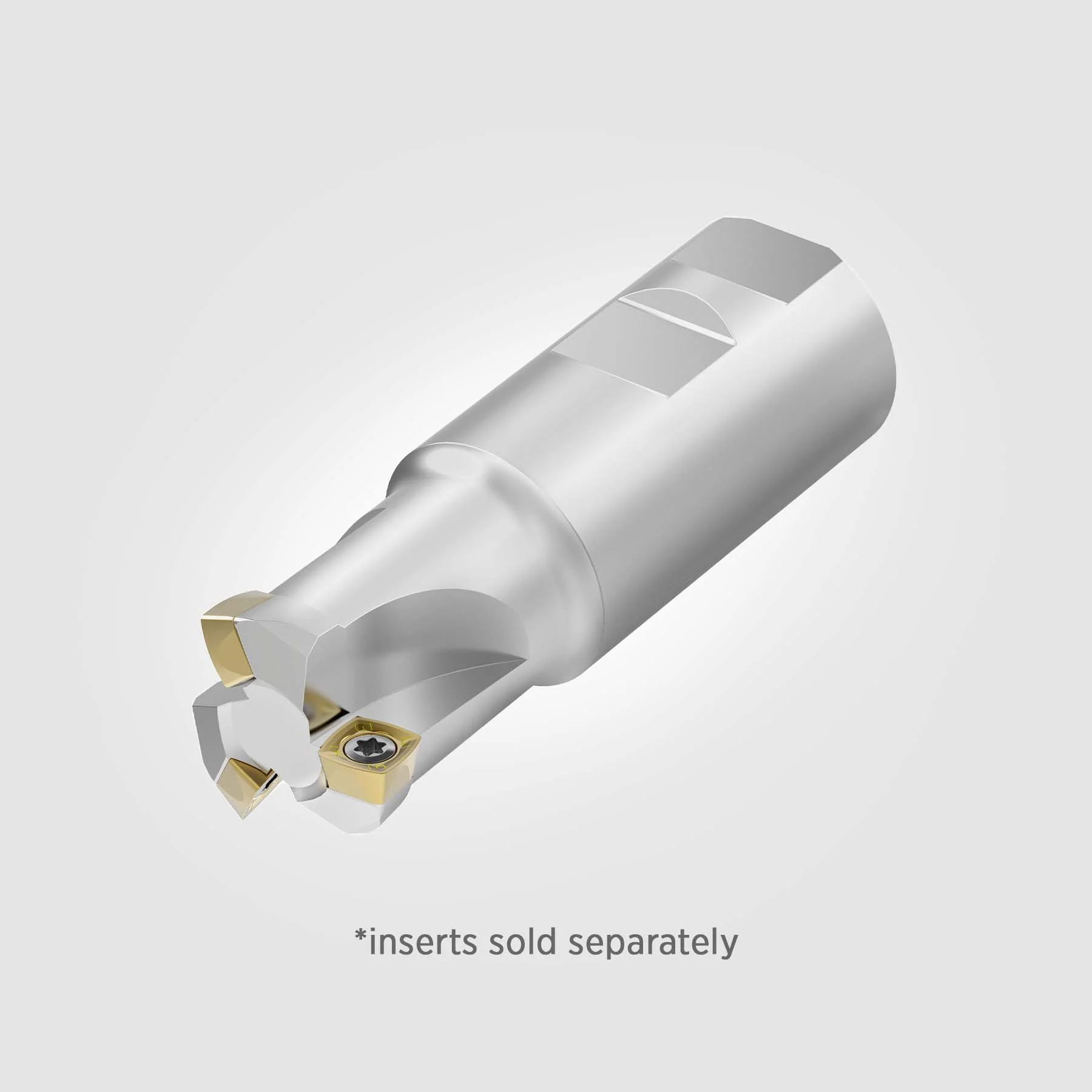

INSERTS SOLD SEPARATELY

Country of Origin is subject to change.

Safety data sheets upon request.
