• Improve your tool life and workpiece surface quality
• Quicker and easier tool changes
• High-performance holders, built to last

• Adapter Type: Hollow Taper Shank
• System Size: HSK63A

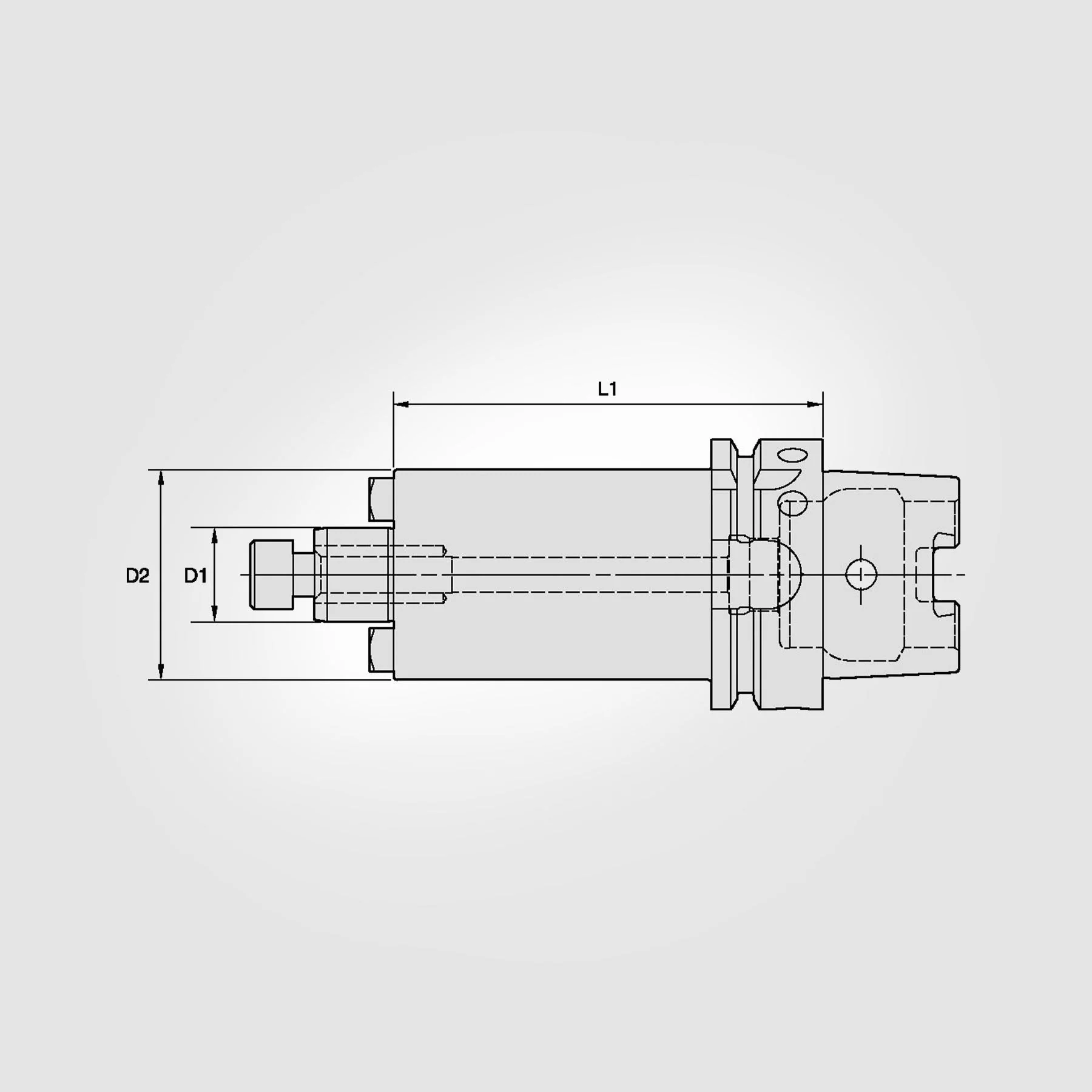

• [D1] Adapter Diameter (Inch): 1.063"
• [D1] Adapter Diameter (Metric): 27.000mm
• [D2] Body Diameter (Inch): 2.3622"
• [D2] Body Diameter (Metric): 60.000mm
• [L1] Gage Length (Inch): 6.2990"
• [L1] Gage Length (Metric): 160.000mm
• [L] Overall Length (Inch): 8.3622"
• [L] Overall Length (Metric): 212.400mm
• [L2] Usable Length (Inch): 5.2776"
• [L2] Usable Length (Metric): 134.050mm
• Through Coolant: Yes
• Coolant Entry Style: Concentric Axial Coolant
