• Improve your tool life and workpiece surface quality
• Quicker and easier tool changes
• High-performance holders, built to last

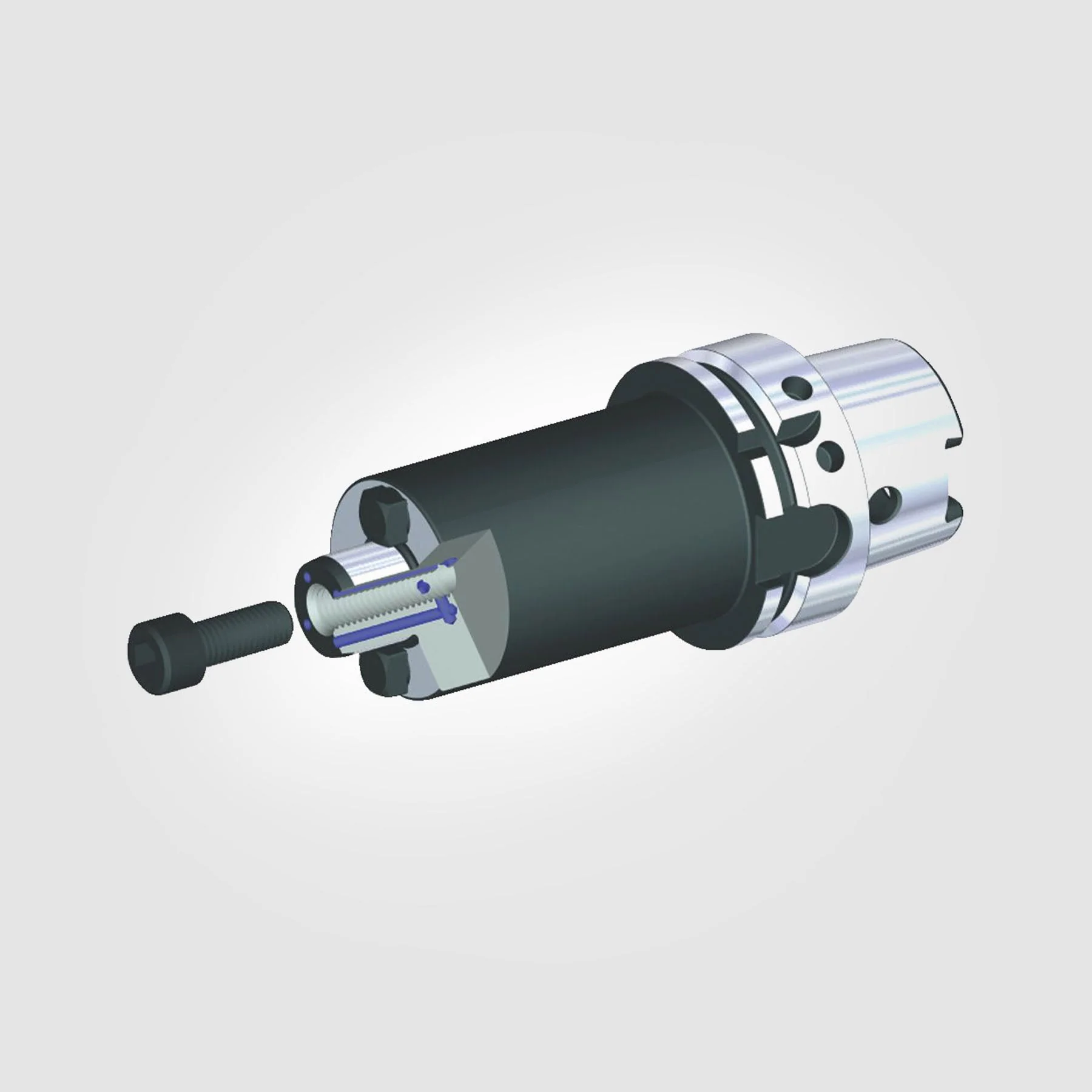

• Adapter Type: Hollow Taper Shank
• System Size: HSK63A

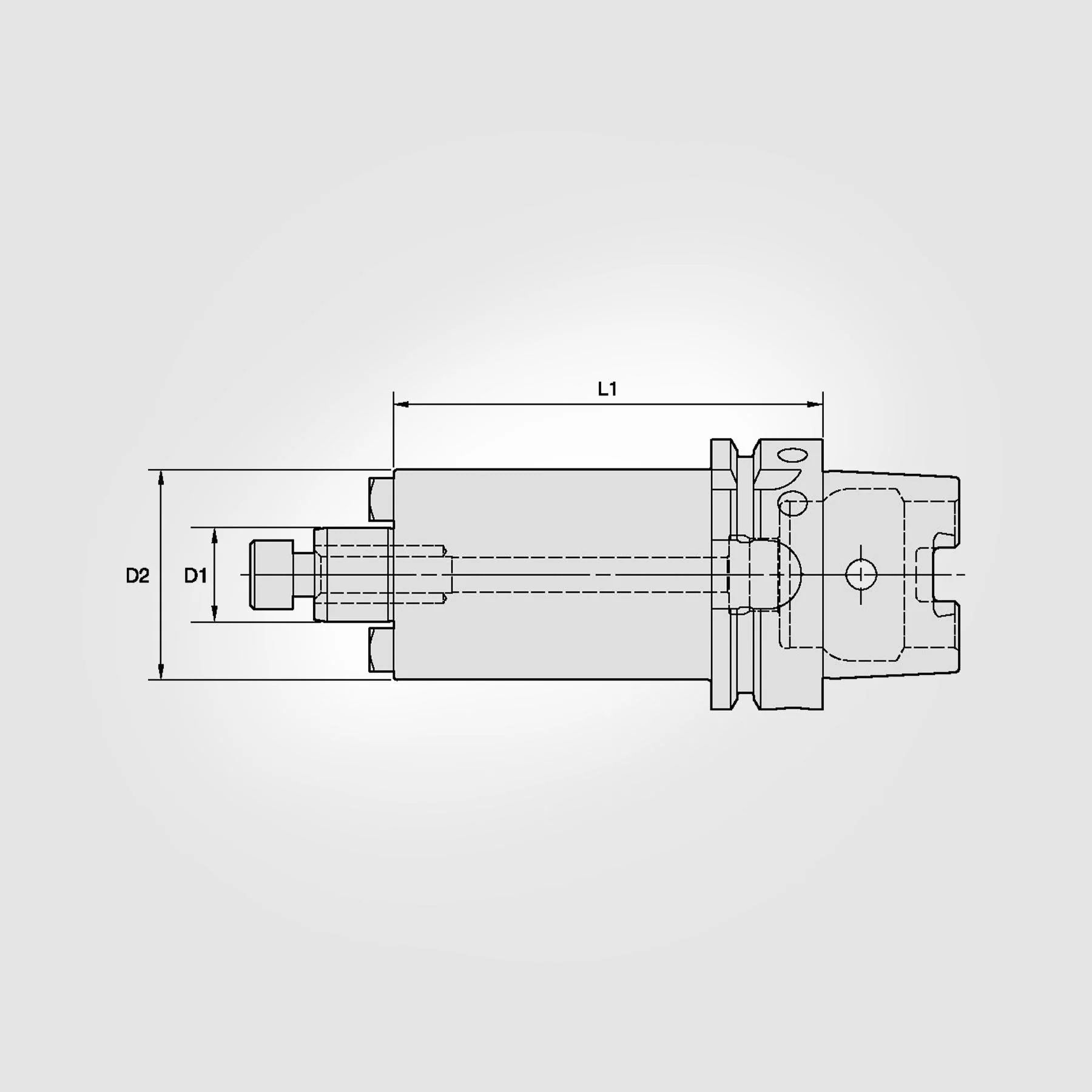

• [D1] Adapter Diameter (Inch): 0.8661"
• [D1] Adapter Diameter (Metric): 22.000mm
• [D2] Body Diameter (Inch): 1.9291"
• [D2] Body Diameter (Metric): 49.000mm
• [L1] Gage Length (Inch): 6.2990"
• [L1] Gage Length (Metric): 160.000mm
• [L] Overall Length (Inch): 8.2835"
• [L] Overall Length (Metric): 210.400mm
• [L2] Usable Length (Inch): 5.2776"
• [L2] Usable Length (Metric): 134.050mm
• Through Coolant: Yes
• Coolant Entry Style: Concentric Axial Coolant

Country of Origin is subject to change.

Safety data sheets upon request.
