• Improve your tool life and workpiece surface quality
• Quicker and easier tool changes
• High-performance holders, built to last

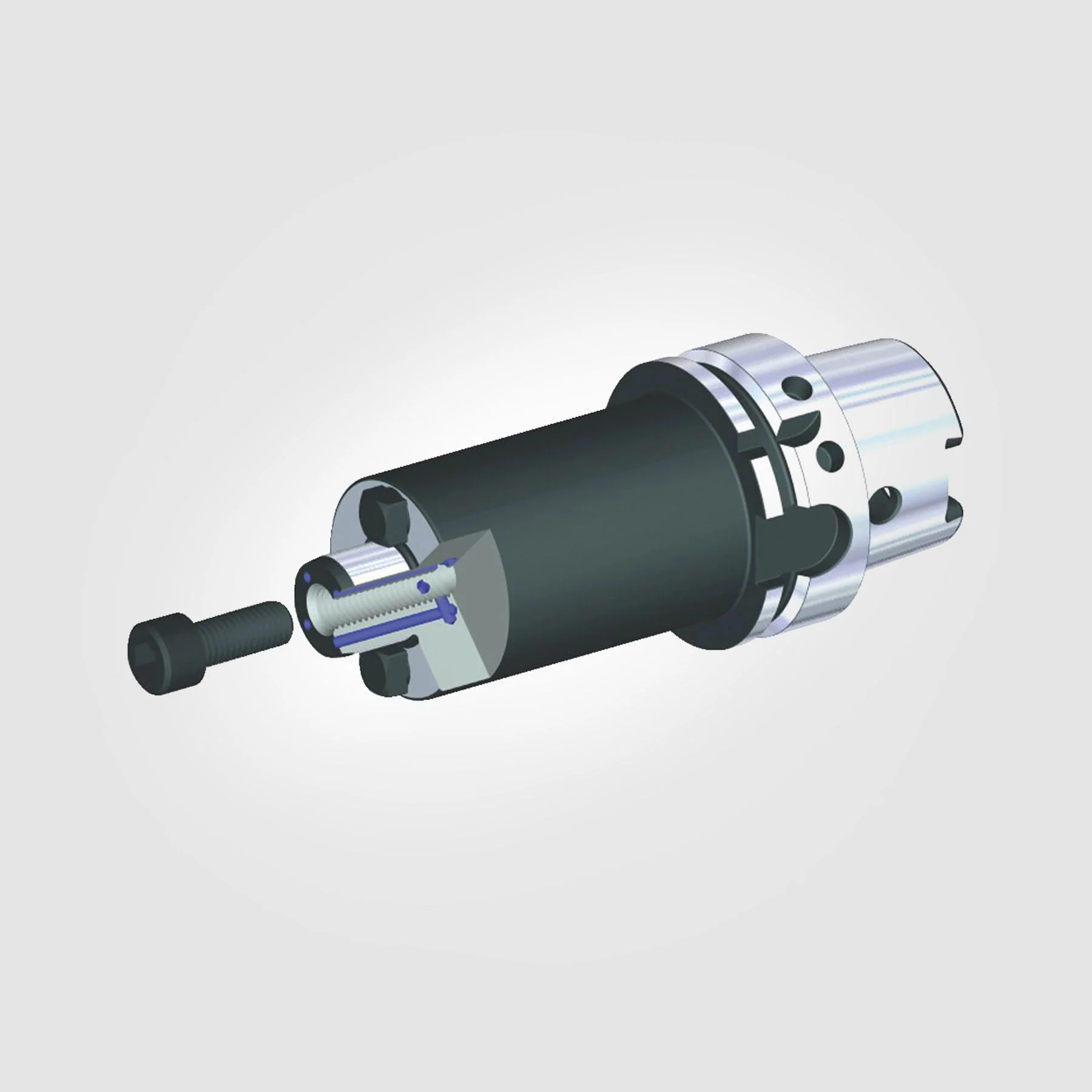

• Adapter Type: Hollow Taper Shank
• System Size: HSK100A

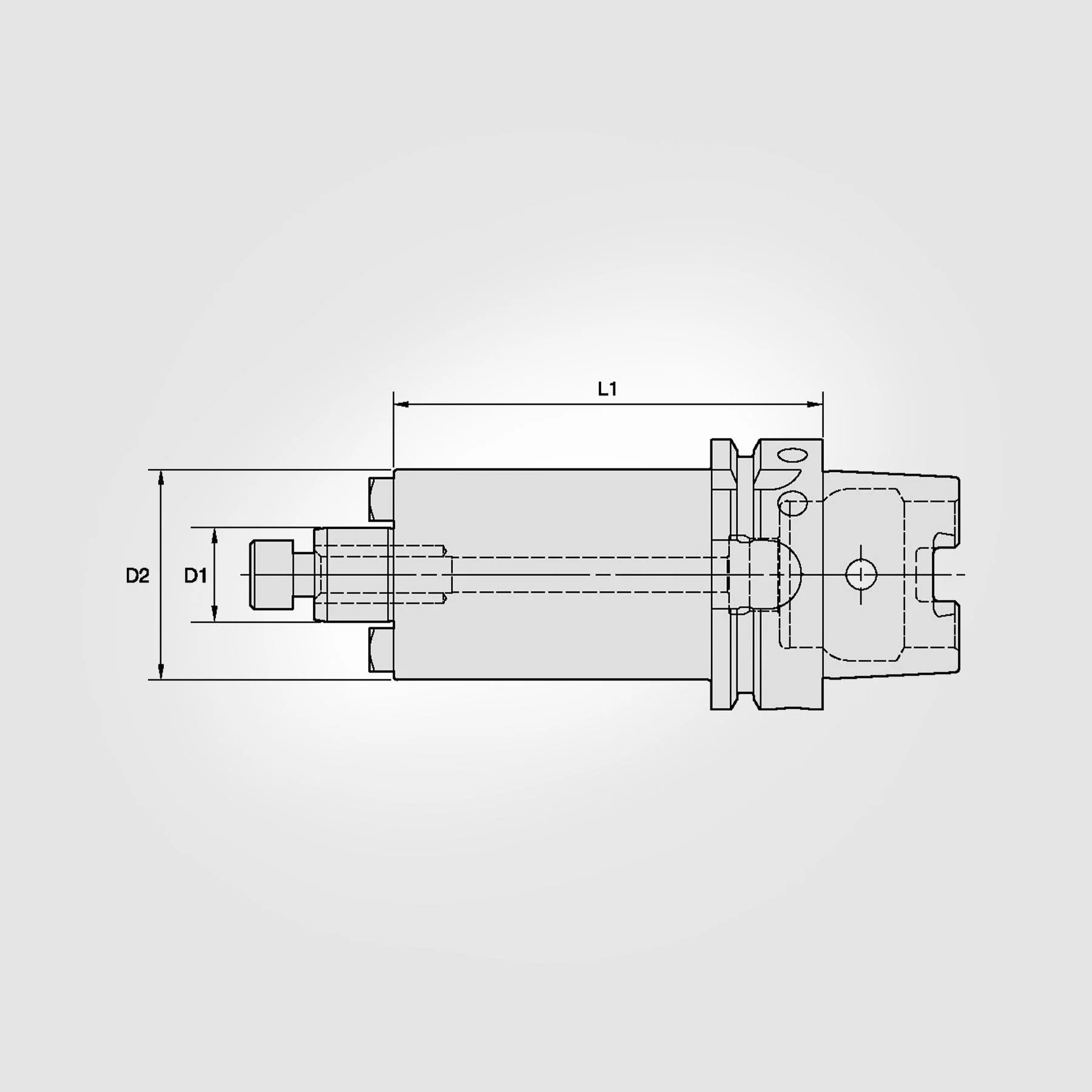

• [D1] Adapter Diameter (Inch): 2.3622"
• [D1] Adapter Diameter (Metric): 60.000mm
• [D2] Body Diameter (Inch): 5.0787"
• [D2] Body Diameter (Metric): 129.000mm
• [L1] Gage Length (Inch): 2.7560"
• [L1] Gage Length (Metric): 70.000mm
• [L] Overall Length (Inch): 5.7047"
• [L] Overall Length (Metric): 144.900mm
• [L2] Usable Length (Inch): 2.7559"
• [L2] Usable Length (Metric): 70.000mm
• [D4] Bolt Circle (Inch): 4.0000"
• [D4] Bolt Circle (Metric): 101.600mm
• [G1] Bolt Circle Thread Size: M16X2
• Through Coolant: Yes
• Coolant Entry Style: Concentric Axial Coolant

Country of Origin is subject to change.

Safety data sheets upon request.
