• Improve your tool life and workpiece surface quality
• Quicker and easier tool changes
• High-performance holders, built to last

• Adapter Type: Hollow Taper Shank
• System Size: HSK100A

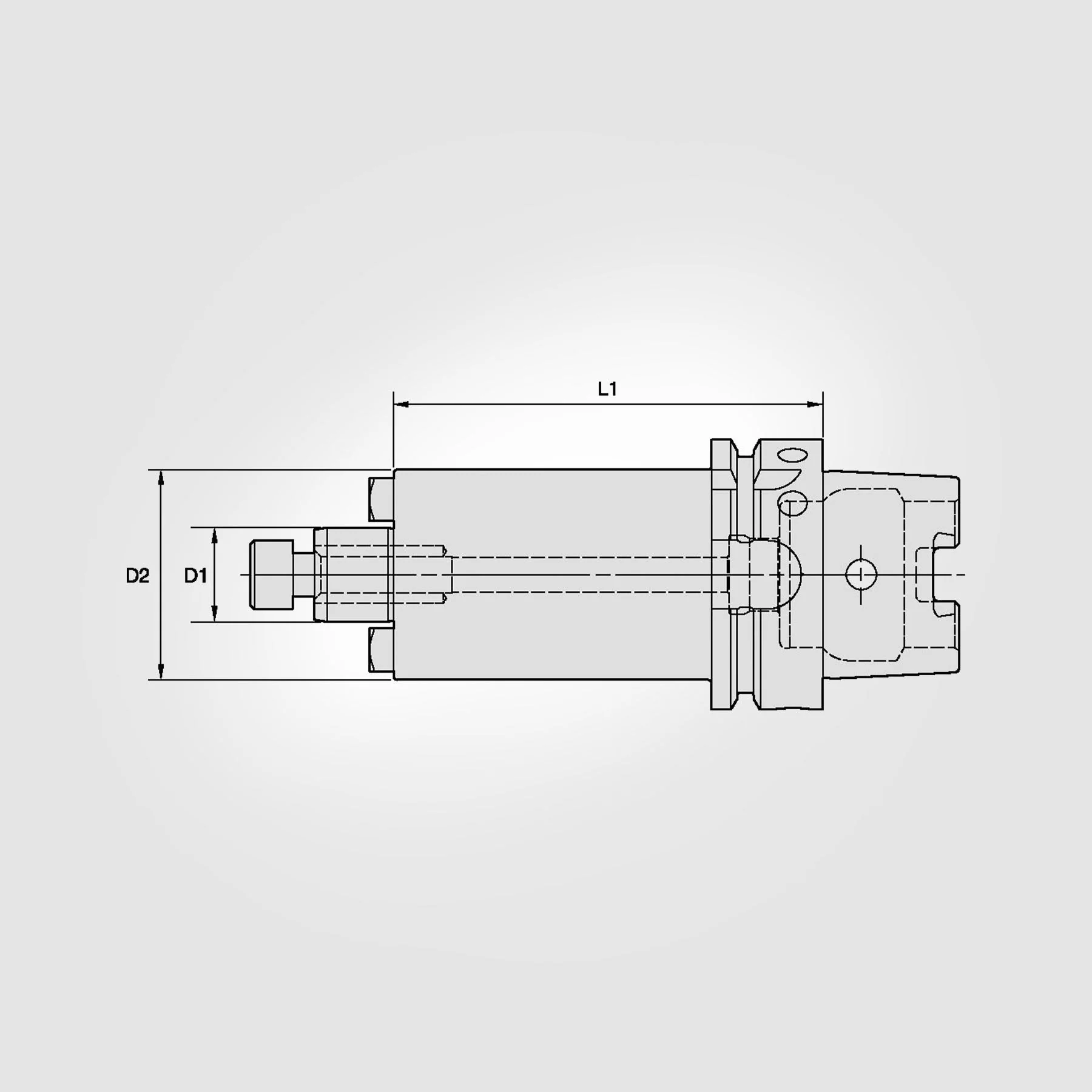

• [D1] Adapter Diameter (Inch): 1.2598"
• [D1] Adapter Diameter (Metric): 32.000mm
• [D2] Body Diameter (Inch): 3.0709"
• [D2] Body Diameter (Metric): 78.000mm
• [L1] Gage Length (Inch): 1.969"
• [L1] Gage Length (Metric): 50.000mm
• [L] Overall Length (Inch): 4.8583"
• [L] Overall Length (Metric): 123.400mm
• [L2] Usable Length (Inch): 0.8287"
• [L2] Usable Length (Metric): 21.050mm
• Through Coolant: Yes
• Coolant Entry Style: Concentric Axial Coolant

Country of Origin is subject to change.

Safety data sheets upon request.
