• Improve your tool life and workpiece surface quality
• Quicker and easier tool changes
• High-performance holders, built to last

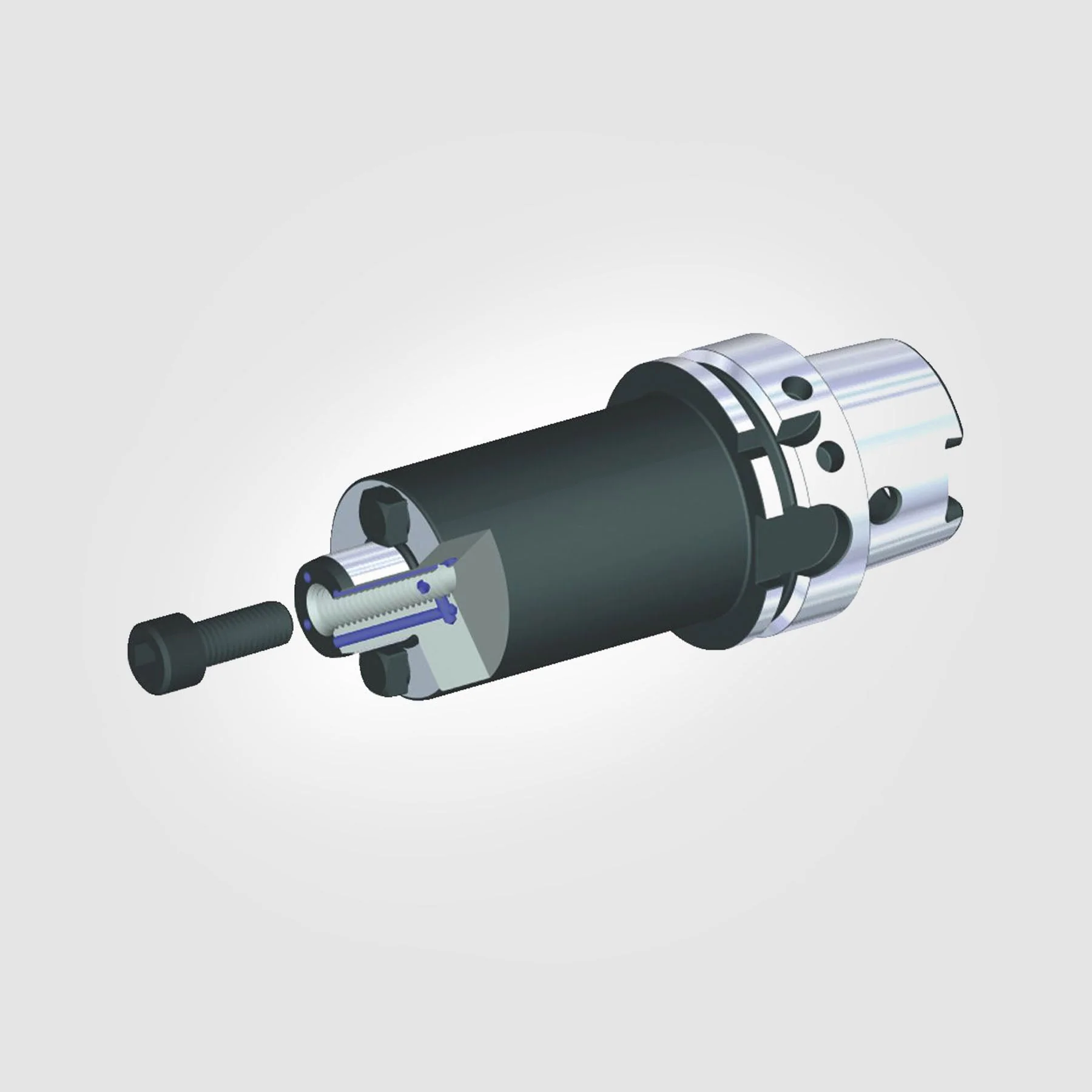

• Adapter Type: Hollow Taper Shank
• System Size: HSK100A

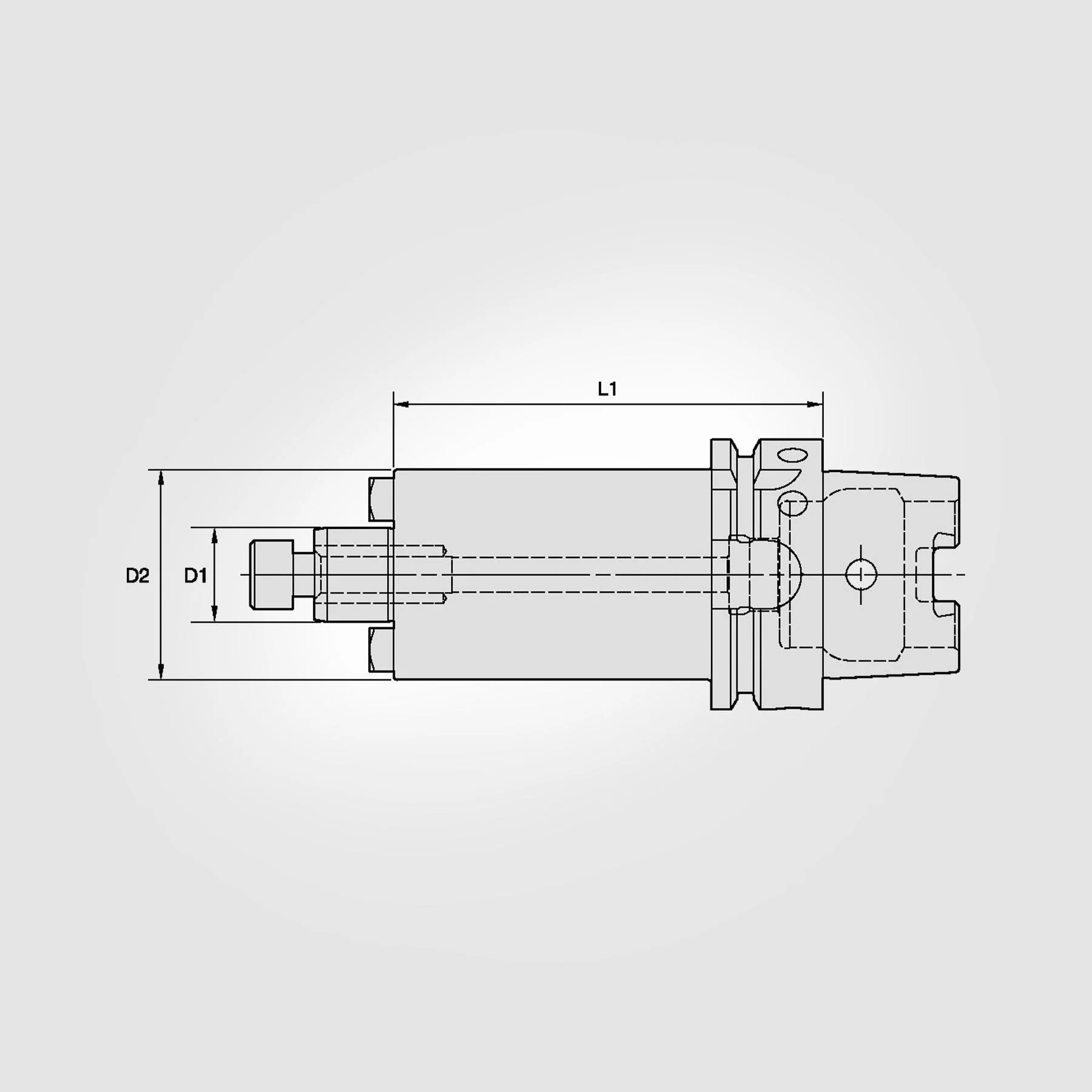

• [D1] Adapter Diameter (Inch): 1.063"
• [D1] Adapter Diameter (Metric): 27.000mm
• [D2] Body Diameter (Inch): 2.3622"
• [D2] Body Diameter (Metric): 60.000mm
• [L1] Gage Length (Inch): 2.000"
• [L1] Gage Length (Metric): 50.000mm
• [L] Overall Length (Inch): 4.7402"
• [L] Overall Length (Metric): 120.400mm
• [L2] Usable Length (Inch): 0.8287"
• [L2] Usable Length (Metric): 21.050mm
• Through Coolant: Yes
• Coolant Entry Style: Concentric Axial Coolant

Country of Origin is subject to change.

Safety data sheets upon request.
