• Improve your tool life and workpiece surface quality
• Quicker and easier tool changes
• High-performance holders, built to last

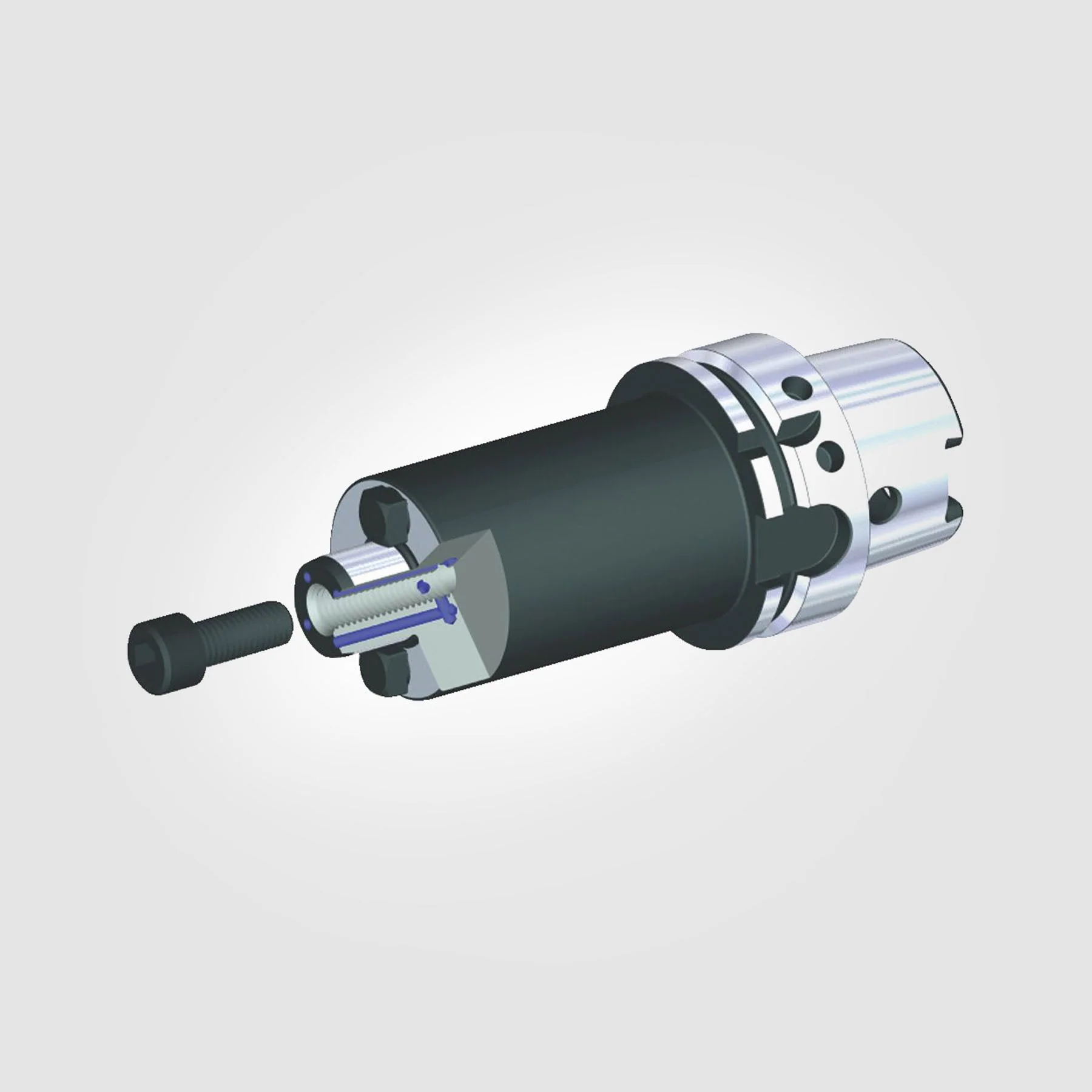

• Adapter Type: Hollow Taper Shank
• System Size: HSK100A

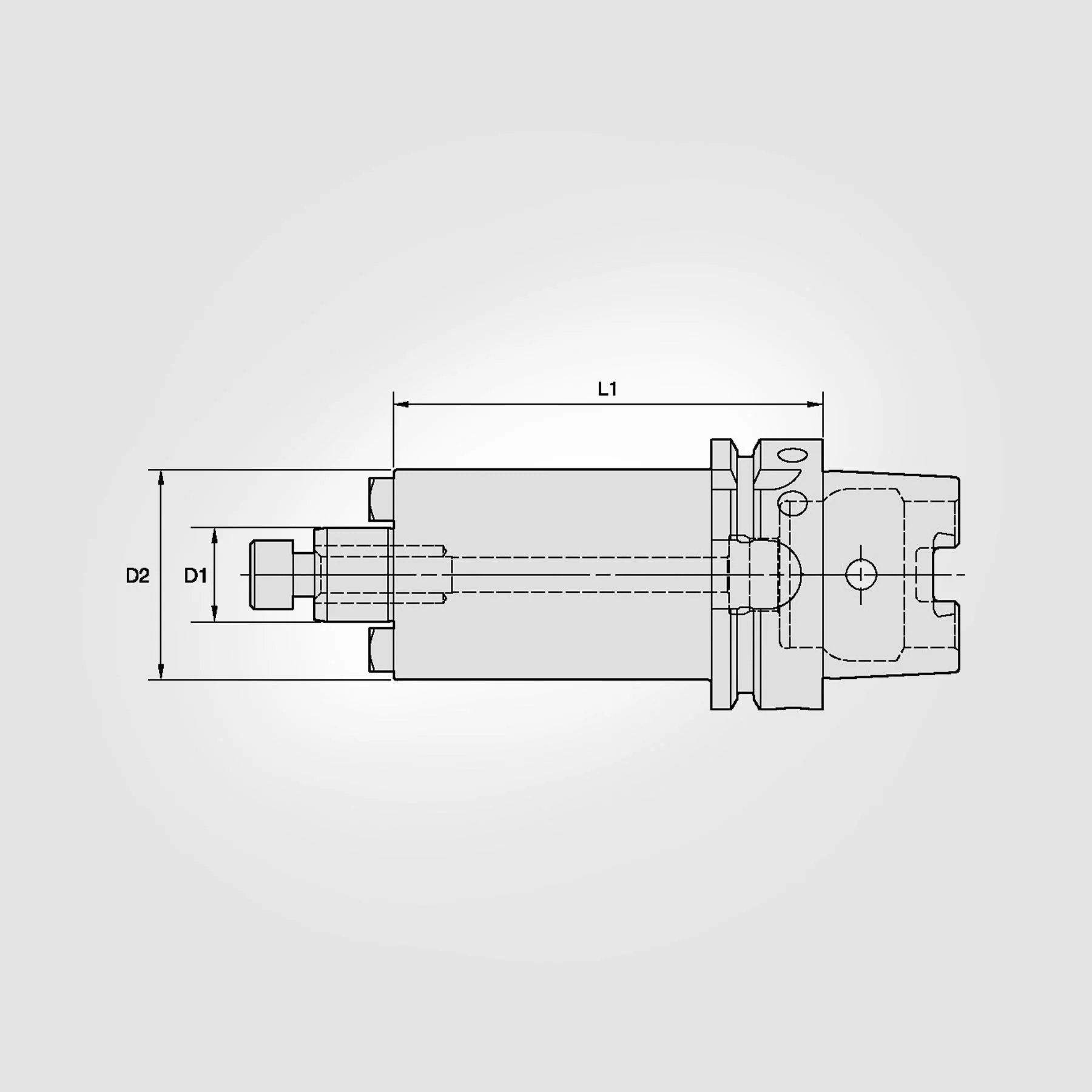

• [D1] Adapter Diameter (Inch): 0.630"
• [D1] Adapter Diameter (Metric): 16.000mm
• [D2] Body Diameter (Inch): 1.730"
• [D2] Body Diameter (Metric): 44.000mm
• [L1] Gage Length (Inch): 6.299"
• [L1] Gage Length (Metric): 160.000mm
• [L] Overall Length (Inch): 8.913"
• [L] Overall Length (Metric): 226.400mm
• [L2] Usable Length (Inch): 5.1594"
• [L2] Usable Length (Metric): 131.050mm
• Through Coolant: Yes
• Coolant Entry Style: Concentric Axial Coolant

Country of Origin is subject to change.

Safety data sheets upon request.
