• Improve your tool life and workpiece surface quality
• Quicker and easier tool changes
• High-performance holders, built to last

• Adapter Type: Hollow Taper Shank
• System Size: HSK100A

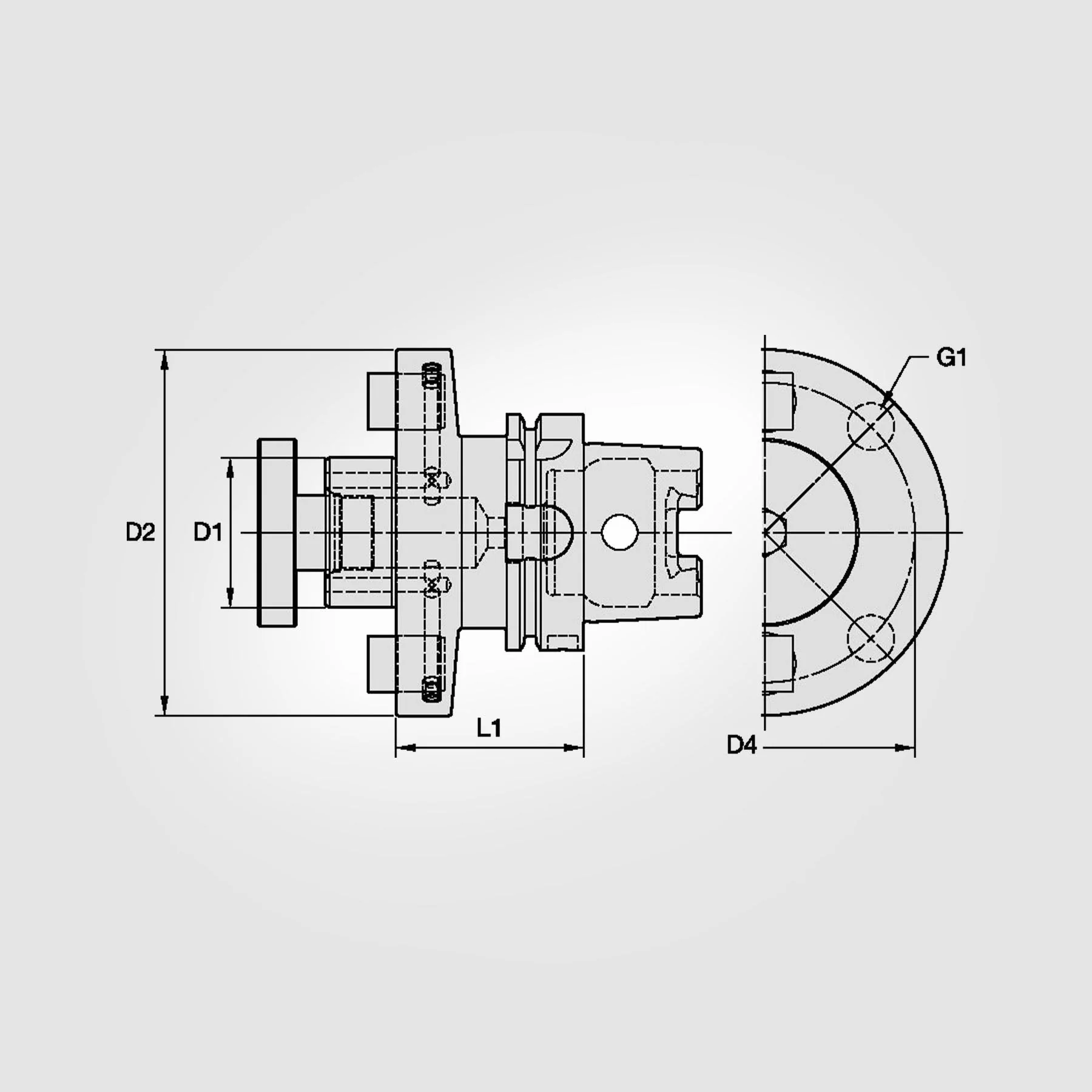

• [D1] Adapter Diameter (Inch): 1.250"
• [D1] Adapter Diameter (Metric): 31.750mm
• [D2] Body Diameter (Inch): 2.878"
• [D2] Body Diameter (Metric): 73.100mm
• [L1] Gage Length (Inch): 2.500"
• [L1] Gage Length (Metric): 63.500mm
• [L] Overall Length (Inch): 5.153"
• [L] Overall Length (Metric): 130.880mm
• [L2] Usable Length (Inch): 1.3602"
• [L2] Usable Length (Metric): 34.550mm
• Through Coolant: Yes
• Coolant Entry Style: Concentric Axial Coolant

Country of Origin is subject to change.

Safety data sheets upon request.
