• Improve your tool life and workpiece surface quality
• Quicker and easier tool changes
• High-performance holders, built to last

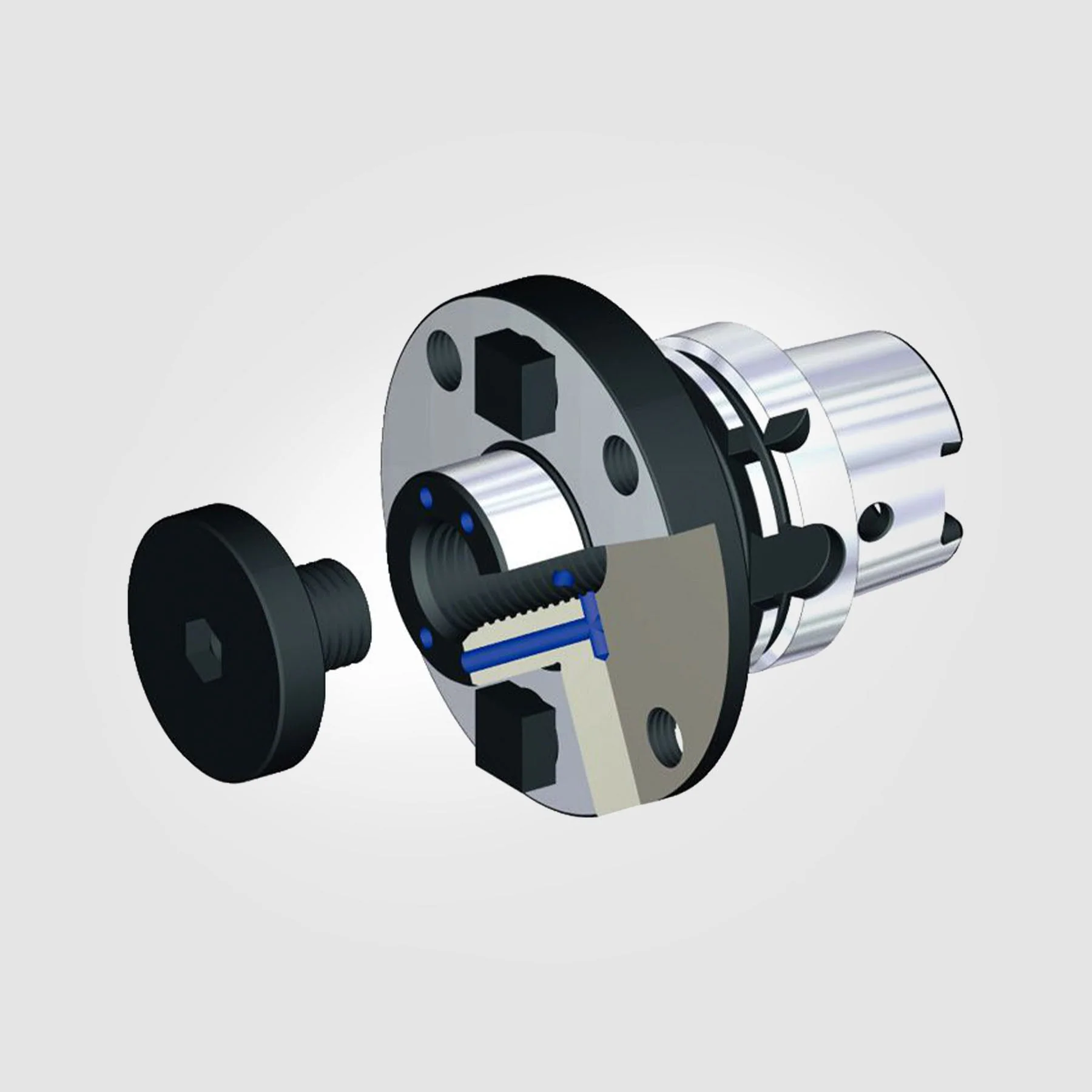

• Adapter Type: Hollow Taper Shank
• System Size: HSK100A

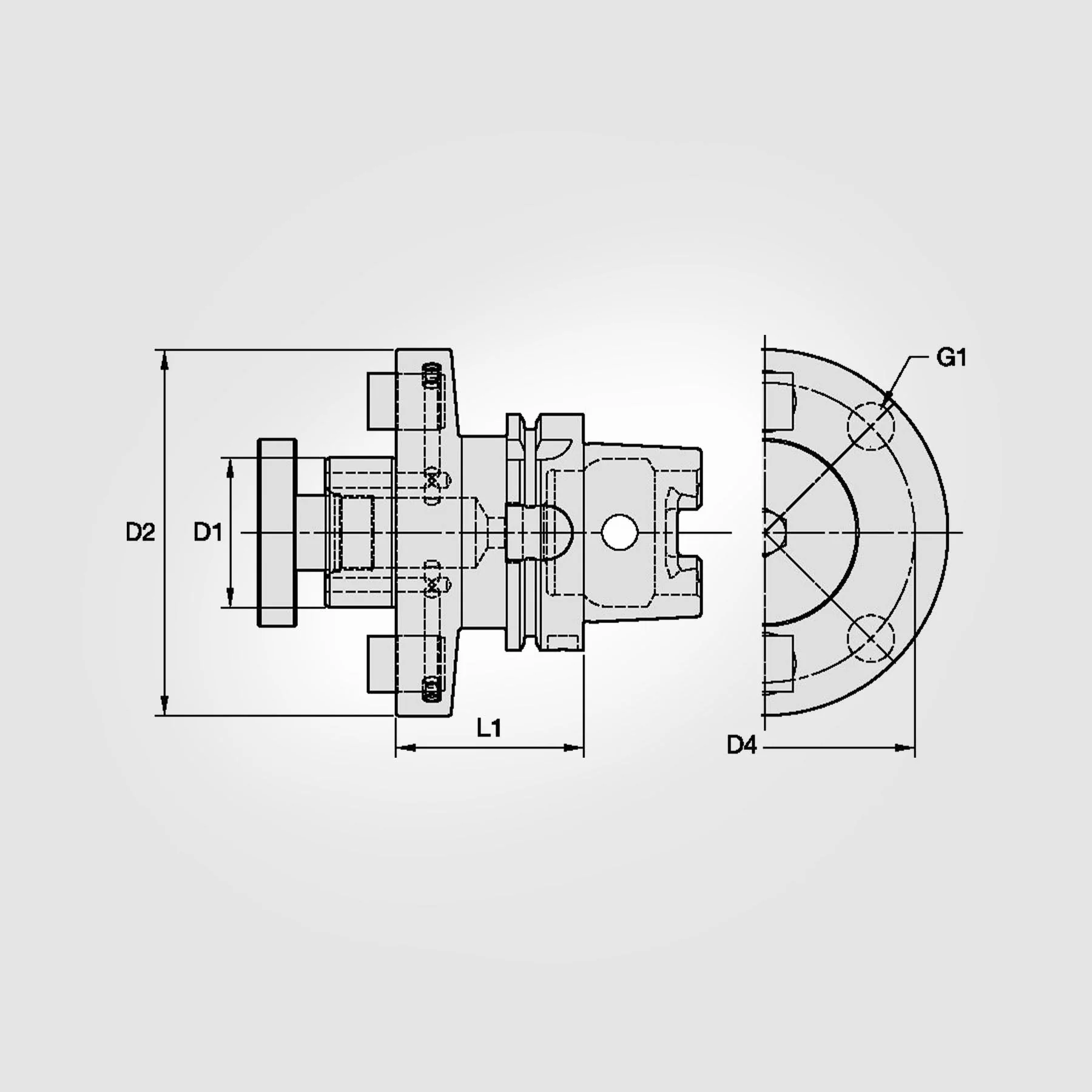

• [D1] Adapter Diameter (Inch): 0.750"
• [D1] Adapter Diameter (Metric): 19.050mm
• [D2] Body Diameter (Inch): 1.752"
• [D2] Body Diameter (Metric): 44.500mm
• [L1] Gage Length (Inch): 2.250"
• [L1] Gage Length (Metric): 57.150mm
• [L] Overall Length (Inch): 4.903"
• [L] Overall Length (Metric): 124.530mm
• [L2] Usable Length (Inch): 1.1102"
• [L2] Usable Length (Metric): 28.200mm
• Through Coolant: Yes
• Coolant Entry Style: Concentric Axial Coolant
