• Improve your tool life and workpiece surface quality
• Quicker and easier tool changes
• High-performance holders, built to last

• Adapter Type: Hollow Taper Shank
• System Size: HSK63A

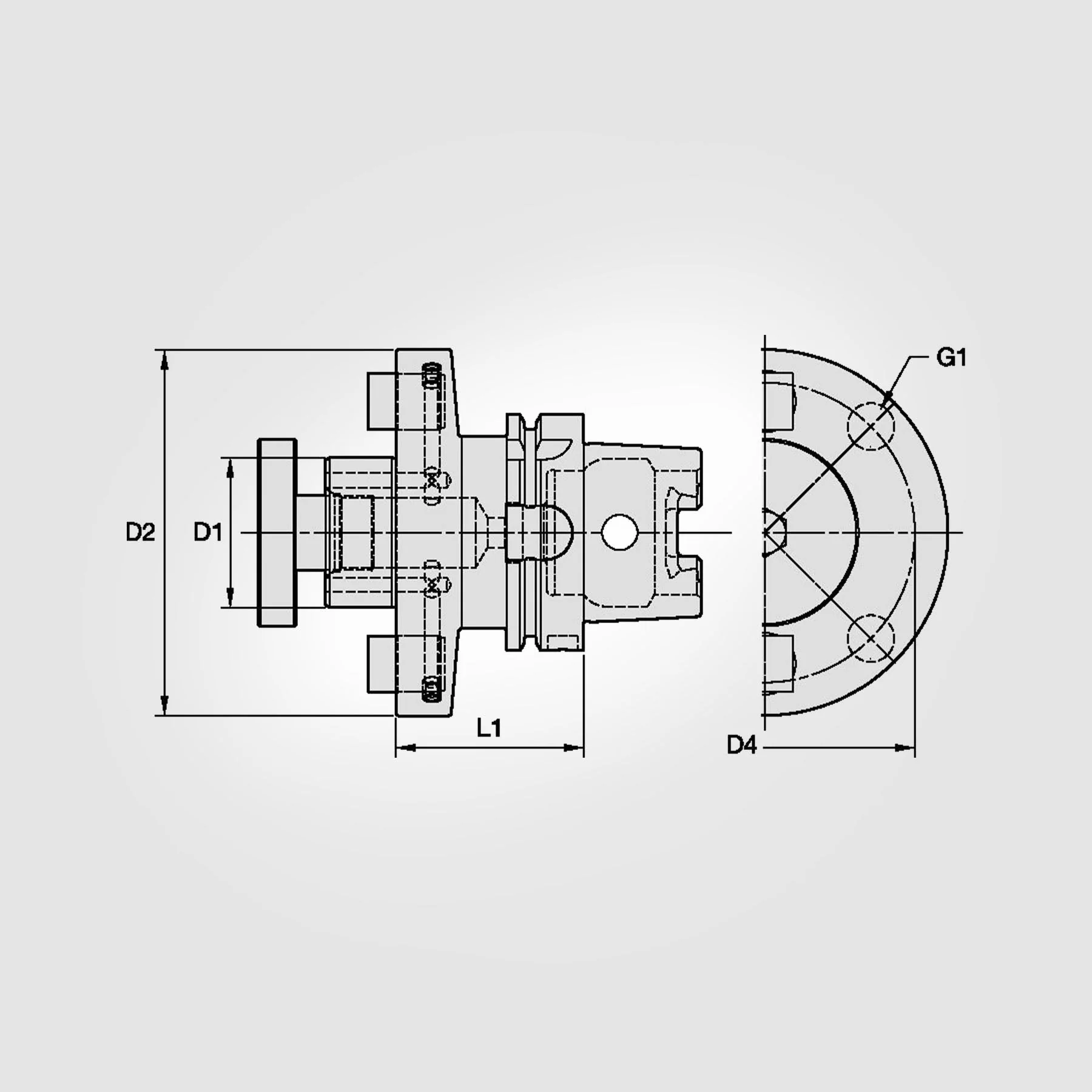

• [D1] Adapter Diameter (Inch): 1.500"
• [D1] Adapter Diameter (Metric): 38.100mm
• [D2] Body Diameter (Inch): 3.810"
• [D2] Body Diameter (Metric): 69.800mm
• [L1] Gage Length (Inch): 2.250"
• [L1] Gage Length (Metric): 57.150mm
• [L] Overall Length (Inch): 4.444"
• [L] Overall Length (Metric): 112.880mm
• [L2] Usable Length (Inch): 2.250"
• [L2] Usable Length (Metric): 57.150mm
• Through Coolant: Yes
• Coolant Entry Style: Concentric Axial Coolant

Country of Origin is subject to change.

Safety data sheets upon request.
