• Improve your tool life and workpiece surface quality
• Quicker and easier tool changes
• High-performance holders, built to last

• Adapter Type: Hollow Taper Shank
• System Size: HSK63A

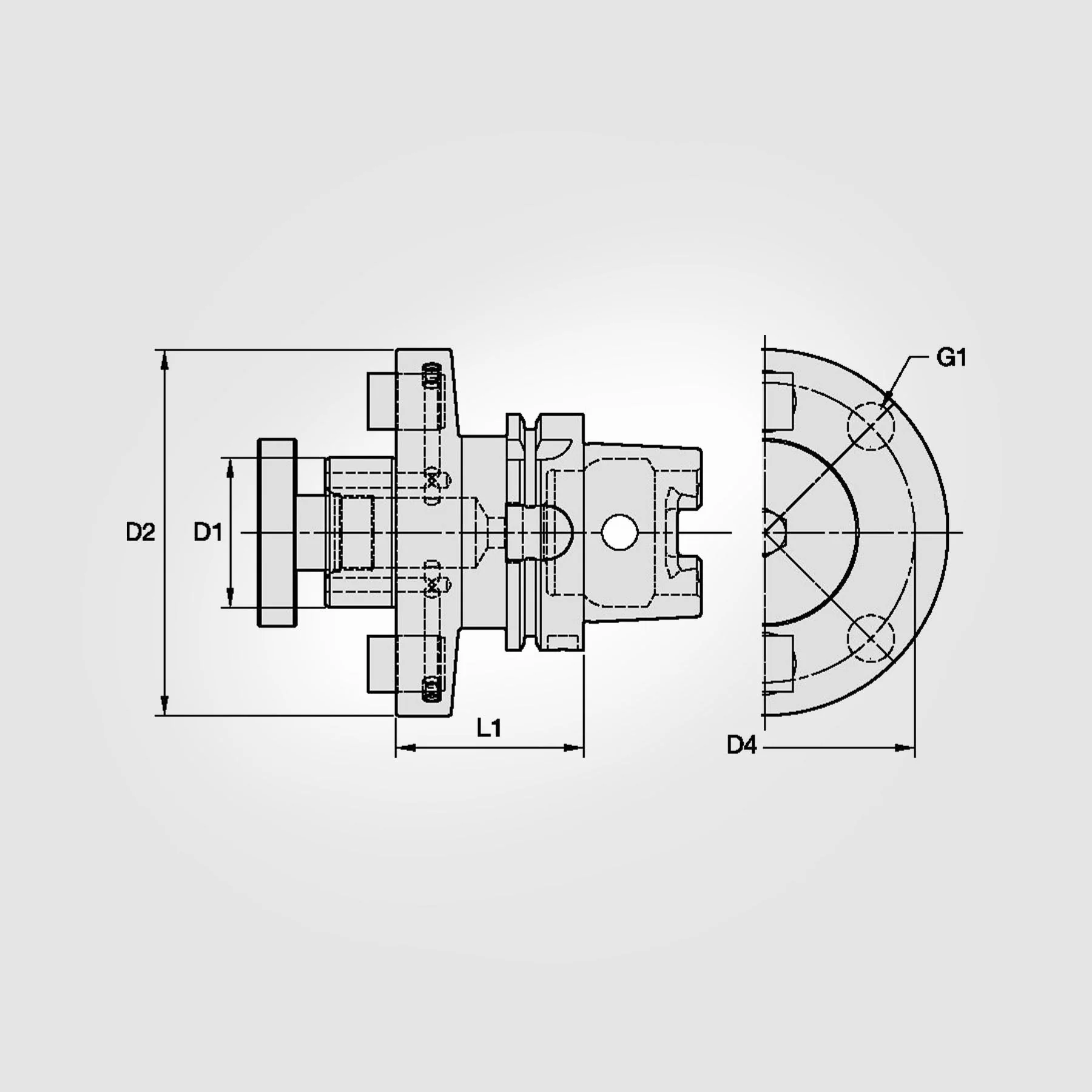

• [D1] Adapter Diameter (Inch): 0.500"
• [D1] Adapter Diameter (Metric): 12.700mm
• [D2] Body Diameter (Inch): 1.437"
• [D2] Body Diameter (Metric): 36.500mm
• [L1] Gage Length (Inch): 2.000"
• [L1] Gage Length (Metric): 50.800mm
• [L] Overall Length (Inch): 3.818"
• [L] Overall Length (Metric): 96.970mm
• [L2] Usable Length (Inch): 0.9783"
• [L2] Usable Length (Metric): 24.850mm
• Through Coolant: Yes
• Coolant Entry Style: Concentric Axial Coolant

Country of Origin is subject to change.

Safety data sheets upon request.
