• Improve your tool life and workpiece surface quality
• Quicker and easier tool changes
• High-performance holders, built to last

• Adapter Type: Steep Taper
• System Size: CV50

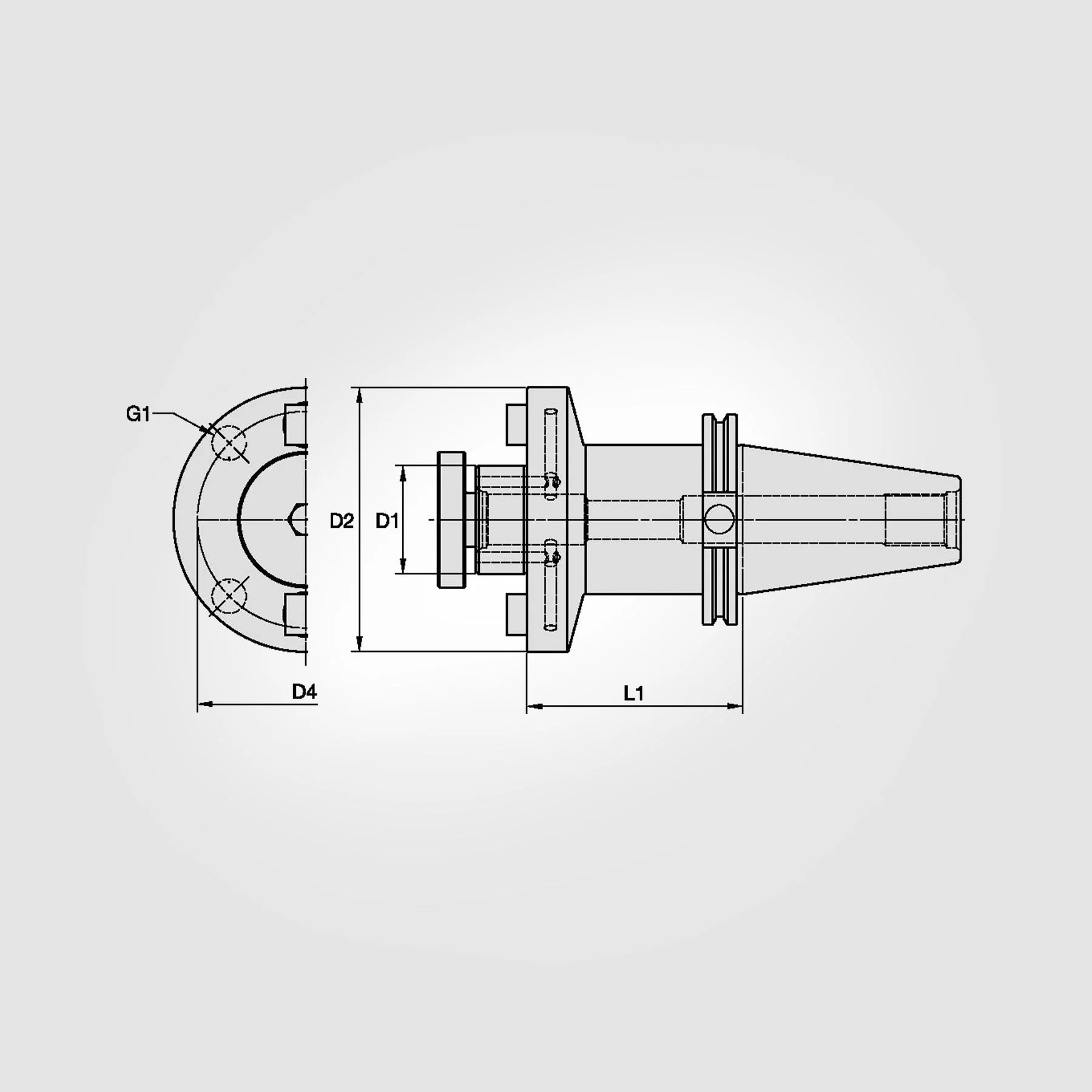

• [D1] Adapter Diameter (Inch): 2.000"
• [D1] Adapter Diameter (Metric): 50.800mm
• [D2] Body Diameter (Inch): 4.880"
• [D2] Body Diameter (Metric): 124.000mm
• [L1] Gage Length (Inch): 2.400"
• [L1] Gage Length (Metric): 60.960mm
• [L] Overall Length (Inch): 7.338"
• [L] Overall Length (Metric): 186.385mm
• [L2] Usable Length (Inch): 2.400"
• [L2] Usable Length (Metric): 60.960mm
• [D4] Bolt Circle (Inch): 4.000"
• [D4] Bolt Circle (Metric): 101.600mm
• [G1] Bolt Circle Thread Size: 5/8-11 UNC
• Through Coolant: Yes
• Coolant Entry Style: Flange & Axial Coolant

Country of Origin is subject to change.

Safety data sheets upon request.
