• Improve your tool life and workpiece surface quality
• Quicker and easier tool changes
• High-performance holders, built to last

• Adapter Type: Steep Taper
• System Size: CV50

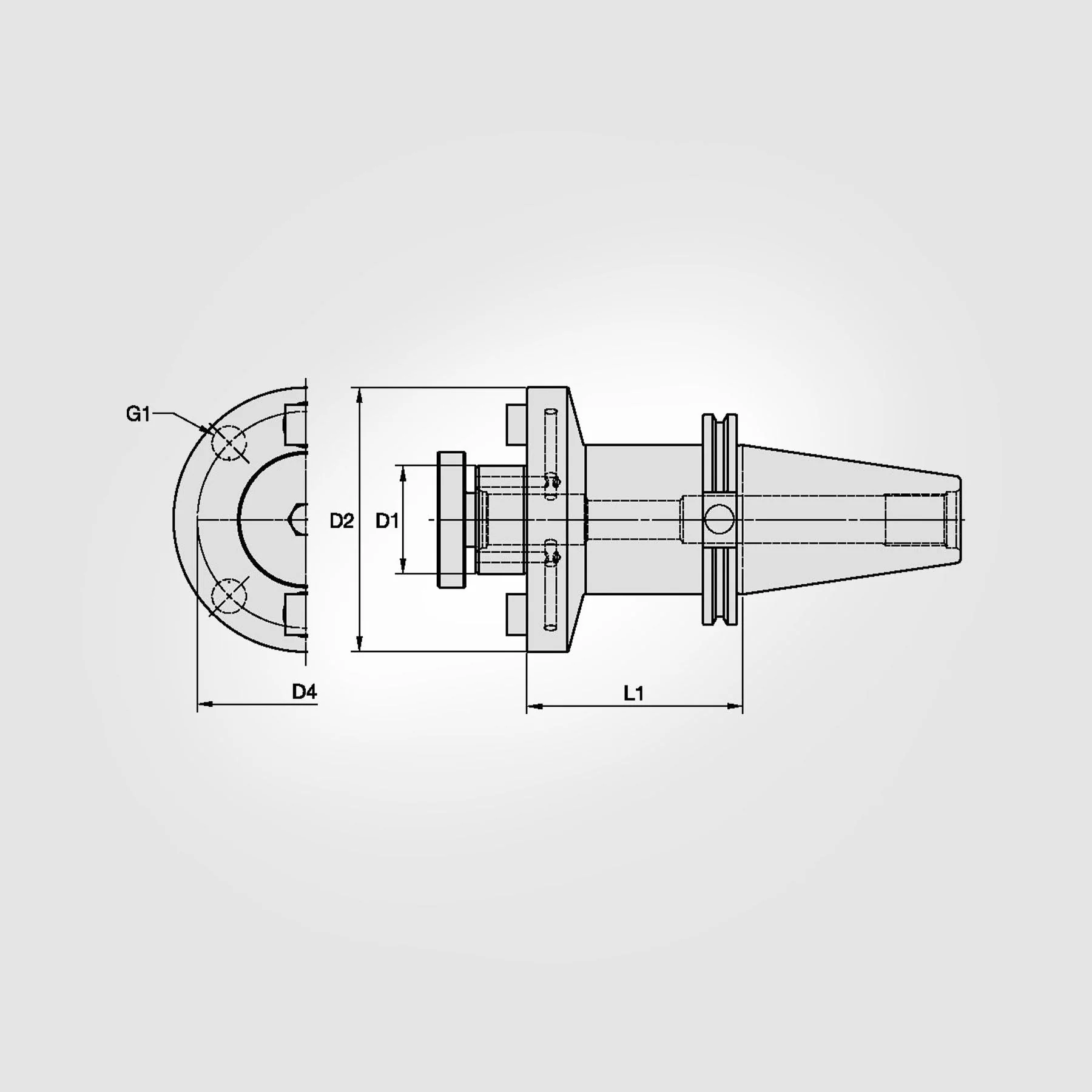

• [D1] Adapter Diameter (Inch): 1.500"
• [D1] Adapter Diameter (Metric): 38.100mm
• [D2] Body Diameter (Inch): 3.810"
• [D2] Body Diameter (Metric): 96.800mm
• [L1] Gage Length (Inch): 6.000"
• [L1] Gage Length (Metric): 152.400mm
• [L] Overall Length (Inch): 10.938"
• [L] Overall Length (Metric): 277.825mm
• [L2] Usable Length (Inch): 5.250"
• [L2] Usable Length (Metric): 133.350mm
• Through Coolant: Yes
• Coolant Entry Style: Flange & Axial Coolant

Country of Origin is subject to change.

Safety data sheets upon request.
