• Improve your tool life and workpiece surface quality
• Quicker and easier tool changes
• High-performance holders, built to last

• Adapter Type: Steep Taper
• System Size: CV40

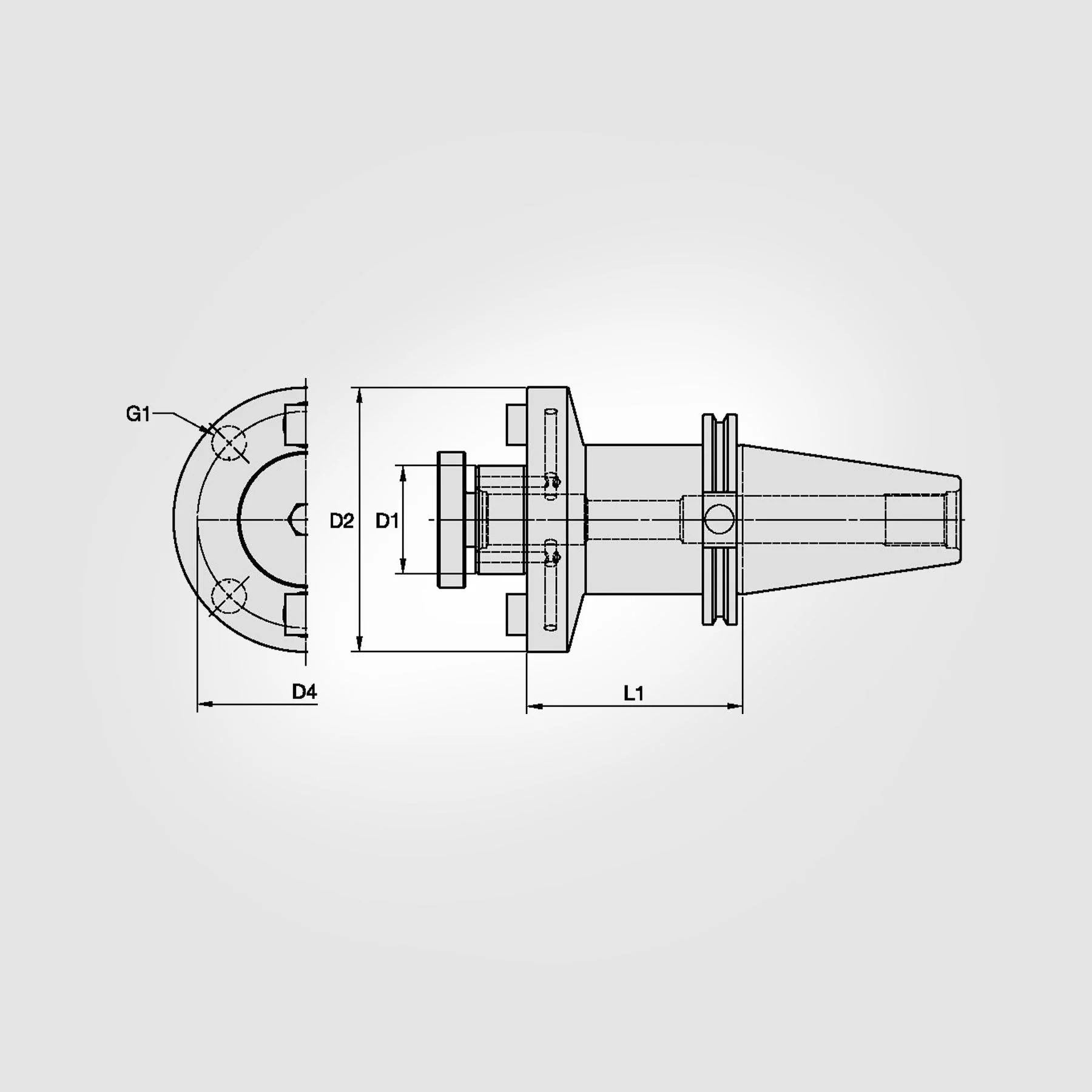

• [D1] Adapter Diameter (Inch): 0.750"
• [D1] Adapter Diameter (Metric): 19.050mm
• [D2] Body Diameter (Inch): 1.750"
• [D2] Body Diameter (Metric): 44.450mm
• [L1] Gage Length (Inch): 3.500"
• [L1] Gage Length (Metric): 88.900mm
• [L] Overall Length (Inch): 6.875"
• [L] Overall Length (Metric): 174.630mm
• [L2] Usable Length (Inch): 2.750"
• [L2] Usable Length (Metric): 69.850mm
• Through Coolant: Yes
• Coolant Entry Style: Concentric Axial Coolant

Country of Origin is subject to change.

Safety data sheets upon request.
