• Improve your tool life and workpiece surface quality
• Quicker and easier tool changes
• High-performance holders, built to last

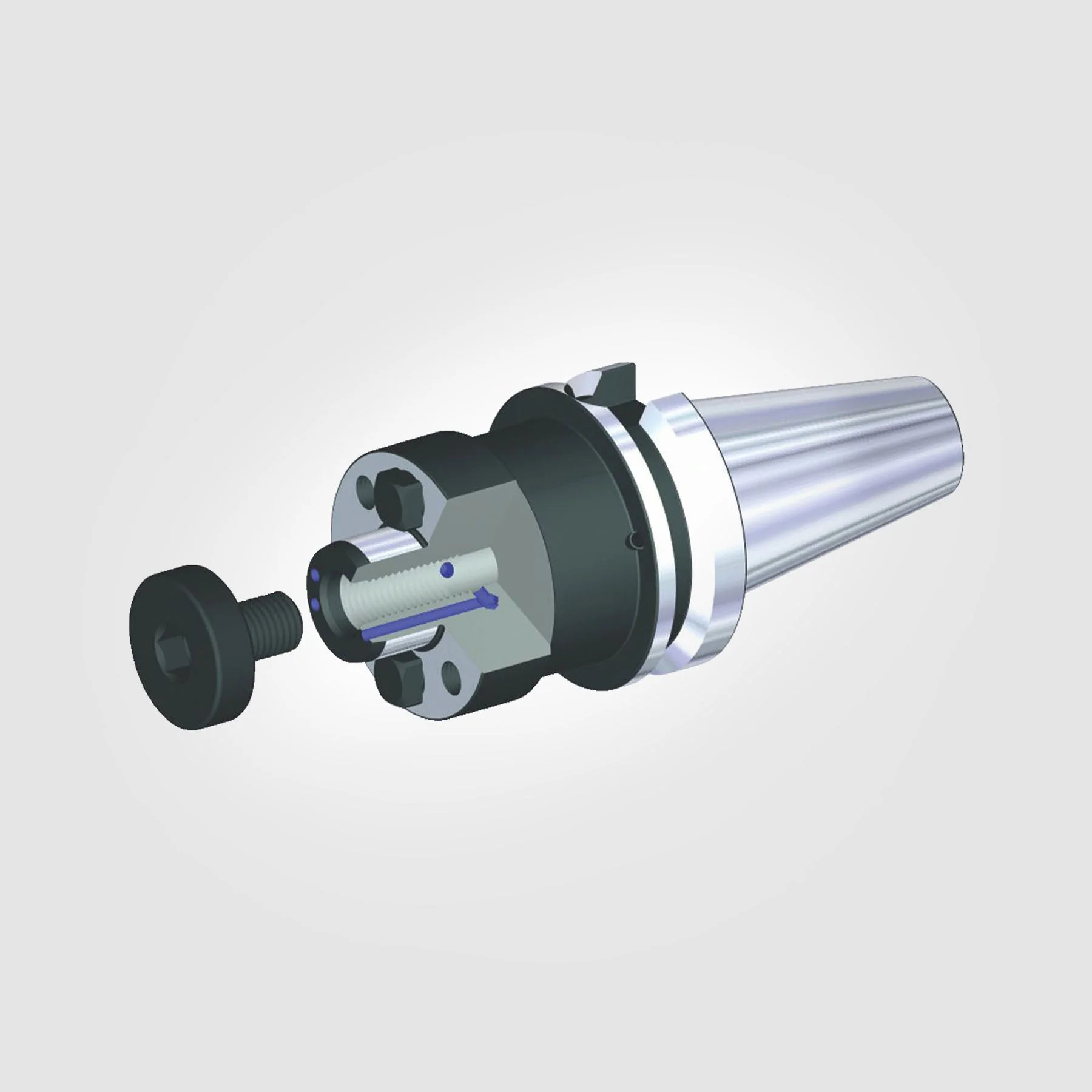

• Adapter Type: Steep Taper
• System Size: BT50

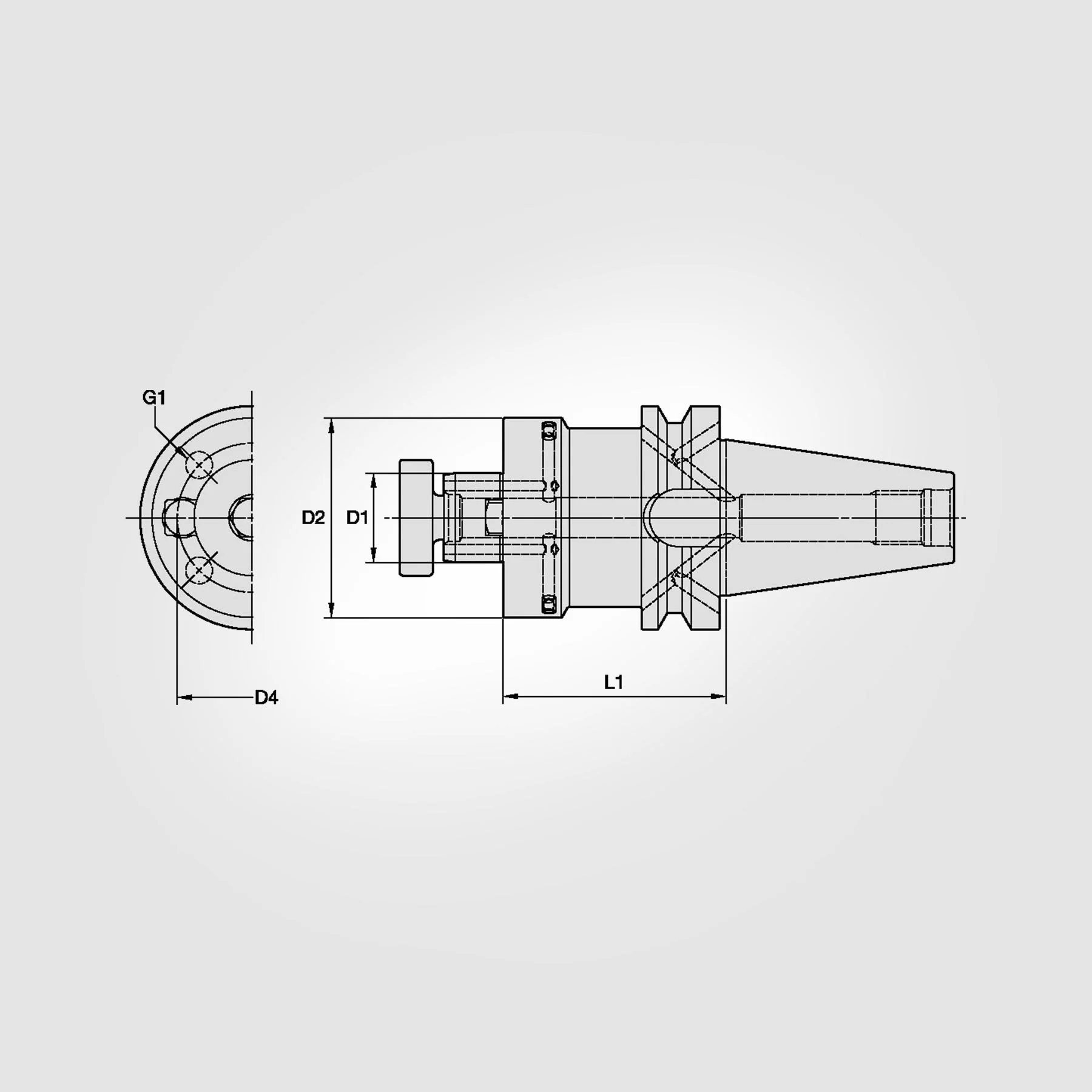

• [D1] Adapter Diameter (Inch): 1.575"
• [D1] Adapter Diameter (Metric): 40.000mm
• [D2] Body Diameter (Inch): 3.5200"
• [D2] Body Diameter (Metric): 89.300mm
• [L1] Gage Length (Inch): 1.969"
• [L1] Gage Length (Metric): 50.000mm
• [L] Overall Length (Inch): 7.0197"
• [L] Overall Length (Metric): 178.300mm
• [L2] Usable Length (Inch): 0.4720"
• [L2] Usable Length (Metric): 12.000mm
• [D4] Bolt Circle (Inch): 2.626"
• [D4] Bolt Circle (Metric): 66.700mm
• [G1] Bolt Circle Thread Size: M12X1.75
• Through Coolant: Yes
• Coolant Entry Style: Flange & Axial Coolant

Country of Origin is subject to change.

Safety data sheets upon request.
