• Improve your tool life and workpiece surface quality
• Quicker and easier tool changes
• High-performance holders, built to last

• Adapter Type: Steep Taper
• System Size: BT50

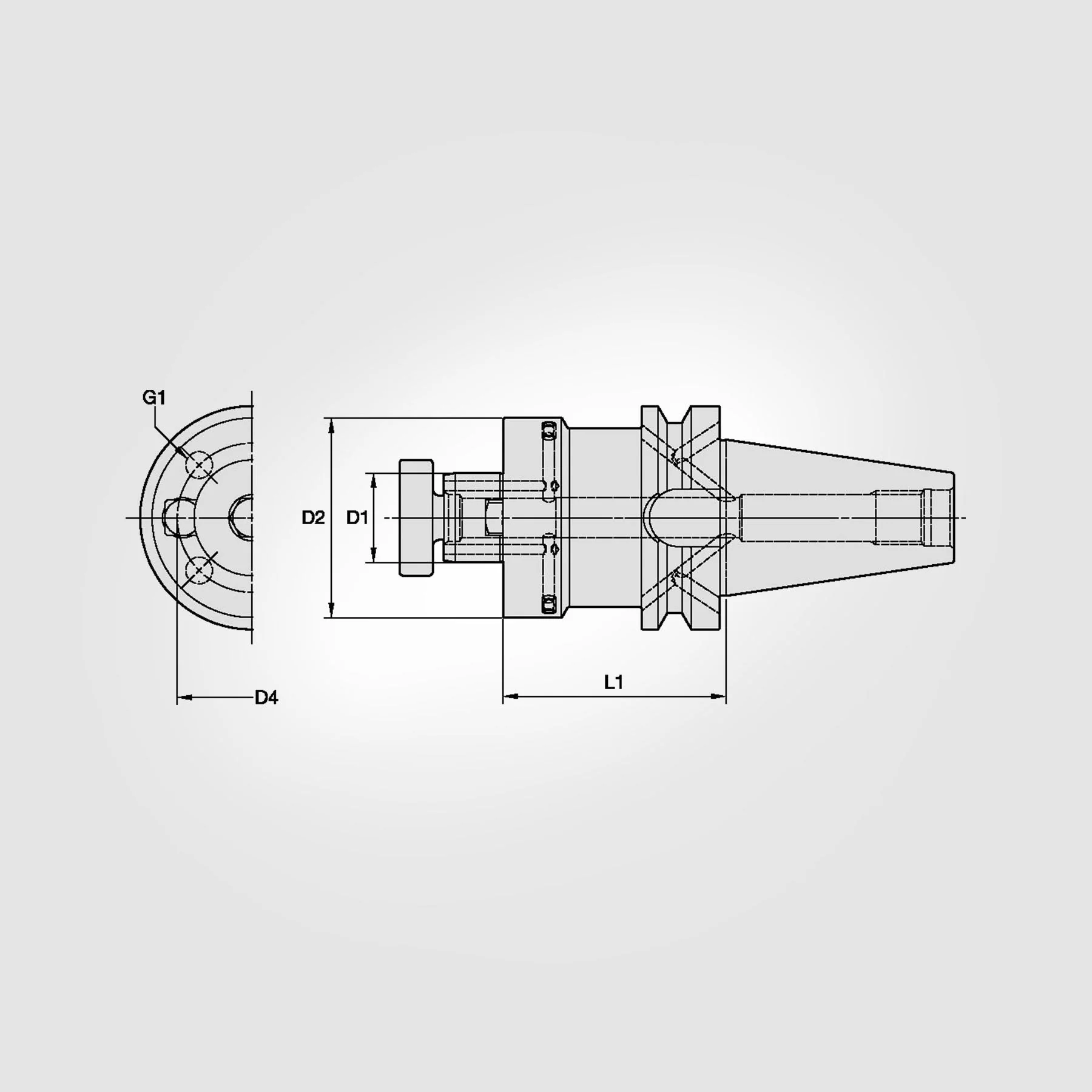

• [D1] Adapter Diameter (Inch): 1.260"
• [D1] Adapter Diameter (Metric): 32.000mm
• [D2] Body Diameter (Inch): 3.070"
• [D2] Body Diameter (Metric): 78.000mm
• [L1] Gage Length (Inch): 3.937"
• [L1] Gage Length (Metric): 100.000mm
• [L] Overall Length (Inch): 8.8701"
• [L] Overall Length (Metric): 225.300mm
• [L2] Usable Length (Inch): 2.441"
• [L2] Usable Length (Metric): 62.000mm
• Through Coolant: Yes
• Coolant Entry Style: Concentric Axial Coolant

Country of Origin is subject to change.

Safety data sheets upon request.
