• Improve your tool life and workpiece surface quality
• Quicker and easier tool changes
• High-performance holders, built to last

• Adapter Type: Steep Taper
• System Size: BT50

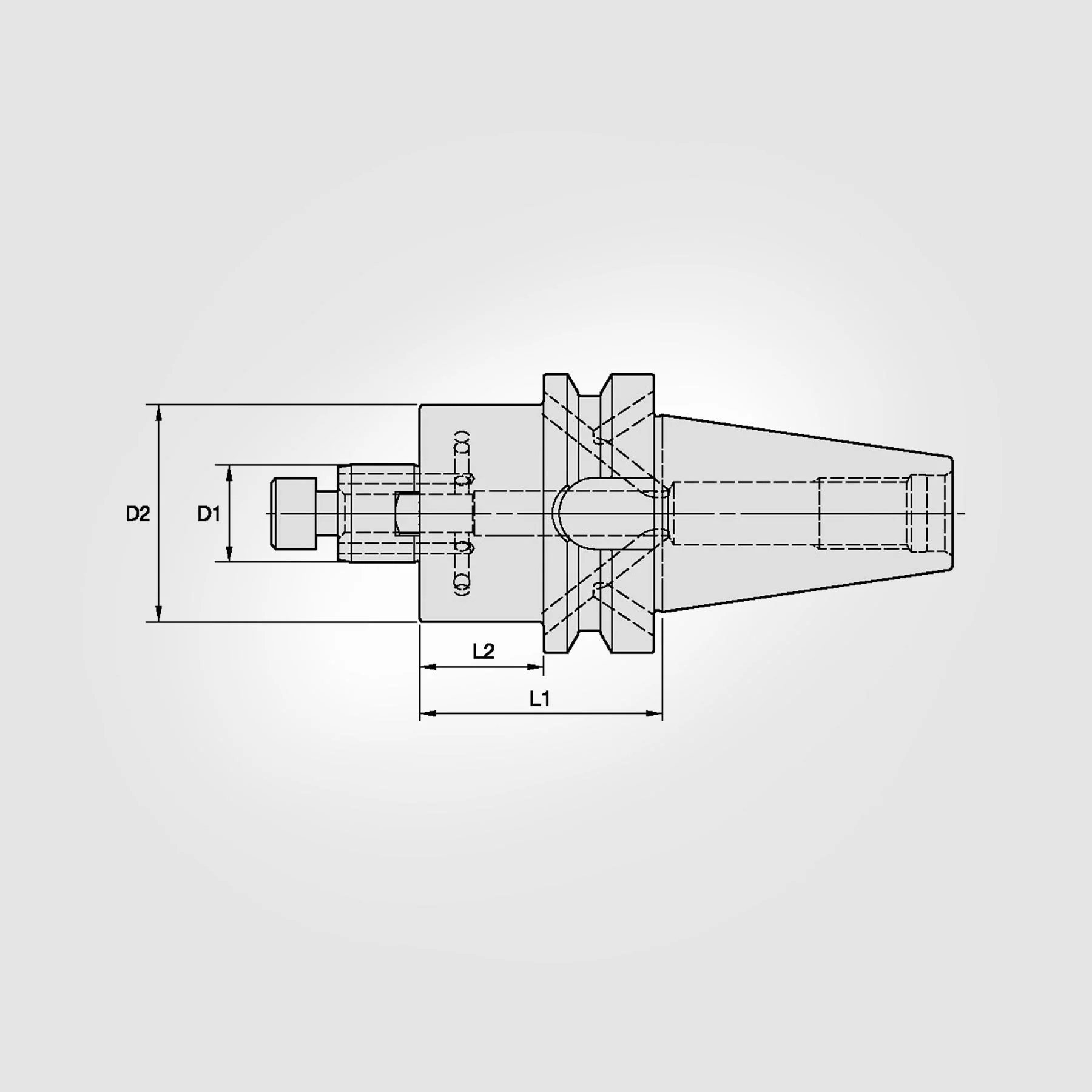

• [D1] Adapter Diameter (Inch): 0.866"
• [D1] Adapter Diameter (Metric): 22.000mm
• [D2] Body Diameter (Inch): 1.6535"
• [D2] Body Diameter (Metric): 42.000mm
• [L1] Gage Length (Inch): 1.772"
• [L1] Gage Length (Metric): 45.000mm
• [L] Overall Length (Inch): 6.5079"
• [L] Overall Length (Metric): 165.300mm
• [L2] Usable Length (Inch): 0.276"
• [L2] Usable Length (Metric): 7.000mm
• Through Coolant: Yes
• Coolant Entry Style: Concentric Axial Coolant

Country of Origin is subject to change.

Safety data sheets upon request.
