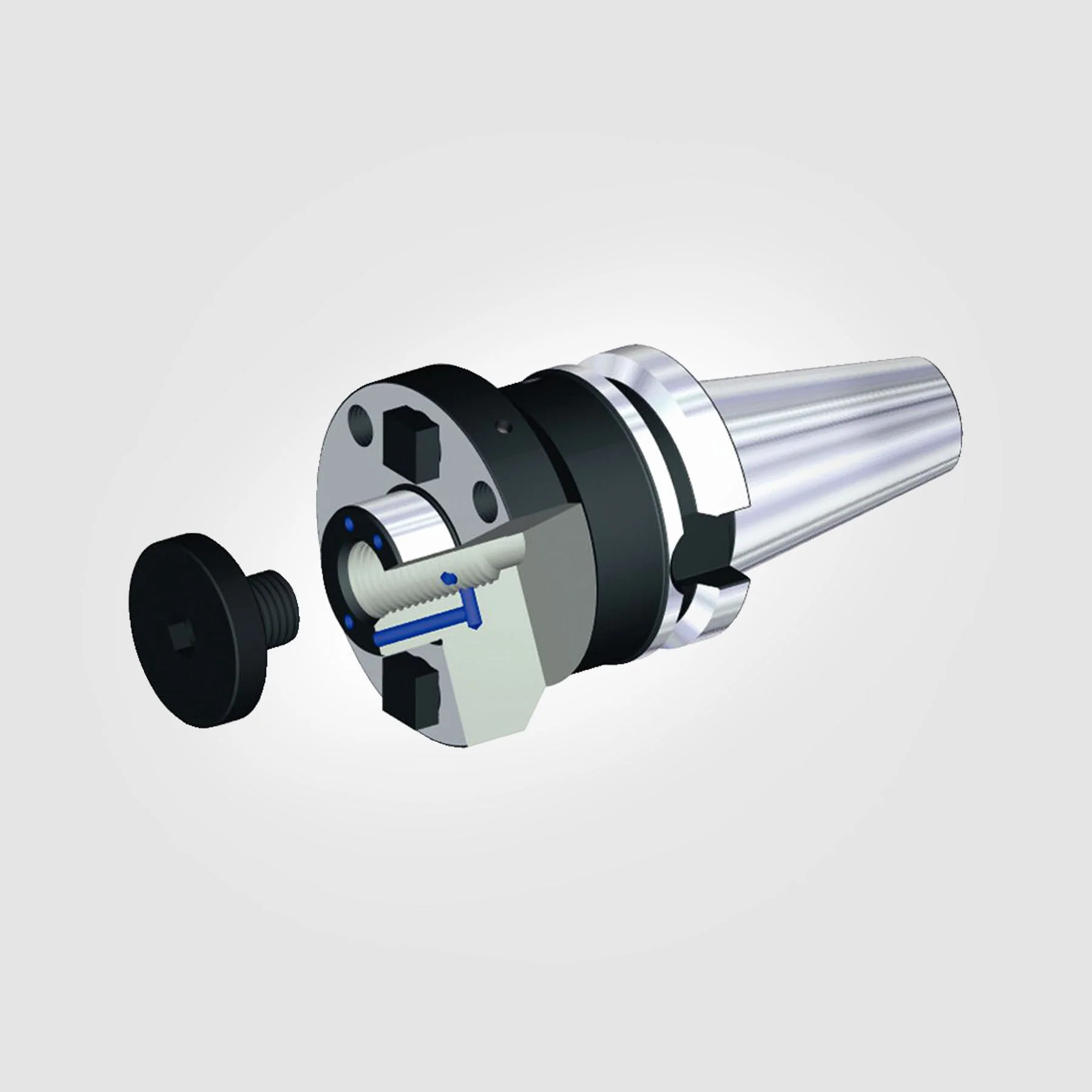

BT50 Steep Taper 1.500" Shell Mill Adapter (THROUGH COOLANT) 3653818

Product image 1
1 / 2

BT50 Steep Taper 1.500" Shell Mill Adapter (THROUGH COOLANT) 3653818

Machine Your Way to Success!
  • Improve your tool life and workpiece surface quality
  • Quicker and easier tool changes
  • High-performance holders, built to last
Technical Data
  • Adapter Type: Steep Taper
  • System Size: BT50

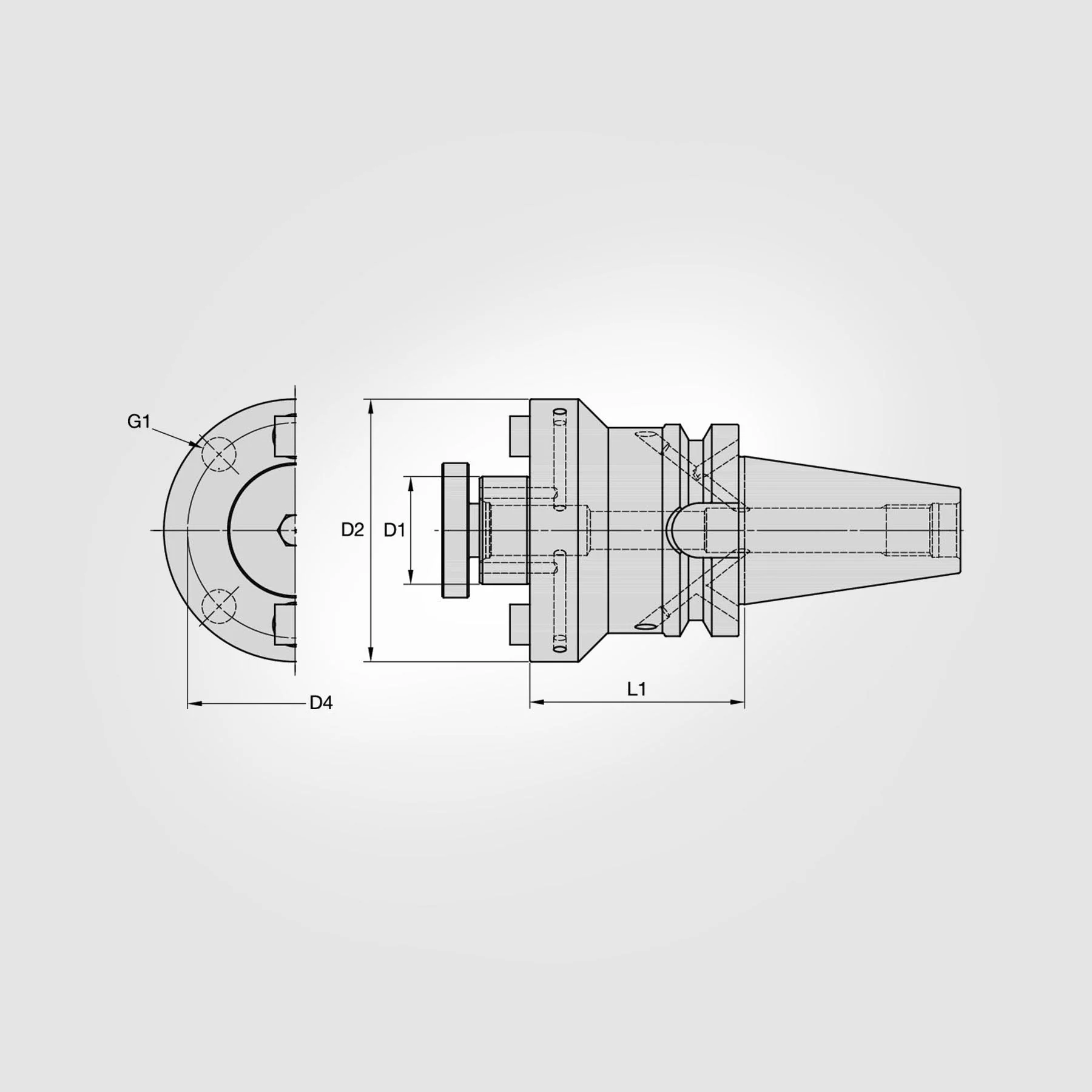

  • [D1] Adapter Diameter (Inch): 1.500"
  • [D1] Adapter Diameter (Metric): 38.100mm
  • [D2] Body Diameter (Inch): 3.625"
  • [D2] Body Diameter (Metric): 92.000mm
  • [L1] Gage Length (Inch): 1.770"
  • [L1] Gage Length (Metric): 44.958mm
  • [L] Overall Length (Inch): 6.716"
  • [L] Overall Length (Metric): 170.590mm
  • [L2] Usable Length (Inch): 0.274"
  • [L2] Usable Length (Metric): 6.955mm
  • Through Coolant: Yes
  • Coolant Entry Style: Concentric Axial Coolant

Country of Origin is subject to change.

Safety data sheets upon request.

$94.28

Original: $269.37

-65%
BT50 Steep Taper 1.500" Shell Mill Adapter (THROUGH COOLANT) 3653818—

$269.37

$94.28

Product Information

Shipping & Returns

Description

Machine Your Way to Success!
  • Improve your tool life and workpiece surface quality
  • Quicker and easier tool changes
  • High-performance holders, built to last
Technical Data
  • Adapter Type: Steep Taper
  • System Size: BT50
  • [D1] Adapter Diameter (Inch): 1.500"
  • [D1] Adapter Diameter (Metric): 38.100mm
  • [D2] Body Diameter (Inch): 3.625"
  • [D2] Body Diameter (Metric): 92.000mm
  • [L1] Gage Length (Inch): 1.770"
  • [L1] Gage Length (Metric): 44.958mm
  • [L] Overall Length (Inch): 6.716"
  • [L] Overall Length (Metric): 170.590mm
  • [L2] Usable Length (Inch): 0.274"
  • [L2] Usable Length (Metric): 6.955mm
  • Through Coolant: Yes
  • Coolant Entry Style: Concentric Axial Coolant

Country of Origin is subject to change.

Safety data sheets upon request.
