• Improve your tool life and workpiece surface quality
• Quicker and easier tool changes
• High-performance holders, built to last

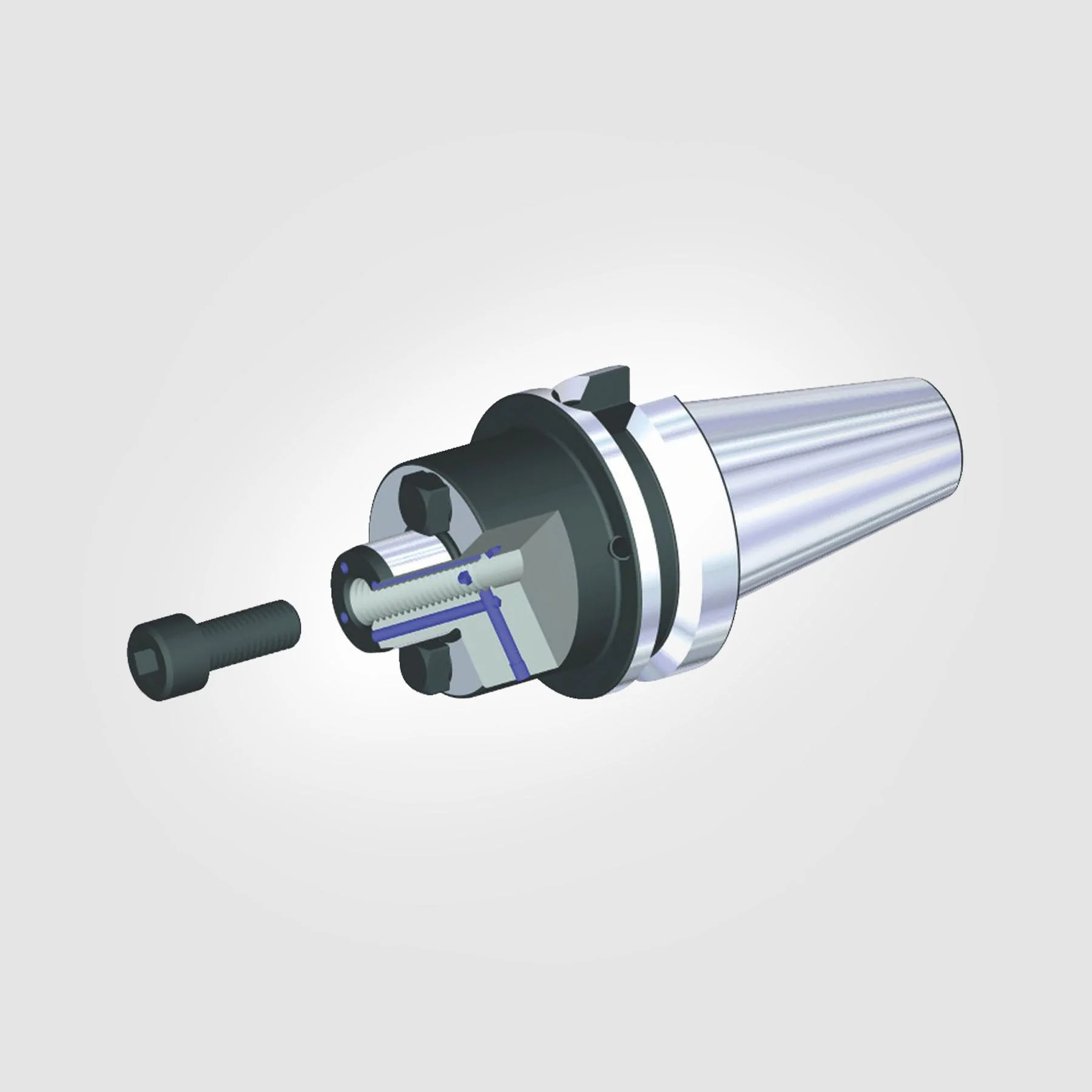

• Adapter Type: Steep Taper
• System Size: BT40

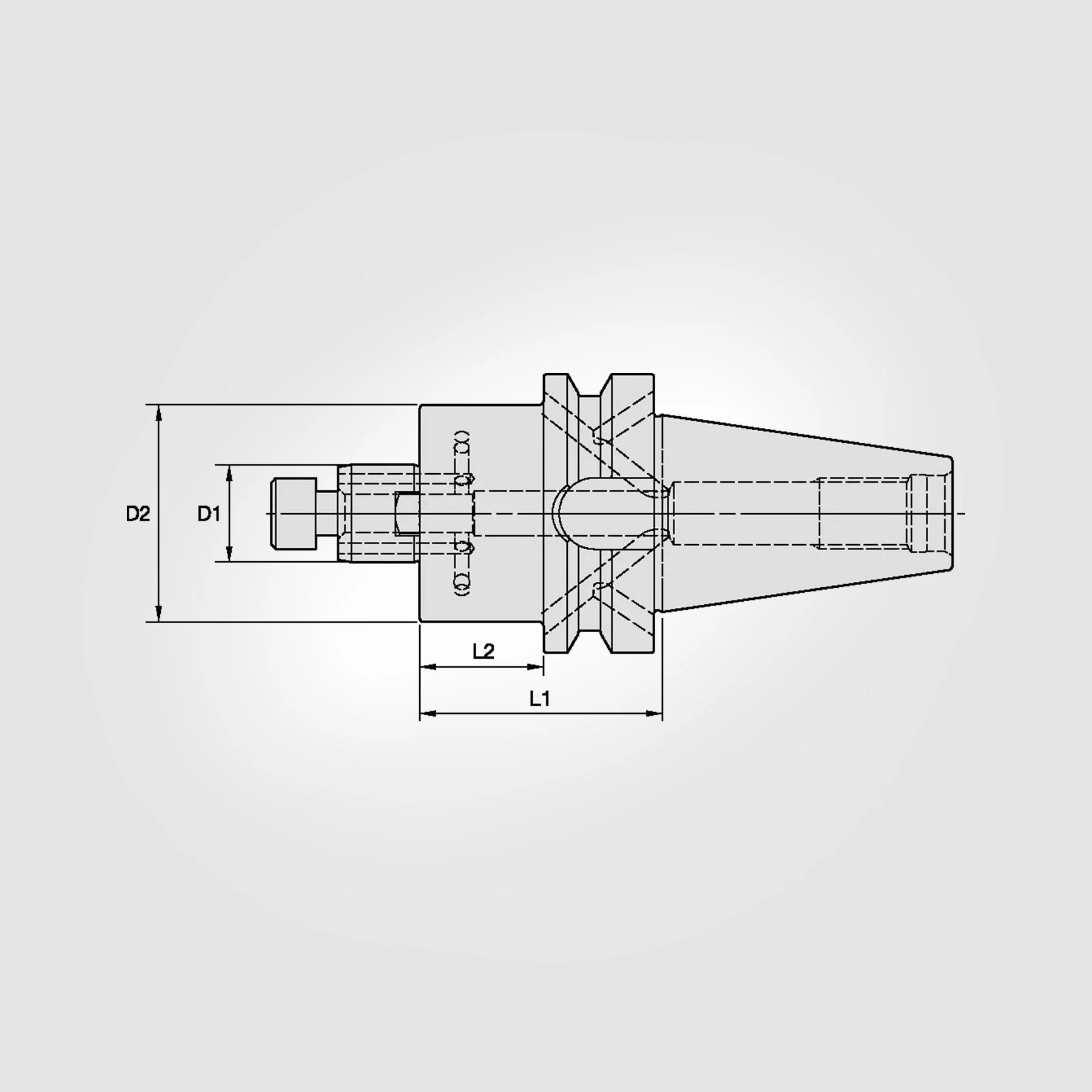

• [D1] Adapter Diameter (Inch): 0.6299"
• [D1] Adapter Diameter (Metric): 16.000mm
• [D2] Body Diameter (Inch): 1.7323"
• [D2] Body Diameter (Metric): 44.000mm
• [L1] Gage Length (Inch): 3.937"
• [L1] Gage Length (Metric): 100.000mm
• [L] Overall Length (Inch): 7.1614"
• [L] Overall Length (Metric): 181.900mm
• [L2] Usable Length (Inch): 2.874"
• [L2] Usable Length (Metric): 73.000mm
• Through Coolant: Yes
• Coolant Entry Style: Flange & Axial Coolant

Country of Origin is subject to change.

Safety data sheets upon request.
