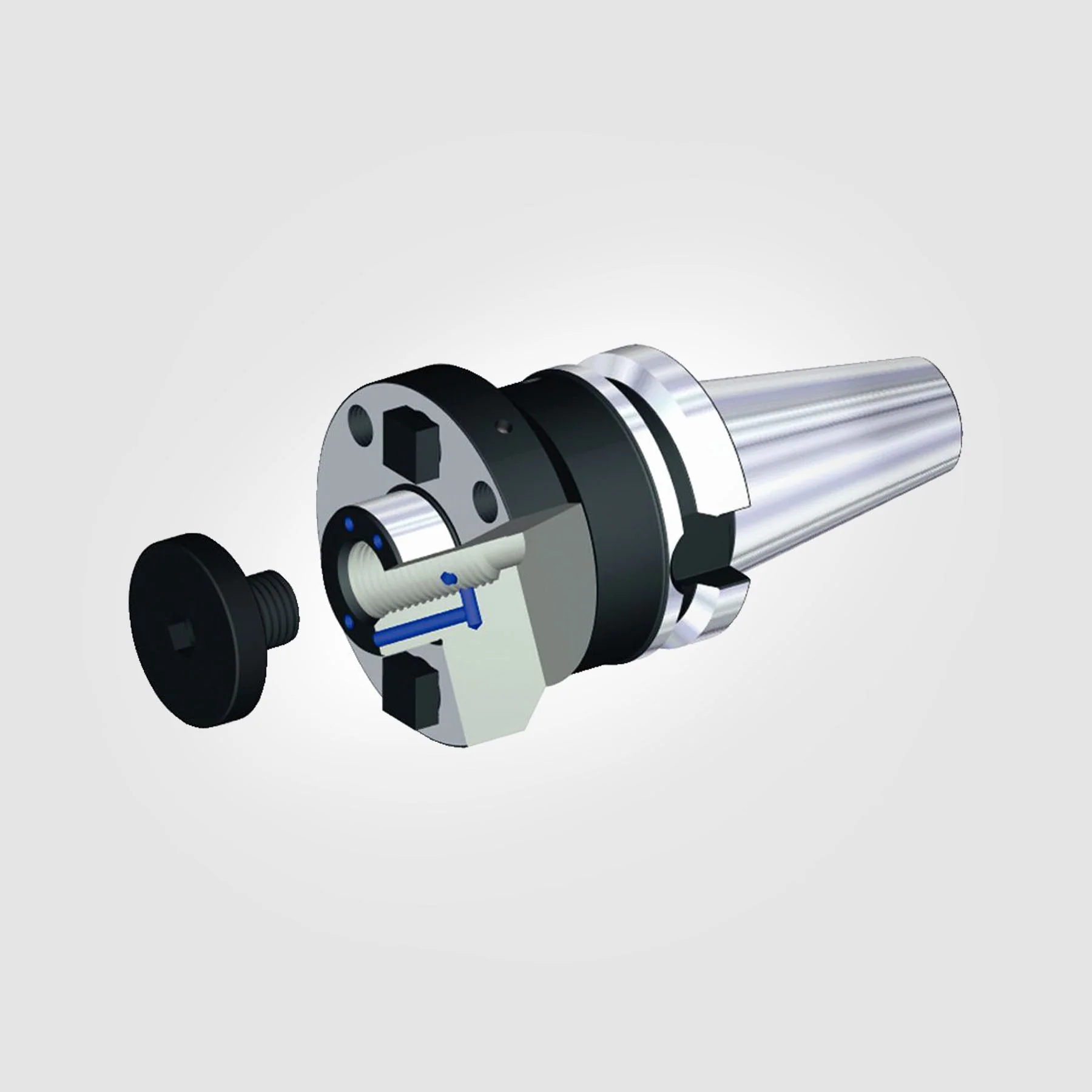

BT40 Steep Taper 1.500" Shell Mill Adapter (THROUGH COOLANT) 3648671

Product image 1
1 / 2

BT40 Steep Taper 1.500" Shell Mill Adapter (THROUGH COOLANT) 3648671

Machine Your Way to Success!
  • Improve your tool life and workpiece surface quality
  • Quicker and easier tool changes
  • High-performance holders, built to last

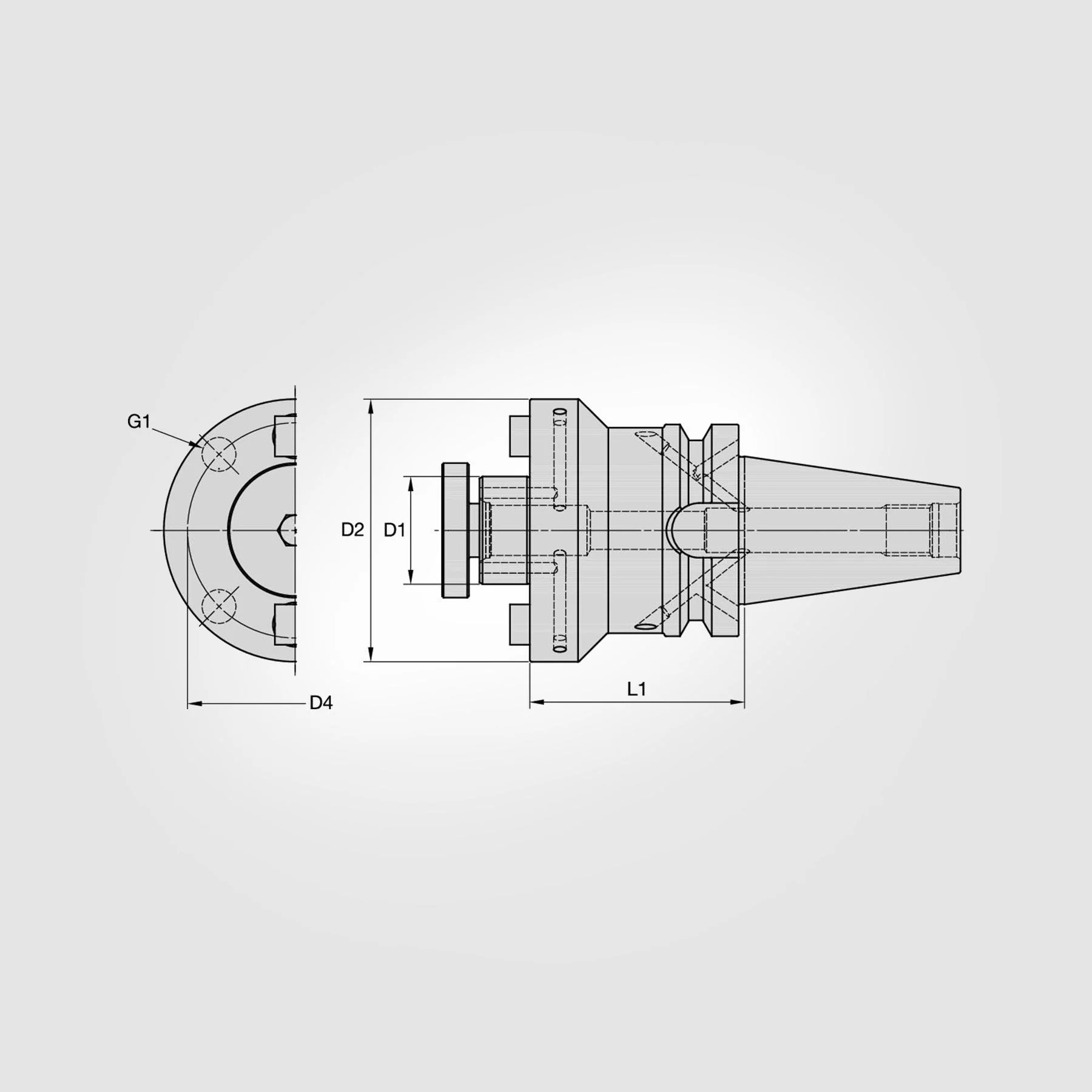

Technical Data
  • Adapter Type: Steep Taper
  • System Size: BT40
  • [D1] Adapter Diameter (Inch): 1.500"
  • [D1] Adapter Diameter (Metric): 38.100mm
  • [D2] Body Diameter (Inch): 3.625"
  • [D2] Body Diameter (Metric): 92.000mm
  • [L1] Gage Length (Inch): 2.360"
  • [L1] Gage Length (Metric): 59.944mm
  • [L] Overall Length (Inch): 5.873"
  • [L] Overall Length (Metric): 149.170mm
  • [L2] Usable Length (Inch): 2.360"
  • [L2] Usable Length (Metric): 59.944mm
  • Through Coolant: Yes
  • Coolant Entry Style: Concentric Axial Coolant

Country of Origin is subject to change.

Safety data sheets upon request.

$251.94
BT40 Steep Taper 1.500" Shell Mill Adapter (THROUGH COOLANT) 3648671—
$251.94

Product Information

Shipping & Returns

Description

Machine Your Way to Success!
  • Improve your tool life and workpiece surface quality
  • Quicker and easier tool changes
  • High-performance holders, built to last
Technical Data
  • Adapter Type: Steep Taper
  • System Size: BT40
  • [D1] Adapter Diameter (Inch): 1.500"
  • [D1] Adapter Diameter (Metric): 38.100mm
  • [D2] Body Diameter (Inch): 3.625"
  • [D2] Body Diameter (Metric): 92.000mm
  • [L1] Gage Length (Inch): 2.360"
  • [L1] Gage Length (Metric): 59.944mm
  • [L] Overall Length (Inch): 5.873"
  • [L] Overall Length (Metric): 149.170mm
  • [L2] Usable Length (Inch): 2.360"
  • [L2] Usable Length (Metric): 59.944mm
  • Through Coolant: Yes
  • Coolant Entry Style: Concentric Axial Coolant

Country of Origin is subject to change.

Safety data sheets upon request.
