• Improve your tool life and workpiece surface quality
• Quicker and easier tool changes
• High-performance holders, built to last

• Adapter Type: Steep Taper
• System Size: BT40

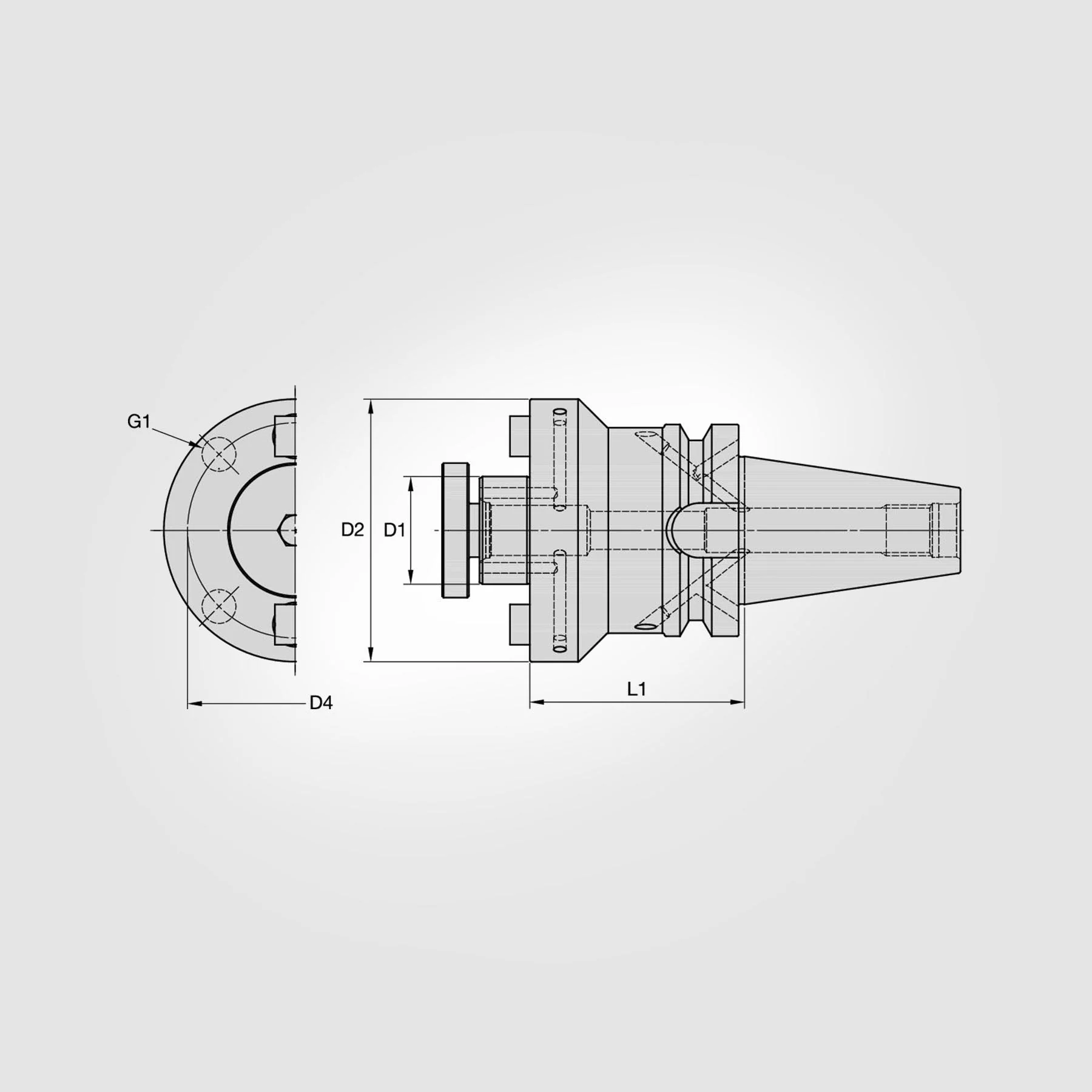

• [D1] Adapter Diameter (Inch): 1.000"
• [D1] Adapter Diameter (Metric): 25.400mm
• [D2] Body Diameter (Inch): 2.190"
• [D2] Body Diameter (Metric): 55.600mm
• [L1] Gage Length (Inch): 4.000"
• [L1] Gage Length (Metric): 101.600mm
• [L] Overall Length (Inch): 7.263"
• [L] Overall Length (Metric): 184.480mm
• [L2] Usable Length (Inch): 2.937"
• [L2] Usable Length (Metric): 74.600mm
• Through Coolant: Yes
• Coolant Entry Style: Concentric Axial Coolant

Country of Origin is subject to change.

Safety data sheets upon request.
