• Improve your tool life and workpiece surface quality
• Quicker and easier tool changes
• High-performance holders, built to last

• Adapter Type: Steep Taper
• System Size: BT30

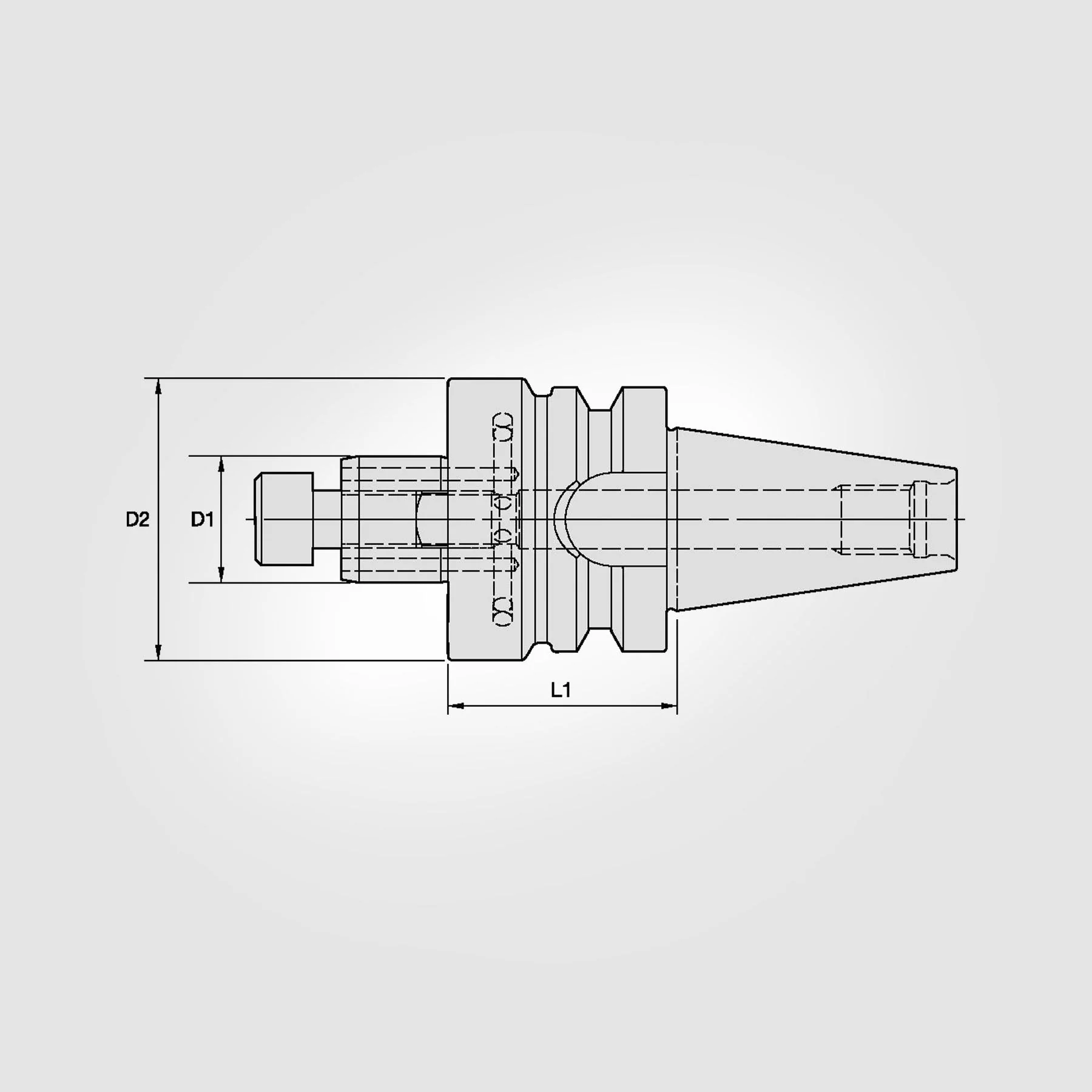

• [D1] Adapter Diameter (Inch): 0.6299"
• [D1] Adapter Diameter (Metric): 16.000mm
• [D2] Body Diameter (Inch): 1.4961"
• [D2] Body Diameter (Metric): 38.000mm
• [L1] Gage Length (Inch): 1.378"
• [L1] Gage Length (Metric): 35.000mm
• [L] Overall Length (Inch): 3.9331"
• [L] Overall Length (Metric): 99.900mm
• [L2] Usable Length (Inch): 0.5118"
• [L2] Usable Length (Metric): 13.000mm
• Through Coolant: Yes
• Coolant Entry Style: Concentric Axial Coolant

Country of Origin is subject to change.

Safety data sheets upon request.
