• Improve your tool life and workpiece surface quality
• Quicker and easier tool changes
• High-performance holders, built to last

• Adapter Type: Steep Taper
• System Size: BT30

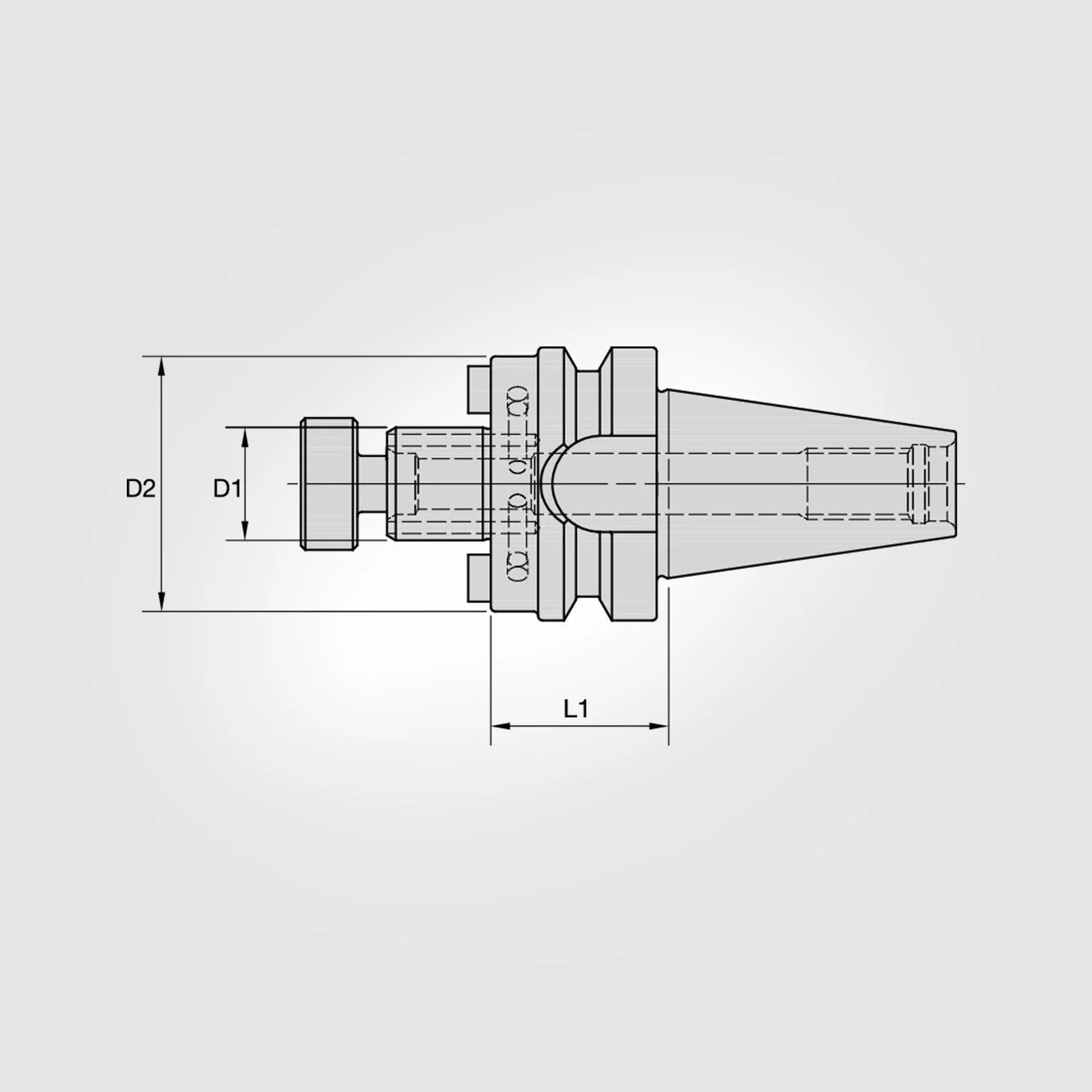

• [D1] Adapter Diameter (Inch): 0.500"
• [D1] Adapter Diameter (Metric): 12.700mm
• [D2] Body Diameter (Inch): 1.437"
• [D2] Body Diameter (Metric): 36.500mm
• [L1] Gage Length (Inch): 1.180"
• [L1] Gage Length (Metric): 29.972mm
• [L] Overall Length (Inch): 3.647"
• [L] Overall Length (Metric): 92.640mm
• [L2] Usable Length (Inch): 0.314"
• [L2] Usable Length (Metric): 7.972mm
• Through Coolant: Yes
• Coolant Entry Style: Concentric Axial Coolant
