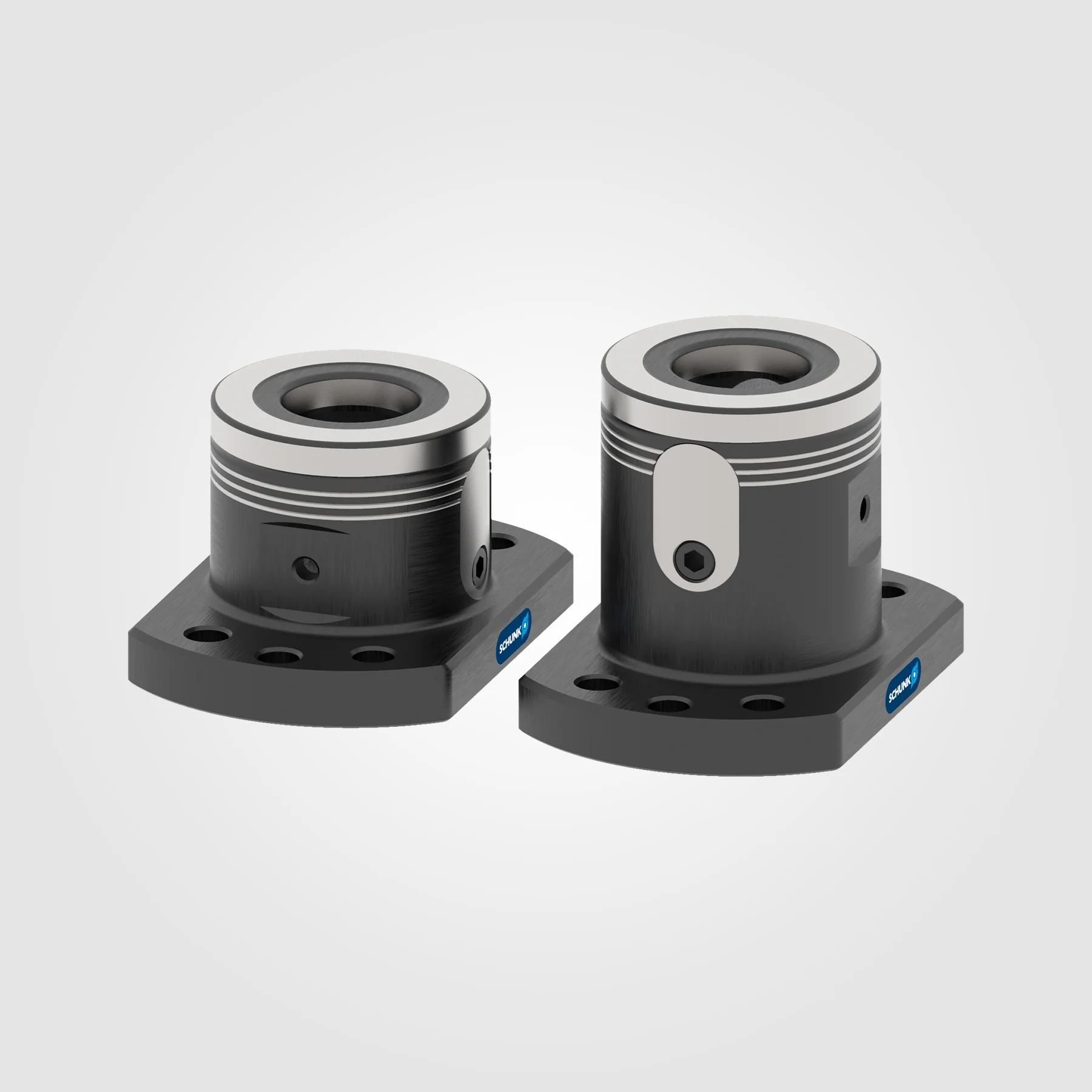

VERO-S WDM-5X-BM Direct Clamping System
#All
Product Details- Workpiece direct clamping system
- Highly flexible
- Basic module
#80125
Technical Data- Dimensions: 168 x 130 x 125 mm
- Pull-down force: 25 kN
- Actuation torque: 15 Nm
- Repeat accuracy: < 0.005 mm
- Weight: 6.65 kg
#80150
Technical Data- Dimensions: 168 x 130 x 150 mm
- Pull-down force: 25 kN
- Actuation torque: 15 Nm
- Repeat accuracy: < 0.005 mm
- Weight: 7.6 kg
Select Size
From $511.00
Original: $1,460.00
-65%VERO-S WDM-5X-BM Direct Clamping System—
$1,460.00
$511.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
#All
Product Details- Workpiece direct clamping system
- Highly flexible
- Basic module
#80125
Technical Data- Dimensions: 168 x 130 x 125 mm
- Pull-down force: 25 kN
- Actuation torque: 15 Nm
- Repeat accuracy: < 0.005 mm
- Weight: 6.65 kg
#80150
Technical Data- Dimensions: 168 x 130 x 150 mm
- Pull-down force: 25 kN
- Actuation torque: 15 Nm
- Repeat accuracy: < 0.005 mm
- Weight: 7.6 kg
