Tandem PGS3 Pneumatic Automated Vise
#All
Product Details
- Centric clamping
- Long stroke
- With integrated base plate Ø158 mm
- No jaws included
#100
Technical Data
- Dimensions: 100 x 100 x 87,7 mm
- Max. clamping force: 10 kN
- Stroke per jaw: 2 mm
- Max. jaw height: 30 mm
- Repeat accuracy: 0.02 mm
- Weight: 5 kg
#LH100
Technical Data
- Dimensions: 100 x 100 x 87,7 mm
- Max. clamping force: 4.5 kN
- Stroke per jaw: 6 mm
- Max. jaw height: 45 mm
- Repeat accuracy: 0.02 mm
- Weight: 5 kg
#140
Technical Data
- Dimensions: 140 x 140 x 91,2 mm
- Max. clamping force: 17 kN
- Stroke per jaw: 3 mm
- Max. jaw height: 30 mm
- Repeat accuracy: 0.02 mm
- Weight: 8.75 kg

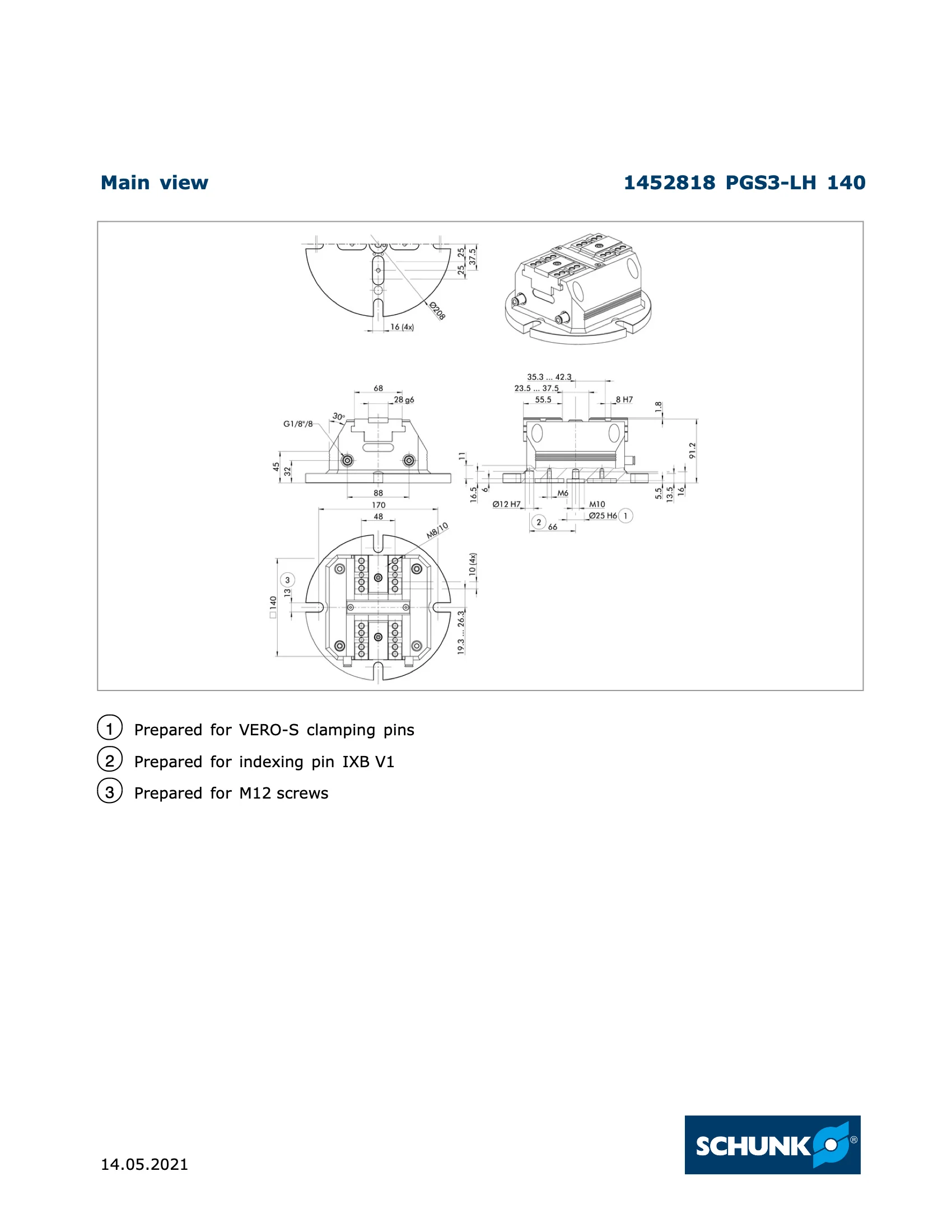

#LH140
Technical Data
- Dimensions: 140 x 140 x 91,2 mm
- Max. clamping force: 8.5 kN
- Stroke per jaw: 7 mm
- Max. jaw height: 45 mm
- Repeat accuracy: 0.02 mm
- Weight: 8.75 kg
Select Type
From $845.91
Original: $2,416.89
-65%Tandem PGS3 Pneumatic Automated Vise—
$2,416.89
$845.91Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
#All
Product Details
- Centric clamping
- Long stroke
- With integrated base plate Ø158 mm
- No jaws included
#100
Technical Data
- Dimensions: 100 x 100 x 87,7 mm
- Max. clamping force: 10 kN
- Stroke per jaw: 2 mm
- Max. jaw height: 30 mm
- Repeat accuracy: 0.02 mm
- Weight: 5 kg
#LH100
Technical Data
- Dimensions: 100 x 100 x 87,7 mm
- Max. clamping force: 4.5 kN
- Stroke per jaw: 6 mm
- Max. jaw height: 45 mm
- Repeat accuracy: 0.02 mm
- Weight: 5 kg
#140
Technical Data
- Dimensions: 140 x 140 x 91,2 mm
- Max. clamping force: 17 kN
- Stroke per jaw: 3 mm
- Max. jaw height: 30 mm
- Repeat accuracy: 0.02 mm
- Weight: 8.75 kg
#LH140
Technical Data
- Dimensions: 140 x 140 x 91,2 mm
- Max. clamping force: 8.5 kN
- Stroke per jaw: 7 mm
- Max. jaw height: 45 mm
- Repeat accuracy: 0.02 mm
- Weight: 8.75 kg
