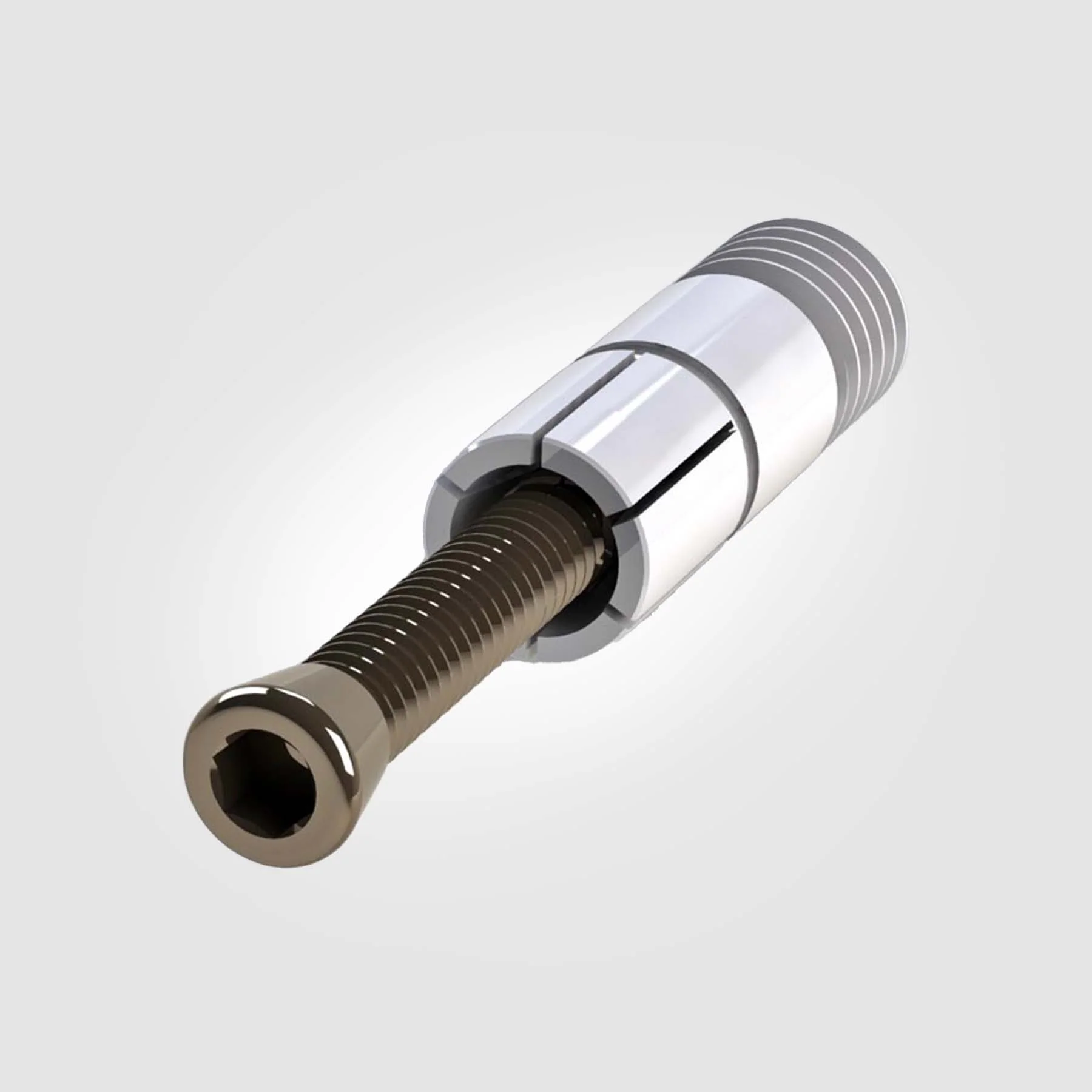

TITAN's go-to clamps for advanced fixturing and workholding setups!

• For Tombstone, Grid Plate and Fixture Plate applications
• Installed in a drilled and reamed hole for precise location
• Set in a hardened drill bushing for additional strength and wear resistance
• If precise location is not necessary, pin can be used on top of fixture plate
• Note: If recessing pin into fixture beyond slits, be sure to provide clearance for expanding segments

#174PHExternalThread1213

Technical Data

• Feature: Threaded Pin
• Quantity: 1
• [F] Clamp Diameter: 0.413"
• External Thread: 1/2-13
• Screw Size: 1/4-20
• Max Torque: 13.3 ft-lbs
• Holding Force: 1900 lbs

Country of Origin: United States of America.

#174PHExternalThread5811

Technical Data

• Feature: Threaded Pin
• Quantity: 1
• [F] Clamp Diameter: 0.472"
• External Thread: 5/8-11
• Screw Size: 5/16-18
• Max Torque: 27.6 ft-lbs
• Holding Force: 2500 lbs

Country of Origin: United States of America.

#174PHExternalThreadM12

Technical Data

• Feature: Threaded Pin
• Quantity: 1
• [F] Clamp Diameter: 10.500mm
• External Thread: M12 x 1.750mm
• Screw Size: M6
• Max Torque: 17 N.m
• Holding Force: 8455 N

Country of Origin: United States of America.

#174PHExternalThreadM16

Technical Data

• Feature: Threaded Pin
• Quantity: 1
• [F] Clamp Diameter: 12.000mm
• External Thread: M16 X 2.000mm
• Screw Size: M8
• Max Torque: 34 N.m
• Holding Force: 11125 N

Country of Origin: United States of America.
