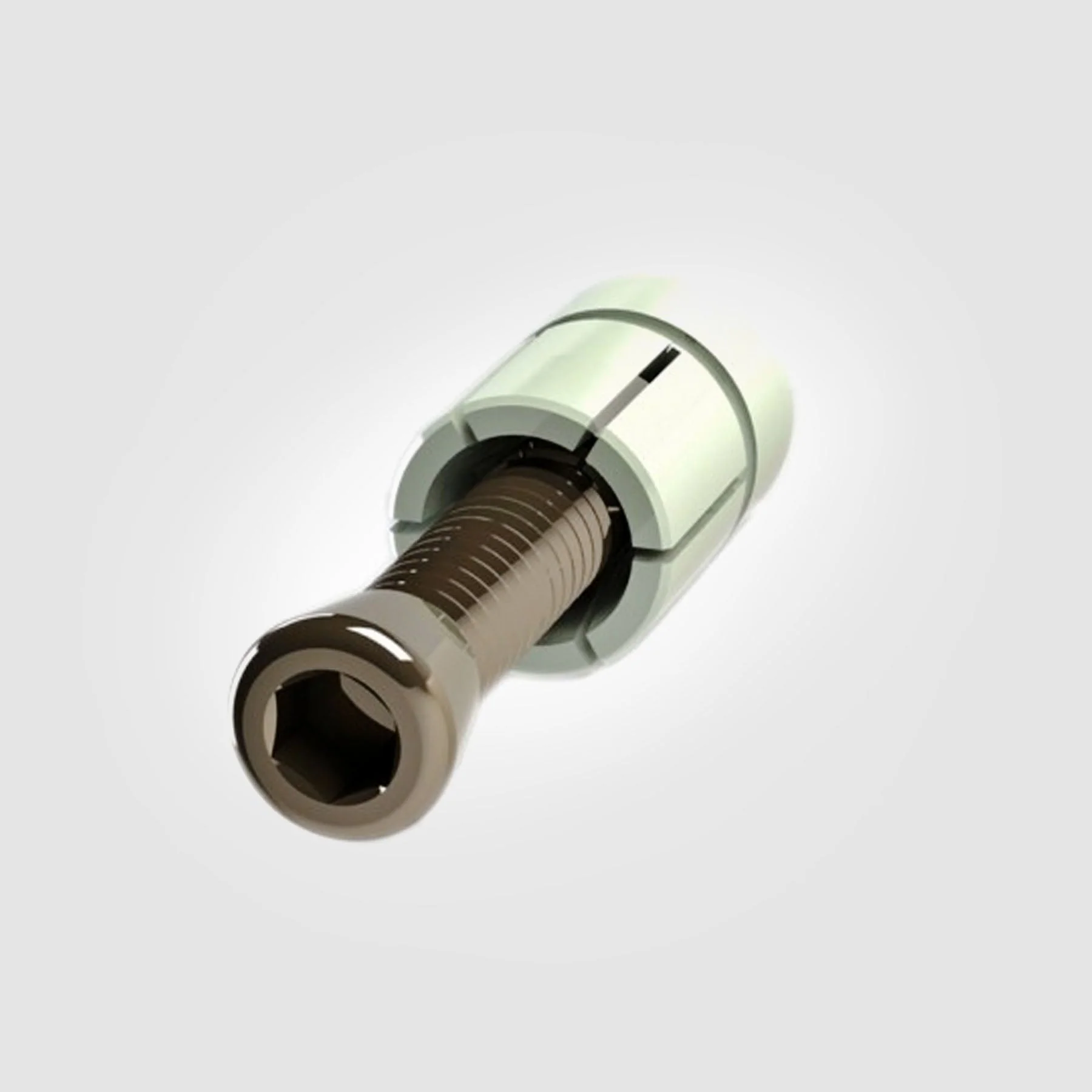

TITAN's go-to clamps for advanced fixturing and workholding setups!

• For Tombstone, Grid Plate and Fixture Plate applications
• Intended for press fit or close tolerance removable slide fit applications
• Install in a precision bore or a bushing with the center threaded for the Tapered screw
• If precise location is not necessary, pin can be used on top of fixture plate

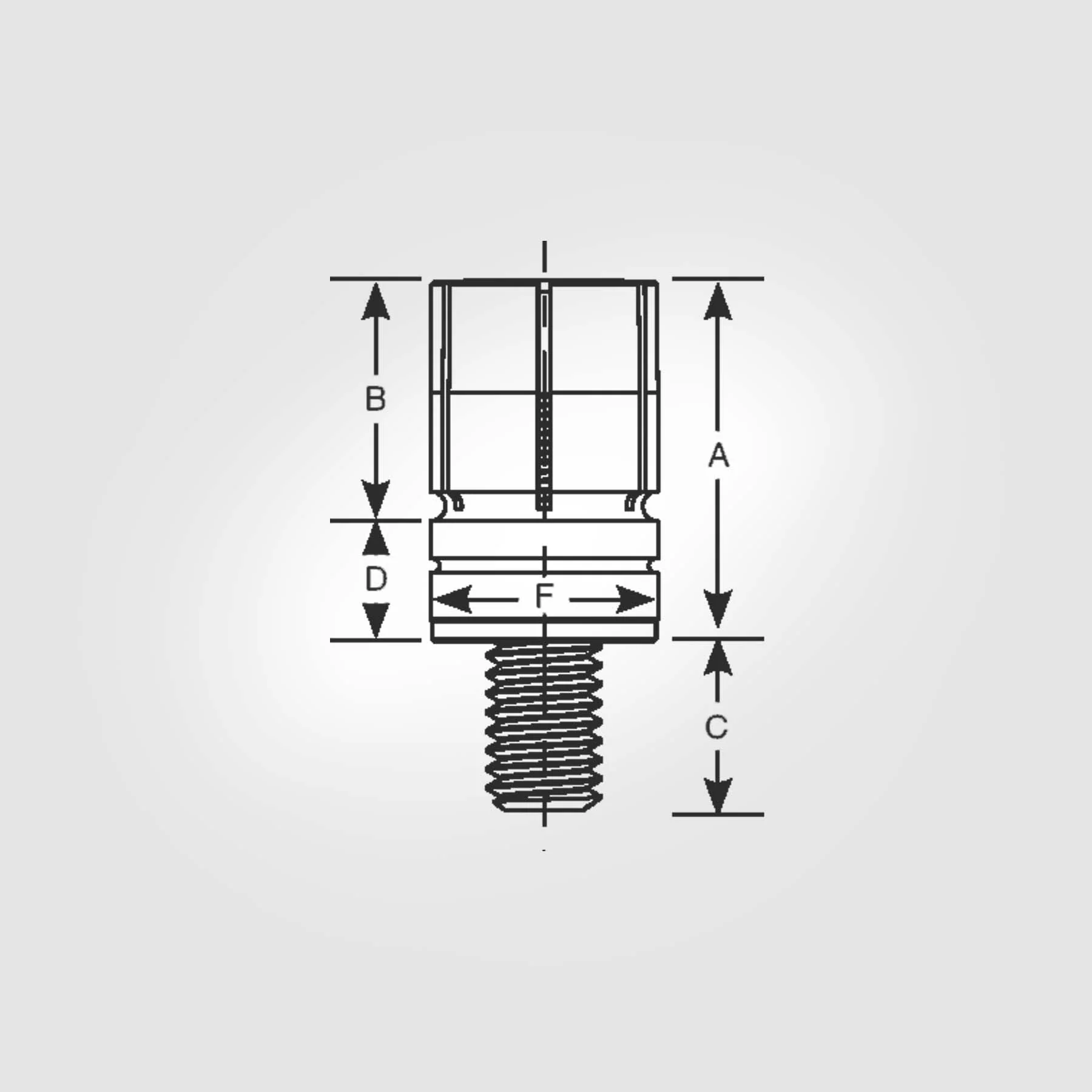

#14174PH

Technical Data

• Feature: Press Fit Pin
• Quantity: 1
• [G] Min. Machineable Dia.: .219"
• Screw Size: 5-40
• Max Torque: 1.6 ft-lbs
• Holding Force: 420 lbs
• Replacement part part for the ART OF FIXTURING Tool Kit

Country of Origin: United States of America.

#38174PH

Technical Data

• Feature: Press Fit Pin
• Quantity: 1
• [G] Min. Machineable Dia.: 0.281"
• Screw Size: 8-32
• Max Torque: 3.6 ft-lbs
• Holding Force: 950 lbs

Country of Origin: United States of America.

#12174PH

Technical Data

• Feature: Press Fit Pin
• Quantity: 1
• [G] Min. Machineable Dia.: 0.413"
• Screw Size: 1/4-20
• Max Torque: 13.3 ft-lbs
• Holding Force: 1900 lbs
• Replacement part part for the ART OF FIXTURING Tool Kit

Country of Origin: United States of America.

#58174PH

Technical Data

• Feature: Press Fit Pin
• Quantity: 1
• [G] Min. Machineable Dia.: 0.472"
• Screw Size: 5/16-18
• Max Torque: 27.6 ft-lbs
• Holding Force: 2500 lbs

Country of Origin: United States of America.

#6mm174PH

Technical Data

• Feature: Press Fit Pin
• Quantity: 1
• [G] Min. Machineable Dia.: 5.500mm
• Screw Size: M3
• Max Torque: 2.8 N.m
• Holding Force: 1868 N

Country of Origin: United States of America.

#10mm174PH

Technical Data

• Feature: Press Fit Pin
• Quantity: 1
• [G] Min. Machineable Dia.: 7.500mm
• Screw Size: M4
• Max Torque: 5 N.m
• Holding Force: 4228 N

Country of Origin: United States of America.

#12mm174PH

Technical Data

• Feature: Press Fit Pin
• Quantity: 1
• [G] Min. Machineable Dia.: 10.500mm
• Screw Size: M6
• Max Torque: 17 N.m
• Holding Force: 8455 N

Country of Origin: United States of America.

#16mm174PH

Technical Data

• Feature: Press Fit Pin
• Quantity: 1
• [G] Min. Machineable Dia.: 12.000mm
• Screw Size: M8
• Max Torque: 34 N.m
• Holding Force: 11125 N

Country of Origin: United States of America.

#1412L14

Technical Data

• Feature: Press Fit Pin
• Quantity: 1
• [G] Min. Machineable Dia.: .219"
• Screw Size: 5-40
• Max Torque: 1.6 ft-lbs
• Holding Force: 420 lbs

Country of Origin: United States of America.

#3812L14

Technical Data

• Feature: Press Fit Pin
• Quantity: 1
• [G] Min. Machineable Dia.: 0.281"
• Screw Size: 8-32
• Max Torque: 3.6 ft-lbs
• Holding Force: 950 lbs

Country of Origin: United States of America.

#1212L14

Technical Data

• Feature: Press Fit Pin
• Quantity: 1
• [G] Min. Machineable Dia.: 0.413"
• Screw Size: 1/4-20
• Max Torque: 13.3 ft-lbs
• Holding Force: 1900 lbs

Country of Origin: United States of America.

#5812L14

Technical Data

• Feature: Press Fit Pin
• Quantity: 1
• [G] Min. Machineable Dia.: 0.472"
• Screw Size: 5/16-18
• Max Torque: 27.6 ft-lbs
• Holding Force: 2500 lbs

Country of Origin: United States of America.

#6mm12L14

Technical Data

• Feature: Press Fit Pin
• Quantity: 1
• [G] Min. Machineable Dia.: 5.500mm
• Screw Size: M3
• Max Torque: 2.8 N.m
• Holding Force: 1868 N

Country of Origin: United States of America.

#10mm12L14

Technical Data

• Feature: Press Fit Pin
• Quantity: 1
• [G] Min. Machineable Dia.: 7.500mm
• Screw Size: M4
• Max Torque: 5 N.m
• Holding Force: 4228 N

Country of Origin: United States of America.

#12mm12L14

Technical Data

• Feature: Press Fit Pin
• Quantity: 1
• [G] Min. Machineable Dia.: 10.500mm
• Screw Size: M6
• Max Torque: 17 N.m
• Holding Force: 8455 N

Country of Origin: United States of America.

#16mm12L14

Technical Data

• Feature: Press Fit Pin
• Quantity: 1
• [G] Min. Machineable Dia.: 12.000mm
• Screw Size: M8
• Max Torque: 34 N.m
• Holding Force: 11125 N

Country of Origin: United States of America.
