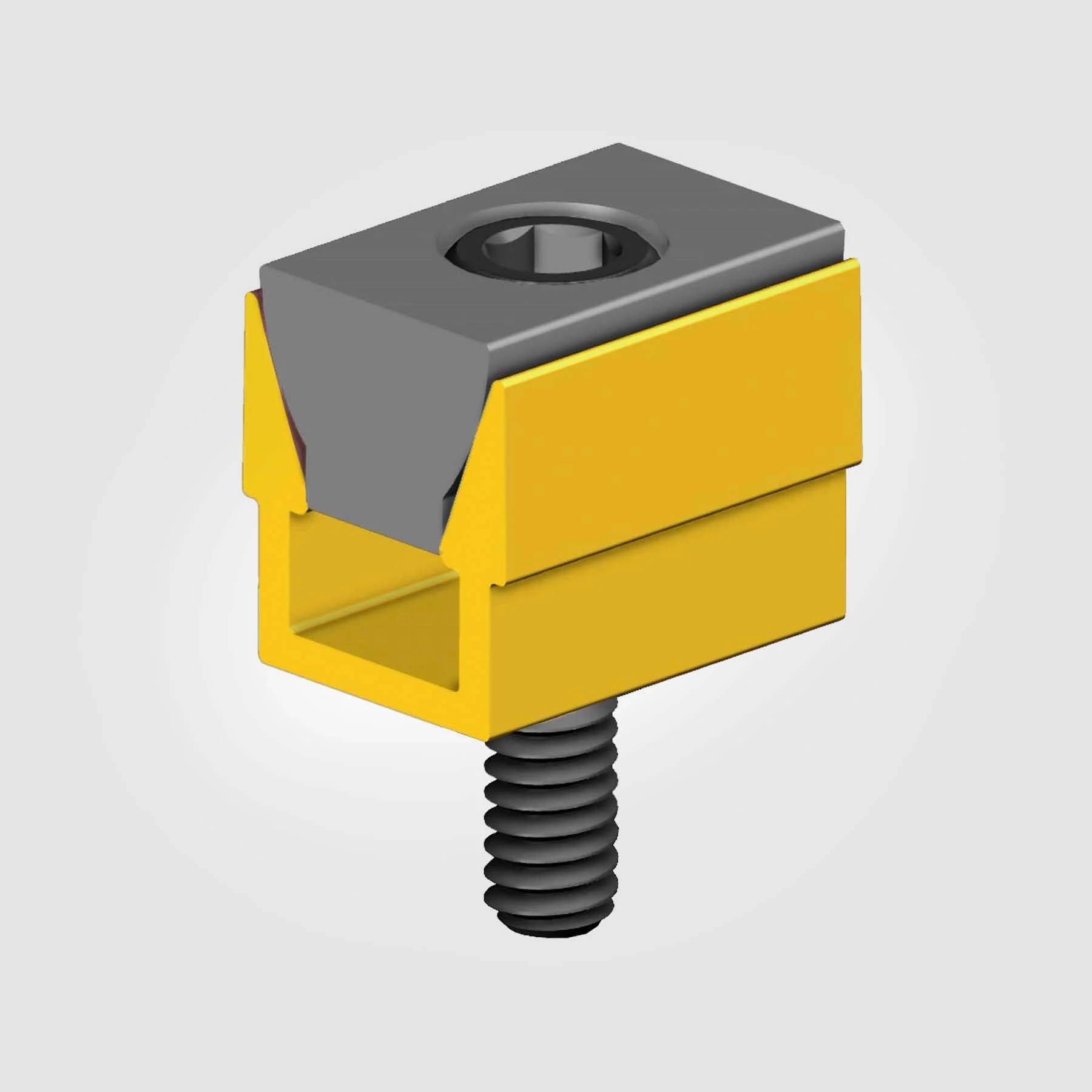

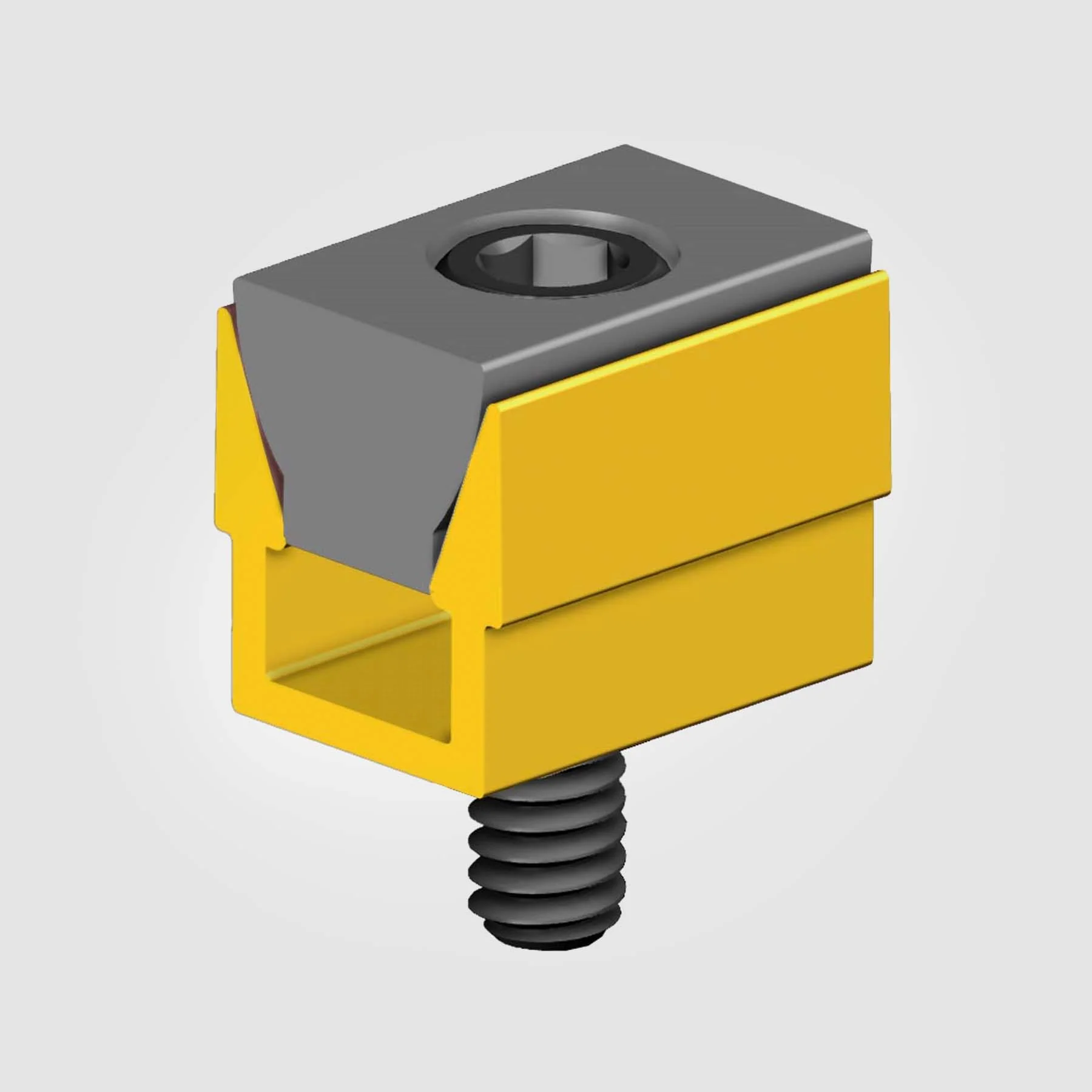

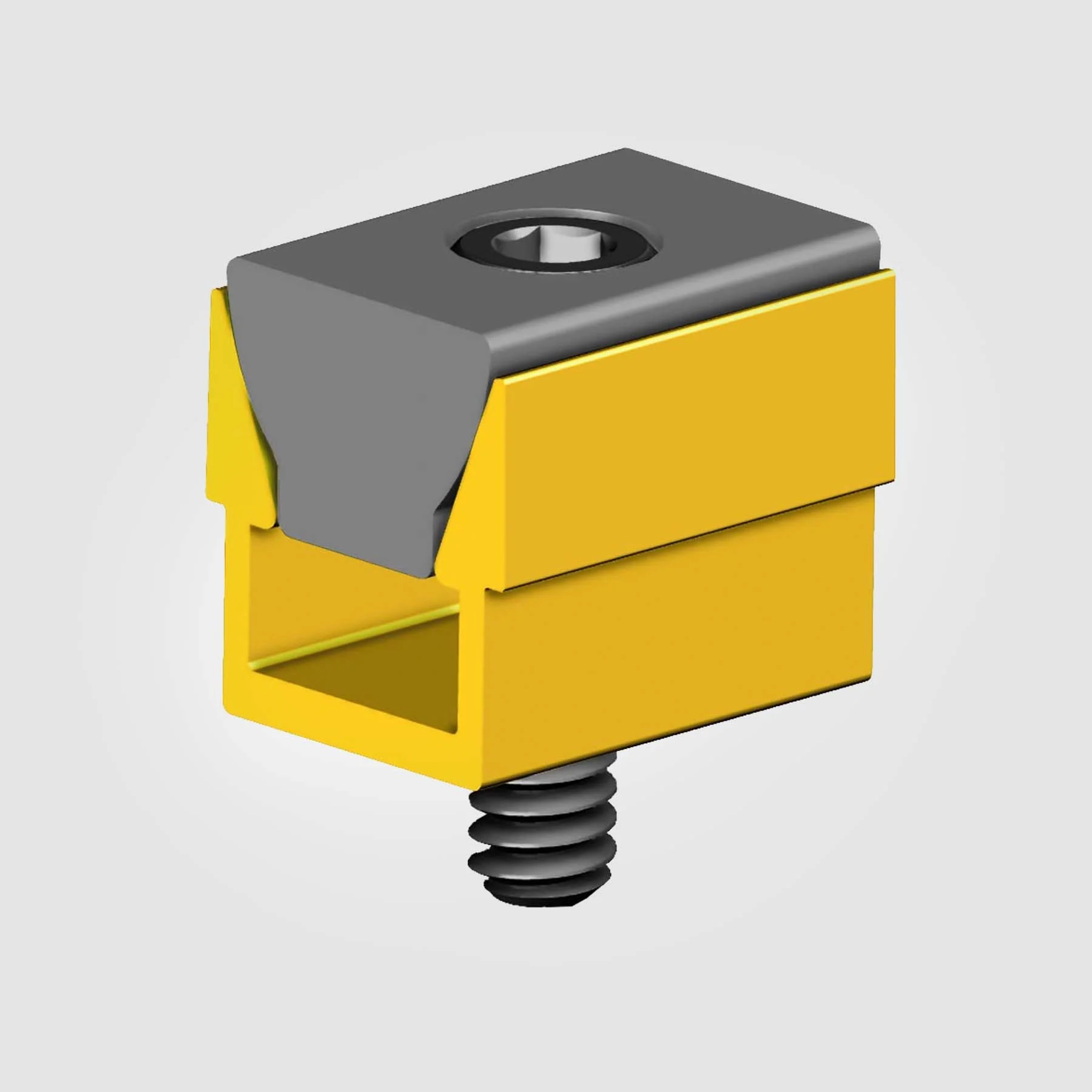

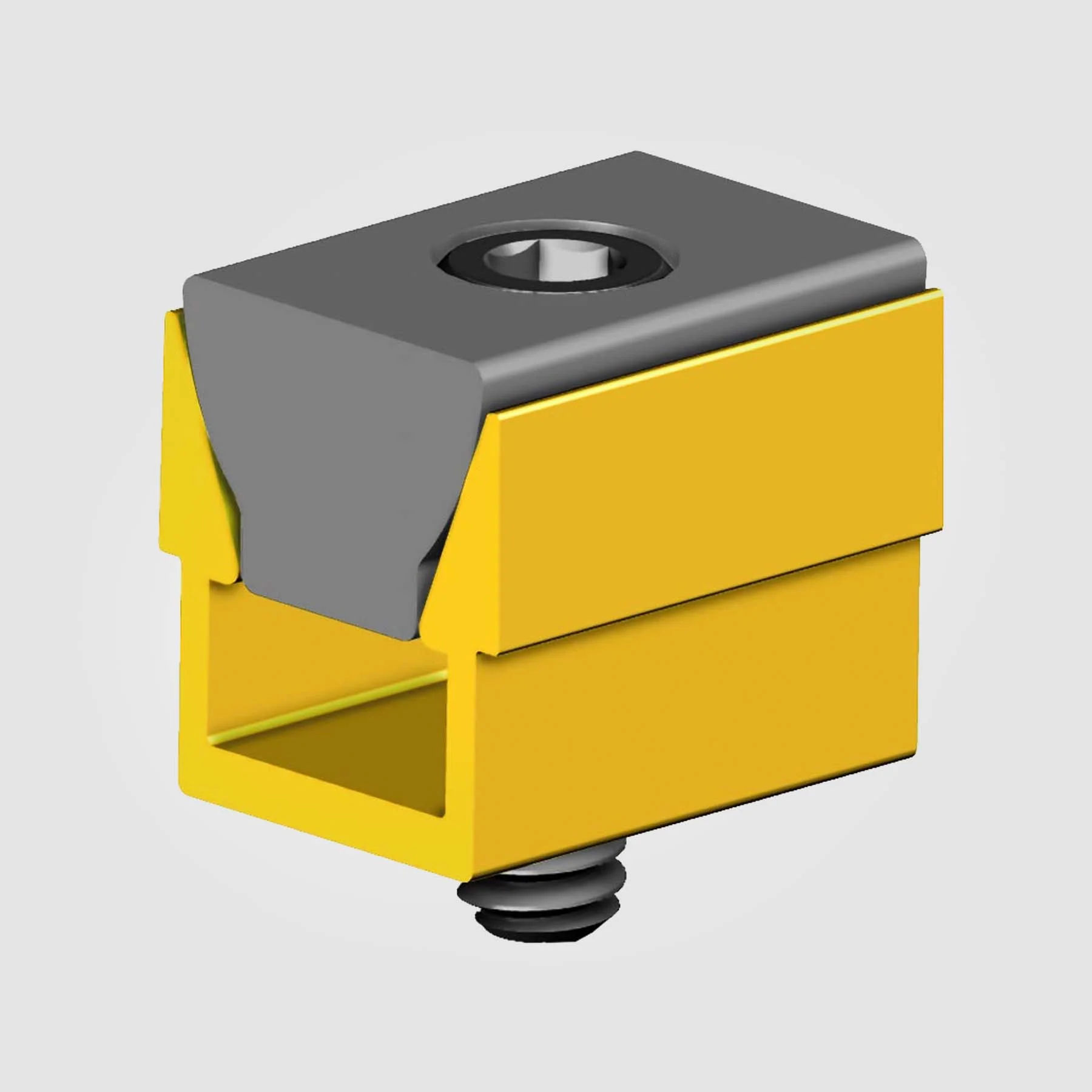

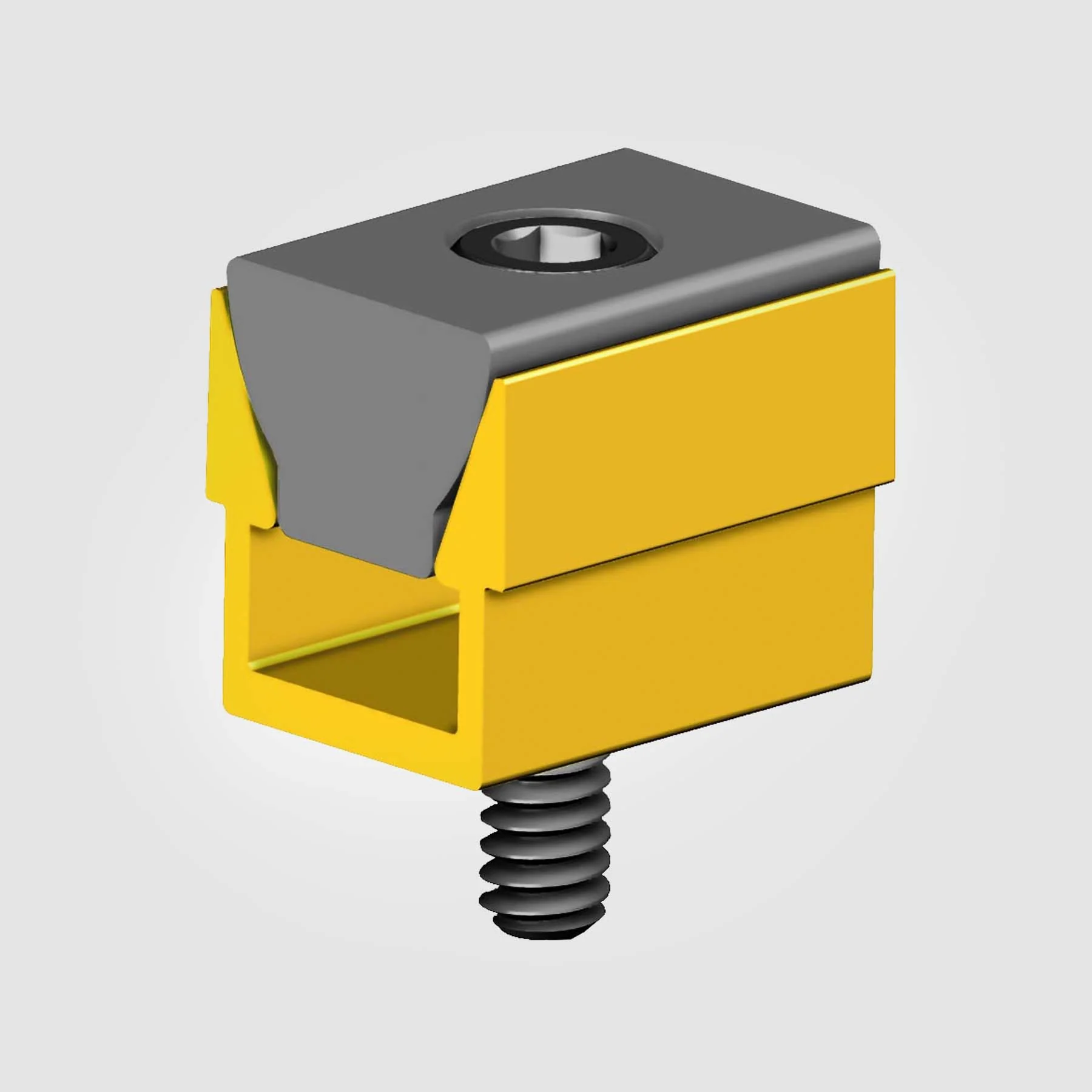

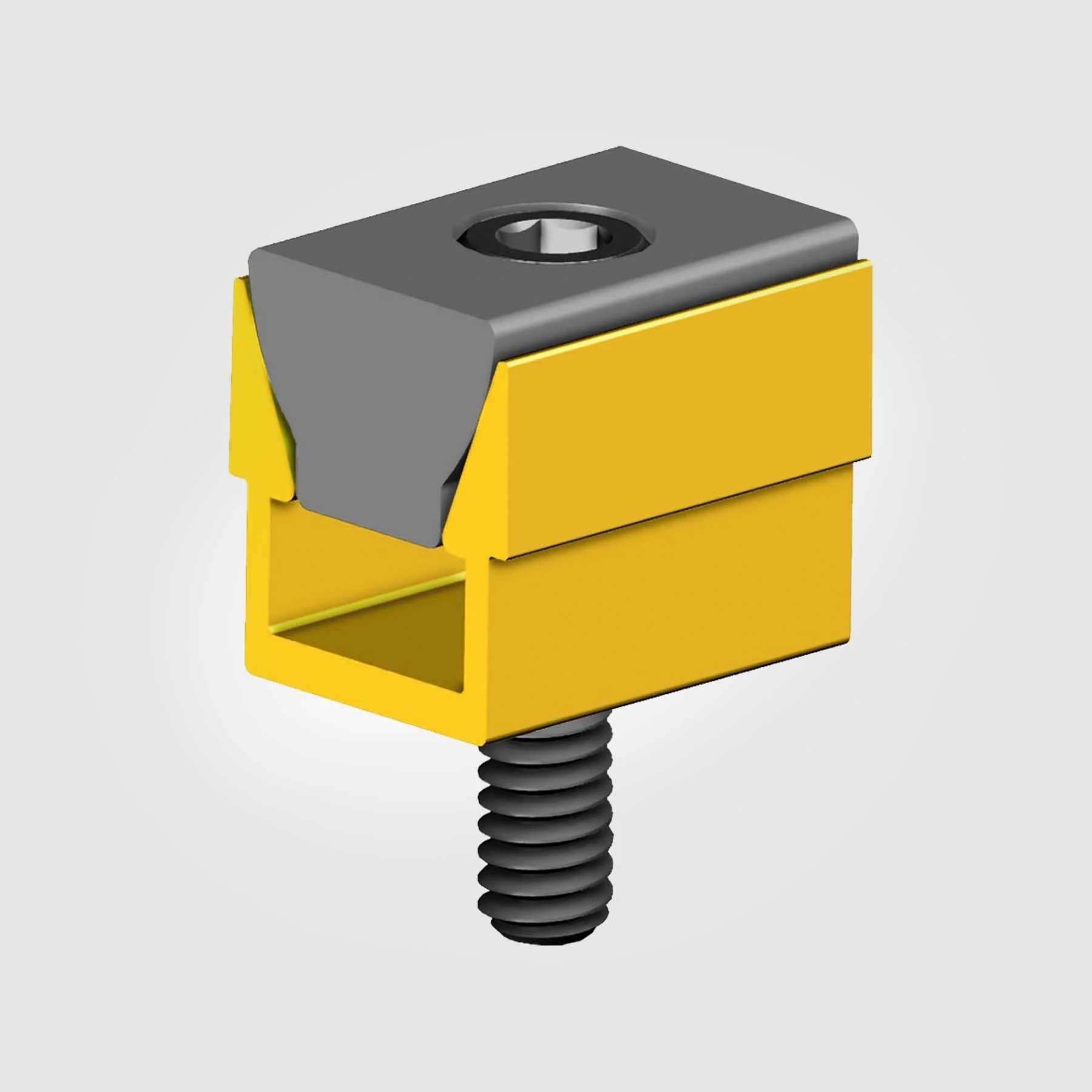

TITAN's go-to clamps for advanced fixturing and workholding setups!

• Minimizes tool changes and increases production
• Holds two parts with equilateral clamping action
• Ideal for clamping flat or round work pieces
• Easily mated to hydraulic pull cylinders
• Ideal for pallet changers

#250256

Technical Data

• Quantity: 6

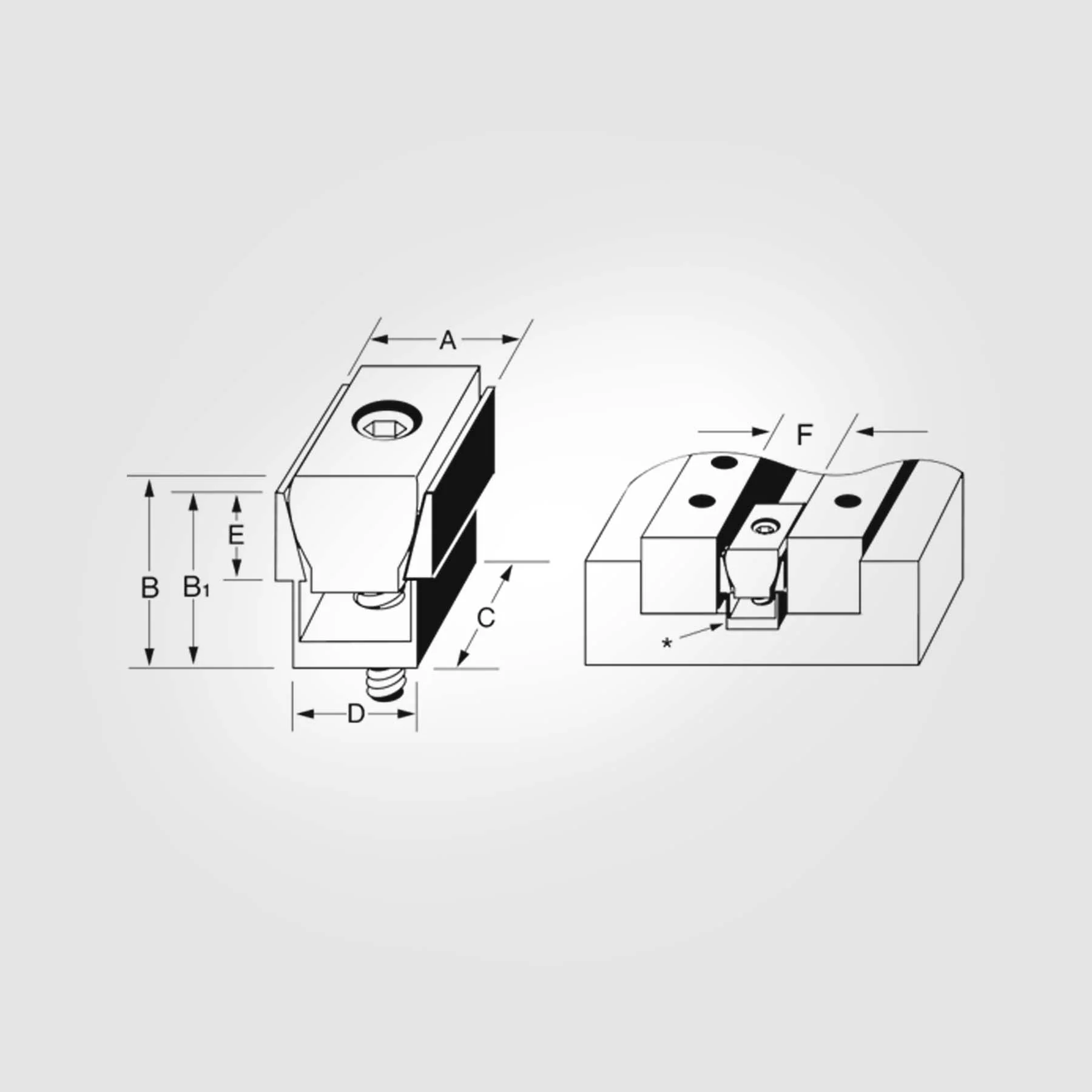

• [D] Workpiece Alignment: 0.210"
• [F] Drill and Tap Location: 0.250"
• Max Spread: 0.260"
• Key Size: 5/64"
• Screw Size: 2-56
• Max Torque: .5 ft-lb
• Holding Force: 200 lbs

Country of Origin: United States of America.

#375440

Technical Data

• Quantity: 6
• [D] Workpiece Alignment: 0.310"
• [F] Drill and Tap Location: 0.375"
• Max Spread: 0.390"
• Key Size: 3/32"
• Screw Size: 4-40
• Max Torque: 1.1 ft-lb
• Holding Force: 310 lbs

Country of Origin: United States of America.

#500832

Technical Data

• Quantity: 8
• [D] Workpiece Alignment: 0.410"
• [F] Drill and Tap Location: 0.500"
• Max Spread: 0.530"
• Key Size: 9/64"
• Screw Size: 8-32
• Max Torque: 2.5 ft-lb
• Holding Force: 500 lbs

Country of Origin: United States of America.

#7501420

Technical Data

• Quantity: 6
• [D] Workpiece Alignment: 0.635"
• [F] Drill and Tap Location: 0.750"
• Max Spread: 0.785"
• Key Size: 3/16"
• Screw Size: 1/4-20
• Max Torque: 10.8 ft-lb
• Holding Force: 1500 lbs

Country of Origin: United States of America.

#100051618

Technical Data

• Quantity: 4
• [D] Workpiece Alignment: 0.820"
• [F] Drill and Tap Location: 1.000"
• Max Spread: 1.050"
• Key Size: 1/4"
• Screw Size: 5/16-18
• Max Torque: 10.4 ft-lb
• Holding Force: 2000 lbs

Country of Origin: United States of America.

#15001213

Technical Data

• Quantity: 2
• [D] Workpiece Alignment: 1.215"
• [F] Drill and Tap Location: 1.500"
• Max Spread: 1.560"
• Key Size: 3/8"
• Screw Size: 1/2-13
• Max Torque: 28.3 ft-lb
• Holding Force: 3500 lbs

Country of Origin: United States of America.

#20005811

Technical Data

• Quantity: 2
• [D] Workpiece Alignment: 1.625"
• [F] Drill and Tap Location: 2.000"
• Max Spread: 2.080"
• Key Size: 1/2"
• Screw Size: 5/8-11
• Max Torque: 55 ft-lb
• Holding Force: 6000 lbs

Country of Origin: United States of America.

#250MM2

Technical Data

• Quantity: 6
• [D] Workpiece Alignment: 5.300mm
• [F] Drill and Tap Location: 6.400mm
• Max Spread: 6.700mm
• Key Size: 1.500mm
• Screw Size: M2
• Max Torque: 0.70 N.m
• Holding Force: 880 N

Country of Origin: United States of America.

#375MM25

Technical Data

• Quantity: 6
• [D] Workpiece Alignment: 7.900mm
• [F] Drill and Tap Location: 9.500mm
• Max Spread: 10.000mm
• Key Size: 2.000mm
• Screw Size: M2.5
• Max Torque: 1.50 N.m
• Holding Force: 1350 N

Country of Origin: United States of America.

#500MM4

Technical Data

• Quantity: 8
• [D] Workpiece Alignment: 10.400mm
• [F] Drill and Tap Location: 12.700mm
• Max Spread: 13.200mm
• Key Size: 3.000mm
• Screw Size: M4
• Max Torque: 3.40 N.m
• Holding Force: 2225 N

Country of Origin: United States of America.

#750MM6

Technical Data

• Quantity: 6
• [D] Workpiece Alignment: 16.100mm
• [F] Drill and Tap Location: 19.000mm
• Max Spread: 20.300mm
• Key Size: 5.000mm
• Screw Size: M6
• Max Torque: 14.30 N.m
• Holding Force: 6675 N

Country of Origin: United States of America.

#1000MM8

Technical Data

• Quantity: 4
• [D] Workpiece Alignment: 20.800mm
• [F] Drill and Tap Location: 25.400mm
• Max Spread: 26.900mm
• Key Size: 6.000mm
• Screw Size: M8
• Max Torque: 14.50 N.m
• Holding Force: 8900 N

Country of Origin: United States of America.

#1500MM12

Technical Data

• Quantity: 2
• [D] Workpiece Alignment: 30.800mm
• [F] Drill and Tap Location: 38.100mm
• Max Spread: 39.900mm
• Key Size: 10.000mm
• Screw Size: M12
• Max Torque: 38.40 N.m
• Holding Force: 15575 N

Country of Origin: United States of America.

#2000MM16

Technical Data

• Quantity: 2
• [D] Workpiece Alignment: 41.200mm
• [F] Drill and Tap Location: 50.800mm
• Max Spread: 53.000mm
• Key Size: 14.000mm
• Screw Size: M16
• Max Torque: 74.60 N.m
• Holding Force: 26700 N

Country of Origin: United States of America.
