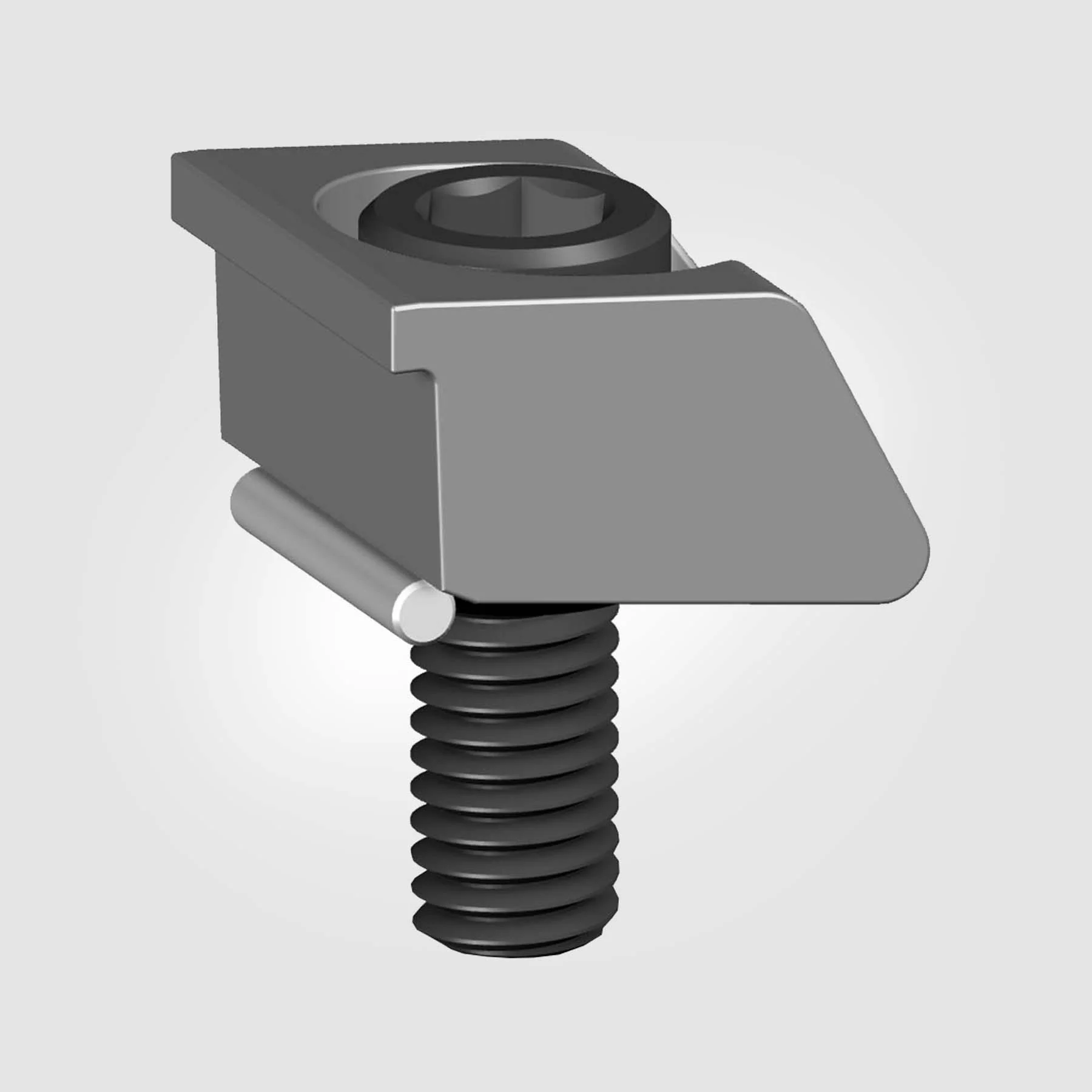

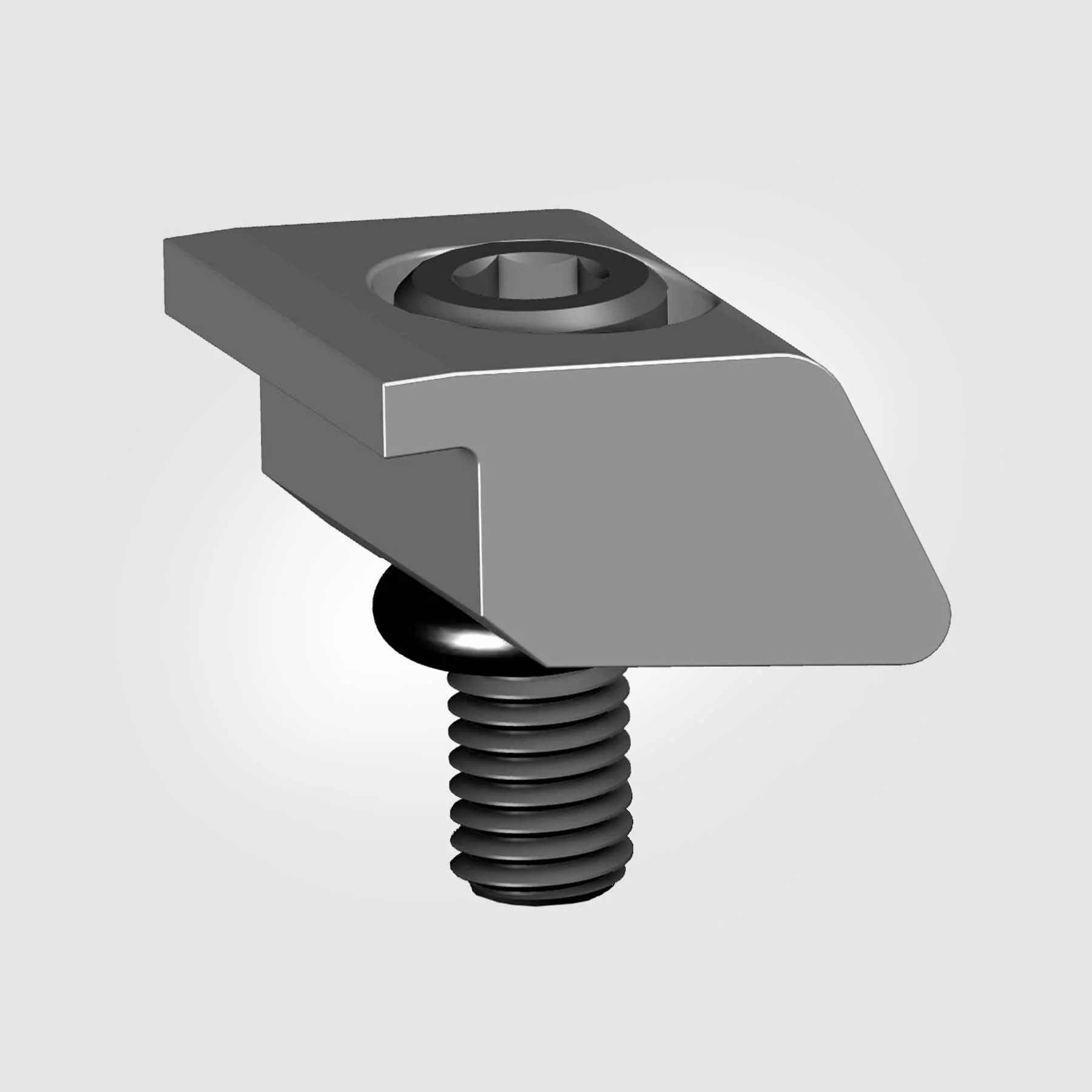

TITAN's go-to clamps for advanced fixturing and workholding setups!

• Made of A2 tool steel and heat treated to about 43RC for long life
• Additional material on the clamping face to allow for machining a radius
• Available in two sizes with 6,000 and 12,000 lbs. (26000 and 50000 N) of holding force
• Dowel pins are included in each package to locate clamps while machining radius

#3816

Technical Data

• Quantity: 4
• [D] Min. Clamp Height: 0.250"
• Clamp Width: 1.000"
• Total Throw: 0.050"
• Dowel Pin: 1/8"
• Screw Size: 3/8-16
• Max Torque: 30 ft-lb
• Holding Force: 6000 lbs

Country of Origin: United States of America.

#1213

Technical Data

• Quantity: 2
• [D] Min. Clamp Height: 0.375"
• Clamp Width: 1.500"
• Total Throw: 0.075"
• Dowel Pin: 1/4"
• Screw Size: 1/2-13
• Max Torque: 108.3 ft-lb
• Holding Force: 12000 lbs

Country of Origin: United States of America.

#M10

Technical Data

• Quantity: 4
• [D] Min. Clamp Height: 6.350mm
• Clamp Width: 25.400mm
• Total Throw: 1.270mm
• Dowel Pin: 3.180mm
• Screw Size: M10
• Max Torque: 40.6 N.m
• Holding Force: 26000 N

Country of Origin: United States of America.

#M12

Technical Data

• Quantity: 2
• [D] Min. Clamp Height: 9.520mm
• Clamp Width: 38.100mm
• Total Throw: 1.900mm
• Dowel Pin: 6.350mm
• Screw Size: M12
• Max Torque: 145 N.m
• Holding Force: 50000 N

Country of Origin: United States of America.
