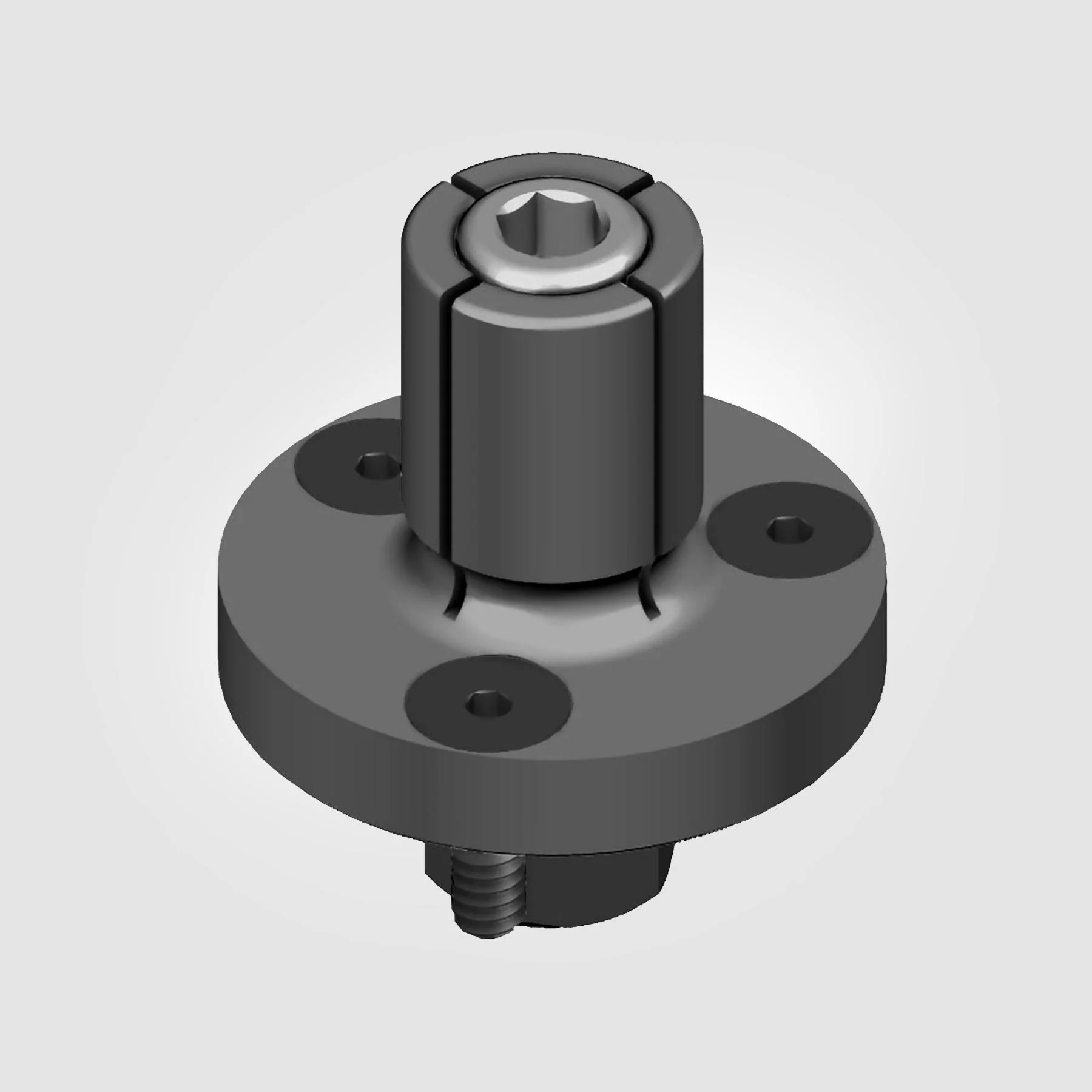

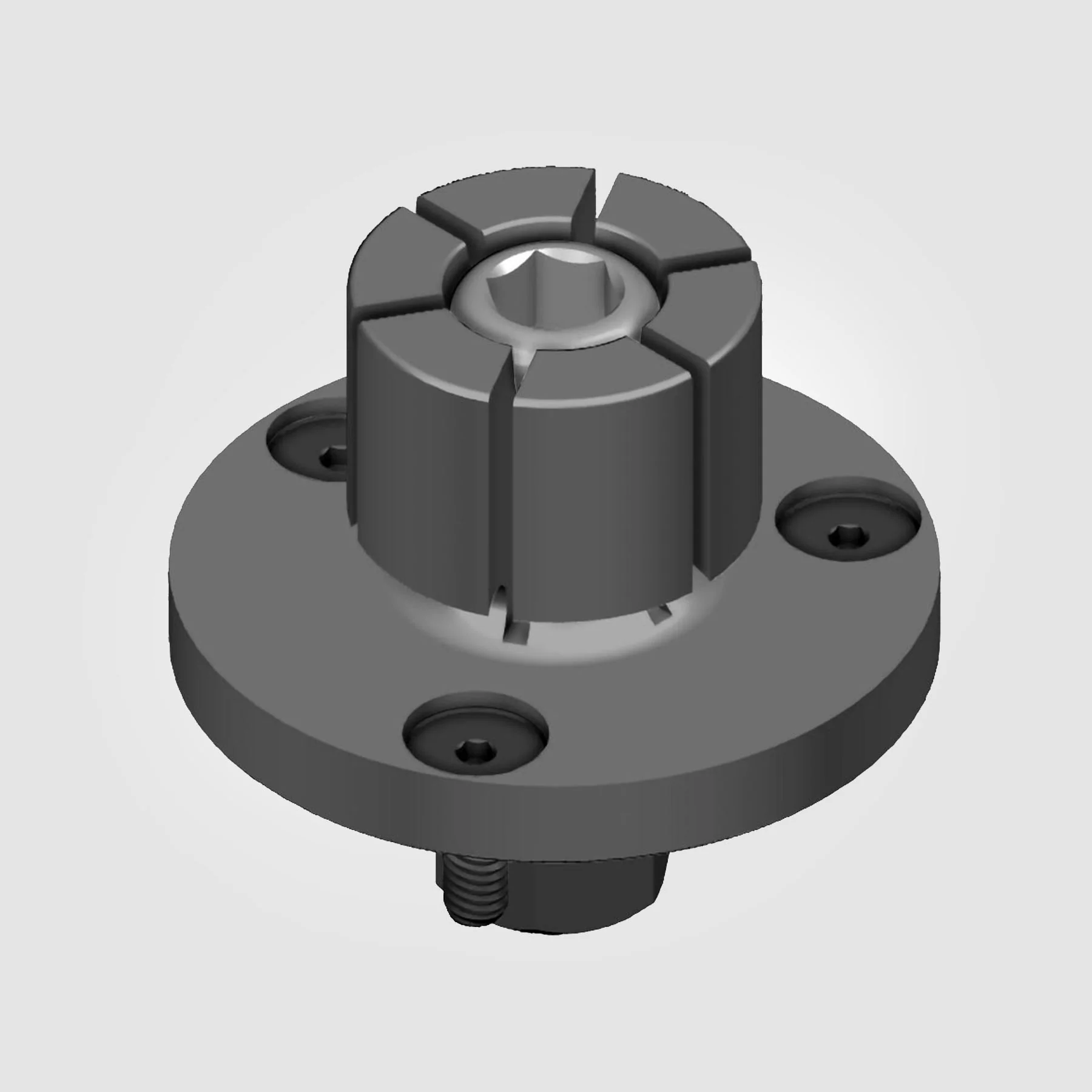

TITAN's go-to clamps for advanced fixturing and workholding setups!

• Low profile
• Ideal for secondary operations on lathe parts
• Easily machined to size on lathe or mill
• Excellent for palletized setups
• Allows more parts per workcube or fixture plates
• Heat-treated and coated screw for long life
• Clamp body made of mild steel for machinability
• Tighten with hex key or hydraulic pull cylinders
• Longer screws available for hydraulic applications

#Size00Inch

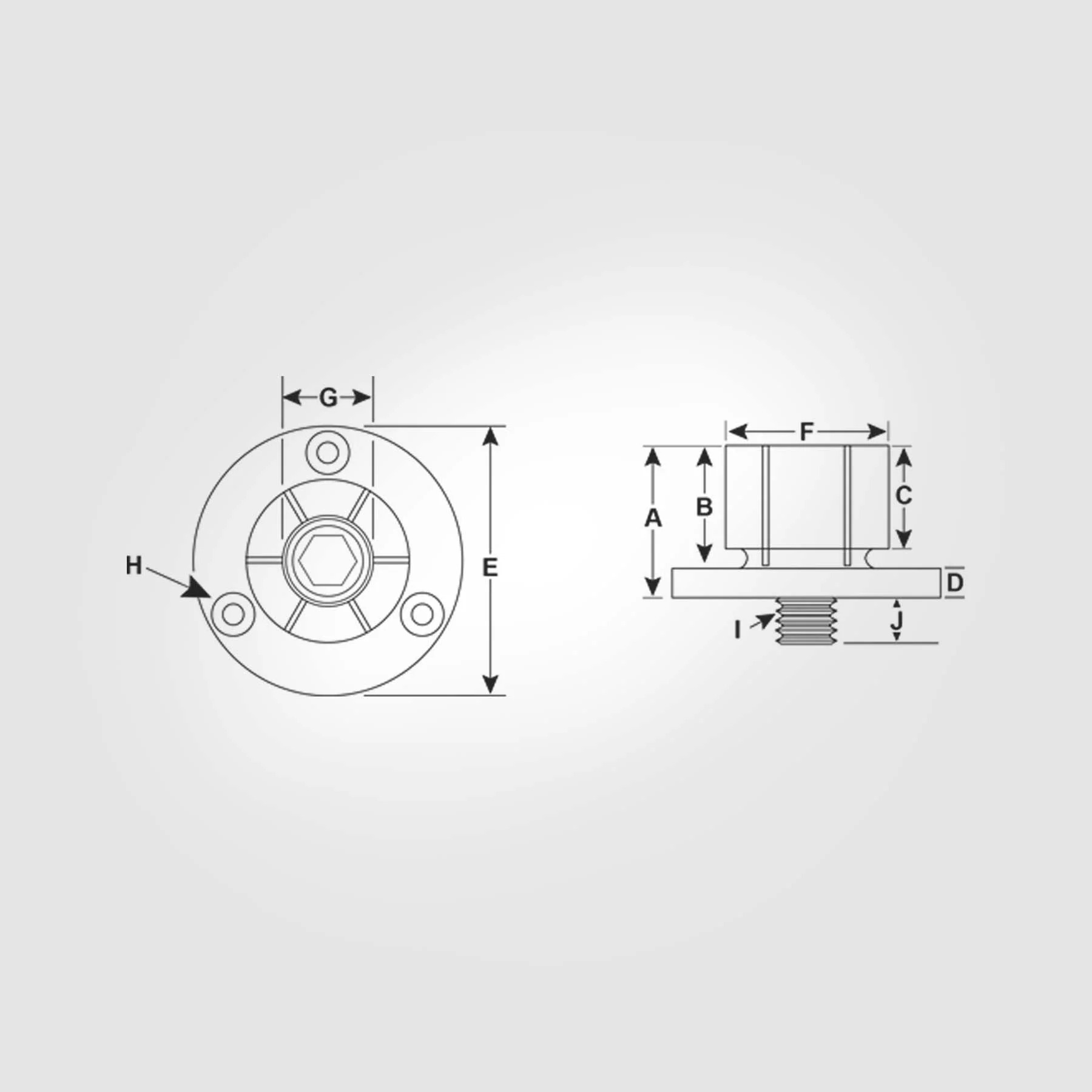

Technical Data

• Quantity: 1
• Clamp Size: #00
• [F] Clamp Diameter: .290"
• [G] Min. Machineable Dia.: .160"
• Screw Size: 2-56
• Max Torque: .5 ft-lbs
• Holding Force: 250 lbs

Country of Origin: United States of America.

#Size0Inch

Technical Data

• Quantity: 1
• Clamp Size: #0
• [F] Clamp Diameter: 0.490"
• [G] Min. Machineable Dia.: 0.280"
• Screw Size: 8-32
• Max Torque: 3.6 ft-lbs
• Holding Force: 950 lbs

Country of Origin: United States of America.

#Size1Inch

Technical Data

• Quantity: 1
• Clamp Size: #1
• [F] Clamp Diameter: 0.560"
• [G] Min. Machineable Dia.: 0.480"
• Screw Size: 1/4-20
• Max Torque: 13.3 ft-lbs
• Holding Force: 1900 lbs
• Replacement part part for the ART OF FIXTURING Tool Kit

Country of Origin: United States of America.

#Size2Inch

Technical Data

• Quantity: 1
• Clamp Size: #2
• [F] Clamp Diameter: 0.790"
• [G] Min. Machineable Dia.: 0.530"
• Screw Size: 5/16-18
• Max Torque: 27.6 ft-lbs
• Holding Force: 2500 lbs

Country of Origin: United States of America.

#Size3Inch

Technical Data

• Quantity: 1
• Clamp Size: #3
• [F] Clamp Diameter: 1.060"
• [G] Min. Machineable Dia.: 0.710"
• Screw Size: 3/8-16
• Max Torque: 49.3 ft-lbs
• Holding Force: 4500 lbs
• Replacement part part for the ART OF FIXTURING Tool Kit

Country of Origin: United States of America.

#Size4Inch

Technical Data

• Quantity: 1
• Clamp Size: #4
• [F] Clamp Diameter: 1.390"
• [G] Min. Machineable Dia.: 0.900"
• Screw Size: 1/2-13
• Max Torque: 120 ft-lbs
• Holding Force: 5900 lbs

Country of Origin: United States of America.

#Size5Inch

Technical Data

• Quantity: 1
• Clamp Size: #5
• [F] Clamp Diameter: 1.650"
• [G] Min. Machineable Dia.: 1.150"
• Screw Size: 5/8-11
• Max Torque: 224 ft-lbs
• Holding Force: 10000 lbs

Country of Origin: United States of America.

#Size6Inch

Technical Data

• Quantity: 1
• Clamp Size: #6
• [F] Clamp Diameter: 2.030"
• [G] Min. Machineable Dia.: 1.150"
• Screw Size: 5/8-11
• Max Torque: 224 ft-lbs
• Holding Force: 10000 lbs

Country of Origin: United States of America.

#Size7Inch

Technical Data

• Quantity: 1
• Clamp Size: #7
• [F] Clamp Diameter: 3.060"
• [G] Min. Machineable Dia.: 1.150"
• Screw Size: 5/8-11
• Max Torque: 224 ft-lbs
• Holding Force: 10000 lbs

Country of Origin: United States of America.

#Size8Inch

Technical Data

• Quantity: 1
• Clamp Size: #8
• [F] Clamp Diameter: 4.060"
• [G] Min. Machineable Dia.: 1.150"
• Screw Size: 5/8-11
• Max Torque: 224 ft-lbs
• Holding Force: 10000 lbs

Country of Origin: United States of America.

#Size9Inch

Technical Data

• Quantity: 1
• Clamp Size: #9
• [F] Clamp Diameter: 6.890"
• [G] Min. Machineable Dia.: 1.150"
• Screw Size: 5/8-11
• Max Torque: 224 ft-lbs
• Holding Force: 10000 lbs

Country of Origin: United States of America.

#Size10Inch

Technical Data

• Quantity: 1
• Clamp Size: #10
• [F] Clamp Diameter: 9.850"
• [G] Min. Machineable Dia.: 1.150"
• Screw Size: 5/8-11
• Max Torque: 125 ft-lbs
• Holding Force: 6000 lbs

Country of Origin: United States of America.

#Size00Metric

Technical Data

• Quantity: 1
• Clamp Size: #00
• [F] Clamp Diameter: 7.400mm
• [G] Min. Machineable Dia.: 4.100mm
• Screw Size: M2
• Max Torque: .70 N.m
• Holding Force: 1113 N

Country of Origin: United States of America.

#Size0Metric

Technical Data

• Quantity: 1
• Clamp Size: #0
• [F] Clamp Diameter: 12.400mm
• [G] Min. Machineable Dia.: 7.100mm
• Screw Size: M4
• Max Torque: 5 N.m
• Holding Force: 4228 N

Country of Origin: United States of America.

#Size1Metric

Technical Data

• Quantity: 1
• Clamp Size: #1
• [F] Clamp Diameter: 14.200mm
• [G] Min. Machineable Dia.: 12.200mm
• Screw Size: M6
• Max Torque: 17 N.m
• Holding Force: 8455 N

Country of Origin: United States of America.

#Size2Metric

Technical Data

• Quantity: 1
• Clamp Size: #2
• [F] Clamp Diameter: 20.000mm
• [G] Min. Machineable Dia.: 13.500mm
• Screw Size: M8
• Max Torque: 34 N.m
• Holding Force: 11125 N

Country of Origin: United States of America.

#Size3Metric

Technical Data

• Quantity: 1
• Clamp Size: #3
• [F] Clamp Diameter: 27.000mm
• [G] Min. Machineable Dia.: 18.000mm
• Screw Size: M10
• Max Torque: 60 N.m
• Holding Force: 20025 N

Country of Origin: United States of America.

#Size4Metric

Technical Data

• Quantity: 1
• Clamp Size: #4
• [F] Clamp Diameter: 35.300mm
• [G] Min. Machineable Dia.: 23.000mm
• Screw Size: M12
• Max Torque: 150 N.m
• Holding Force: 26255 N

Country of Origin: United States of America.

#Size5Metric

Technical Data

• Quantity: 1
• Clamp Size: #5
• [F] Clamp Diameter: 42.000mm
• [G] Min. Machineable Dia.: 29.300mm
• Screw Size: M16
• Max Torque: 280 N.m
• Holding Force: 44500 N

Country of Origin: United States of America.

#Size6Metric

Technical Data

• Quantity: 1
• Clamp Size: #6
• [F] Clamp Diameter: 51.500mm
• [G] Min. Machineable Dia.: 29.300mm
• Screw Size: M16
• Max Torque: 280 N.m
• Holding Force: 44500 N

Country of Origin: United States of America.

#Size7Metric

Technical Data

• Quantity: 1
• Clamp Size: #7
• [F] Clamp Diameter: 77.700mm
• [G] Min. Machineable Dia.: 29.300mm
• Screw Size: M16
• Max Torque: 280 N.m
• Holding Force: 44500 N

Country of Origin: United States of America.

#Size8Metric

Technical Data

• Quantity: 1
• Clamp Size: #8
• [F] Clamp Diameter: 103.000mm
• [G] Min. Machineable Dia.: 29.300mm
• Screw Size: M16
• Max Torque: 280 N.m
• Holding Force: 44500 N

Country of Origin: United States of America.

#Size9Metric

Technical Data

• Quantity: 1
• Clamp Size: #9
• [F] Clamp Diameter: 175.000mm
• [G] Min. Machineable Dia.: 29.300mm
• Screw Size: M16
• Max Torque: 280 N.m
• Holding Force: 44500 N

Country of Origin: United States of America.

#Size10Metric

Technical Data

• Quantity: 1
• Clamp Size: #10
• [F] Clamp Diameter: 250.200mm
• [G] Min. Machineable Dia.: 29.300mm
• Screw Size: M16
• Max Torque: 170 N.m
• Holding Force: 26000 N

Country of Origin: United States of America.
