TITAN's go-to clamps for advanced fixturing and workholding setups!

• Low profile for quick and easy installation for linear motion guide rails
• Cam action provides fast, strong clamping
• Small size allows more parts per load
• Simple design keeps cost low

#BrassMB2832

Technical Data

• Quantity: 10
• Material: Brass

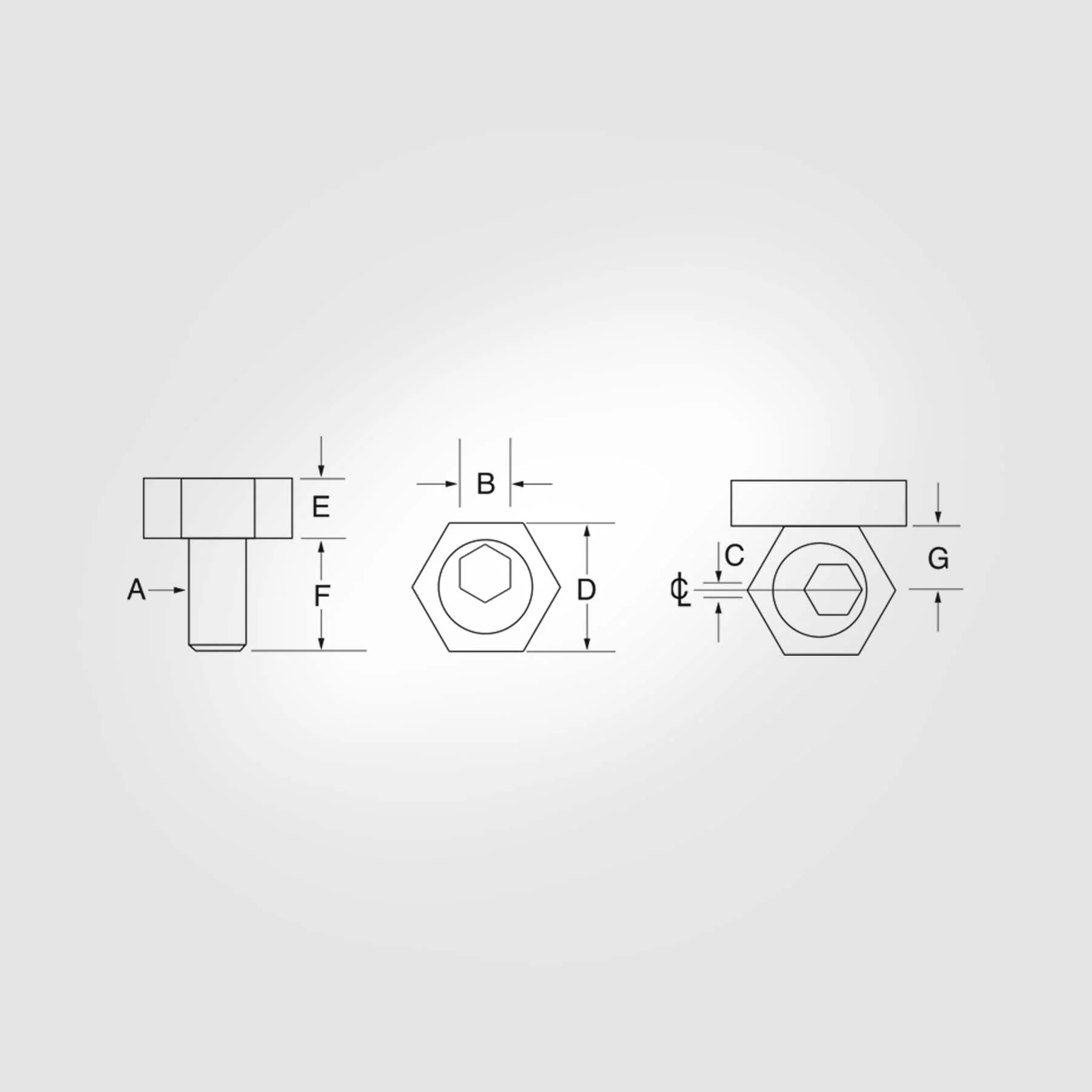

• [G] Drill and Tap Location: .150"
• Screw Size: 8-32
• Max Torque: 1.5 ft-lb
• Holding Force: 205 lbs

Country of Origin: United States of America.

#BrassMB31032

Technical Data

• Quantity: 10
• Material: Brass
• [G] Drill and Tap Location: .250"
• Screw Size: 10-32
• Max Torque: 2.5 ft-lb
• Holding Force: 350 lbs

Country of Origin: United States of America.

#BrassMB41420

Technical Data

• Quantity: 10
• Material: Brass
• [G] Drill and Tap Location: .308"
• Screw Size: 1/4-20
• Max Torque: 6.2 ft-lb
• Holding Force: 800 lbs

Country of Origin: United States of America.

#BrassMB551624

Technical Data

• Quantity: 12
• Material: Brass
• [G] Drill and Tap Location: .400"
• Screw Size: 5/16-24
• Max Torque: 8.3 ft-lb
• Holding Force: 800 lbs

Country of Origin: United States of America.

#BrassMB5C51618

Technical Data

• Quantity: 12
• Material: Brass
• [G] Drill and Tap Location: .400"
• Screw Size: 5/16-24
• Max Torque: 8.3 ft-lb
• Holding Force: 800 lbs

Country of Origin: United States of America.

#BrassMB63816

Technical Data

• Quantity: 10
• Material: Brass
• [G] Drill and Tap Location: .400"
• Screw Size: 3/8-16
• Max Torque: 20.8 ft-lb
• Holding Force: 2000 lbs

Country of Origin: United States of America.

#BrassMB81213

Technical Data

• Quantity: 8
• Material: Brass
• [G] Drill and Tap Location: .500"
• Screw Size: 1/2-13
• Max Torque: 65 ft-lb
• Holding Force: 4000 lbs

Country of Origin: United States of America.

#BrassMB105811

Technical Data

• Quantity: 4
• Material: Brass
• [G] Drill and Tap Location: .590"
• Screw Size: 5/8-11
• Max Torque: 100 ft-lb
• Holding Force: 6000 lbs

Country of Origin: United States of America.

#SteelMB4M

Technical Data

• Quantity: 10
• Material: Steel
• [G] Drill and Tap Location: 3.800mm
• Screw Size: M4
• Max Torque: 2 N.m
• Holding Force: 910 N

Country of Origin: United States of America.

#SteelMB6M

Technical Data

• Quantity: 10
• Material: Steel
• [G] Drill and Tap Location: 7.800mm
• Screw Size: M6
• Max Torque: 8.5 N.m
• Holding Force: 3558 N

Country of Origin: United States of America.

#SteelMB8M

Technical Data

• Quantity: 12
• Material: Steel
• [G] Drill and Tap Location: 10.150mm
• Screw Size: M8
• Max Torque: 11.3 N.m
• Holding Force: 3558 N

Country of Origin: United States of America.

#SteelMB10M

Technical Data

• Quantity: 10
• Material: Steel
• [G] Drill and Tap Location: 10.150mm
• Screw Size: M10
• Max Torque: 28 N.m
• Holding Force: 8895 N

Country of Origin: United States of America.

#SteelMB12M

Technical Data

• Quantity: 8
• Material: Steel
• [G] Drill and Tap Location: 12.700mm
• Screw Size: M12
• Max Torque: 88 N.m
• Holding Force: 17790 N

Country of Origin: United States of America.

#SteelMB16M

Technical Data

• Quantity: 4
• Material: Steel
• [G] Drill and Tap Location: 15.000mm
• Screw Size: M16
• Max Torque: 125 N.m
• Holding Force: 26680 N

Country of Origin: United States of America.

#BrassMBSS2832

Technical Data

• Quantity: 4
• Material: Brass
• [G] Drill and Tap Location: .150"
• Screw Size: 8-32
• Max Torque: 1.5 ft-lb
• Holding Force: 205 lbs

Country of Origin: United States of America.

#Brass1420

Technical Data

• Quantity: 4
• Material: Brass
• [G] Drill and Tap Location: .308"
• Screw Size: 1/4-20
• Max Torque: 6.2 ft-lb
• Holding Force: 800 lbs

Country of Origin: United States of America.

#Brass51618

Technical Data

• Quantity: 4
• Material: Brass
• [G] Drill and Tap Location: .400"
• Screw Size: 5/16-18
• Max Torque: 8.3 ft-lb
• Holding Force: 800 lbs

Country of Origin: United States of America.

#SteelMBSS4M

Technical Data

• Quantity: 5
• Material: Steel
• [G] Drill and Tap Location: 3.800mm
• Screw Size: M4
• Max Torque: 2.0 N.m
• Holding Force: 910 N

Country of Origin: United States of America.

#SteelMBSS6M

Technical Data

• Quantity: 4
• Material: Steel
• [G] Drill and Tap Location: 7.800mm
• Screw Size: M6
• Max Torque: 8.50 N.m
• Holding Force: 3558 N

Country of Origin: United States of America.

#SteelM8125

Technical Data

• Quantity: 4
• Material: Steel
• [G] Drill and Tap Location: 10.150mm
• Screw Size: M8
• Max Torque: 11.30 N.m
• Holding Force: 3558 N

Country of Origin: United States of America.
