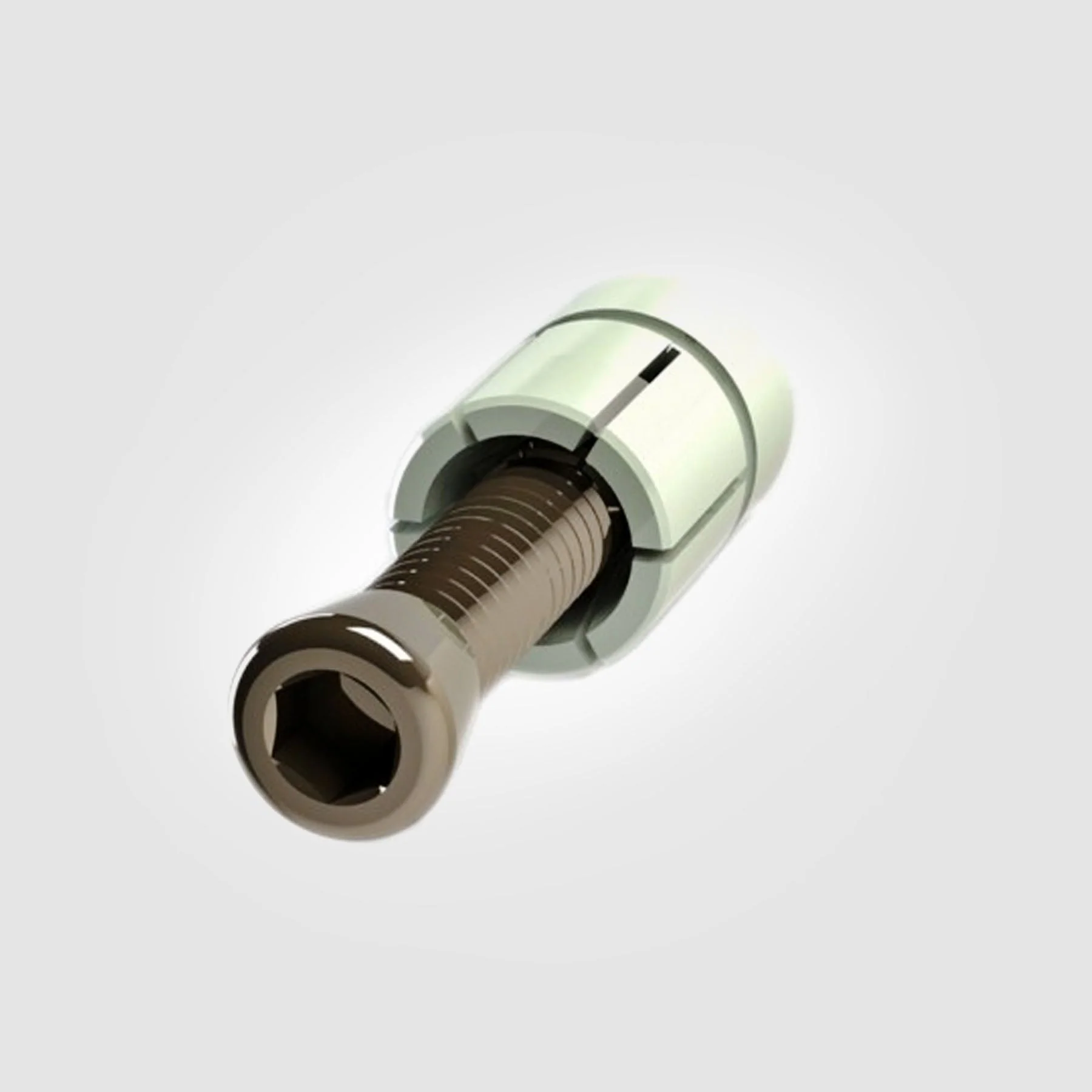

THE ART OF FIXTURING Tool Kit includes all of the tooling you need to complete the Art of Fixturing learning series projects, including the unique Modular XYZ Xpansion Pins. The patent pending design provides accurate location, repeatability and high holding forces for securing parts on the inside diameter. The XYZ Pin provides “out of the way workholding” and accessibility to all work surfaces with absolutely no external clamping interference.

Stock Up on Your Favorite Workholding!

• For Tombstone, Grid Plate and Fixture Plate applications
• Intended for press fit or close tolerance removable slide fit applications
• Install in a precision bore or a bushing with the center threaded for the Tapered screw
• If precise location is not necessary, pin can be used on top of fixture plate
• Replacement part part for the ART OF FIXTURING Tool Kit

Technical Data

• Quantity: 1
• Screw Size: 5-40"
• Max Torque: 1.6 ft-lbs
• Holding Force: 420 lbs

Country of Origin: United States of America.
