The LNS Fox WM2 series Oil & Coolant Mist Collector is specifically designed for machine tools that enclose more than 400 ft3. Additionally, these units can handle the grouping together of machines like a centralized system to eliminate mists, aerosols and smoke of wet machining operations using water-soluble or straight oil for coolant. Even more, the standard configuration provides a high level of air filtration exceeding OSHA and NIOSH guidelines for industrial air quality.

#2500

Technical Data

• Air flow** [cfm]: 2350
• Static pressure [in of WC]: 9.2
• Motor [hp]: 4.8
• Amps [230V]: 10.6
• Weight [lb]: 551
• Sound level [dB(A)]: 79
• Inlet Diameter [mm | in]: 250 (10)

#5000

Technical Data

• 2 FOX WM2 2500 Units
• Air flow** [cfm]: 2350
• Static pressure [in of WC]: 9.2
• Motor [hp]: 4.8
• Amps [230V]: 10.6
• Weight [lb]: 551
• Sound level [dB(A)]: 79
• Inlet Diameter [mm | in]: 250 (10)

#7500

Technical Data

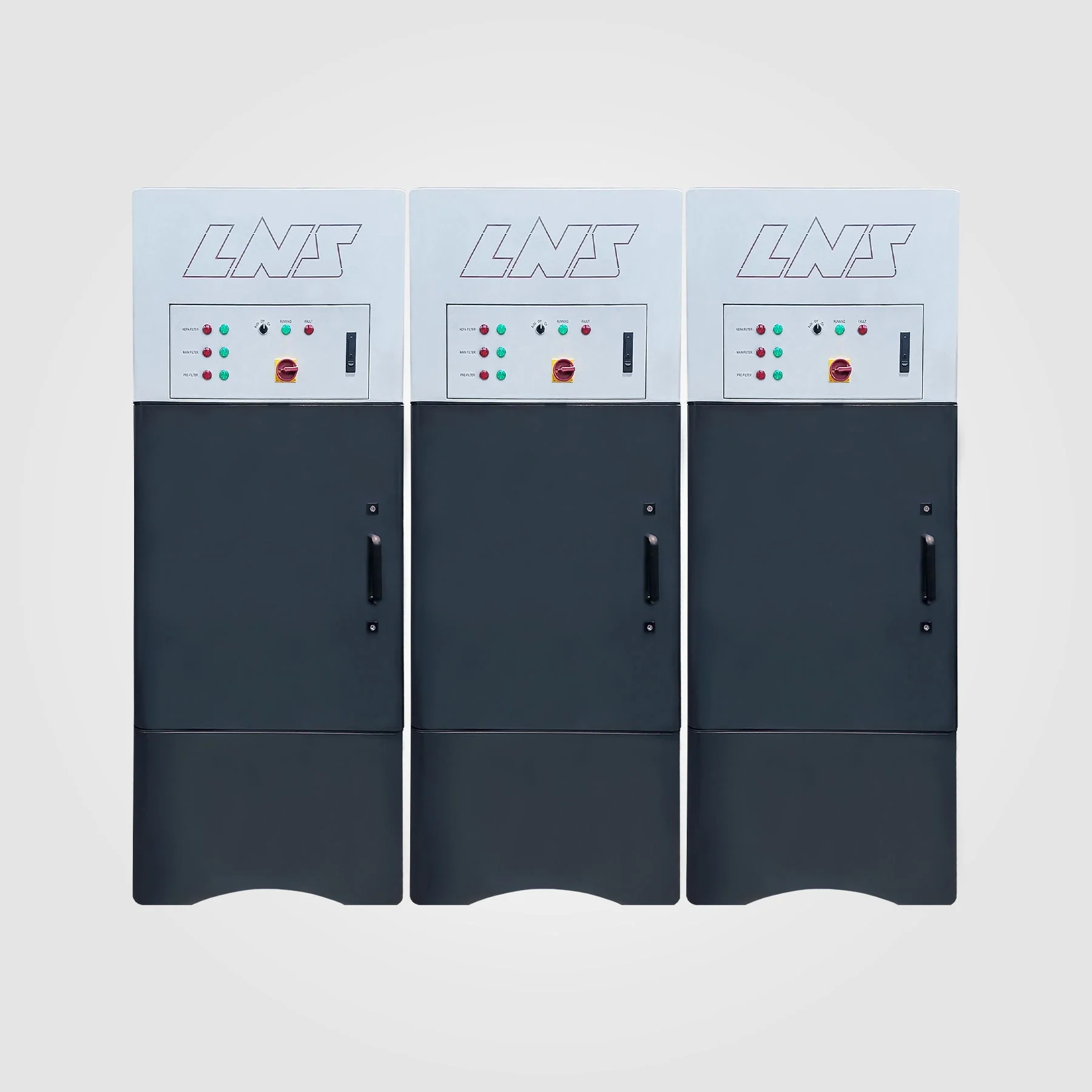

• 3 FOX WM2 2500 Units
• Air flow** [cfm]: 2350
• Static pressure [in of WC]: 9.2
• Motor [hp]: 4.8
• Amps [230V]: 10.6
• Weight [lb]: 551
• Sound level [dB(A)]: 79
• Inlet Diameter [mm | in]: 250 (10)
