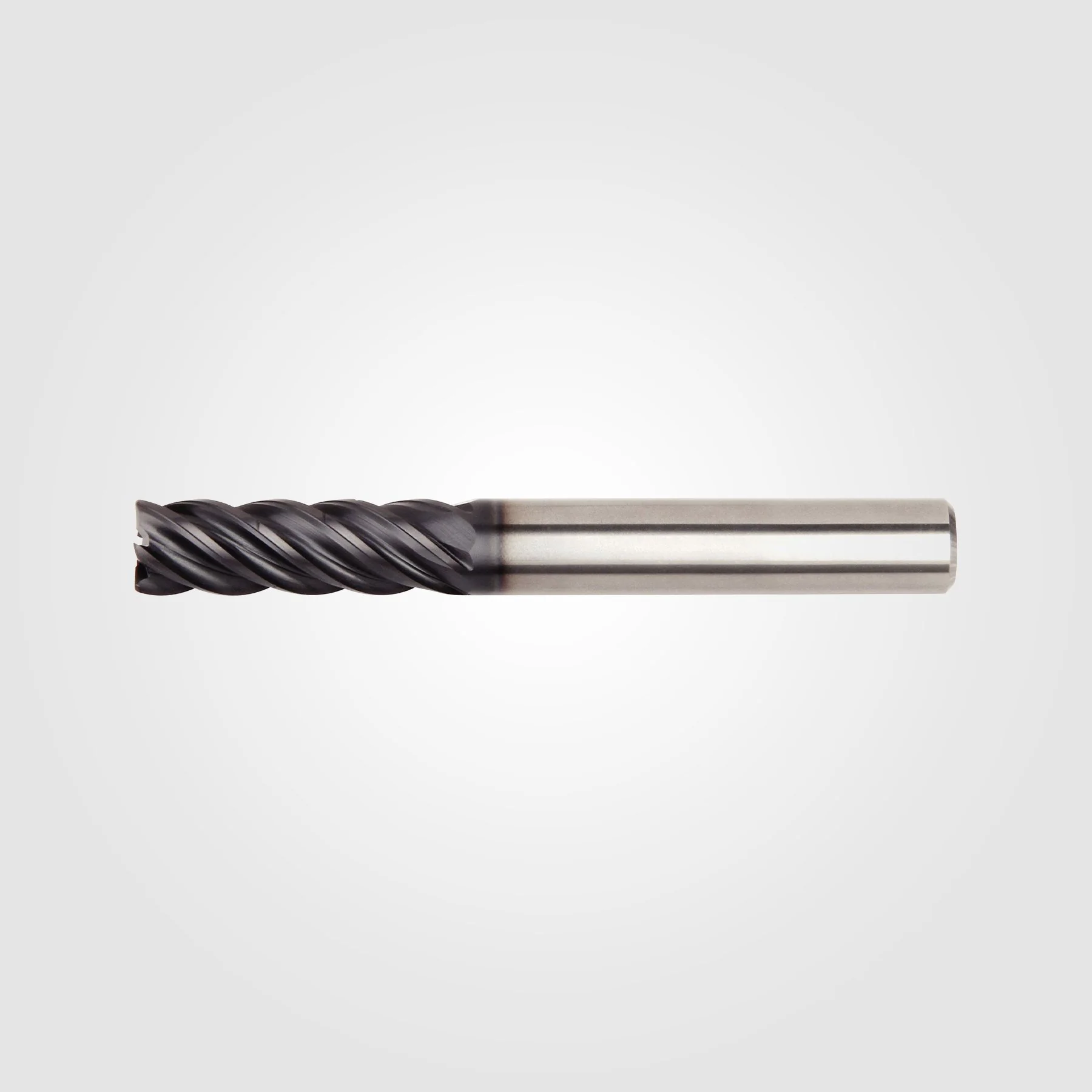

There's a reason the KOR-5™ DS is called the KING OF ROUGHING! This end mill was made for dynamic roughing in steel and stainless steel that will save you time and money. Enough said.

Cut TITAN-Sized Chips in Steel

• Helix angles target material, minimize vibration, and optimize tool life
• Chip deformers for near-perfect chip management and high surface quality
• 3xD and 5xD with Plain and Weldon® shanks
• Weldon® shank for pullout protection

Materials

• Steel, Stainless Steel, Cast Iron, High-Temp Alloys, Hardened Materials

Technical Data

• Grade: KC643M
• Coating: AlTiN
• Adapter Style: Weldon Shank
• Number of Flutes: 5
• Effective Cutting Diameter (Metric): 16.000mm
• Shank Diameter (Metric): 16.000mm
• Length of Cut (Metric): 80.000mm
• Overall Length (Metric): 141.000mm
• Corner Radius (Metric): 1.000mm
• Helix Angle: 40°

Country of Origin is subject to change.

Safety data sheets upon request.
