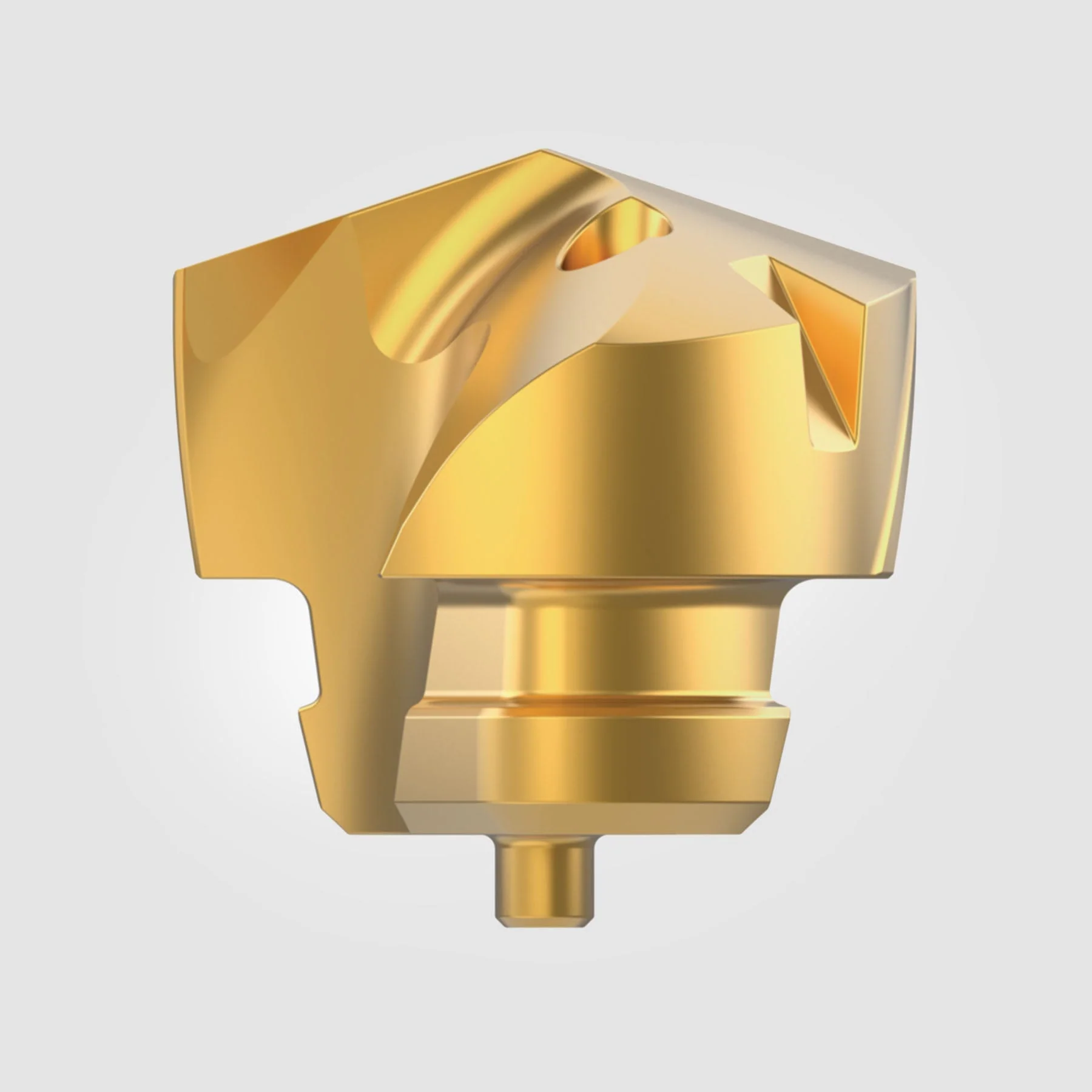

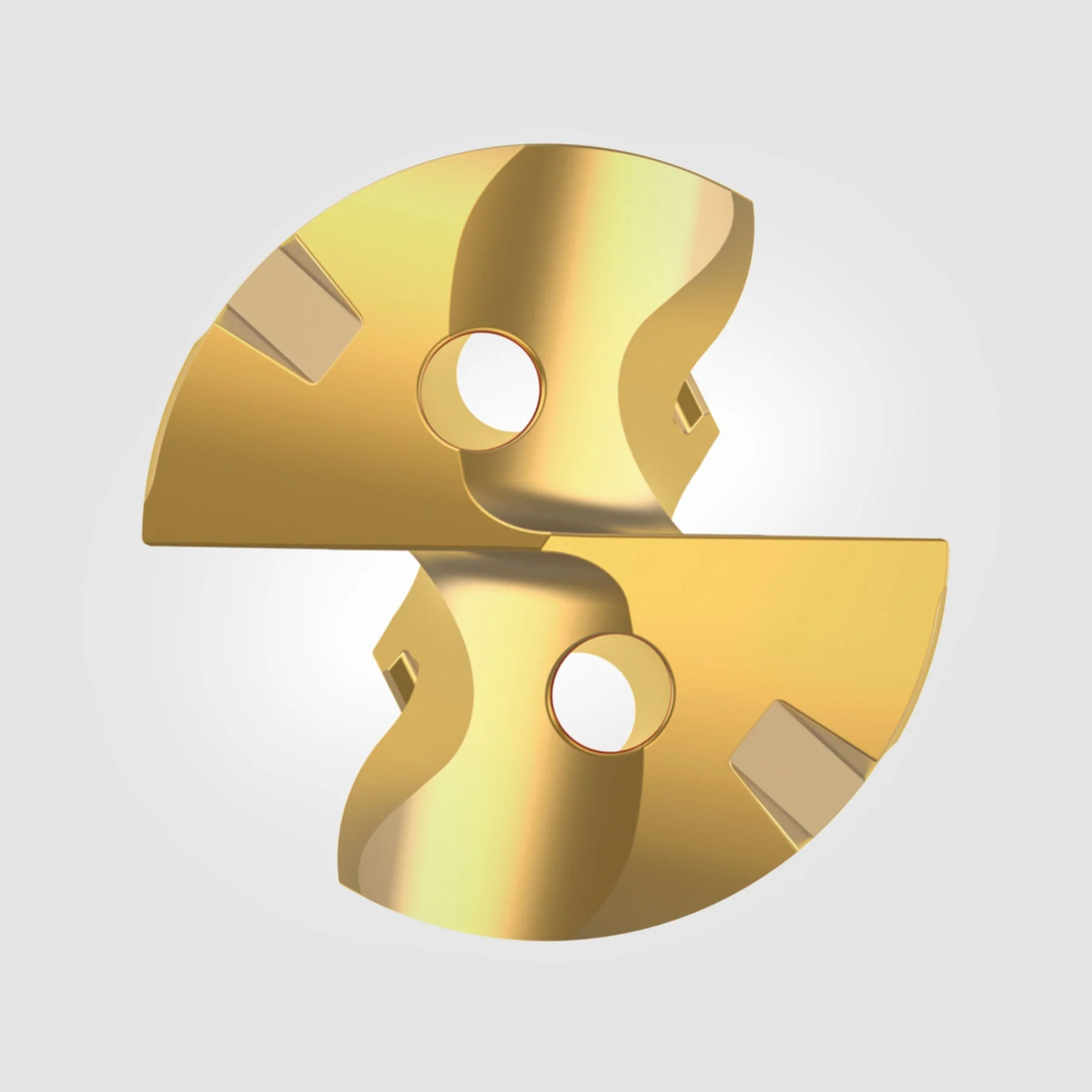

KTFS GTP Insert S-Size 14.500mm / .5709" 7005317

Product image 1
1 / 3

KTFS GTP Insert S-Size 14.500mm / .5709" 7005317

TITAN's Go-To Insert!
  • For universal applications in steels, stainless steel and cast iron.
  • Works as pilot drill point for deep-hole applications.

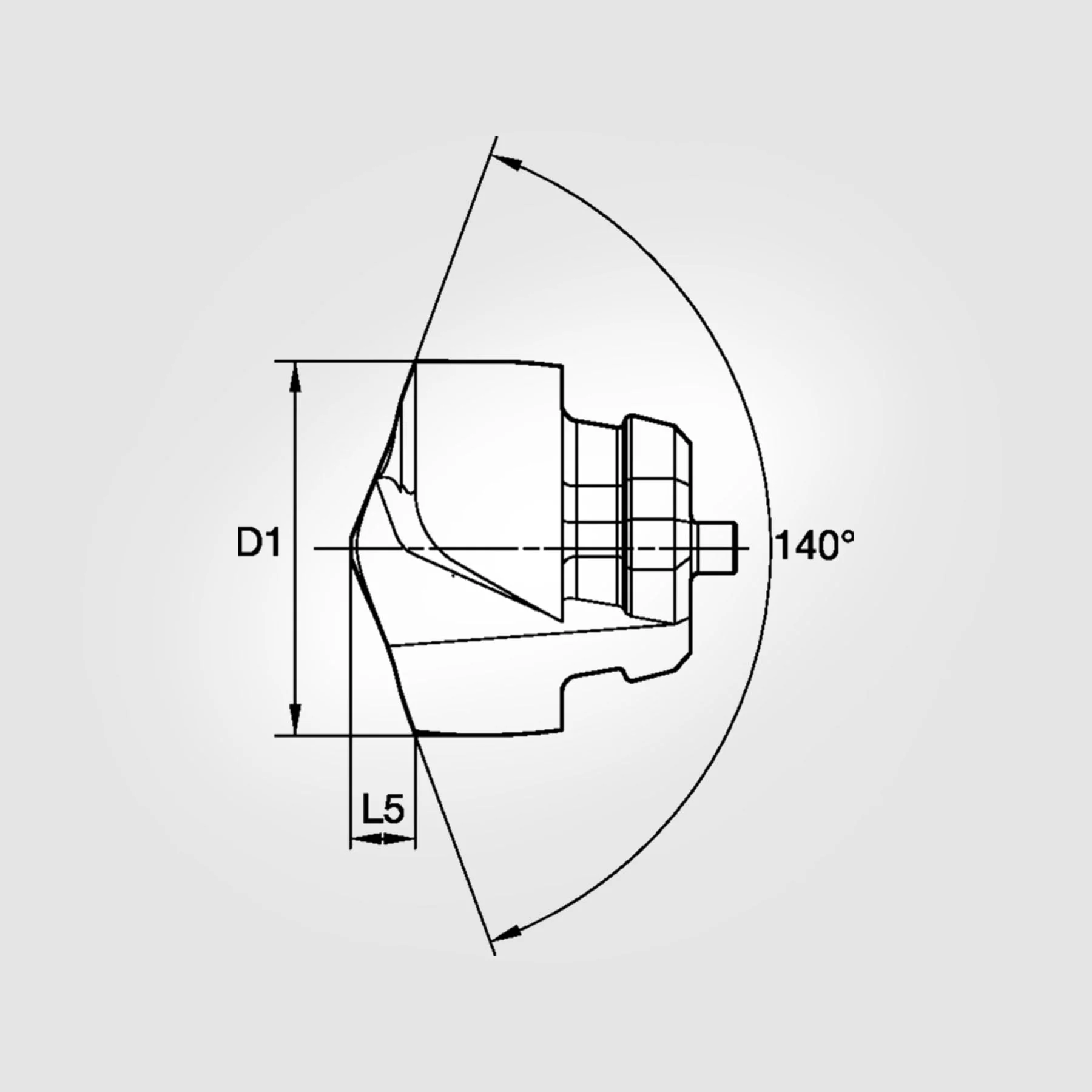

  • GOdrill geometry with 140° point angle.
  • Excellent centering capabilities and low axial forces.
Materials
  • Primary: Stainless Steel, Steel
  • Secondary: Cast Iron, High-Temp Alloys
Insert Data
  • Quantity: 1
  • Grade: KC7325
  • Material Type: FERT
  • Insert Size: S
  • Drill Diameter (Inch): 0.5709"
  • Drill Diameter (Metric): 14.500mm
  • Overall Length (Inch): 0.587"
  • Overall Length (Metric): 14.900mm
  • Drill Point Length (Inch): 0.093"
  • Drill Point Length (Metric): 2.360mm

Country of Origin is subject to change.

Safety data sheets upon request.

$123.32
KTFS GTP Insert S-Size 14.500mm / .5709" 7005317—
$123.32

Product Information

Shipping & Returns

Description

TITAN's Go-To Insert!
  • For universal applications in steels, stainless steel and cast iron.
  • Works as pilot drill point for deep-hole applications.
  • GOdrill geometry with 140° point angle.
  • Excellent centering capabilities and low axial forces.
Materials
  • Primary: Stainless Steel, Steel
  • Secondary: Cast Iron, High-Temp Alloys
Insert Data
  • Quantity: 1
  • Grade: KC7325
  • Material Type: FERT
  • Insert Size: S
  • Drill Diameter (Inch): 0.5709"
  • Drill Diameter (Metric): 14.500mm
  • Overall Length (Inch): 0.587"
  • Overall Length (Metric): 14.900mm
  • Drill Point Length (Inch): 0.093"
  • Drill Point Length (Metric): 2.360mm

Country of Origin is subject to change.

Safety data sheets upon request.
