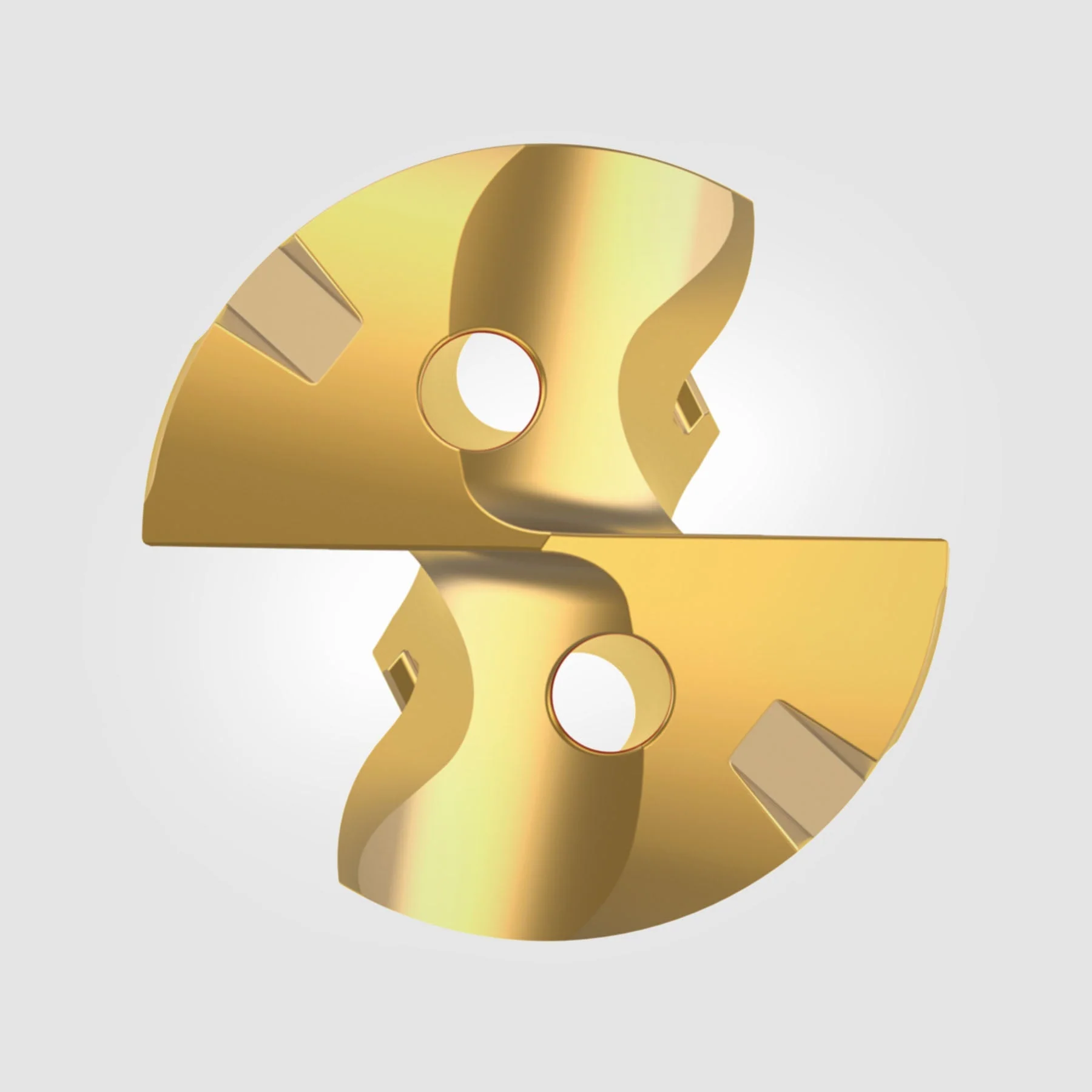

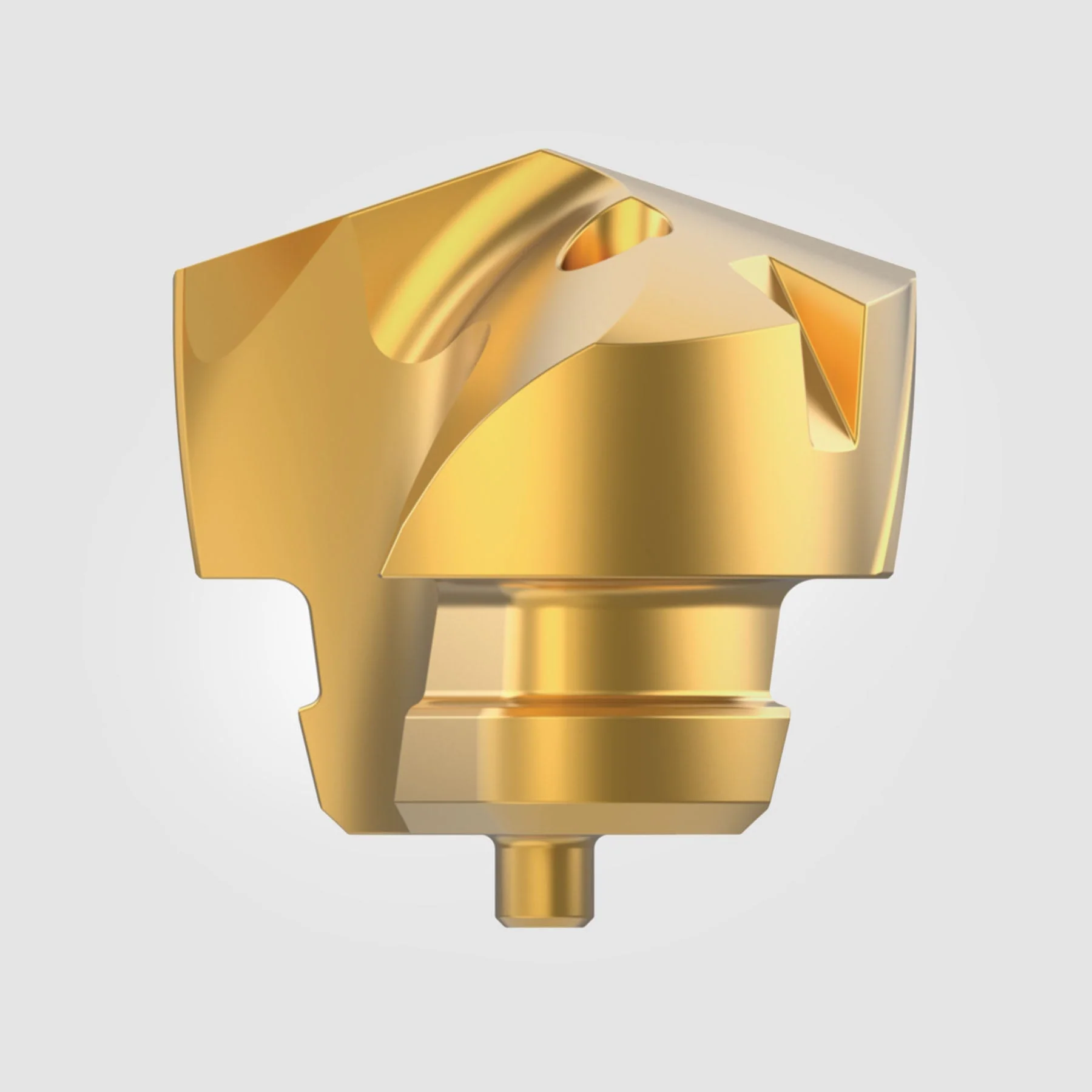

KTFS GTP Insert ZD-Size 25.400mm / 1.0000" 7002473
TITAN's Go-To Insert!
- For universal applications in steels, stainless steel and cast iron.
- Works as pilot drill point for deep-hole applications.

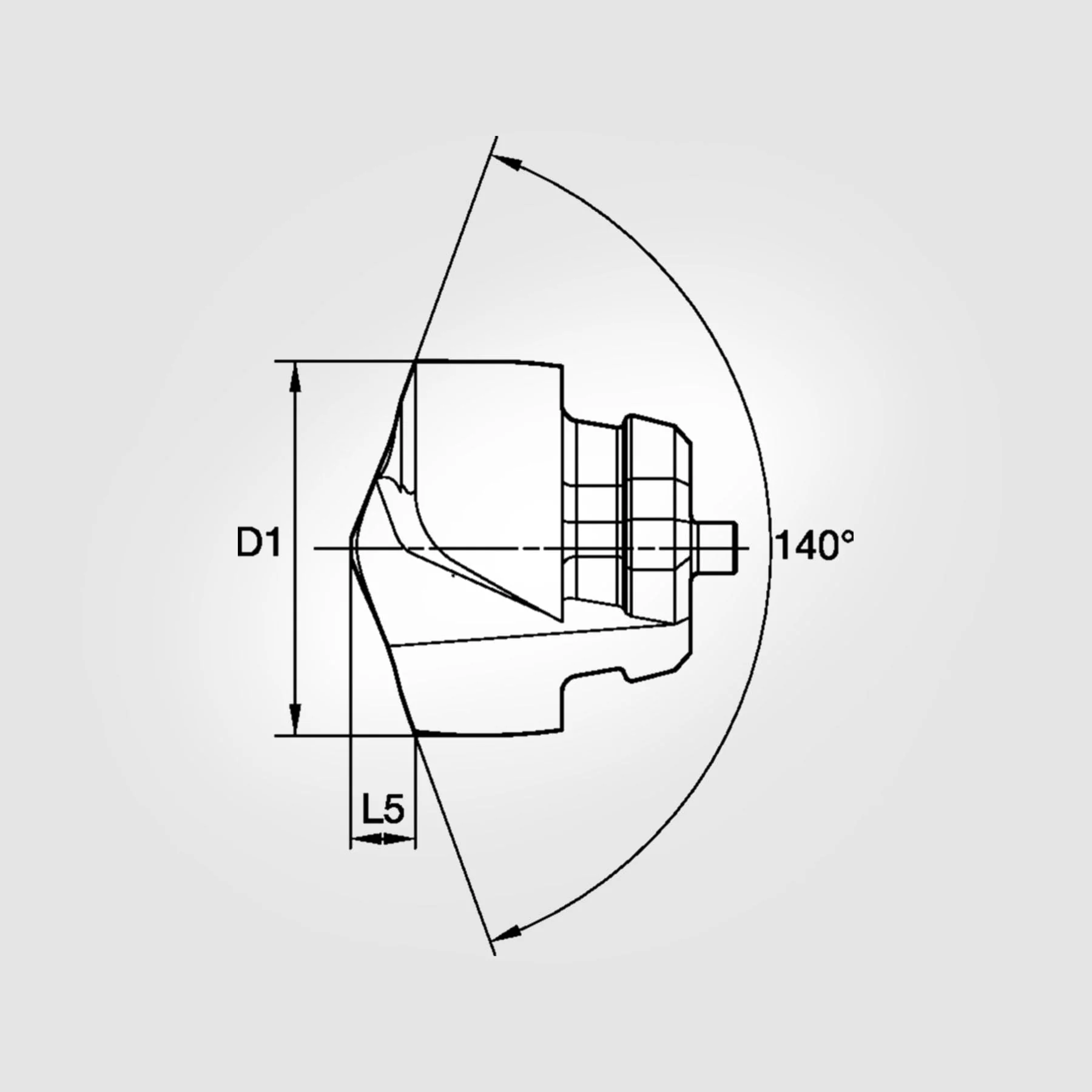

- GOdrill geometry with 140° point angle.
- Excellent centering capabilities and low axial forces.
- Primary: Stainless Steel, Steel
- Secondary: Cast Iron, High-Temp Alloys
- Quantity: 1
- Grade: KC7325
- Material Type: FERT
- Insert Size: ZD
- Drill Diameter (Inch): 1.0000"
- Drill Diameter (Metric): 25.400mm
- Overall Length (Inch): 1.008"
- Overall Length (Metric): 25.600mm
- Drill Point Length (Inch): 0.165"
- Drill Point Length (Metric): 4.190mm
Country of Origin is subject to change.
Safety data sheets upon request.
$68.10
Original: $194.57
-65%KTFS GTP Insert ZD-Size 25.400mm / 1.0000" 7002473—
$194.57
$68.10Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
TITAN's Go-To Insert!
- For universal applications in steels, stainless steel and cast iron.
- Works as pilot drill point for deep-hole applications.
- GOdrill geometry with 140° point angle.
- Excellent centering capabilities and low axial forces.
- Primary: Stainless Steel, Steel
- Secondary: Cast Iron, High-Temp Alloys
- Quantity: 1
- Grade: KC7325
- Material Type: FERT
- Insert Size: ZD
- Drill Diameter (Inch): 1.0000"
- Drill Diameter (Metric): 25.400mm
- Overall Length (Inch): 1.008"
- Overall Length (Metric): 25.600mm
- Drill Point Length (Inch): 0.165"
- Drill Point Length (Metric): 4.190mm
Country of Origin is subject to change.
Safety data sheets upon request.
