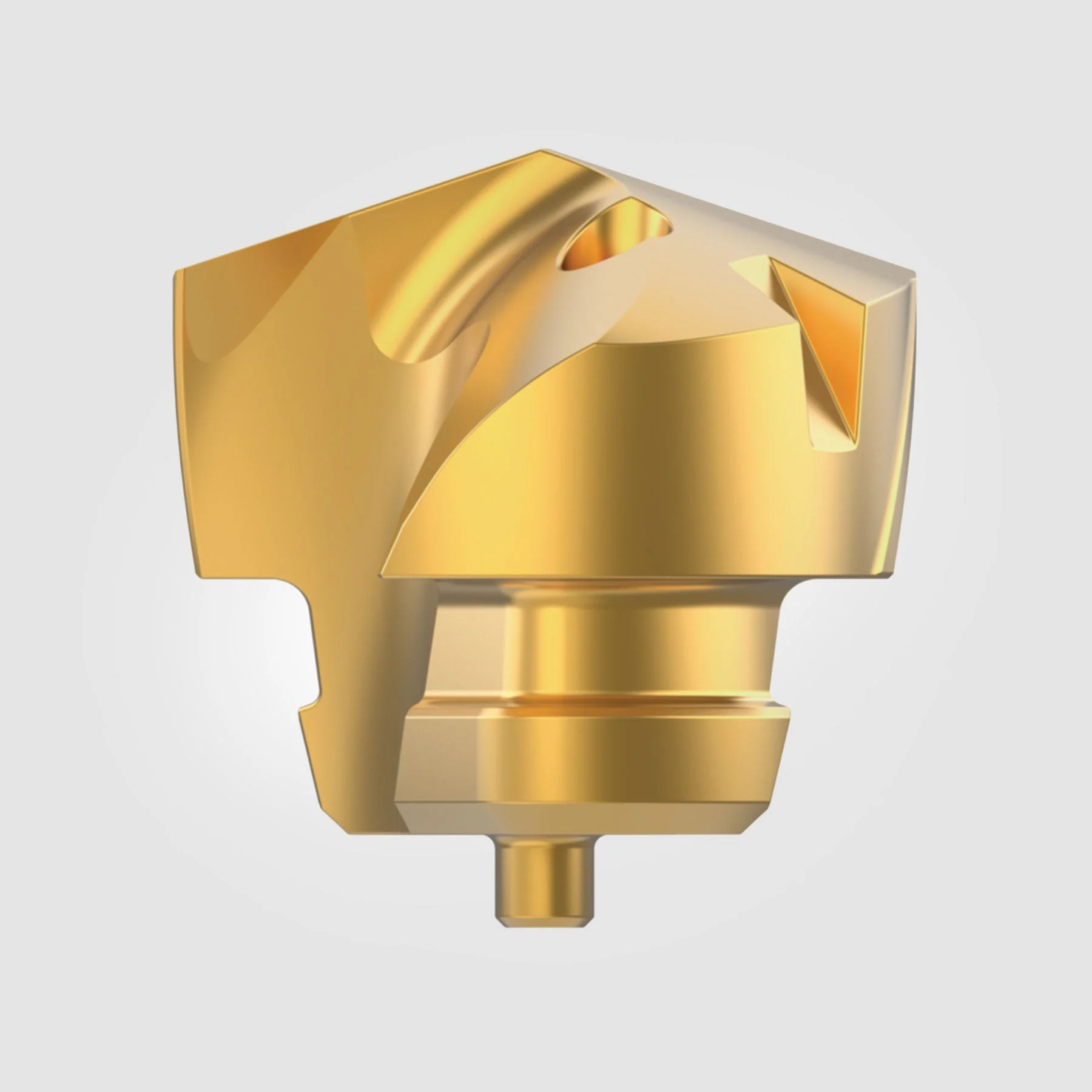

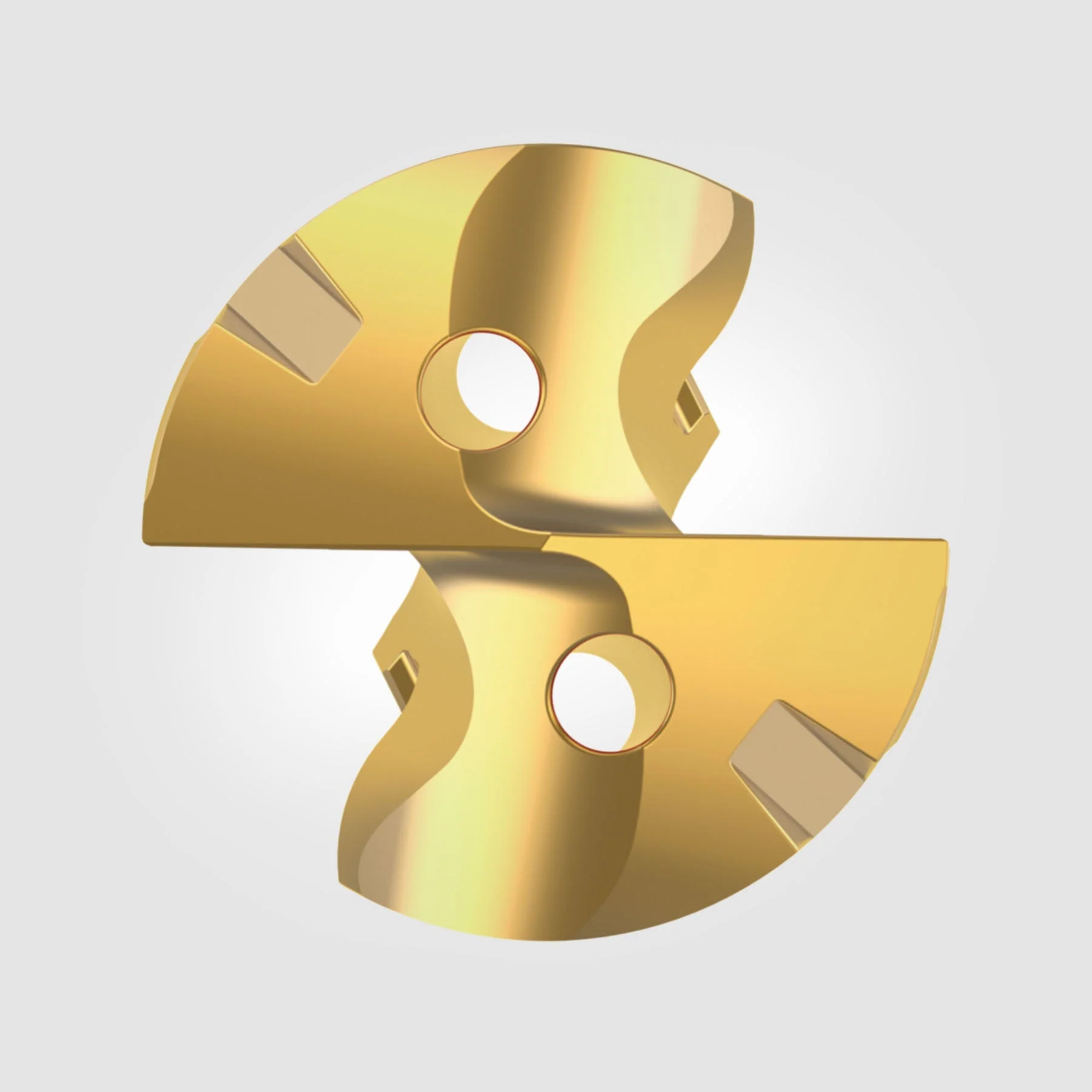

KTFS GTP Insert J-Size 10.300mm / .4055" 7002430

Product image 1
1 / 3

KTFS GTP Insert J-Size 10.300mm / .4055" 7002430

TITAN's Go-To Insert!
  • For universal applications in steels, stainless steel and cast iron.
  • Works as pilot drill point for deep-hole applications.

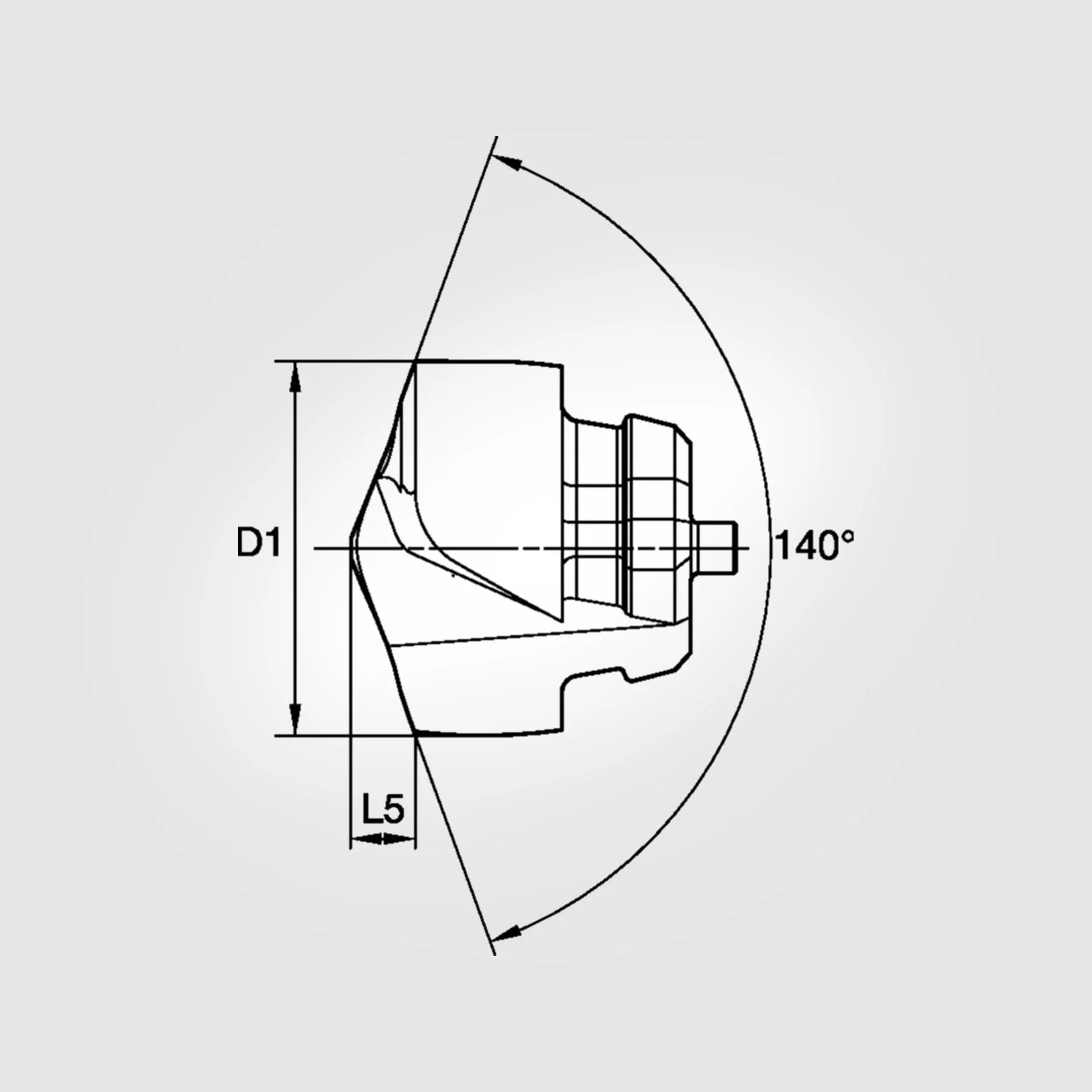

  • GOdrill geometry with 140° point angle.
  • Excellent centering capabilities and low axial forces.
Materials
  • Primary: Stainless Steel, Steel
  • Secondary: Cast Iron, High-Temp Alloys
Insert Data
  • Quantity: 1
  • Grade: KC7325
  • Material Type: FERT
  • Insert Size: J
  • Drill Diameter (Inch): 0.4055"
  • Drill Diameter (Metric): 10.300mm
  • Overall Length (Inch): 0.406"
  • Overall Length (Metric): 10.300mm
  • Drill Point Length (Inch): 0.065"
  • Drill Point Length (Metric): 1.660mm

Country of Origin is subject to change.

Safety data sheets upon request.

$111.46
KTFS GTP Insert J-Size 10.300mm / .4055" 7002430—
$111.46
